Tekkeon NavDock ND2000 User Manual

Home media center with on-tv navigation for ipod
Hide thumbs Also See for NavDock ND2000:
Table of Contents

Advertisement

Quick Links

Download this manual
ND2000 User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NavDock ND2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tekkeon NavDock ND2000

Summary of Contents for Tekkeon NavDock ND2000

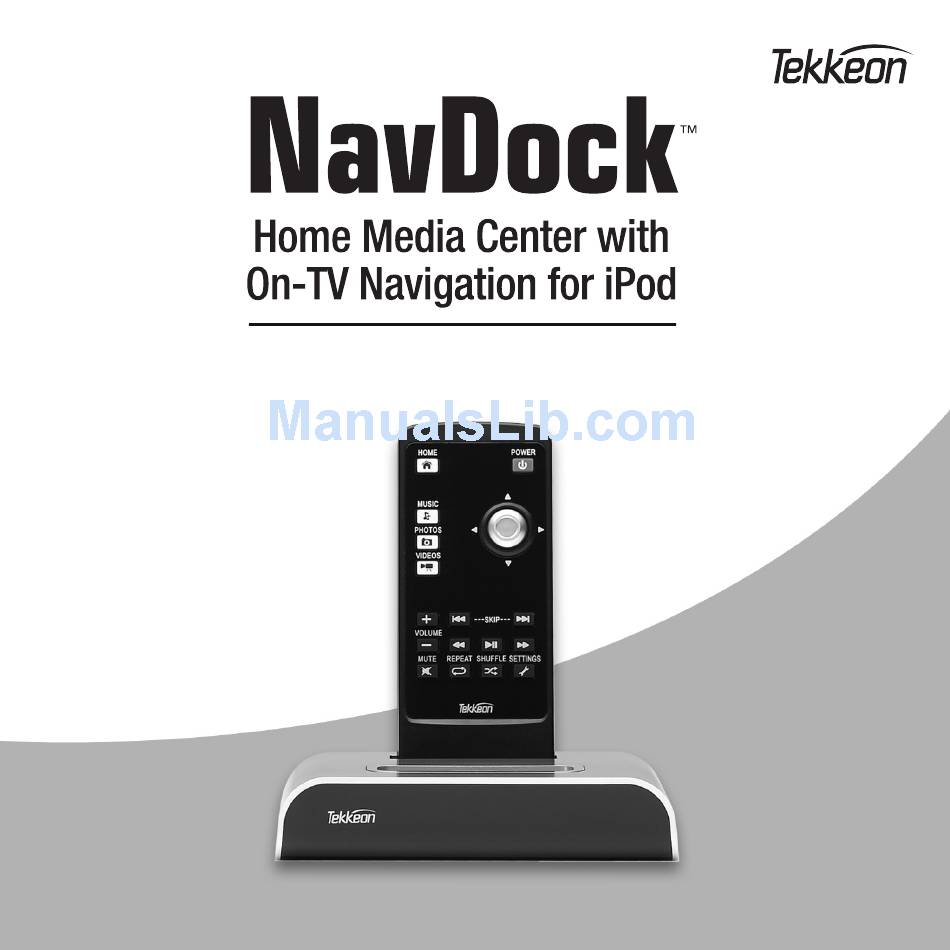

  • Page 1 ND2000 User Guide...

  • Page 3: Table Of Contents

    USER GUIDE Contents Overview ..............................2 Getting Started ............................2 Unpacking NavDock ........................2 Connecting NavDock........................3 Using NavDock ............................4 Using the Remote ..........................4 Turning on NavDock ........................5 Charging iPod ..........................5 Playing Music ..........................5 Displaying Lyrics..........................6 Viewing Photos ..........................7 Playing Videos ..........................8 Changing NavDock Settings ........................9 Screensaver ............................9 Color Scheme ..........................10 Album Art ............................11...

  • Page 4: Overview

    NavDock as these models do not support all of the NavDock features. These models can be used with NavDock with some limitations. Additional information about using iPhone or iPod touch with NavDock is available at www.tekkeon.com/ipodtouch. Getting Started NavDock...

  • Page 5: Connecting Navdock

    1. Connect NavDock to the TV using the provided AV cable (or an S-Video cable, which is available through the Tekkeon online store). 2. Ensure the NTSC/PAL switch on the back of NavDock is in the appropriate setting for your TV.

  • Page 6: Using Navdock

    Using NavDock Using the Remote PRESS Jump to the home page (main menu). Jump to the Music menu. Quick Jump to the Photos main page. Keys Jump to the Videos menu. Jump to the Settings menu. Turn on/off NavDock. Navigate through the menus using the directional arrows. Press the center to make a selection.

  • Page 7: Turning On Navdock

    Turning on NavDock 1. Turn on your TV and change the TV input to the appropriate mode. 2. Dock iPod into the universal dock adapter. 3. Press to turn on NavDock. The blue power light on NavDock will turn on, the iPod will turn on, and the NavDock loading screen will appear on the TV followed by the main menu.

  • Page 8: Displaying Lyrics

    Album Art Album art if included in the song’s audio file Song Time Elapsed time and remaining time for current song (progress bar) While you browse through the menus, music will continue to play until the song(s) is finished, or until you select another song, video or photos.

  • Page 9: Viewing Photos

    Viewing Photos VIEWING PHOTOS To view photos on a TV screen, you must set the TV Out iPod requires you to navigate from iPod to select photos. feature on iPod to “On” . The iPod software does not allow for the navigation of photos from an external dock. Therefore, you must browse and choose the photos from the iPod using the NavDock remote to view photos on your TV.

  • Page 10: Playing Videos

    Playing Videos 1. Select from the home page or press on the remote. Videos 2. Browse for a video, and click on the remote. The video will begin to play. 3. During video playback, you can use any of the following buttons on the remote: Jump to the home page.

  • Page 11: Changing Navdock Settings

    • View information/contacts for NavDock Screensaver You can choose from two screensaver modes: • Tekkeon logo, which appears in random locations on the screen. • Now Playing, which displays the album art of the currently playing song/video along with progress information.

  • Page 12: Color Scheme

    To Set the Screensaver Timer 1. Select Settings from the main menu or press on the remote. 2. Select Screensaver. 3. Select Timer. 4. Select seconds, 2, 5, minutes, or Never. Color Scheme You can select from four color schemes for the navigation menu and backdrop. As soon as you make a selection, the color scheme will change.

  • Page 13: Album Art

    Album Art If included with the song’s audio file, album art will automatically be displayed. If you have album art for many of your songs, you may wish to turn off album art while you are skipping songs as you will notice a delay while each album art loads.

  • Page 14: Auto Scroll

    Auto Scroll Upon start up, NavDock Auto Scroll is set to “Standard” speed which navigates through the menus one selection at a time. If you have a large library of files, you should change the Auto Scroll to “Fast” so that you can scroll ten titles at a time by holding down the up or down arrow keys.

  • Page 15: Equalizer (Eq)

    2. Select EQ. 3. Select an equalizer preset. The preset will be selected and you will return to the Settings menu. About NavDock You can view the software version, model number, copyright info, and Tekkeon address and contact information. 1. Select Settings from the main menu or press on the remote.

  • Page 16: Troubleshooting

    Troubleshooting Issue Solution The Blue LED does not turn on. 1. Ensure the included power adapter is connected. 2. Ensure the power outlet is providing power. NavDock is not responding. 1. Press to turn off NavDock. 2. Press the RESET button on the back of NavDock. 3.

  • Page 17: Limited Warranty

    The product enclosed herein is warranted to be free of operational defects for a period of one year from the date of purchase. In the event of a defect in operation during the warranty period Tekkeon, Inc. will replace the defective product when the owner returns all product contents. The limited warranty will be considered void if the unit is tampered with, subject to misuse, negligence or accidental damage, has been improperly serviced, or if the security seal is removed.

  • Page 18: Customer Support

    Customer Support Customer support for NavDock is available at: Tekkeon, Inc. c/o NavDock 3002 Dow Avenue, #134 Tustin, CA 92780 888-787-5888 / 714-832-1266 www.tekkeon.com Tekkeon, Inc. must issue a Return Merchandise Authorization (RMA) number for all exchanges or refunds.
  • Page 20 © 2007 Tekkeon, Inc. All Rights Reserved NavDock is a trademark ™ of Tekkeon, Inc. iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. Cut loose. Stay loose.
