Summary of Contents for Tekkeon myPower MP1100

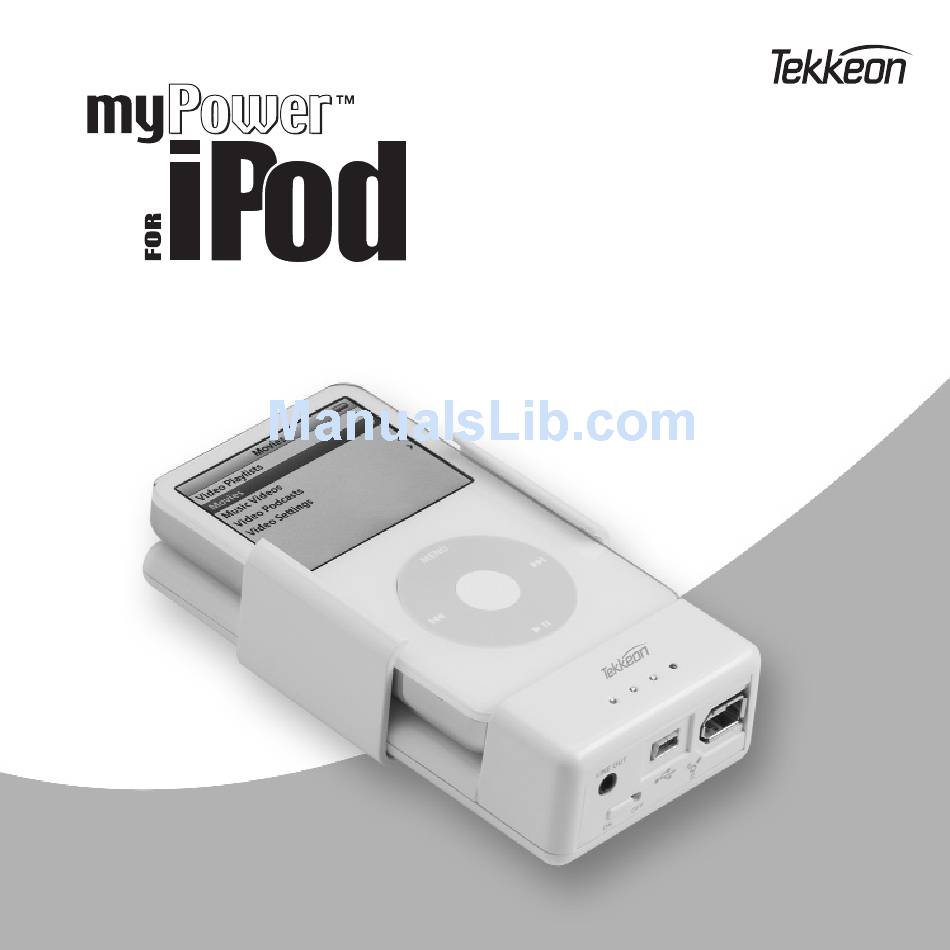

- Page 1 Rechargeable Battery and Dock MP1100/MP1140 User Guide...
-
Page 3: Table Of Contents
Placing iPod into myPower for iPod ...4 Powering iPod ...6 Charging iPod...7 Connecting myPower for iPod to a Computer...8 Playing Music on External Speakers/Stereo ...8 Optional Feature ...9 Charging a Mobile Phone...9 Troubleshooting ...10 Limited Warranty ...12 Customer Support ...13 MP1100... -
Page 4: Overview
Overview myPower for iPod combines the power of a rechargeable battery with the convenience of a portable dock. myPower for iPod significantly extends the play time on your iPod, so now you can enjoy non-stop music—even when your iPod battery has nothing left to give. -
Page 5: Charging Mypower For Ipod
FireWire power adapter (via the provided cable). A FireWire power adapter is included with MP1140. If you have purchased MP1100 and did not receive a FireWire adapter with your iPod, you can purchase the adapter from Apple or the Tekkeon web site. -
Page 6: Using Mypower For Ipod
Using myPower for iPod Placing iPod into myPower for iPod To place iPod (except iPod mini) into myPower for iPod, you must first adhere sizing pads that hold your specific model iPod into place. Two types of sizing pads are provided: round sizing pads for the back plate, and rectangular sizing pads for the arms. -
Page 7: User Guide
To adhere the rectangular sizing pads: 1. Peel the back of each sizing pad, and adhere it to the inside front curve of the arm (about 2mm from the front) as shown. To place iPod mini in myPower for iPod: 1. -
Page 8: Powering Ipod
When myPower for iPod is completely out of battery, the red light will turn off. At this point, you must charge myPower for iPod. MP1100 Extra Playback Hours Audio... -
Page 9: Charging Ipod
Charging iPod For your convenience, you can charge iPod at the same time you charge myPower for iPod. While you are charging myPower for iPod using the FireWire power adapter or a FireWire connection, you can leave iPod inserted into myPower for iPod and the charge will pass through from the power source. -
Page 10: Connecting Mypower For Ipod To A Computer
Connecting myPower for iPod to a Computer You can connect myPower for iPod to your computer to transfer and manage music, photos and videos on iPod. With any of the compatible iPods, you can download music via the USB 2.0 port. For iPod 3G/4G, iPod mini, and iPod photo, you also can download music via the FireWire port. -
Page 11: Optional Feature
5V. To do this, you will need the optional myPower for iPod USB charging cable and the appropriate adapter plug for your mobile phone or other device. You can obtain the optional USB charging cable and adapter plugs from Tekkeon at www.tekkeon.com/mpadapters or at 888-787-5888 or 1-714-832-1266. To charge your mobile phone, or other 5V device: 1. -
Page 12: Troubleshooting
Troubleshooting Issue myPower for iPod does not power iPod. myPower for iPod does not charge your mobile phone, or other 5V device. Solution 1.Check that iPod is inserted securely into myPower for iPod and that the myPower for iPod power switch is switched to On. 2.Check the capacity lights on the front of myPower for iPod to verify that myPower for iPod has enough capacity remaining as shown here: CAPACITY INFORMATION... - Page 13 Troubleshooting Issue myPower for iPod does not charge your mobile phone, or other 5V device. (continued) Nothing happens when iPod is connected to your computer. USER GUIDE (continued) Solution If the device polarity is center positive, match the positive symbol (+) on the selected adapter plug to the positive symbol on the power output cord and connect as shown in the top right figure.
-
Page 14: Limited Warranty
The product enclosed herein is warranted to be free of operational defects for a period of one year from the date of purchase. In the event of a defect in operation during the warranty period Tekkeon, Inc. will replace the defective product when the owner returns all product contents. -
Page 15: Customer Support
Customer Support If you product is in need of repair or replacement, please contact the Tekkeon Customer Support Center at: Tekkeon, Inc. c/o myPower for iPod 3002 Dow Avenue, #134 Tustin, CA 92780 888-787-5888 / 714-832-1266 www.tekkeon.com Tekkeon, Inc. will issue a Return Merchandise Authorization (RMA) number for all repairs or exchanges. - Page 16 © 2006 Tekkeon, Inc. All rights reserved. myPower for iPod is a trademark of Tekkeon, Inc. iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. Specifications are subject to change without notice. Revision C...
