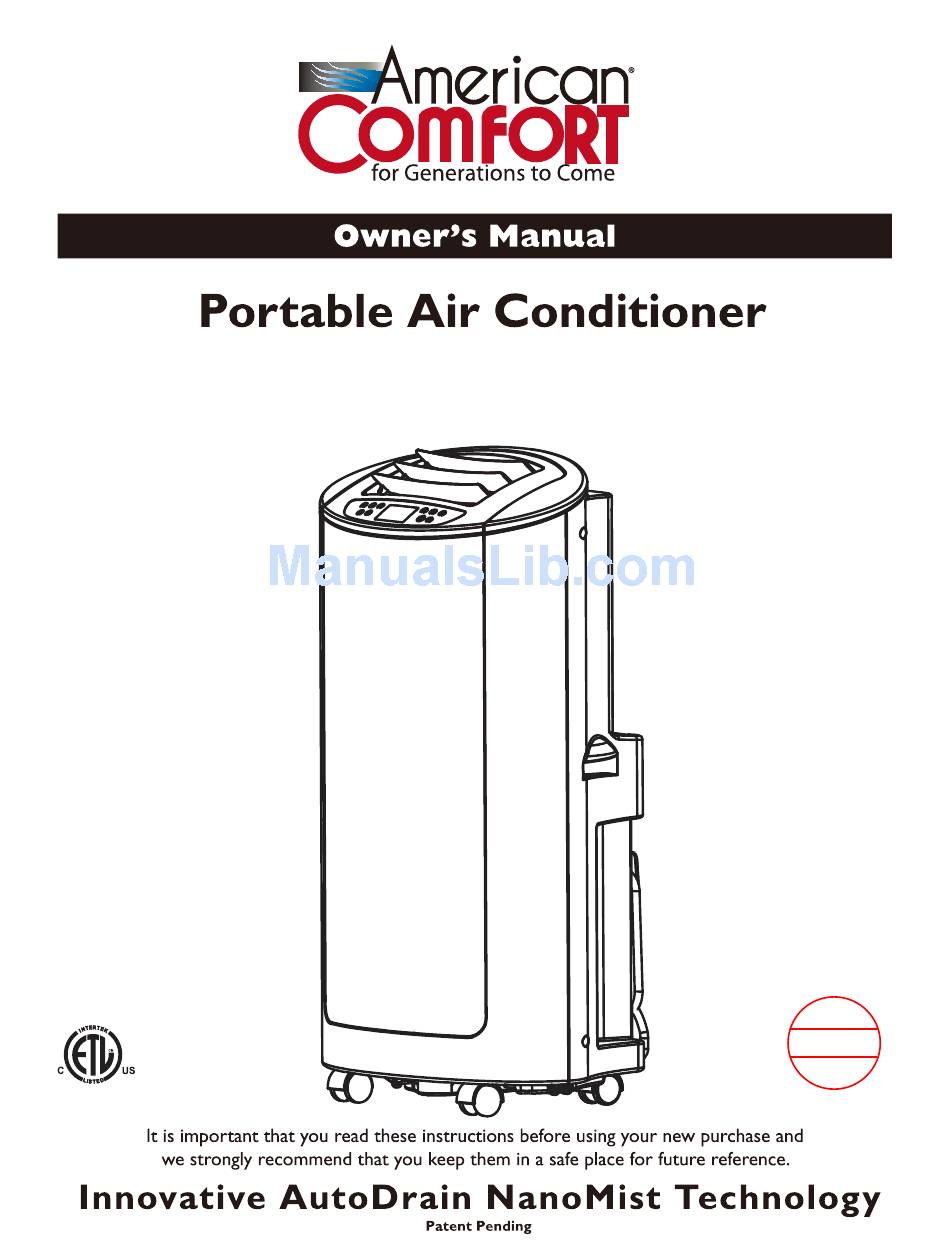

- Page 1 MODEL ACW613C...
-
Page 2: Table Of Contents
Table of Contents Thank You! ………………………………………………………………………1 Safety Instructions …………………………………………………………… 1-2 Specifications ……………………………………………………………………3 Parts ……………………………………………………………………………4 Positioning ………………………………………………………………………5 Control Panel ……………………………………………………………………6 Remote Control …………………………………………………………………7 Multi Protective Function ………………………………………………………8 Emptying the Water Container …………………………………………………9 Cleaning ……………………………………………………………………… 10 Troubleshooting ……………………………………………………………… 11 Warranty ……………………………………………………………………… 12... -
Page 3: Thank You
Thank You! Thank you for purchasing an American Comfort Portable Air Conditioner. American Comfort is a leading brand in indoor air treatment. We would like you to enjoy the many benefits this unit offers, so please read this manual carefully and take full advantage of the many advanced features that your American Comfort Portable Air Conditioner offers you. - Page 4 Safety Instructions Do not use your air conditioner: If the power cable wires When small children may On a slope or uneven Close to a heat source • • are frayed or cut be left unattended surface This products is not made If there is a risk of liquid Inside unit exposed to the In a permanent very humid...
- Page 5 1,300W/11.5A 58 pints/day 64-86 44-95...
-
Page 6: Parts
Parts Front Side Back Side Top Cover Outlet Control Upper Filter frame Panel Handle Exhaust Connector Front Cover Power Supply Cord Power Lower Cord Filter Frame Location Caster Plug Cap Rubber Plug Check packing a ccessories and read your user’s manual to learn how to use them. Remote Control Slide Bar... - Page 7 AutoDrain NanoMist Technology Assembly ™ Put spiral water Attach Window pipe into hot air Slide Bar exible hose. Connector to Exhaust Hose by twisting as shown. Turn the Connect the connector female half of the quick connector 90 degrees clockwise until it at the end of the is locked in place.
- Page 8 Positioning This unit can easily be moved from one room to another. In doing, so keep this in mind: • The air conditioner must stand upright on an even surface. • Do not position near bath, sink, or other permanent, wet or damp area. •...
- Page 9 Control Panel Timer Mode Display Area Swing Fan Speed Receptor When plug in, follow the start music, unit is in standby status. Digital screen will indicate temperature (Range: 41º-95ºF), if temperature above 95º, screen will show “H”, if below 41º, indicate “L”.
-
Page 10: Remote Control
Remote Control Power Mode Down Swing Sleeping Temperature Timer Mightiness Reset Keypad Lock POWER: Press this key to turn on/off the button. MODE: Press this key to choose cooling, dehumidifying, fan UP: Press this key to turn up temperature or adjust time. DOWN: Press this key to turn down temperature or adjust time. -
Page 11: Multi Protective Function
Multi Protective Function Freeze Prevention Control When the ambient temperature is very low under Cooling and Dehumidifying Mode, the compressor and water motor will stop working if the copper coil temperature Tp <2º after the compressor continued to work for 10 minutes, the LCD Display E4; when copper coil temperature will increase>8º, the protection will be dis-functioned automatically, and restore to foregoing mode for Compressor Three-minutes Delay protection function. -
Page 12: Emptying The Water Container
Emptying the Water Container In case of the W (W.F.) LED alert, the unit is required to be ATER drained. At the end of AC Season, this unit should be drained prior to storage. In both situations, we recommend that you take the following steps. -
Page 13: Cleaning
Cleaning Always unplug the unit from the power supply (wall outlet) before beginning the cleaning. Housing Use a soft, damp cloth to wipe the body clean. Never use strong chemicals, oil-based products, detergents, chemically treated cloths or other cleaning solutions. These could possibly damage the housing. Filter ·... -
Page 14: Troubleshooting
Troubleshooting Never try to repair or dismantle the air condition yourself. Incompetent repairs result in loss of warranty and can endanger the user and the property. Solution Problem Cause No power supply. Make sure the Connect to a functioning outlet and switch on. The air green light on the plug is lit. -
Page 15: Warranty
This warranty covers only new products purchased from our authorized dealers or retailers. It does not cover used, salvaged, or refurbished products. To obtain warranty service, the defective product or part must be shipped or delivered to: American Comfort World- wide, the Manufacturer. If warranty applies under ACW’s approved terms, all Shipping charges and insurance are covered by purchaser.
Need help?
Do you have a question about the ACW613C and is the answer not in the manual?
Questions and answers
? Hose Replacement size plz
The hose for the American Comfort ACW613C can be extended from 10.63 inches to 59 inches. Do not use a different or extended hose, as this may cause malfunction.
This answer is automatically generated
Are parts available for the ACW613C model - Spiral Water Pipe with Connector, drain plug, and an offset slide bar connector?
The manual lists the spiral water pipe with connector and the slide bar with connector as included parts. It also references a rubber plug (which may refer to a drain plug). Therefore, these parts are included with the American Comfort ACW613C model.
This answer is automatically generated
Where can i buy a new blower wheel for an acw613c unit

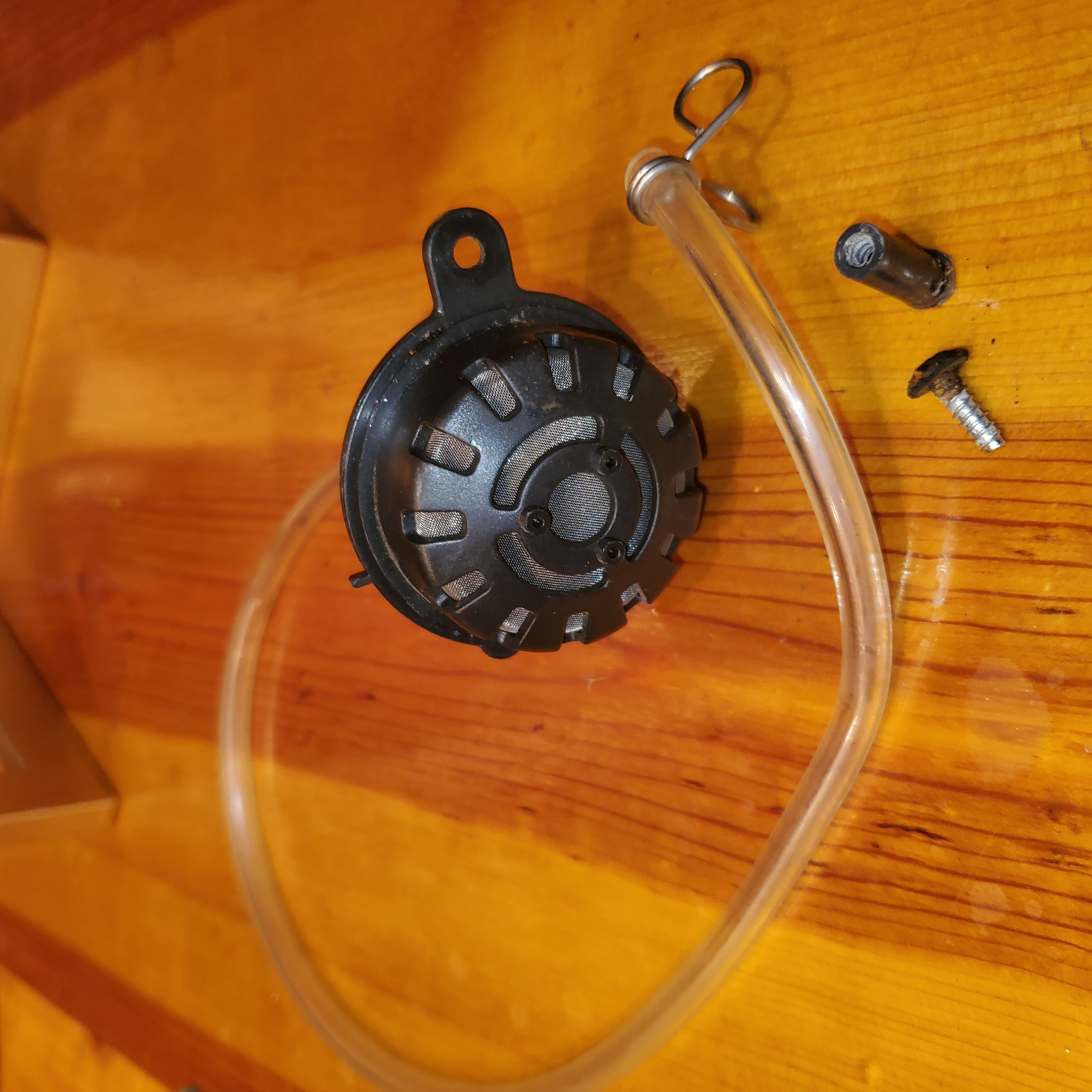

I am looking for a part that I cannot identify. My American comfort air conditioning model-number ACW613C leaks water. I open the the unit and find this part broke off...
