Colorado time systems MS-0043 User Manual

Multisport deck clock
Hide thumbs

Advertisement

Table of Contents

User Guide
F985 Rev. 201505
Deck Clock
Customer Service Department
www.coloradotime.com
Email: customerservice@coloradotime.com
Phone: +1 970-667-1000
Toll Free U.S. /Canada 800-287-0653
Fax: +1 970-667-1032

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-0043 and is the answer not in the manual?

Questions and answers

Related Manuals for Colorado time systems MS-0043

Summary of Contents for Colorado time systems MS-0043

  • Page 1 Deck Clock User Guide F985 Rev. 201505 Customer Service Department www.coloradotime.com Email: customerservice@coloradotime.com Phone: +1 970-667-1000 Toll Free U.S. /Canada 800-287-0653 Fax: +1 970-667-1032...
  • Page 2 Please check our website for the most current information; our user manuals are available online in the customer service section of our website. Part Number F985, Rev. 201505 ©2015 Colorado Time Systems. All rights reserved.

  • Page 3: Table Of Contents

    Contents Deck Clock ......................1 Product Overview ......................1 Prior to First Use ......................1 Operating Instructions ..................... 2 Synchronizing clocks ....................2 Set time, digit intensity and module, channel and PAN ..........2 Batteries ........................4 Displaying Data on the Clock ..................4 Tabletop controller ....................

  • Page 5: Deck Clock

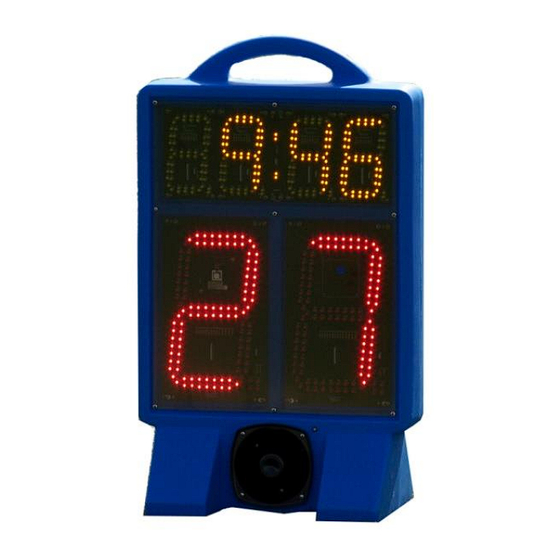

    Product Overview Deck clocks feature a sturdy, ruggedized polyethylene indoor/outdoor enclosure that is water and sun resistant, and corrosion free. The portable clocks have batteries, battery charging circuits and low battery/charging indicators. An ambient light sensor detects external light and shadows and adjusts the brightness of the digits for optimal intensity. The built-in handle allows for easy carrying from point to point.

  • Page 6: Operating Instructions

    Operating Instructions In order to receive data from a wireless controller, a clock must be set to the same Channel and PAN as the controller. Additionally, the clock’s Module number must be selected as active in the appropriate menu of the controller (see controller manual for more information.) If two or more clocks/scoreboards are set to have the same Channel, PAN, and Module, they will show the same data.
  • Page 7 Menu 1: 12 or 24 hour clock format The 5-inch digits display __ 12 and alternate to __ 24 with each button click. This must be set individually for each clock. When the choice you want is displayed, press and hold the button for one second to advance to the next menu.

  • Page 8: Batteries

    Exit the menu holding the push button for one second after the module address is set. The clock will display the time of day that you have set. The settings you have chosen are not saved until you exit the menu. Batteries When used indoors and away from water, the clock can be run either on battery or AC power.

  • Page 9: Handheld Controller

    Handheld controller Follow the instructions in the handheld controller manual to set the handheld controller to the same channel, PAN and module as the clock you want to control with it. The clock will display game time and shot time as sent from the controller. Follow the general instructions for all sports.

  • Page 10: Replacing Batteries

    Powersonic PS1270 UL recognized (MH20845) gel cell batteries. The deck clocks take 2 batteries, which should both be replaced at the same time. These are available from Colorado Time Systems (part number R-420-003). Tool required: #2 Phillips head screwdriver 1.
  • Page 11 8. Leave the clock unplugged from AC power. Turn on the clock with the power switch, and verify that the digits light. Turn off the clock. 9. Repeat steps 3-8 for second battery. 10. Replace battery covers. 11. Properly dispose of the spent batteries. 12.

  • Page 12: Standards Followed

    Standards followed UL 48 Issue:2011/09/02 Ed:15 Rev:2012/05/04 UL Standard for Safety Electric Signs CAN/CSA C22.2#207 Issue:1989/01/01 Portable and Stationary Electric Signs and Displays General Instruction No 1: 1989/10/01 - (R2008) FCC 47CFR 15B clB Issued:2011/04/21 Title 47 CFR Part 15 Subpart B Unintentional Radiators Class A Verification ICES 003 Issue:2004/01/01 Issue No.4 Interference-Causing Equipment Standard, Digital Apparatus 8 Deck Clock...
  • Page 13 European Declaration of Conformity European Declaration of Conformity Everlast Climbing Industries, Inc. Everlast Climbing Industries, Inc. DBA Colorado Time Systems DBA Colorado Time Systems 1551 E 11 Street Loveland, CO 80537, USA Loveland, CO 80537, USA ++1 970 667 1000 www.coloradotime.com...
  • Page 14 Customer Service Department www.coloradotime.com Email: customerservice@coloradotime.com Phone: 970-667-1000 Toll Free U.S. and Canada 800-287-0653 Fax: 970-667-1032...

This manual is also suitable for:

Ms-0044Ms-0045
