Digital Photo Frame Operation Manual
Model NO.:SDPF787

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDPF787 and is the answer not in the manual?

Questions and answers

Related Manuals for Sylvania SDPF787

Summary of Contents for Sylvania SDPF787

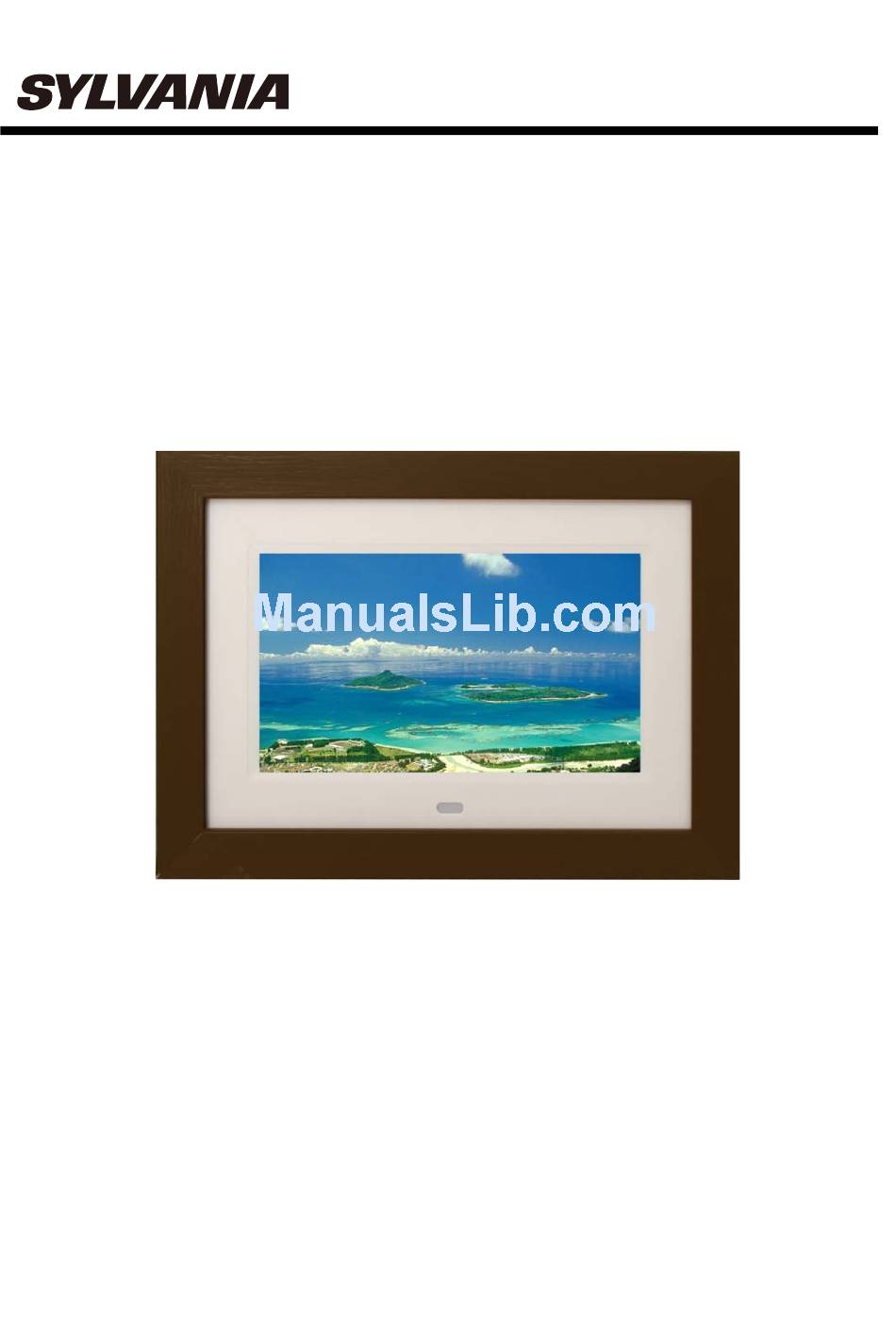

  • Page 1 Digital Photo Frame Operation Manual Model NO.:SDPF787...

  • Page 2: Table Of Contents

    Contents Important Safety Precautions……………………………………………………………………… 3 1. Performance……………………………………………………………………………… ..….. 5 2. Product Appearance……………………………………………………………………………. 5 3. Package Contents………………………………………………………………………………. 6 4. Function of Host Computer……………………………………………………………………. 7 4.1 ON/OFF…………………………………………………………………………………….. 7 4.2 Memory/USB/SD card……………………………………………………………………… 7 4.3 Function mode………………………………………………………………………………. 8 4.4 PHOTO mode……………………………………………………………………………….. 8 4.5 CALENDAR mode…………………………………………………………………………..9 4.6 SETUP interface…………………………………………………………………………….10 4.7 System setup………………………………………………………………………………...11 5.

  • Page 3: Important Safety Precautions

    Important Safety Precautions 1. Please read the operation manual. 2. Please keep the operation manual. 3. Please pay attention to cautions. 4. Please follow the operation manual. 5. Please don’t use this device near water source. Warning: to reduce the risk of fire or electric shock, please don't expose the device into rain or moisture environment.
  • Page 4 10. Please pull out power socket if the device is left unused for long time. 11. Please refer to manufacturer’s instructions of color LCD: the color LCD is allowed to have 0.01% of pixel defect. If the defect is found during use, please kindly understand. Statement Our company reserves all rights for final explanation of alteration of the operation manual.

  • Page 5: Performance

    1. Performance 7 inch TFT screen resolution 480 * 234 pixels Support the JPEG format picture Support USB and the memory cards such as SD MMC MS Simple humanized interface A variety of picture play effect picture, has the slide automatic playback function 2.

  • Page 6: Package Contents

    3. Package Contents Digital Photo Frame+ Bracket 1PCS User’s Manual 1PCS DC 5V/1.0A Power Adapter 1PCS Digital Photo Frame+ Bracket User’s Manual DC 5V/1.0A Power Adapter...

  • Page 7: Function Of Host Computer

    4. Function of Host Computer 4.1 ON/OFF * Startup: power on the device to enter boot screen and then into main menu. DIGITAL PHOTO FRAME * Shutdown: press for three seconds to shut down the device. 4.2 Memory/USB/SD card In this mode, press the key to select the memory device (including memory).

  • Page 8: Function Mode

    4.3 Function mode There are 3 function options in this mode, i.e. PHOTO, CALENDAR and SETUP. After selection, press ENTER to enter the corresponding functional operation. Press menu to return to the mode “Select Card”. 4.4 PHOTO mode 1. Press the key to preview six pictures, as shown in the figure.

  • Page 9: Calendar Mode

    * At the time of full-screen browsing, press MENU for 3s to realize operation of picture, as shown in the figure. * Save picture: Press to save picture into local memory (note: only 5-6 pictures can be saved into local memory due to limited memory.

  • Page 10: Setup Interface

    * Press to enter calendar time display. Press the key to view the information of previous and future calendar. 4.6 SETUP interface 1. Press to enter menu setup. 2. Press to select setup item; press to set sub-items of selected item. 3.

  • Page 11: System Setup

    4.7 System setup Language: OSD language setting. Press to select this option and set the mode of slide play. Press to set sub-items (including English, French, Italian, German, Spanish, Portuguese, Swedish and Dutch). After selection, press the key to confirm it. Then, press MENU to exit. Slide mode: used to set the mode of slide play.
  • Page 12 Slide Speed: set the slide play speed. Press to select this option and set the play speed of slide. Press to set sub-items (minimum 3 ). After selection, press the key to c seconds; maximum 1 hour onfirm it. Then, press MENU to exit. Photo effect: used to set photo effect.
  • Page 13 Surround, Fade, Right refresh, Next refresh, On pan, Roll from Down To Up, Roll from Up To Down Brick ). After selection, press the key PLAY to confirm it. Then, press MENU to exit. Photo mode: used to set photo mode. Press to select this option and set photo mode.
  • Page 14 Display: used to set displayer. Press to select this option and set displayer. Press to set sub-items (3 adjustable display effects: After selection, press the key to c Contrast, Brightness, Saturation and Tint). onfirm it and to adjust proper value. Then, press MENU to exit. Set Time/date: used to set time/date.
  • Page 15 Set time format: used to set time zone. Press to select this option and set time zone. Press to enter sub-item setting. Press set sub-item into 12 hours or 24 hours. Reset setting: used to set default value. Press to select this option and set the default value of all options. Press to enter sub-items setting NO and YES.

  • Page 16: Fault Diagnosis

    5. Fault Diagnosis Fault Reference Solutions Unable to boot Check whether the power adaptor is connected well. Unable to display picture Check whether the file format is supported by this device. Check whether there is file in memory card or U disk. Picture not clear The resolution of picture is too low.

  • Page 17: Technical Parameters

    6. Technical Parameters Type of display screen 7inch TFT LCD screen Resolution of display screen 480*234 pixel USB interface USB HOST (compatible with USB2.0 and USB1.1) Picture format JPEG Type of memory card SD/MMC/MS Capacity of memory card SD CARD 8G USB flash memory capacity Maximum 8G Power adaptor...
