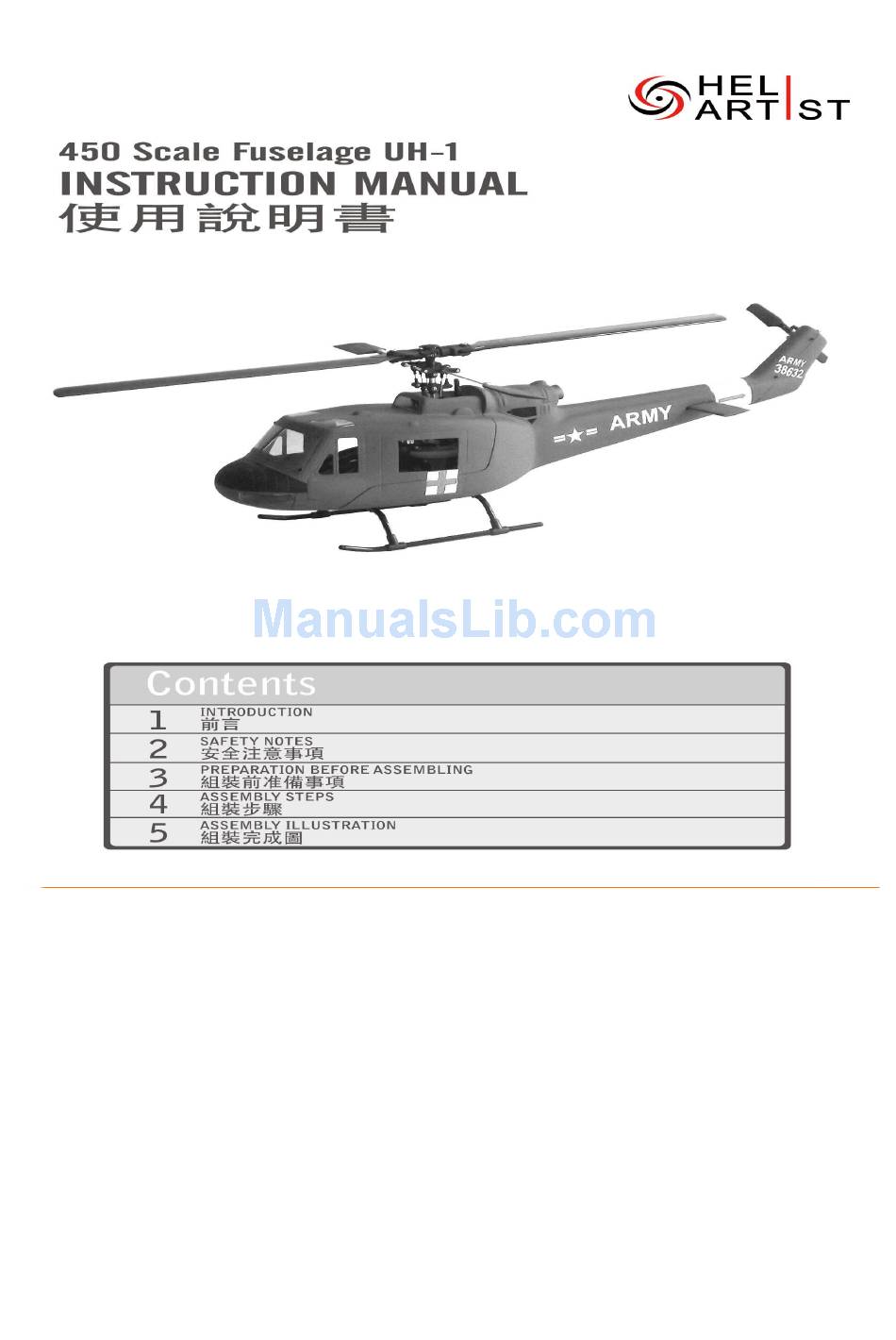

HellArtist UH-1 Instruction Manual

450 scale fuselage
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the UH-1 and is the answer not in the manual?

Questions and answers

Related Manuals for HellArtist UH-1

Summary of Contents for HellArtist UH-1

  • Page 2: Important Notes

    Thank you for buying HeliArtist Products.450 scale fuselage is designed as an easy way to assembly. Please read  this instruction manual carefully before assembling the model,and follow all precautions and recommendations in  the manual.Make sure to retain the manual for future reference,routine maintenance,and tuning.This scale  fuselage is designed for T­REX 450 Helicopter series.You can easily put it on your T­REX 450 for new clothing. IMPORTANT NOTES    R/C helicopters are not toys.R/C helicopter utilize various high­tech products and technologies to provide  superior performance.Improper use of this product can result in serious injury or even death.Please read this  manual carefully before using and make sure to be conscious of your personal safety and the safety of others and  your environment when operating all HeliArtist products. Manufacturer and seller assume no liability for the operation or the use of this product.Intended usage of this  fuselage is only for adults with experience of flying remote control helicopters at legal flying field.After the sale of  this product we cannot maintain any control over its operation or usage. After assembling the scale fuselage,the weight will increase and the structure will become more complex,so we do  not recommmend to have any 3D fly as to avoid any accident and damage. R/C products require a certain degree of skill to operate,and is a consumables item.Any damage or dissatisfaction  as a result of accidents or modifications are not covered by any warranty and cannot be returned for repair or  experience problems during operation or maintenance.

  • Page 3: Before Assembling

    Fly only in safe areas,away from other people.Do not operate R/C aircraft within the vicinity of homes or crowds of  people.R/C aircraft are prone to accidents,failures,and crashes due to a variety of reasons including lack of  maintenance,pilot error,and radio interference.Pilots are responsible for their actions and damage or injury  happened during the operation or as a result of R/C aircraft models. 450 scale fuselge,suitable for T-REX450 Helicopter series with belt drive tail system TOOL 1:Cutter knife. 2:Hexagon screw driver 3:Phillips screw driver. 4:File. BEFORE ASSEMBLING: 5:Diagonal cutting pliers.6:Silicone 7:CA glue. 8:AB glue(epoxy) 9:Fine sandpaper. 10:Scissors. 1:Check for all parts in the part list shown at bellow. 2:Some basic tools are needed to help the assembly.
  • Page 4 Tighten the Aluminum Landing Gear to the bottom of Insert the Landing Gear Mounts to the Aluminum the fuselage using four 2x14mm Self-Tapping Screws Landing Gear. and 2x5mm Washers. Assemble the Aluminum Skids to the Landing Gear Disassembling the Tail Boom and Tail Gear Box of the Heli and secure them by CA glue.
  • Page 5 Glue the wood blocks to the landing gear position of the Glue the wood pieces together according to the above Heli Assembly using CA glue. photo.(Remarks: the hight of the wood block is depend on what heli you use.) Reinstall the M2 screw which is took off in the previous step Insert the Heli assembly into the fuselage.(Remarks: loosen and take off one M2 screw from the Scorpion back to the Scorpion Tail Gear Box and tighten it now.

  • Page 6: End Of Manual

    Align the Landing Gear positions of the Heli to the fuselage Align the front window cover to the fuselage and drill bottom plate and mark these four positions and drill four 2mm four 1mm holes on the four corners. Then use 2x5mm holes.
