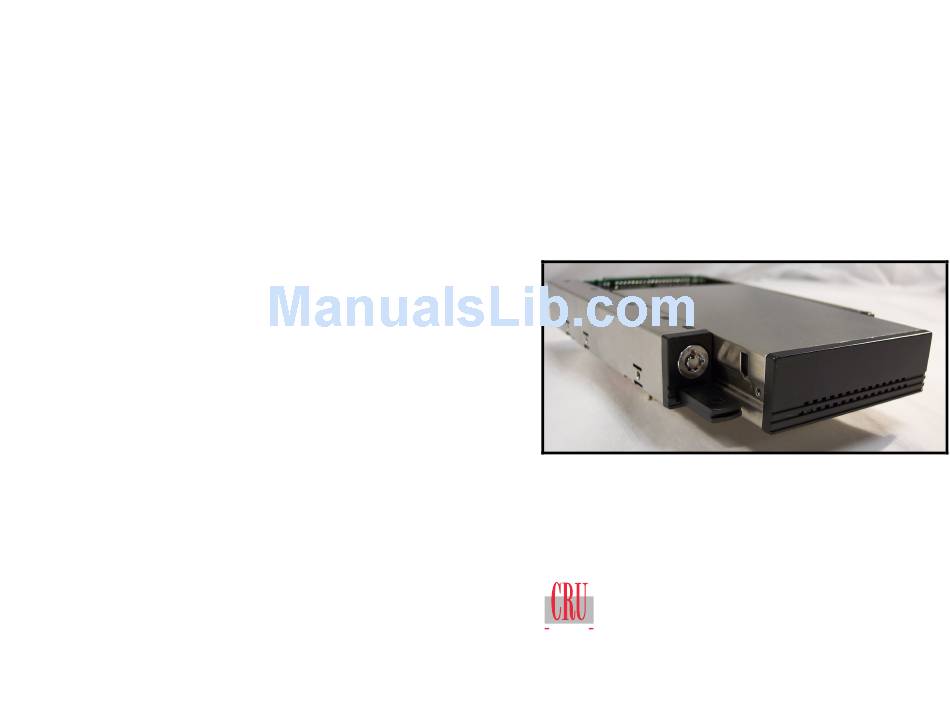

- Page 1 DataPort 25 Manual www.CRU-DataPort.com DataPort “...
-
Page 2: Table Of Contents
Data Security, and the recognized name when it comes to removable storage modules for government, education and General Configuration/Operation Information ..........1 corporate IT departments. DataPorts are rated for 25,000 insertions IDE operation..................1 and include fans to protect your disk drive. -
Page 3: General Description

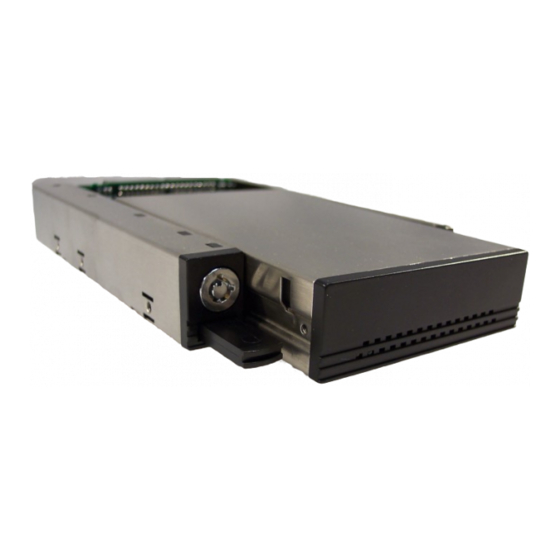

Keys for lock General Configuration/Operation Information The DataPort™ 25 IDE carrier can be configured with either one or two IDE or Serial ATA 2.5" drives that can be easily removed from the computer. The universal frame will accept either an IDE or a Serial ATA carrier and with the proper cabling can provide access to those drives by the OS. -
Page 4: Serial Ata Operation
DataPort 25. When multiple IDE drives are used, they have to be jumpered such that there is one drive as a master and one drive as a slave. Since both drives are off the same cable connector, jumpering as cable select is NOT supported. -
Page 5: Frame Installation
Hard Drive Activity LED the frame. The mounting rails should be provided with your The front of the DataPort 25 has two LEDs: a green LED that lights up computer system. when the power to the hard drive is on, and an amber LED that lights Mount the frame assembly by sliding the frame into the 3.5"... -
Page 6: Limited Product Warranty
Limited Product Warranty CRU-DataPort warrants the DataPort 25 to be free of significant defects in material and workmanship for a period of three (3) years from the original date of purchase. CRU-DataPort’s warranty is nontransferable and is limited to the original purchaser.
