Display Data Channel (DDC)

To make installation easier, so long as your system supports the DDC protocol,
the monitor is able to plug-and-play. The DDC is a communication protocol
through which the monitor automatically informs the host system about its
capabilities; for example, supported resolutions and corresponding timing. The
monitor supports the DDC2B standard.

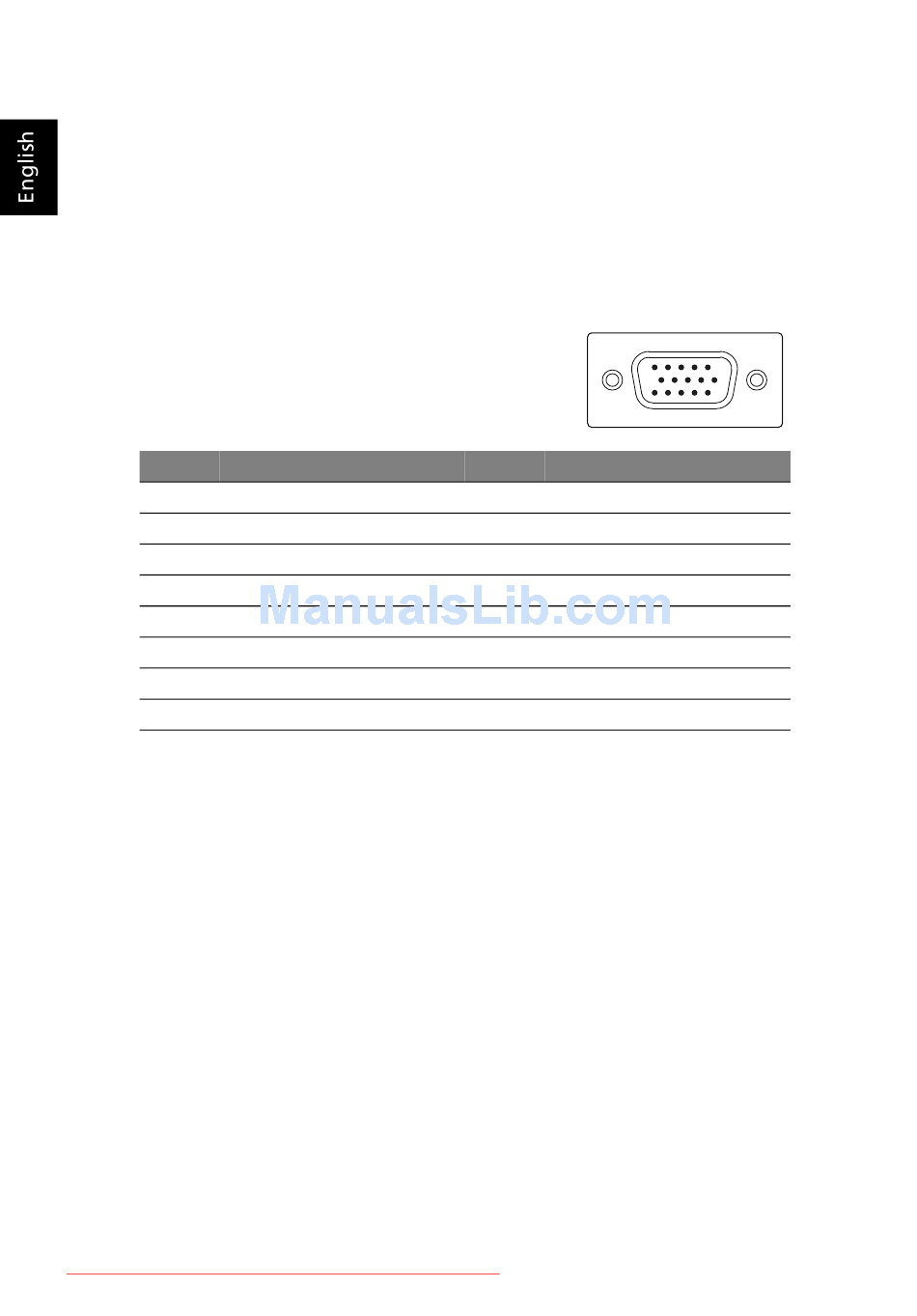

Connector pin assignment

15-pin color display signal cable

PIN No. Description
1
Red
2
Green
3
Blue
4
Monitor ground
5
DDC-return
6
R-ground
7
G-ground
8
B-ground
Downloaded from ManualMonitor.com Manuals
1
11
PIN No. Description
9
+5 V
10
Logic ground
11
Monitor ground
12
DDC-serial data
13
H-sync
14
V-sync
15
DDC-serial clock
