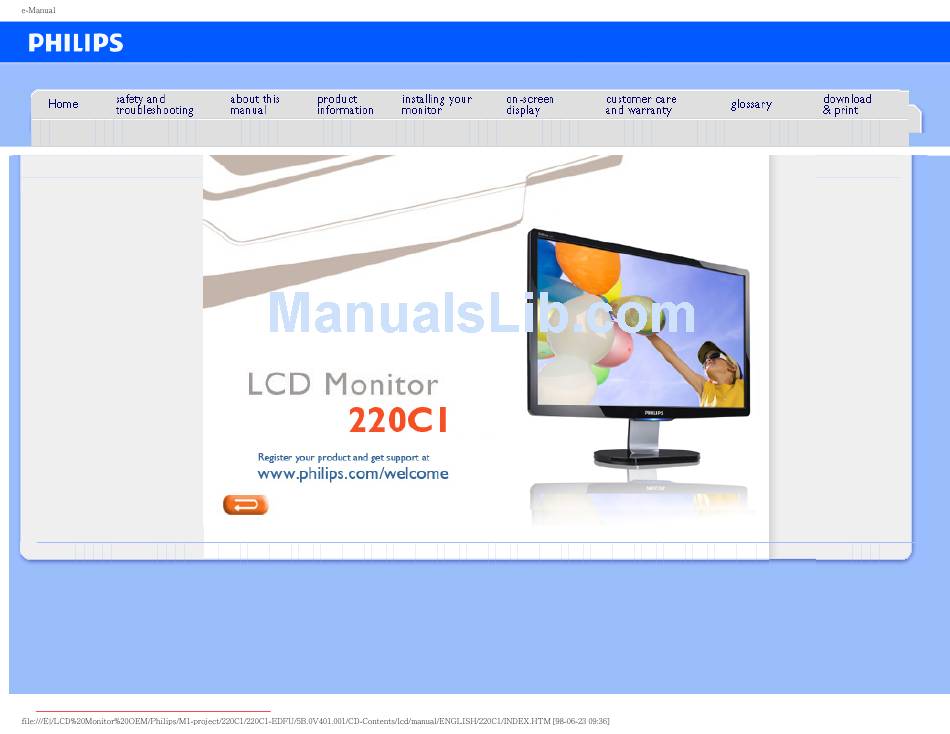

Philips LCD Monitor Electronic User's Manual
Downloaded from ManualMonitor.com Manuals

Advertisement

Table of Contents
loading

Related Manuals for Philips 220C1

Summary of Contents for Philips 220C1

  • Page 1 Philips LCD Monitor Electronic User’s Manual Downloaded from ManualMonitor.com Manuals...

  • Page 2: Safety And Troubleshooting Information

    DC power cord for normal operation. Please use approved power cord provided by Philips all the time. If your power cord is missing, please contact with your local service center. (Please refer to Customer Care...
  • Page 3 In order to maintain the best performance of your monitor and use it for a longer lifetime, please use the monitor in a location that falls within the following temperature and humidity ranges. Temperature: 0-40°C 32-95°F Humidity: 20-80% RH IMPORTANT: Always activate a moving screen saver program when you leave your monitor unattended.

  • Page 4: Faqs (Frequently Asked Questions)

    When I install my monitor what should I do if the screen shows 'Cannot display this video Peripherals mode'? LCD Panel Technology Ergonomics, Ecology and Recommended video mode for Philips 22": 1680x1050 @60Hz. Safety Standards Unplug all cables, then connect your PC to the monitor that you used Troubleshooting previously.
  • Page 5 What if I get lost when I am making monitor adjustments? Simply press the Menu button, the Setup button, then select 'Reset' to recall all of the original factory settings. What is the Auto function? The AUTO adjustment key restores the optimal screen position, phase and clock settings by pressing of a single button –...
  • Page 6 certain extent (approximately up to the hardness of a 2H pencil). In general, it is recommended that the panel surface is not subject to any excessive shocks or scratches. How should I clean the LCD surface? For normal cleaning, use a clean, soft cloth. For extensive cleaning, please use isopropyl alcohol.

  • Page 7: Screen Adjustments

    Compatibility with other Peripherals Can I connect my LCD monitor to any PC, workstation or Mac? Yes. All Philips LCD monitors are fully compatible with standard PCs, Macs and workstations. You may need a cable adapter to connect the monitor to your Mac system.

  • Page 8: Lcd Panel Technology

    settings -- for add-on peripherals. USB does away with "port gridlock." Without USB, PCs are normally limited to one printer, two Com port devices (usually a mouse and modem), one Enhanced Parallel Port add-on (scanner or video camera, for example), and a joystick.
  • Page 9 each intersection in the grid. What are the advantages of TFT LCD compared with CRT? In a CRT monitor, a gun shoots electrons and general light by colliding polarized electrons on fluorescent glass. Therefore, CRT monitors basically operate with an analog RGB signal.
  • Page 10 U.S. National Electrical Code and UL Standards. Does the LCD monitor conform to general safety standards? Yes. Philips LCD monitors conform to the guidelines of TCO Displays 5.0 standards for the control of radiation, electromagnetic waves, energy reduction, electrical safety in the work environment and recyclability.
  • Page 11 Because you activate Theft Deterrence function in SmartControl II. Please contact IT manager or Philips Service Center. More information is provided in the Regulatory Information section. RETURN TO TOP OF THE PAGE Downloaded from ManualMonitor.com Manuals...

  • Page 12: Troubleshooting

    • FAQs This page deals with problems that can be corrected by a user. If the problem still persists after you have tried these • Common Problems solutions, contact Philips customer service representative. • Imaging Problems Common Problems • Regulatory Information •...
  • Page 13 Press the Auto button. Adjust the image position using the Phase/Clock of Setup in Display position is incorrect OSD Main Controls. Check that the signal cable is properly connected to the Image vibrates on the screen graphics board or PC. Vertical flicker appears Press the Auto button.
  • Page 14 Adjust white "power on" light using the power LED of Setup in Adjust white "power on" light OSD Main Controls. For further assistance, refer to the Consumer Information Centers list and contact Philips customer service representative. RETURN TO TOP OF THE PAGE Downloaded from ManualMonitor.com Manuals...

  • Page 15: Regulatory Information

    Ergonomie Hinweis (nur Deutschland) Light levels without color tint, Uniform color and luminance, Wide color gamut ● Philips End-of-Life Disposal Calibrated color temperature and gamma curve ● Wide luminance level, Dark black levels, Low motion blur Information for UK only ●...
  • Page 16 from surrounding light and bright surfaces. RETURN TO TOP OF THE PAGE Recycling Information for Customers There is currently a system of recycling up and running in the European countries, such as The Netherlands, Belgium, Norway, Sweden and Denmark. In Asia Pacific, Taiwan, the products can be taken back by Environment Protection Administration (EPA) to follow the IT product recycling management process, detail can be found in web site www.epa.gov.tw The monitor contains parts that could cause damage to the nature environment.
  • Page 17 This product is in conformity with the following standards - EN60950-1:2001 (Safety requirement of Information Technology Equipment) - EN55022:2006 (Radio Disturbance requirement of Information Technology Equipment) - EN55024:1998 (Immunity requirement of Information Technology Equipment) - EN61000-3-2:2006 (Limits for Harmonic Current Emission) - EN61000-3-3:1995 (Limitation of Voltage Fluctuation and Flicker) following provisions of directives applicable - 2006/95/EC (Low Voltage Directive)
  • Page 18 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 19 Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle.
  • Page 20 Please note that this device has been approved for non-business purposes and may be used in any environment, including residential areas. RETURN TO TOP OF THE PAGE Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, monitor, printer, and so on) should have the same power supply source.
  • Page 21 Placering/Ventilation VARNING: FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Placering/Ventilation ADVARSEL: SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA.
  • Page 22 Please find out about the local regulations on how to dispose of your old monitor from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
  • Page 23 3. Refit the fuse cover. If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate 3-pin plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5A.
  • Page 24 Toxic substances like Lead has been eliminated and compliance with European community’s stringent RoHs directive mandating restrictions on hazardous substances in electrical and electronic equipment have been adhered to in order to make Philips monitors safe to use throughout its life cycle.
  • Page 25 RETURN TO TOP OF THE PAGE Downloaded from ManualMonitor.com Manuals...

  • Page 26: Other Related Information

    Other Related Information Safety and Troubleshooting FAQs Information for Users in the U. S. Troubleshooting Regulatory Information For units set at 115 V : Information for Users in the U.S Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord a maximum of 15-feet long and a parallel blade, grounding type attachment plug rated 15 A, 125 V.

  • Page 27: About This Manual

    Notational Descriptions About This Guide This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the LCD monitor's features, setup, operation and other important information. Its contents are identical to the information in our printed version.
  • Page 28 Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type. These blocks contain notes, cautions or warnings. They are used as follows: NOTE: This icon indicates important information and tips that help you make better use of your computer system.

  • Page 29: Product Information

    Your LCD Monitor Smartimage SmartContrast Your LCD monitor SmartSaturate SmartSharpness Congratulations on your purchase and welcome to Philips. To fully benefit from the support that Philips offers, register your product at. www.philips.com/welcome Technical Specifications Resolution & Preset Modes Philips Pixel Defect Policy...
  • Page 30 Press to launch the SmartImage on screen display; Keep press to toggle between Office Work, Image Viewing, Entertainment, Economy, and Off; The SmartImage on screen display will remain on screen for 5 seconds or you can also press”OK” to make confirmation.
  • Page 31 Office Work: Enhances text and dampens brightness to increase readability and reduce eye strain. This mode significantly enhances readability and productivity when you're working with spreadsheets, PDF files, scanned articles or other general office applications. Image Viewing: This profile combines color saturation, dynamic contrast and sharpness enhancement to display photos and other images with outstanding clarity in vibrant colors - all without artifacts and faded colors.
  • Page 32 How does it work? When you active SmartContrast which will analysis the content you are displaying in real time to adjust colors and control backlight intensity. This function can obviously enhance contrast in dynamic for more entertainment fun when viewing videos or playing games. RETURN TO TOP OF THE PAGE SmartSaturate What is it?

  • Page 33: Technical Specifications

    Technical Specifications* LCD PANEL Type TFT LCD 22" visual Screen size Pixel Pitch 0.282 x 0.282 mm 1680 x 1050 pixels R.G.B. vertical stripe LCD Panel type Anti-glare polarizer, hard coated 473.76 x 296.1 mm Effective viewing area SCANNING Vertical refresh rate 56 Hz-76 Hz 30 kHz - 83 kHz Horizontal Frequency...
  • Page 34 * This data is subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes A. Maximum Resolution For 220C1 1680 x 1050 at 75 Hz (analog input) 1680 x 1050 at 60 Hz (digital input) B. Recommended Resolution...

  • Page 35: Automatic Powersaving

    H. freq (kHz) Resolution V. freq (Hz) 31.469 640*350 70.086 31.469 720*400 70.087 31.469 640*480 59.940 35.000 640*480 67.000 37.500 640*480 75.000 35.156 800*600 56.250 37.879 800*600 60.317 46.875 800*600 75.000 48.363 1024*768 60.004 60.023 1024*768 75.029 63.981 1280*1024 60.020 79.976 1280*1024 75.025...

  • Page 36: Physical Specifications

    Switch Off < 0.5 W This monitor is ENERGY STAR ® compliant. As an ENERGY STAR ® Partner, we have determined that this product meets the ENERGY STAR ® guidelines for energy efficiency. RETURN TO TOP OF THE PAGE Physical Specifications Tilt -5°+2/-0 ~+ 20°+3/-0 100 ~ 240 VAC, 50/60 Hz...
  • Page 37 No connect No connect No connect DDC Clock +5V Power T.M.D.S. Clock Shield DDC Data Ground (for +5V) T.M.D.S. Clock+ No connect Hot Plug Detect T.M.D.S. Clock- 2.The 15-pin D-sub connector (male) of the signal cable: Assignment Assignment Pin No. Pin No.

  • Page 38: Product Views

    Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function Tilt RETURN TO TOP OF THE PAGE Downloaded from ManualMonitor.com Manuals...

  • Page 39: Philips' Flat Panel Monitors Pixel Defect Policy

    TFT LCD panels used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains Pin Assignment the different types of pixel defects and defines acceptable defect levels for each type.
  • Page 40 Two or three adjacent dark sub pixels Proximity of Pixel Defects Because pixel and sub pixels defects of the same type that are near to one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. Downloaded from ManualMonitor.com Manuals...
  • Page 41 In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables.
  • Page 42 * 1 or 2 adjacent sub pixel defects = 1 dot defect RETURN TO TOP OF THE PAGE Downloaded from ManualMonitor.com Manuals...

  • Page 43: Smartcontrol Ii (Selective Models)

    System support and requirement: Q&A Sytem support: 2000, XP, NT 4.0, XP 64 Edition, Vista 32/64. IE Support 6.0/7.0. Language support: English, Simplified Chinese, German, Spanish, French, Italian, Russian, Portuguese. Philips Monitor support DDC/CI Interface. Installation: Downloaded from ManualMonitor.com Manuals...
  • Page 44 Follow the instruction and complete the installation. You can lauch after installation complete. If you want to launch later, you can either click the shortcut on desktop or toolbar. Start to use: 1. First launch -Wizard The first time after installation of SmartControl II, it will automatically go to Wizard for first time launch. The wizard will guide you through adjustment your monitor performance step by step.
  • Page 45 Adjust Menu allow you to adjust Brightness, Contrast, Focus, Position and Resolution. You can follow the instruction and do the adjustment. Cancel prompts user if you want to cancel installation. Tab Heading Sub Menu Display in Analog Display in Digital Adjust Brightness Adjust...
  • Page 46 Color menu: Downloaded from ManualMonitor.com Manuals...
  • Page 47 Color Menu allow you to adjust RGB, Black Level, White Point, Color Calibration, and SmartImage (Please refer to SmartImage section). You can follow the instruction and do the adjustment. Refer to below table for sub-menu item base on your input. Example for Color Calibration Tab Heading Sub Menu...
  • Page 48 "Show Me" starts color calibration tutorial. Start - starts the 6-step color calibration sequence. Quick View loads the before/after images. To return to Color home pane, click the Cancel button. Enable color calibration - by default is on. If unchecked, does not allow for color calibration to happen, dimes out start and quick view buttons.
  • Page 49 Previous button is disabled until the second color screen. Next goes to the succeeding target (6-targets). Final next goes File>Presets pane. Cancel closes the UI and returns to the plug in page. SmartImage - Allows user to change setting for better display setting based on content. When Entertainment is set, SmartContrast and SmartResponse are enabled.
  • Page 50 Displays Assent Management information on Managment, Description, Serial Number, Current Timing, Domain Name, and Asset Management Status. To return to Plug-in home pane select the plug-in tab. Plug-Ins - Theft Deterrence Pane will only be active when selecting Theft Deterrence Mode from the drop-down Plug Ins menu.
  • Page 51 User can enter PIN between 4 and 9 digits numbers only. After entering PIN, Accept button takes user to the pop-up dialog box on the following page. Minimum minutes set to 5. Slider set to 5 by default. Does not require the display be attached to a different host to go into theft mode. Once a PIN is entered and accepted, the following dialog box appears: Click on No button takes user to the following screen.
  • Page 52 Click on Yes button takes user to secure web site landing page. After creating PIN, the Theft Deterrence pane will indicate Theft Deterrence Enabled and provide PIN Options button: Theft Deterrence Enabled is displayed. Disable Theft Mode opens pane screen on next page. PIN Options button only available after user creates PIN, button opens secure PIN web site.
  • Page 53 Options>Preferences - Will only be active when selecting Preferences from the drop-down Options menu. On a non-supported display capable of DDC/CI, only the Help and Options tabs are available. Displays current preference settings. A checked box enables the feature. The check box is a toggle. Enable Context Menu on desktop is checked (On) by default.
  • Page 54 Display the Source instruction pane and current input source setting. On single input displays, this pane will not be visible. Options>Audio - Will only be active when selecting Volume from the drop-down Options menu. On a non-supported display capable of DDC/CI, only the Help and Options tabs are available. Option>Auto Pivot Downloaded from ManualMonitor.com Manuals...
  • Page 55 Help>User Manual - Will only be active when selecting User Manual from the drop-down Help menu. On a non-supported display capable of DDC/CI, only the Help and Options tabs are available. Help>Version - Will only be active when selecting Version from the drop- down Help menu. On a non- supported display capable of DDC/CI, only the Help and Options tabs are available.
  • Page 56 Context Sensitive menu The Context Sensitive menu is Enabled by default. If Enable Context Menu has been checked in the Options>Preferences pane, then the menu will be visible. The Context Menu has four entries: SmartControll II - When selected the About Screen is displayed. Select Preset - Provides a hierarchical menu of saved presets for immediate use.
  • Page 57 The task tray menu can be displayed by right-clicking on the SmartControl II icon from the task tray. Left Click will launch the application. The task tray has five entries: Help - Access to User Manual file: opnes User Manual file using the default browser window. Technical Support - displays the tech support page.
  • Page 58 Install the driver. Remove SmartControl, and re-install it once more. If it is still not working, we are sorry that the graphic adaptor is not supported. Please pay attention to Philips web site for any updated SmartControl driver available.
  • Page 59 RETURN TO TOP OF THE PAGE Downloaded from ManualMonitor.com Manuals...

  • Page 60: Installing Your Lcd Monitor

    Installing Your LCD Monitor Front View Produt Description Connecting to Your PC Front View Product Description The Base Getting Started Optimizing Performance To switch monitor's power On and Off To access the OSD menu To adjust the OSD menu Change to 4:3 display Input To change the signal input source Automatically adjust the horizontal position, vertical position, phase and...

  • Page 61: Optimizing Performance

    USB downstream port USB upstream port VGA input DVI-D input (available for selective models) AC power input Kensington anti-thief lock RETURN TO TOP OF THE PAGE Optimizing Performance For best performance, ensure that your display settings are set at 1680x1050, 60Hz. Note: You can check the current display settings by pressing the 'OK' button once.
  • Page 62 Downloaded from ManualMonitor.com Manuals...

  • Page 63: Connecting To Your Pc

    Front View Product Connecting to Your PC Description Accessory Pack Connecting to Your PC Accessory Pack Getting Started Unpack all the parts. Optimizing Performance The Base DVI cable (Optional) Power cord EDFU pack VGA cable (Optional) RETURN TO TOP OF THE PAGE Connecting to Your PC Downloaded from ManualMonitor.com Manuals...
  • Page 64 Connect the power cord to the back of the monitor firmly. (Philips has pre-connected VGA cable for the first installation. *available for selective models *available for selective models Downloaded from ManualMonitor.com Manuals...
  • Page 65 Connect to PC Turn off your computer and unplug its power cable. Connect the monitor signal cable to the video connector on the back of your computer. Connect the USB cable to the USB port of your computer. Plug the power cord of your computer and your monitor into a nearby outlet. Turn on your computer and monitor.
  • Page 66 Front View Product The Base Description Accessory Pack Connecting to your PC Attach the Base Stand Getting Started Place the monitor face down on a smooth surface taking care to avoid scratching or Optimizing Performance damaging the screen. Attach the Base Stand Detach the Base Stand Hold the monitor base with both hands and firmly insert the base stand into the base column.
  • Page 67 RETURN TO TOP OF THE PAGE Detach the Base Stand Place the monitor face on a safe surface, push down on the release button and pull the base stand away from the monitor body. RETURN TO TOP OF THE PAGE Downloaded from ManualMonitor.com Manuals...

  • Page 68: Getting Started

    Use the information file ( .inf) for Windows® 98/2000/XP/Vista or later Getting Started The built-in VESA DDC2B feature in Philips Monitors supports Plug & Play requirements for Optimizing Performance Windows® 98/2000/XP/Vista. This information file ( .inf) should be installed in order that your Philips monitor can be enabled from the 'Monitor' dialog box in Windows®...
  • Page 69 Click on the 'Finish' button then the 'Close' button. If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button. For Windows® XP Start Windows® XP. Click on the 'Start' button and then click on 'Control Panel'. Select and click on the category 'Printers and Other Hardware' Click on the 'Display' Item.
  • Page 70 RETURN TO TOP OF THE PAGE Downloaded from ManualMonitor.com Manuals...

  • Page 71: Description Of The On Screen Display

    Description of the On Screen Display What is the On-Screen Display? On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window.
  • Page 72 The OSD Tree Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on. Downloaded from ManualMonitor.com Manuals...
  • Page 73 Resolution notification This monitor is designed for optimal performance at its native resolution, 1680X1050@60Hz. When the monitor is powered on at a different resolution, an alert is displayed on screen: Use 1680x1050@60Hz for best results. Display of the native resolution alert can be switched off from Setup in the OSD (On Screen Display) menu.
  • Page 74 Customer Care & Warranty PLEASE SELECT YOUR COUNTRY/AREA TO REVIEW DETAILS OF YOUR WARRANTY COVERAGE WESTERN EUROPE: Austria Belgium Denmark France Germany Greece Finland Ireland Italy Luxembourg the Netherlands Norway Portugal Sweden Switzerland Spain United Kingdom Poland EASTERN EUROPE: Czech Republic Hungary Russia Slovakia Slovenia Turkey LATIN AMERICA: Argentina Brasil...

  • Page 75: Your Philips F1Rst Choice Warranty

    Philips helpdesk directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site if your monitor turns out to be faulty or defective. Philips aims at a swap within 48 hours of your call being received.
  • Page 76 Note that products that are not originally designed, manufactured, approved and/or authorized for usage within the Philips F1rst Choice countries, do not apply to the Philips F1rst Choice Warranty. In these cases the Philips global warranty terms are valid.
  • Page 77 Downloaded from ManualMonitor.com Manuals...

  • Page 78: F1Rst Choice Contact Information

    F1rst Choice Contact Information Country Code Telephone number Tariff Austria 0810 000206 € 0.07 Belgium 078 250851 € 0.06 Denmark 3525 8761 Local call tariff Finland +358 09 2290 1908 Local call tariff France 082161 1658 € 0.09 Germany 01803 386 853 €...

  • Page 79: Your Guarantee In Central And Eastern Europe

    Your Guarantee in Central and Eastern Europe Dear Customer, Thank you for purchasing this Philips product, which has been designed and manufactured to the highest quality standards. If, unfortunately, something should go wrong with this product Philips guarantees free of charge labor and replacement parts during a period of 36 months from date of purchase.
  • Page 80 In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting our dealers or Information Centers In case your Philips product is not working correctly or is defective, please contact your Philips dealer or directly the Philips Service and Consumer Information Centers http://www.philips.com/support...

  • Page 81: Consumer Information Centers

    Consumer Information Centers Argentina Australia Brasil Canada New Zealand Belarus Bulgaria Croatia Czech Republic Estonia United Arab Emirates Hong Kong Hungary India Indonesia Israel Latvia Lithuania Malaysia Middle East + North Africa New Zealand Pakistan Romania Russia Serbia & Montenegro Singapore Slovakia Slovenia South Africa South Korea Taiwan Philippines Thailand Turkey Ukraine Vietnam Eastern Europe BELARUS...
  • Page 82 CROATIA Renoprom d.o.o. Ljubljanska 4, Sv. Nedjelja,10431 Croatia Tel: +385 1 333 0974 ESTONIA FUJITSU SERVICES OU Akadeemia tee 21G EE-12618 Tallinn Tel: +372 6519900 www.ee.invia.fujitsu.com HUNGARY Serware Szerviz Vizimolnár u. 2-4 HU - 1031 Budapest Tel: +36 1 2426331 Email: inbox@serware.hu www.serware.hu HUNGARY...
  • Page 83 ROMANIA Blue Ridge Int'l Computers SRL 115, Mihai Eminescu St., Sector 2 RO - 020074 Bucharest Tel: +40 21 2101969 SERBIA & MONTENEGRO Kim Tec d.o.o. Viline vode bb, Slobodna zona Beograd L12/3 11000 Belgrade Serbia Tel. +381 11 20 70 684 SLOVAKIA General Consumer Information Center 0800004551...
  • Page 84 TURKEY Türk Philips Ticaret A.S. Yukari Dudullu Org.San.Bolgesi 2.Cadde No:22 34776-Umraniye/Istanbul Tel: (0800)-261 33 02 UKRAINE Comel Shevchenko street 32 UA - 49030 Dnepropetrovsk Tel: +380 562320045 www.csp-comel.com LLC Topaz Company Topaz-Service Company, Mishina str. 3, Kiev Ukraine-03151 Tel: +38 044 245 73 31...
  • Page 85 AUSTRALIA Company: AGOS NETWORK PTY LTD Address: 4/5 Dursley Road, Yenorra, NSW 2161, Australia Tel: 1300 360 386 Fax: +61-2-80808147 Email: philips@agos.com.au Service hours: Mon.~Fri. 8:00am-7:30pm NEW ZEALAND Company: Visual Group Ltd. Address: 28 Walls Rd Penrose Auckland Phone: 0800 657447 Fax: 09 5809607 E-mail: vai.ravindran@visualgroup.co.nz...
  • Page 86 Fax: 021-7510982 E-mail: gepta@cbn.net.id Service hours: Mon.~Fri. 8:30am~4:30pm; Sat. 8:30am~2:00pm Additional service points: 1. Philips Building Jl. Buncit Raya Kav 99. Jakarta Selatan. Phone: 021-7940040, ext 1722/1724, 98249295, 70980942 2. Jl. Tanah Abang 1 no 12S. Jakarta Pusat. Phone: 021-3455150, 34835453 3.
  • Page 87 Singapore Company: Philips Electronics Singapore Pte Ltd (Philips Consumer Care Center) Address: 620A Lorong 1 Toa Payoh, TP4 Building Level 1, Singapore 319762 Tel: (65) 6882 3999 Fax: (65) 62508037 E-mail: consumer.care.sg@philips.com Service hours: Mon.~Fri. 9:00am~6:00pm; Sat. 9:00am~1:00pm Taiwan Company: FETEC.CO Address: 3F, No.6, Lane 205, Sec.
  • Page 88 4th Level Cyberzone, Annex Bldg. SM City North EDSA, Quezon City 441-1610 MDR Microware Sales Inc. Cebu Branch N. Escario corner Clavano St., Cebu City Phils. # 255-4415/ 255-3242/253-9361/4124864 to 67 Sun # 0922-8210045 to 46 Davao Office: C. Arellano St., Davao City 8000 082- 225-3021/225-3022 Sun# 0922-8210015 CDO Office:...
  • Page 89 Middle East + North Africa Company: AL SHAHD COMPUTER L.L.C Address: P.O.BOX: 29024, DUBAI, UNITED ARAB EMIRATES TEL: 00971 4 2276525 FAX: 00971 4 2276242 E-mail: shahd52@eim.ae Service hours: Sat.~Thur. 9:00am~1:00pm & 4:00pm- 8:00pm Israel Company: Eastronics LTD Address: 13 Rozanis St. P.O.B. 39300, Tel Aviv 61392 Israel Tel: 1-800-567000 call free in Israel;...

  • Page 90: Your International Guarantee

    In the event you require service whilst in another country a dealer address can be given to you by the Philips Consumer Help Desk in that country, the telephone and fax number of which can be found in the relevant part of this booklet.
  • Page 91 Downloaded from ManualMonitor.com Manuals...
  • Page 92 Should you encounter any difficulties while installing or using this product, please contact Philips directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site within 48 hours of your call being received within the first year of purchase.
  • Page 93 Where IS SERVICE AVAILABLE? Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).
  • Page 94 Please contact Philips at: (800) 479-6696 Three years free parts and three years free labor will be provided at Philips Canada depot or any one of its authorized service centers. (In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose.
  • Page 95 The full address to which the swap model should be delivered. Just a phone call away Philips customer help desks are located worldwide. Within the U.S. you can contact Philips customer care Monday-Friday from 8:00 AM-9:00 PM Eastern Time (ET) and on Saturdays from 10:00 AM-5:00 PM ET hrs by using one of the contact phone numbers.
  • Page 96 Glossary A B C D E G H I R S T U V W X Y Z Active matrix This is a kind of liquid crystal display structure in which switching transistors are attached to each pixel to control the on/off voltage. It produces a brighter and sharper display with a broader viewing angle than a passive matrix display.
  • Page 97 (degrees Kelvin). Lower Kelvin temperatures such as 2400° K are red; higher temperatures such as 9300° K are blue. Neutral temperature is white, at 6504° K. Philips monitors generally offers 9300° K, 6500° K, and user define. Contrast The luminance variation between light and dark areas in an image.
  • Page 98 Contrast ratio The ratio of luminance between the brightest white pattern and the darkest black pattern. RETURN TO TOP OF THE PAGE D-SUB A VGA Analog input connector. Your monitor comes with a D-Sub cable. Digital Visual Interface (DVI) (available for selective models) The Digital Visual Interface (DVI) specification provides a high-speed digital connection for visual data types that is display technology independent.
  • Page 99 Energy Star Computers Program An energy conservation program launched by the US Environmental Protection Agency (EPA), promotes the manufacture and marketing of energy-efficient office automation equipment. Companies joining this program, must be willing to commit themselves to manufacture one or more products capable of going into a low -power state (<...
  • Page 100 IPS (In Plane Switching) A technique of improving the viewing angle of an LCD where the liquid crystal molecules are switched in the plane of the LCD layer rather than vertical to it. LCD (liquid crystal display) A display composed of liquid crystal suspended between two transparent sheets. The display is composed thousands of pixels which can be turned on or off with electrical stimulation.
  • Page 101 Pixel PICture Element; the smallest element on a computerized CRT or LCD image, and hence a display. Polarizer A light filter which only allows light waves of a certain rotation through. Polarized material with perpendicular filtering is used in LCDs to enclose the liquid crystal. The liquid crystal is then used as the medium which twists the light waves 90°...
  • Page 102 Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen.
  • Page 103 Microsoft's Vista requirements from each and every monitor that leaves the factory - not just a few review samples. Only Philips goes to these lengths to deliver this exacting level of color accuracy and display quality in every new monitor.
  • Page 104 A Universal Serial Bus device that provides additional connections to the Universal Serial Bus. Hubs are a key element in the plug-and-play architecture of USB. The Figure shows a typical hub. Hubs serve to simplify USB connectivity from the user's perspective providing low cost and complexity.
  • Page 105 Downstream The direction of data flow from the host or away from the host. A downstream port is the port on a hub electrically farthest from the host that generates downstream data traffic from the hub. Downstream ports receive upstream data traffic. Upstream The direction of data flow towards the host.

  • Page 106: Download And Print

    Download instructions: To download the file: 1. Click-and-hold your mouse over the icon below. (Windows® 95/98/2000/Me/XP/Vista users right- click) 220C1.pdf Download 2. From the menu that appears, choose 'Save Link As...', 'Save Target As...' or 'Download Link to Disk'. 3. Choose where you would like to save the file; click 'Save' (if prompted to save as either 'text' or 'source', choose 'source').
  • Page 107 Printing instructions: To print the manual: With the manual file open, follow your printer's instructions and print the pages you need. RETURN TO TOP OF THE PAGE Downloaded from ManualMonitor.com Manuals...
