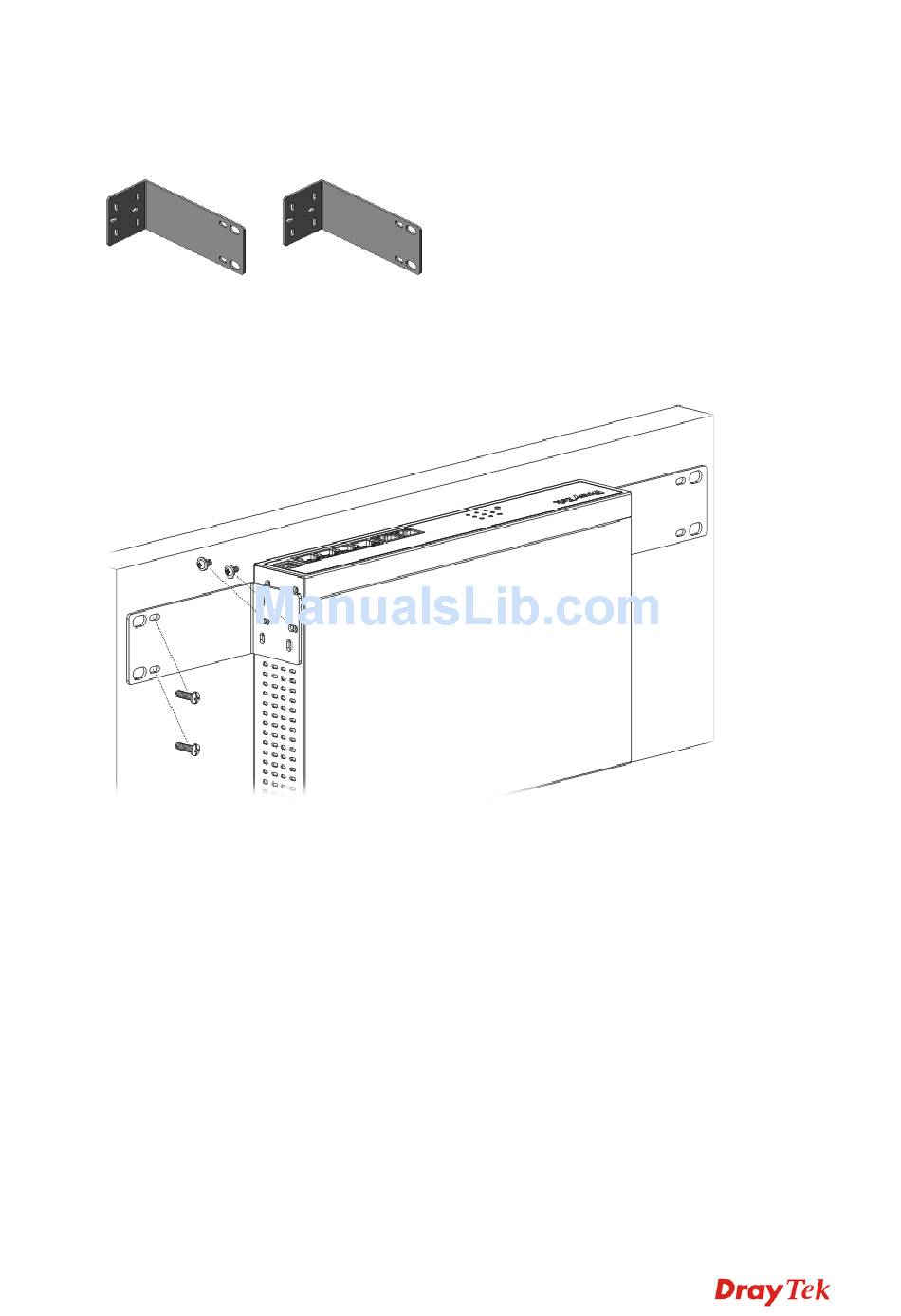

The Vigor2960 Series can be mounted on the wall by using standard brackets shown
below.
Choose a flat surface (on the wall) which is suitable for placing the router. Make the
screw holes on the short side of the bracket aim at the screw holes on the router. Next,
fasten both the bracket and the router with two screws; and fasten both the wall and the
bracket with another two screws. Refer to the following figure.
Then, continue to fasten the screws on the other side of the router and the wall with other
screws.
When you finished about procedure, the router has been mounted on the wall firmly.
