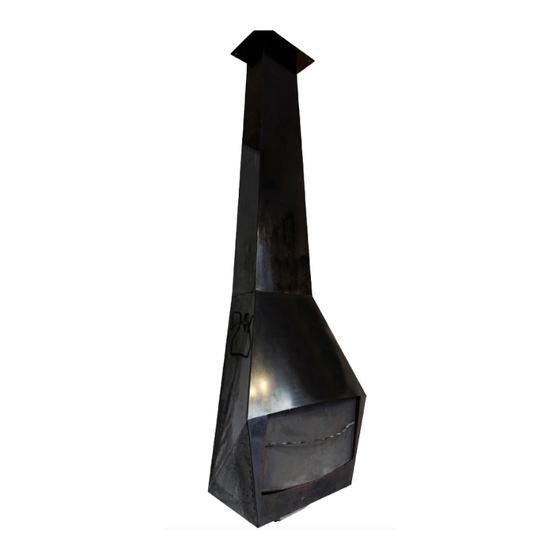

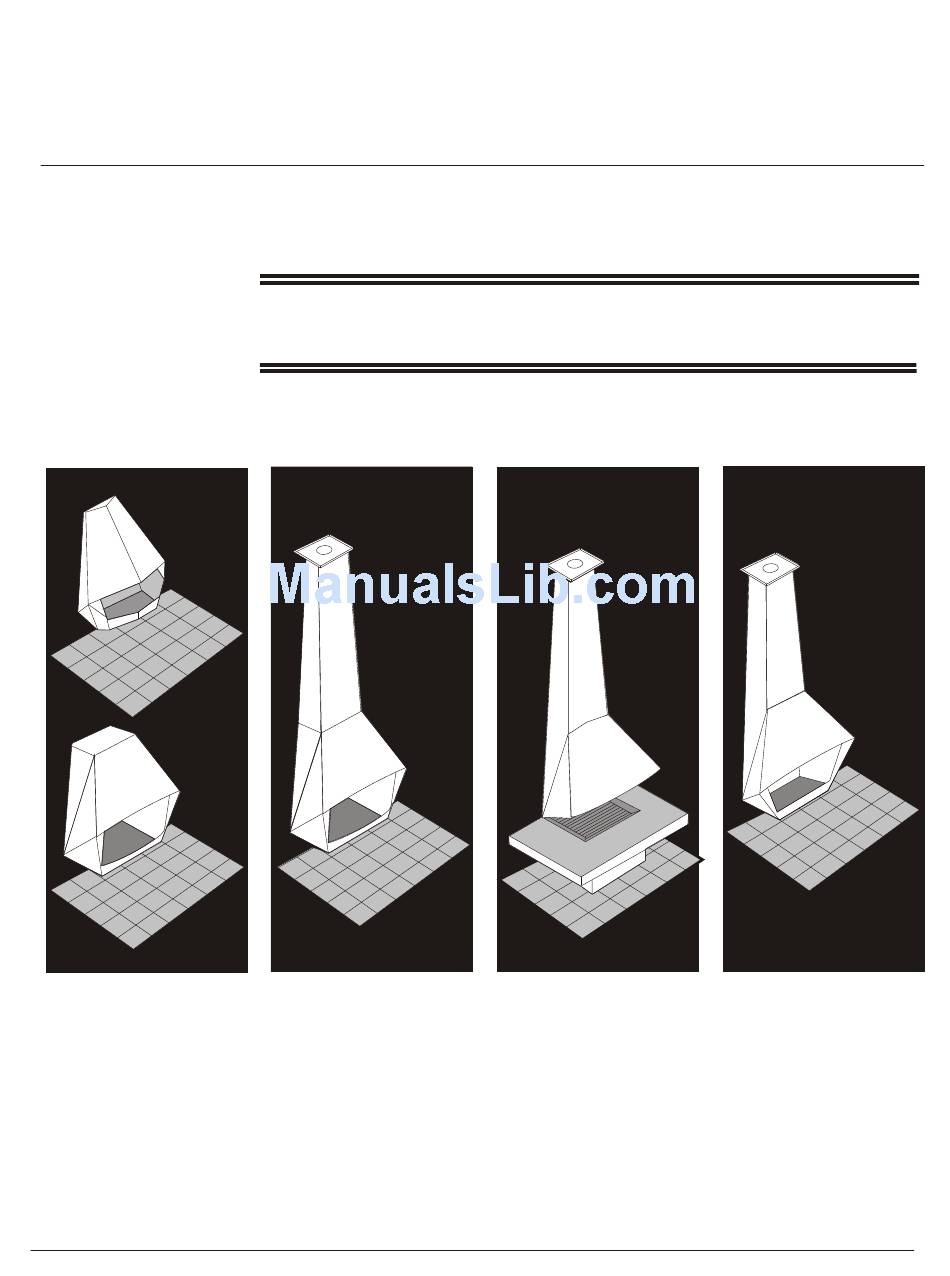

- Page 1 7120 7007 7007 7100 7100 5005 5005 7005 7005 OPEN FIREPLACES Les foyers DON-BAR Fireplaces, inc. Shop and Showroom: 741, St-Vallier Ouest, Quebec (Quebec) G1N 1E2 Phone: (418) 686-9114 - Fax: (418) 686-9117 Website: www.don-bar.com - Email: don-bar@don-bar.com REV. 2013-05...
- Page 2 KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE USE LES FOYERS DON-BAR Installation, Operation, and Maintenance Manual The manual is divided into 5 parts: PART 1: Installation ....... Page 2 PART 2: Operation and Maintenance..Page 21 PART 3: Parts List ........Page 26 PART 4: Chimney Fires ......
-
Page 3: Table Of Contents
12.2 Removing the existing resilient flooring 3.4 Minimum clearances for combustible 12.2 Protection under the pedestal materials 3.5 Exterior doors and windows 13. Fireplaces 5005, 7005, 7007, 7120: 4. Preparation before anchoring the Refractories and hearth plate wall support bracket 13.1 Refractories installation 13.2 Mounting of the central and the two lateral... -
Page 4: Important Notice
PART 1: INSTALLATION Typical installation with a ceiling 1. IMPORTANT NOTICE chimney outlet WARNING: Any modification, change, or substitution of any fireplace component and/or Round Top Factory-built not following the installation, operation, and Insulated Chimney maintenance instructions can void the 8 inches I.D. -
Page 5: Before Beginning The Installation
Don-Bar Consult the chart 7007 Combustible specific to your Wall Support Wall fireplace: 24" min. Floor 5005: Page 16 (610 mm) Proctection 7005: Page 17 7007: Page 18 Floor 7100: Page 19 Protection 7120: Page 20 DRAWING 3 DRAWING 2 Page 5 REV. -
Page 6: Exterior Doors And Windows
from combustible materials (including furniture, Solid backing for the fixation of drapes and other flammable objects). Note that wall support bracket Type X fire-resistant gypsum board (Firecode) is c o n s i d e r e d c o m b u s t i b l e f o r f i r e p l a c e s Interior Partition installations and as such, requires the minimum 48"... -
Page 7: Modified Wall Support Bracket
2 at the installed. top of the bracket) .2 Fireplaces 5005, 7005: Install the wall support bracket at the height of your choice (usually 15" (380 mm) above the floor). If the chimney is already in place, install the 17"... -
Page 8: Types Of Installations
16" (400 mm) (Drawing 6). 1. Wall chimney (Drawing 6 ) 2. Regular ceiling chimney .2 Fireplaces 5005 and 7005: The fireplace ( Drawing 7) can be placed at any height but the center of 3. Cathedral ceiling chimney... -
Page 9: Diameter Of The Hole For The Chimney Passage
Support - Regular Ceiling: Support - Cathedral Ceiling: 19" width x 17" depth (480 x 432 mm) 17" width x 16" depth (432 x 407 mm) Dust/Radiation Shield rigid rockwool insulation Joist or Roof Joist or Roof Truss Truss Factory-built Female Chimney Chimney... -
Page 10: Radiation Shield/Firestop
fixation. The ceiling adaptor is not designed to 10.3 Obstructions: If a joist obstructs the path of support the weight of the chimney. the chimney and the mandatory 2” (50 mm) minimum clearance, the joist should be moved or 8.2 Radiation shield/firestop: Install a radiation cut. -
Page 11: Starting A Chimney On A Ceiling Adaptor
plate. It goes in the existing hole at the back of the fireplace. (Drawing 13). ceiling adaptor. Offset supports must be installed above and as close as possible to each offset (elbow) in the chimney. Fireplaces 7007, 7100, 7120: Mounting 10.6 Starting a chimney on a ceiling adaptor: Install the chimney by slipping the first chimney section until it reaches the bottom of the ceiling... -
Page 12: Joint Between The Fireplace And The Chimney
Slabs or tiles of stone (marble, granite, Fireplaces 5005, 7005: slate, etc.) or ceramic at least 3/8" (8 mm) Mounting thickness, secured in place; Interior Wall Finish b) Bricks of concrete or terra-cotta, secured in place; Factory-built Chimney 8" I.D. -
Page 13: Protection Under The Pedestal
Fireplaces 5005, 7005, 7007, 7120: 12.3 Protection under the pedestal : The floor Refractories and hearth plate protection must extend under the fireplace including the pedestal of the 7100 fireplace. Rest the 2 side plates on the bottom of the... -
Page 14: Fireplace 7100: Hearth Plate Installation
Install the hearth plate by putting it down, as shown, on the fold located at the bottom of the 15.1 Fireplaces 5005, 7005, 7007, 7120: The hood (Drawing 15). To retain the hearth plate, firescreen supplied with the fireplace is simply the fixing bolt must already have been inserted put in place in the front of the heath. -
Page 15: Bbq Grill Installation
16. BBQ grill installation garage, a non-ventilated or mechanically ventilated attic or other inside room. 16.1 Fireplaces 5005, 7005, 7007, 7120: Insert the metal rod supplied with the BBQ into the 17.2 Dust type and diameter: Use a 4" (100 holes pierced for this purpose, on both sides of mm) I.D. -
Page 16: Required Clearances
5005 REQUIRED CLEARANCES 37" (940 mm) 24" (610 mm) 40" (1015 mm) 48" (1210 mm) Floor proctection 22,5" 36" 29,75" wall (570 mm) (915 mm) (755 mm) Incombustible ventilated heat 36" shields - 50" high (1270 mm) (915 mm) With ventilated wall... - Page 17 7005 REQUIRED CLEARANCES 37" 24" (940 mm) (610 mm) 48" 40" (1015 mm) (1210 mm) Floor proctection 22,5" 36" 29,75" (570 mm) (915 mm) wall (755 mm) Incombustible ventilated heat 36" shields - 50" high (1270 mm) (915 mm) With ventilated wall Without wall heat shields heat shields Page 17...
- Page 18 7007 chimney Ceiling outlet Wall outlet REQUIRED CLEARANCES 37" 24" (940 mm) (610 mm) 48" 40" (1015 mm) (1210 mm) Floor proctection 36" 22,5" 29,75" (915 mm) (570 mm) (755 mm) wall Incombustible ventilated heat shields - 50" high 36" (1270 mm) (915 mm) With ventilated wall...
- Page 19 7100 chimney 15" (390 mm) 8" (200 mm) Ceiling outlet Wall outlet REQUIRED CLEARANCES 40" 1015 mm) 24" (610 mm) 48" 60" (1525 mm) (1210 mm) Floor proctection 35,5" 36" (902 mm) (915 mm) 51" wall (1295 mm) Incombustible ventilated heat shields - 50"...
- Page 20 7120 chimney Ceiling outlet Wall outlet REQUIRED CLEARANCES 40" 1015 mm) 24" (610 mm) 48" 52" (1320 mm) (1210 mm) Floor proctection 51" 30" 42" (1295 mm) (762 mm) (1065 mm) wall Incombustible ventilated heat shields - 50" high (1270 mm) 42"...
-
Page 21: Fireplace Maintenance
PART 2: OPERATION AND MAINTENANCE Contents 1. Precautions before lighting your 4. Ashes first fire 4.1 Metallic container 4.2 Natural fertilizer 1.1 Adequate air supply 1.2 Preventing smoke returns 5. Fireplace maintenance 2. Firewood 5.1 Finish maintenance 5.2 Repainting 2.1 Allowed fuels 5.3 Outside air intake 2.2 Forbidden fuels 5.4 Fireplace storing... - Page 22 PART 2: OPERATION AND MAINTENANCE 1. Precautions before lighting damage your installation and void the warranty. your first fire Recommended wood species: For an efficient and economical operation, use only 1.1 Adequate air supply: A wood fire requires dry hardwood such as maple, oak, wild cherry, plenty of air.
- Page 23 Open a window and the smoke will disappear by itself in a few minutes. Caution: 2. Fireplace 5005: The damper is located on This smoke can trigger a smoke detector causing the chimney sleeve at the back of the a false alarm! fireplace.
- Page 24 mm) in the fireplace to protect the hearth stove glass cleaner. These aerosol glass cleaners bottom. A log grate is not necessary. are sold by stove and fireplace dealers. They are specially formulated to dissolve creosote without 2. Fireplace 7100: The fireplace has a log damaging the glass.
- Page 25 8. Humidity and condensation 8.1 Excessive humidity and condensation: In winter, high humidity levels inside the house can cause chimney problems such as condensation, and ice build-up eventually dripping into the fireplace. In extreme cases, the condensation water can even infiltrate the chimney insulation. To avoid these problems, it is necessary to maintain an acceptable humidity level inside the house.
- Page 26 PART 3: REPLACEMENT PARTS LIST To order a part, please specify: The fireplace model number, the name of the part and the year of the fireplace installation Decorative collar for the cathedral ceiling support Decorative collar for a wall chimney outlet Regular "T"...
- Page 27 PART 4: CHIMNEY FIRES DIRECTIVES IN CASE OF A CHIMNEY FIRE How to detect a chimney fire What to do - Odour: Smell of smoke in the air. - Immediately alert the occupants of the building about - Sight: The colour of the pipe change. Flames at the potential danger.
- Page 28 LES FOYERS DON-BAR 25 YEAR LIMITED WARRANTY FIREPLACES 1. The first 5 years: If, during this 5- year period, and in the course of a normal use, a component part of the fireplace 1.4 Gaskets: Fireplace gaskets are 8. The duration of the warranty on any becomes defective due to a material or warranted for 90 days following the part that is the object of a claim must...
