Les foyers DON-BAR Fireplaces 9000 Installation, Operation And Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
REV. 2013-02
LES FOYERS
DON-BAR
FIREPLACES
9000
9120
FREE-STANDING
Shop and Showroom: 741, St-Vallier Ouest, Quebec (Quebec) G1N 1E2
Installation, Operation
and Maintenance Manual
FIREPLACES
Les foyers DON-BAR Fireplaces, inc.
Phone: (418) 686-9114 - Fax: (418) 686-9117
Website: www.don-bar.com - Email: don-bar@don-bar.com
9200
9800
9800
9800
9123

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9000 and is the answer not in the manual?

Questions and answers

Related Manuals for Les foyers DON-BAR Fireplaces 9000

Summary of Contents for Les foyers DON-BAR Fireplaces 9000

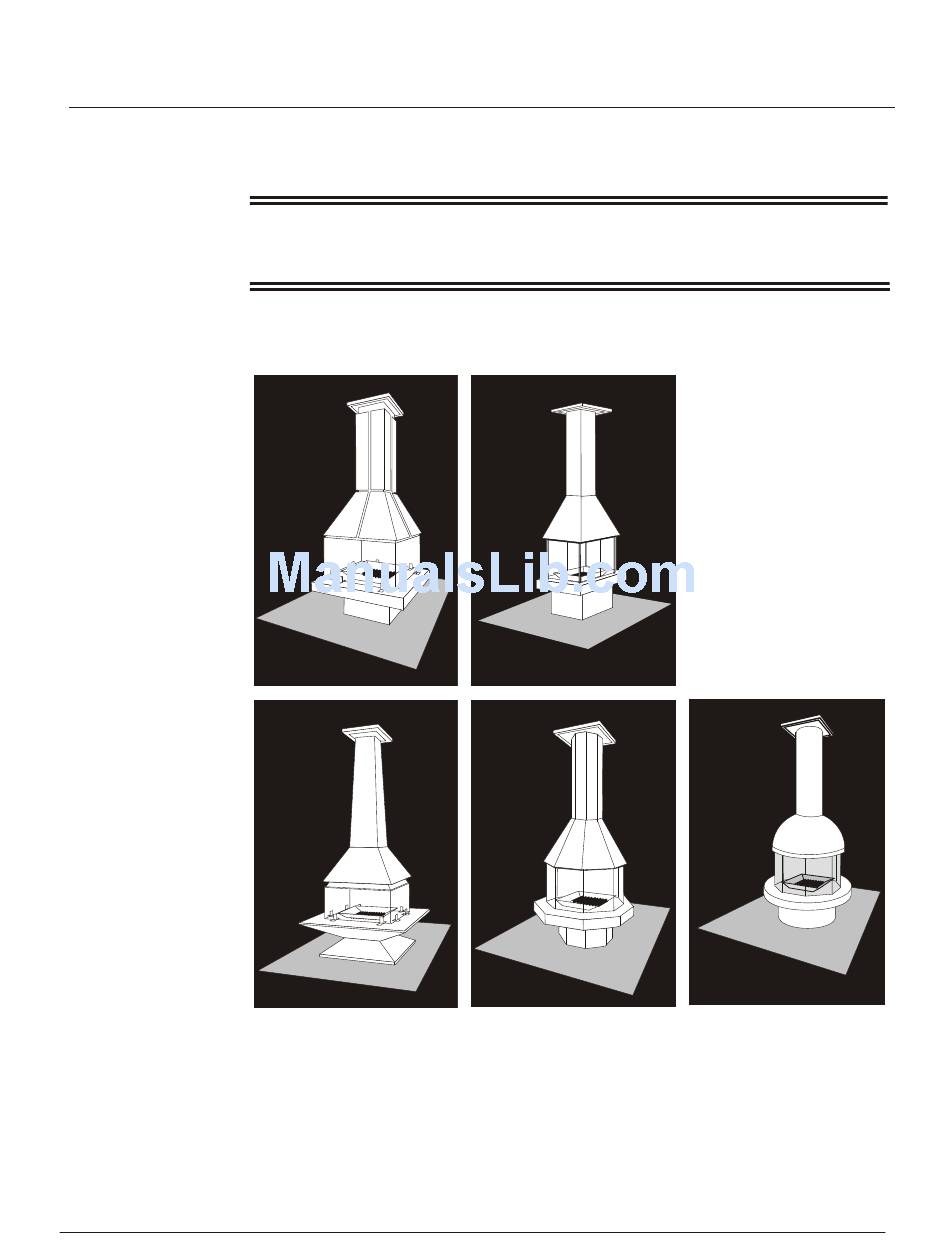

  • Page 1 DON-BAR FIREPLACES 9000 9200 9800 9800 9120 9800 9123 FREE-STANDING FIREPLACES Les foyers DON-BAR Fireplaces, inc. Shop and Showroom: 741, St-Vallier Ouest, Quebec (Quebec) G1N 1E2 Phone: (418) 686-9114 - Fax: (418) 686-9117 Website: www.don-bar.com - Email: don-bar@don-bar.com REV. 2013-02...
  • Page 2 (Pages 6 and 17 to 21) For simplicity, the Model 9000 is the only type illustrated in the drawings. Installation of other models is similar. A gas burner (propane or natural gas) with ceramic logs can also be installed.

  • Page 3: Table Of Contents

    LES FOYERS DON-BAR FIREPLACES Installation, Operation, and Maintenance Manual The Manual is divided into 5 parts: PART 1: Installation ........... Page 5 PART 2: Security, Operation and Maintenance... Page 23 PART 3: Parts List ..........Page 27 PART 4: Chimney Fires........Page 28 PART 5: Warranty ..........
  • Page 4 11.2 Completing the pedestal installation installation 5.1 Wood frame 12. Glass firescreen 5.2 Ceiling support fastening 12.1 Standard firescreen 9000 and 9120 5.3 Chimney 12.2 Pivot firescreen 9200, 9800, 9123, 9086 5.4 Radiation shield (Optional for 9000 and 9120) 6. Cathedral ceiling support 13.

  • Page 5: Part 1: Installation

    Don-Bar main source of heating. Ceiling Support 2. Listed chimneys Fireplace DON-BAR 9000 2.1 Listed factory-built chimneys: Your Don- Bar fireplace is designed to be installed with any prefabricated chimney bearing the ULC-S610 or UL-103HT label. The chimney inside diameter shall be 10"...

  • Page 6: Before Beginning The Installation

    18" min. (460 mm) 18" min. Wall Beam (460 mm) Fireplace clearances from walls Fireplace and combustible furniture DON-BAR 9000 (See also pages 17 to 21) 12" min. (305 mm) Floor Protection Furniture See pages 17 to 21 12" min.
  • Page 7 Don-Bar ceiling support Standard (universal) ceiling DON-BAR support Hood Cathedral ceiling (universal) 9000 Fireplace DON-BAR support (all models) Hood 9000 Fireplace IMPORTANT: The frame must (all models) be made of solid wood, 1-1/2" (38 mm) minimum thickness. (2x6, 2X8 or 2X10 x 1.5in.)

  • Page 8: Minimum Clearances From Combustible

    3.5 Minimum clearances from combustible Make sure the wood basket (see Wood frame for the materials: drawings 2 and 3) is at least 12" (305 mm) from regular ceiling any combustible material, including furniture, support drapes and other flammable objects. Note that Type X fire-resistant gypsum board (Firecode) is c o n s i d e r e d c o m b u s t i b l e f o r f i r e p l a c e s installations and as such requires the minimum...

  • Page 9: Cathedral Ceiling Support Installation (Standard And Ventilated)

    5.4 Radiation heat shield: Next, slip a radiation fix the ceiling support. Elsewhere, the heat shield down the wood frame to protect the chimney may require smaller clearances. See wood against radiant heat from the chimney. t h e r e q u i r e m e n t s o f t h e c h i m n e y ' s manufacturer for more details.
  • Page 10 6.2 Ceiling support fastening : Secure the Chimney minimum height above ceiling support to the wood frame with 8 long bolts at least 1,5" (40 mm) long by 5/16" (8 mm) the roof 2 feet min. diameter (2 long bolts per side). (610 mm) min.

  • Page 11: Outside Air Intake Installation

    7.8 Flashing water tightness: Install a metal 9. Outside air intake installation roof flashing with a storm collar where the chimney pass meets the roof. Seal the joint 9.1 IMPORTANT: The outside air intake is an between the chimney and the storm collar and the option to bring in fresh air under the wood basket joint between the roofing and the flashing.

  • Page 12: Removing The Existing Resilient Flooring

    For a temporary floor protection, a sheet metal of at least 0.015" (0,38 mm) thickness or an incombustible composite cement board of at least 3/8" (10 mm) thickness may be used. 9000 Pedestal (the 9120 pedestal Floor protection is pyramidal extension under...

  • Page 13: Completing The Pedestal Installation

    12. Glass firescreen either simply inserted in the provided channel (9200) or assembled as opening doors but without a latch in the case of the 9000, 9120, 9800 and 12.1 Standard firescreen: Fireplaces 9000 and 9123 (Drawing 13). 9120 - Drawing 12 Spacing washers: The steel posts are 12.2.2...

  • Page 14: Installation Of The Optional Hood

    Installation of the optional structural tubular frame for the pivot doors (9000, 9120) Retaining square to be laid down on the hood interior fold Fastener keeping for a sandwich Upper fixing bolt the doors closed hold pivot pivot support Handle with...

  • Page 15: Bbq Grill Installation

    15.5 Connection of the outside air intake:The 14. BBQ grill installation outside air intake located below the burner support plate must be connected to a flexible insulated duct 14.1 BBQ brackets installation: Fix one of the of at least 6” diameter. The air intake’s flexible duct three BBQ grill brackets on each side of the must be extended to reach the outdoors and a fresh fireplace wood basket with the supplied wing nuts...
  • Page 16 Page 16 REV. 2013-02...
  • Page 17 MINIMUM REQUIRED CLEARANCES 18" min. (460 mm) 18" min. Wall 12" min. Beam Fireplace Table (460 mm) (305 mm) Fireplace DON-BAR 9000 Wall 12" min. (305 mm) 12" min. (305 mm) Wood Basket Floor Protection 22" (560 mm) Floor Protection 58"...
  • Page 18 9120 20" (510 mm) standard 45" (1143 mm) or made-to-measure 14" (356 mm) 32,25" (820 mm) 18-1/4" (464 mm) 19-1/2" (495 mm) 22" (560 mm) 17” (432 mm) 48" (1220 mm) Adjustable from 16" (406 mm) to 18" (460 mm) 35"...
  • Page 19 20" (510 mm) 9800 9800 9800 13" standard 40,5" (330 mm) (1030 mm) or made-to-measure 34-5/8" (880 mm) 20" (510 mm) 43-1/2" (1105 mm) 18,5" (470 mm) 4" (100 mm) 17” (432 mm) Adjustable from 26" 16" (406 mm) to (660 mm) 19"...
  • Page 20 20" (510 mm) 9200 20" (510 mm) Side Front standard 40" 12" (1016 mm) or made-to-measure (300 mm) 22" (600 mm) 20" (510 mm) 32" (813 mm) 19-1/2" (495 mm) 28,5" (724 mm) 19" (724 mm) 36" (914 mm) 24" (610 mm) 17”...
  • Page 21 9800 9800 9123 20" (510 mm) 10" standard 44" (254 mm) (1120 mm) or made-to-measure 35-1/2" (900 mm) 16-1/4" (413 mm) 18-1/2" (467 mm) 22" (560 mm) 4" (100 mm) 48-1/2" (1230 mm) 17” (432 mm) Adjustable from 26" 16" (406 mm) to (660 mm) 19"...
  • Page 22 Page 22 REV. 2013-02...

  • Page 23: Part 2: Security, Operation And Maintenance

    PART 2: SECURITY, OPERATION AND MAINTENANCE Conten 1. Precautions before lighting your first 4. Ashes 4.1 Metal container fire 4.2 Natural fertilizer 1.1 Adequate air supply 1.2 Preventing smoke returns 5. Fireplace maintenance 2. Firewood 5.1 Finish maintenance 5.2 Repainting 2.1 Allowed fuels 5.3 Outside air intake 2.2 Forbidden fuels...
  • Page 24 PART 2: OPERATION AND MAINTENANCE 1. Precautions before lighting materials reach very high temperatures and release corrosive gases, which may irreparably your first fire damage your installation and void the warranty. Recommended wood species: For an 1.1 Adequate air supply: A wood fire requires efficient and economical operation, use only plenty of air.
  • Page 25 come in contact with the glass panes because this 4. Ashes can make them more fragile. Always center the firescreen under the suspended hood. 4.1 Metal container: To collect ashes, use a metal container with an airtight lid. Dispose of 3.5 Preventing overfiring: Don't overload your them on the ground, outside, away from any fireplace.
  • Page 26 In extreme cases, the condensation same type and dimensions. water can even infiltrate the chimney insulation. To avoid these problems, it is necessary to Fireplaces 9000, 9120, 9800, 9123, 9086: maintain an acceptable humidity level inside the Tempered glass, 6 mm house.

  • Page 27: Part 3: Parts List

    PART 3: REPLACEMENT PARTS LIST To order a part: 1) Check the replacement part required 2) Specify the year of the fireplace installation _________________ 3) Fax this list with your coordinates to 418-686-9117 Regular ceiling support Cathedral ceiling support Bolts for fixing the hood against the ceiling support (4) Rigid insulation for the cathedral ceiling support Fireplace hood Tubular steel structure supporting hood and glass doors...

  • Page 28: Part 4: Chimney Fires

    PART 4: CHIMNEY FIRES DIRECTIVES IN CASE OF A CHIMNEY FIRE How to detect a chimney fire What to do - Odour: Smell of smoke in the air. - Immediately alert the occupants of the building about - Sight: The colour of the pipe change. Flames at the potential danger.

  • Page 29: Part 5: Warranty

    LES FOYERS DON-BAR 25 YEAR LIMITED WARRANTY FIREPLACES 1. The first 5 years: If, during this 5- year period, and in the course of a normal use, a component part of the fireplace 1.4 Gaskets: Fireplace gaskets are 8. The duration of the warranty on any becomes defective due to a material or warranted for 90 days following the part that is the object of a claim must...
