SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS - READ AND FOLLOW ALL SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS
When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:
• To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times.
• RISK OF ELECTRIC SHOCK - The sand filter must be supplied by an isolating transformer or supplied through a residual current device (RCD) having a rated residual
operating current not exceeding 30mA.
• RISK OF ELECTRIC SHOCK - Forbid the access of the pool in case of damage of the sand filter.
• DO NOT BURY CORD. Locate cord to minimize abuse from lawn mowers, hedge trimmers, and other equipment.
• To reduce the risk of electric shock, replace damaged cord immediately.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• To reduce the risk of electric shock, do not use extension cord to connect unit to electric supply; provide a properly located outlet.
• Risk of electric shock. Using the sand filter with an unmatched electrical supply is dangerous and will permanently damage the sand filter.
• Do not remove the grounding prong or modify the plug in anyway. Do not use adaptor plugs. Consult a qualified electrician for any questions relating to validity of your plugs
or grounding.
• Handle the sand filter with care. Do not pull or carry the sand filter by the power cord. Never pull a plug from the outlet by yanking the power cord. Keep cord free from
abrasions. Sharp objects, oil, moving parts, and heat should never be exposed to the sand filter.
• Always unplug this product from the electrical outlet before removing, cleaning, servicing or making any adjustment to the product.
• This appliance is not intended for use by persons (including children) with reduced physical, sensor or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do
not play with this product.
• Electric installations should fulfill the local requirements, such as standards DIN VDE0100 part 702 for Germany. Consult a qualified electrician for
any questions.
CAUTION: This sand filter is for use with storable pools only. Do not use with permanently-installed pools. A storable pool is constructed so that it is capable of being readily
disassembled for storage and reassembled to its original integrity. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily
disassembled for storage.
NOTES:
• Place the sand filter on solid, level ground. Ensure the
sand filter is at least 2 meters away from poolside.
Keep distance as far as possible.
• Pay attention to position pool and sand filter so
adequate ventilation, drainage, and access for
maintenance is available. Never place the sand filter in
an area that may accumulate water, or on a walking
path with lots of foot traffic.
• It is necessary to have the plug accessible after
installation of the pool. The plug of the sand filter shall
be at least 3,5m away from the pool.
• Atmospheric conditions may affect the performance
and life span of the sand filter; take adequate
precautions to protect the sand filter from unnecessary
wear and tear that may occur during periods of cold or
hot weather and/or exposure to sun.
• Please examine and verify all sand filter components
are present before use. Notify Bestway at the
customer service address listed on this manual for any
damaged or missing parts at the time of purchase.
• It is imperative to change as soon as possible all
deteriorated parts. Only use parts approved by the
manufacturer.
• Do not allow children or adults to lean or sit on the
apparatus.
• Do not add chemicals to the sand filter.
• When chemical products are used to clean the pool
water, it is recommended to respect a minimum
filtration time to preserve the health of swimmers
which depends on compliance of health regulation.
• This product is not intended for commercial use.
PUMP DISPOSAL
Meaning of crossed-out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the
collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damage your health
and well-being.
When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.
WARNING

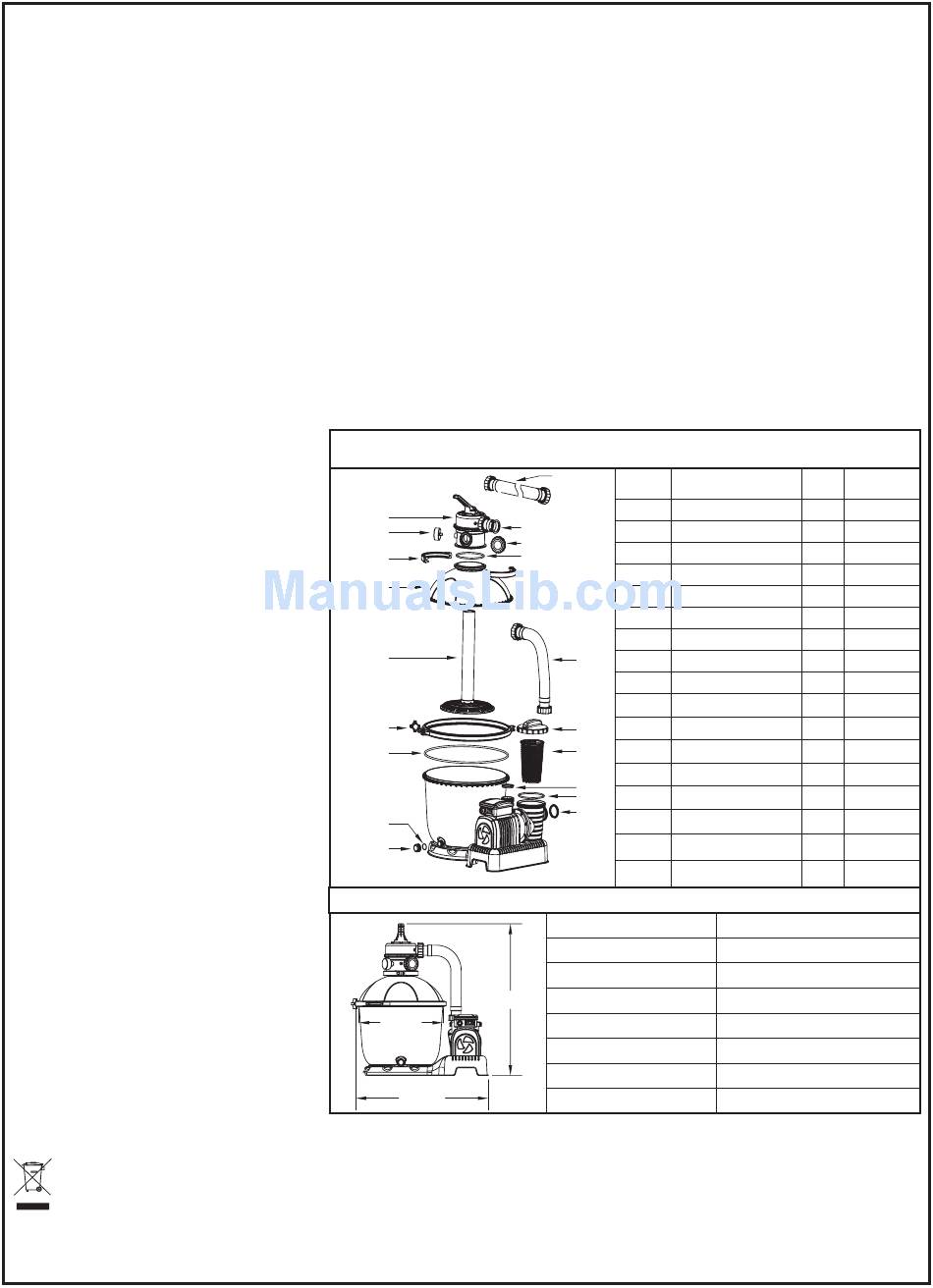

PARTS REFERENCE OVERVIEW
Before assembling the sand filter, take a few minutes to become familiar with all the sand filter parts.
1
2
3
4
5
6
7
8
9

SPECIFICATIONS

691mm
388mm
615mm
2
10
REF.NO. DESCRPITION
1 Control Valve
11
2 Pressure Gauge
12
3 Top Flange Clamp
13
4 Top Tank
5 Hub
6 Flange Clamp
7 O-ring
14
8 Drain Washer
9 Drain Valve Cap
10 Hose
15
11 Washer
16
12 Port D Cap
13 O-ring
11
17
14 Piping
11
15 Strainer Cover
16 Strainer
17 Seal Ring
Filter Diameter:
Effective Filter Area:
Max. Operating Pressure:
Working sand filter pressure:
Max. Water Temperature:
Sand:
Sand Size:
Sand Capacity:
QTY. PART NO.
1 P6536
1 P6571
2 P6553
1 P6564
1 P6557
1 P6558
1 P6559
1 P6581
1 P6580
2 P6610
5 P6029
1 P6540
1 P6149
1 P6560
1 P6561
1 P6562
1 P6563
388mm
0.116m (1.25ft )
2 2
0.24MPa (35 PSI)
< 0.045MPa (6.5PSI)
35°C
Not included
#20 silica sand, 0.45-0.85mm
Approximately 2/3 of the Tank, 25kg
S-S-001458
