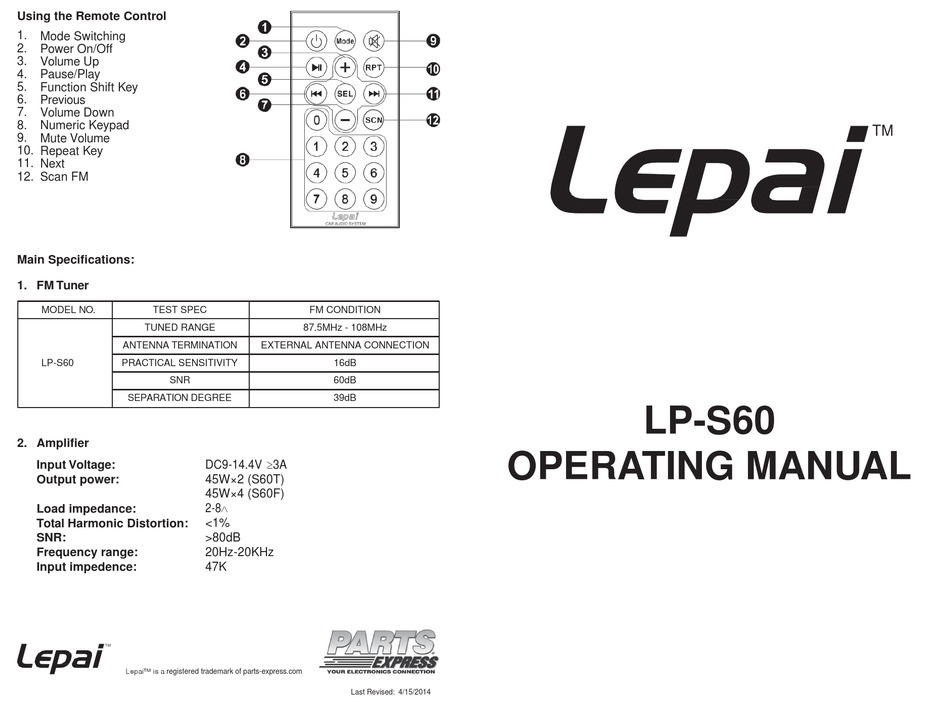

Using the Remote Control
1.
Mode Switching
2.
Power On/Off
3.
Volume Up
4.
Pause/Play
5.
Function Shift Key
6.
Previous
7.
Volume Down
8.
Numeric Keypad
9.
Mute Volume
10.
Repeat Key
11.
Next
12.
Scan FM
Main Specifications:
1. FM Tuner
MODEL NO.
TEST SPEC
TUNED RANGE
ANTENNA TERMINATION
LP-S60
PRACTICAL SENSITIVITY
SNR
SEPARATION DEGREE
2. Amplifier
Input Voltage:
Output power:
Load impedance:
Total Harmonic Distortion:
SNR:
Frequency range:
Input impedence:
TM
Lepai™ is a registered trademark of parts-express.com
FM CONDITION
87.5MHz - 108MHz
EXTERNAL ANTENNA CONNECTION
16dB
60dB
39dB
DC9-14.4V 3A
45W×2 (S60T)
45W×4 (S60F)
2-8
<1%
>80dB
20Hz-20KHz
47K
Last Revised: 4/15/2014
LP-S60
OPERATING MANUAL
TM
