Using the Remote Control
1.
Mode Switching
2.
Power On/Off
3.
Previous
4.
Pause/Play and Channel Up
5.
Volume Down
6.
Switch Equalizer and Channel Down
7.
Repeat Key
8.
Numeric Keypad
9.
Mute Volume
10. Next
11. Volume Up
12. Scan FM
Main Specifications:
1. FM Tuner
MODEL NO.
TEST SPEC
TUNED RANGE
ANTENNA TERMINATION
LP-A68
PRACTICAL SENSITIVITY
SNR
SEPARATION DEGREE
2. Amplifier
Input Voltage:
Output power:
Load impedance:
Total Harmonic Distortion:
SNR:
Frequency range:
Input impedence:
TM
Lepai™ is a registered trademark of parts-express.com
FM CONDITION
87.5MHz - 108MHz
EXTERNAL ANTENNA CONNECTION
16dB
60dB
39dB
DC9-14.4V ≥5A
15W×2 Channels
2-8Ω
<1%
>80dB
20Hz-20KHz
47K
Last Revised: 4/15/2014

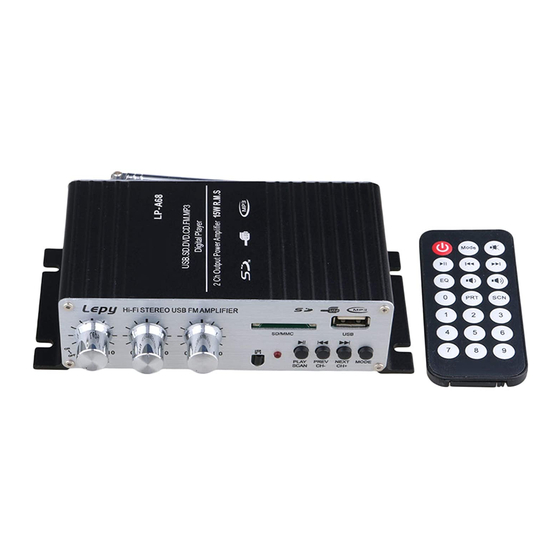

LP-A68 AMPLIFIER
OPERATING MANUAL
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lepai LP-A68
Summary of Contents for Lepai LP-A68
- Page 1 SEPARATION DEGREE 39dB LP-A68 AMPLIFIER 2. Amplifier OPERATING MANUAL DC9-14.4V ≥5A Input Voltage: Output power: 15W×2 Channels Load impedance: 2-8Ω Total Harmonic Distortion: <1% SNR: >80dB Frequency range: 20Hz-20KHz Input impedence: Lepai™ is a registered trademark of parts-express.com Last Revised: 4/15/2014...
- Page 2 Basic Operations: Before operating, please read this manual completely 1. Power On/Off Operation: If charged with electricity for the first time, it will Features: appear the default status—AUX status. If without disconnection from the ACC • Compatible play function of SD/MMC/USB wire hereafter, it will automatically revert to the state before turning off (such as •...
