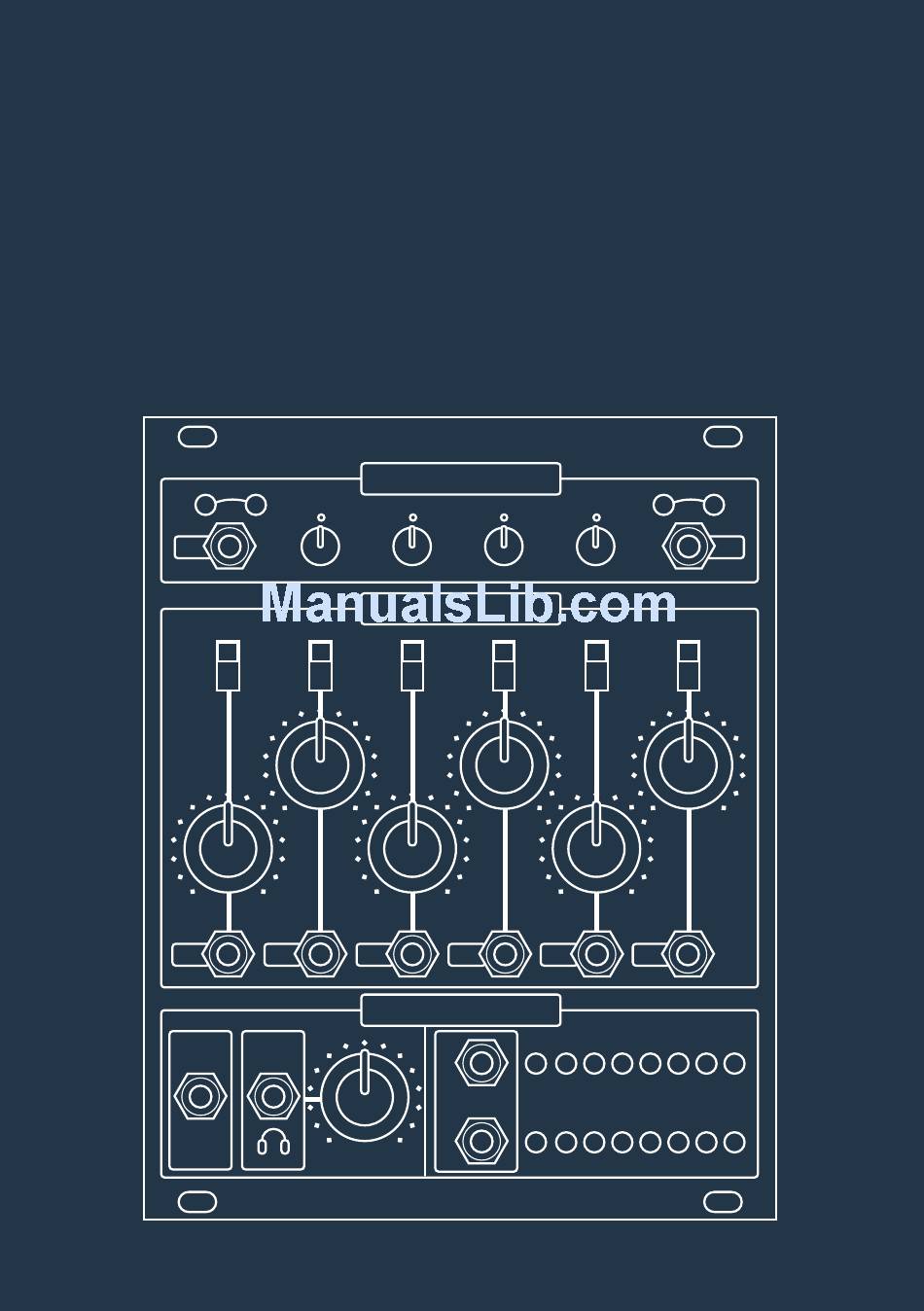

- Page 1 SPUTNIK MODULAR 6-CHANNEL MIXER MANUAL V.1 6-CHANNEL MIXER STEREO PAN SIGNAL INPUTS DIRECT MONO SPUTNIK MODULAR SPUTNIK-MODULAR.COM...
-
Page 2: Table Of Contents
SPUTNIK MODULAR 6-CHANNEL MIXER TABLE OF CONTENTS SPECIFICATIONS INSTALLATION DESCRIPTION DIAGRAM WARRANTY SPUTNIK-MODULAR.COM... -
Page 3: Specifications
SPUTNIK MODULAR 6-CHANNEL MIXER SPECIFICATIONS FORMAT: Eurorack DIMENSIONS: 20HP, 40mm deep INTERNAL AND EXTERNAL SIGNALS (3.5mm Jacks): CV: 0-5V, AUDIO: +/-5V MAX CURRENT: +12V: 70mA -12V: 50mA +5V: 50mA SPUTNIK-MODULAR.COM... -
Page 4: Installation
SPUTNIK MODULAR 6-CHANNEL MIXER INSTALLATION Remove module from packaging. Power down your modular synthesizer and disconnect the power cable from the wall outlet. Attach the included power cable to the module’s power connector and connect the other end to the power distribution bus in your EuroRack synthesizer case. -
Page 5: Description
SPUTNIK MODULAR 6-CHANNEL MIXER DESCRIPTION The SPUTNIK 6-CHANNEL STEREO MIXER is a six channel stereo mixer with two channels of voltage control panning. Each channel features mute switches and volume control knobs. Four channels have stereo control via standard panning knobs and two channels have input jacks for CV panning (0V to +5V, Ch. -
Page 6: Diagram
SPUTNIK MODULAR 6-CHANNEL MIXER STEREO PAN SIGNAL INPUTS Channels 1 and 6 have voltage SInputs for each channel controlled panning (0V to +5V), with volume controls and normalled to left and right mute switches. respectively. The other four channels of the mixer have their panning position controlled by dedicated pan knobs. -
Page 7: Warranty
SPUTNIK MODULAR 6-CHANNEL MIXER WARRANTY This product is covered by the Sputnik Modular warranty, for one year following the date of purchase. This warranty covers any defect in the manufacturing of this product. This warranty does not cover any damage or malfunction caused by incorrect use –...
