- Page 1 Hegel HD25 High End D/A Converter www.hegel.com info@hegel.com...
-
Page 2: Sound Advice
Our aim is to give you the best possible music experience! SOUND ADVICE The Hegel HD25 High End Digital to Analog converter is easy to connect and operate, and requires no prior technical knowledge. However, to get the most out of the converter’s superior sound and music quality, we have provided a brief description of how to use the device in order to provide a total music experience. - Page 3 The power switch is on the rear side of the D/A Converter, next to the mains input. When powered up, the HD25 will use 15 seconds to calibrate. During this time, the outputs will be muted. NOTE: When powered up the outputs will be muted and the display will flash for approximately 15 seconds.

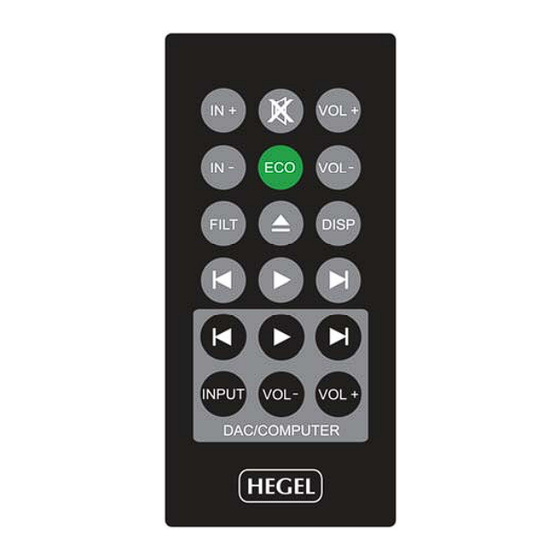

- Page 4 VOL+ (18). Input: When you press the INPUT-button (16) or double tap the front panel, the HD25 will switch to the next source input in the following sequence: COAX1 – COAX2 – OPTICAL – USB – COAX1 – COAX2 and so on. On power-up the HD25 will remember the last used input.
- Page 5 F.2 is a minimum preringing and low latency filter Display: If you are listening in a dark room you may want to turn off the HD25’s display. Pressing and holding the DISP-button (9) for approximately one second will turn the display off. A short press of the DISP- button will turn the display on again.
- Page 6 Rear Panel From left to right the connectors are: Unbalanced outputs Phono / RCA left / right Balanced outputs XLR right / left Digital input Phono / RCA – Coax 1 Digital input Phono / RCA – Coax 2 ® Digital input TOSLINK / EIAJ Optical USB mode selector switch...
-
Page 7: Use & Placement
USE & PLACEMENT The HEGEL HD25 should be placed on a flat, hard surface for proper isolation from vibrations. A certain space is required for air circulation above and below the D/A converter. The D/A converter must never be placed on a carpet or similar surface that obstructs air circulation through the unit. Nor must it be covered while in use or placed on a narrow shelf or in any other confined space. -
Page 8: Technical Specifications
The product must not be exposed to rain or moisture. VOLTAGE SETTING Underneath the HD25 there is a red switch to toggle between 115V (use for 100-120V) and 230V mains voltage. Please check and confirm that the setting is correct for your country before use. If you are uncertain of the correct setting, please consult your Hegel dealer.
