- Page 1 Hegel HD11 High End D/A Converter www.hegel.com info@hegel.com...
-
Page 2: Sound Advice
Our aim is to give you the best possible music experience! SOUND ADVICE The Hegel HD11 High End Digital to Analog converter is easy to connect and operate, and requires no prior technical knowledge. However, to get the most out of the converter’s superior sound and music quality, we have provided a brief description of how to use the device in order to provide a total music experience. - Page 3 The power switch is on the rear side of the D/A Converter, next to the mains input. When powered up, the HD11 will use 15 seconds to calibrate. During this time, the outputs will be muted and the selected input LED will flash.

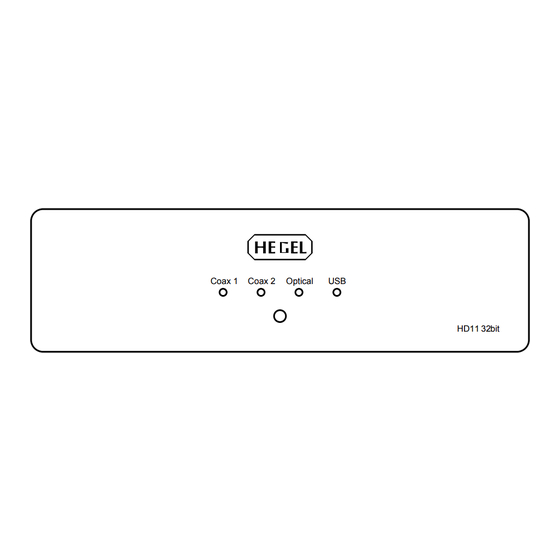

- Page 4 The main button you will use to operate your HD11 is the button INPUT (16). Input: When you press the INPUT-button (16), the HD11 will switch to the next input source in the following se- quence: COAX1 – COAX2 – OPTICAL – USB – COAX1 – COAX2 and so on.
- Page 5 MAC: If you have connected the HD11 but there is no sound you may need to go to “System Preferences – Sound – Output” and choose your HD11 as the output device. The name of the Hegel HD11 will read: “TE7022 Audio w/ SPDIF”.
- Page 6 Rear Panel Hegel, Oslo, Norway Analog Outputs Right Left Digital inputs Apparatet må tilkoples jordet stikkontakt Coax 1 Coax 2 Optical A 46 From left to right the connectors are: Unbalanced outputs Phono / RCA left / right Balanced outputs XLR right / left Digital input Phono / RCA –...
-
Page 7: Use & Placement
USE & PLACEMENT The HEGEL HD11 should be placed on a flat, hard surface for proper isolation from vibrations. A certain space is required for air circulation above and below the D/A converter. The D/A converter must never be placed on a carpet or similar surface that obstructs air circulation through the unit. -
Page 8: Technical Specifications
The product must not be exposed to rain or moisture. VOLTAGE SETTING Underneath the HD11 there is a red switch to toggle between 115V (use for 100-120V) and 230V mains voltage. Please check and confirm that the setting is correct for your country before use. If you are uncertain of the correct setting, please consult your Hegel dealer.
