Instruction Manual
MONTY E50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E50 and is the answer not in the manual?

Questions and answers

Related Manuals for Monty e-bike E50

Summary of Contents for Monty e-bike E50

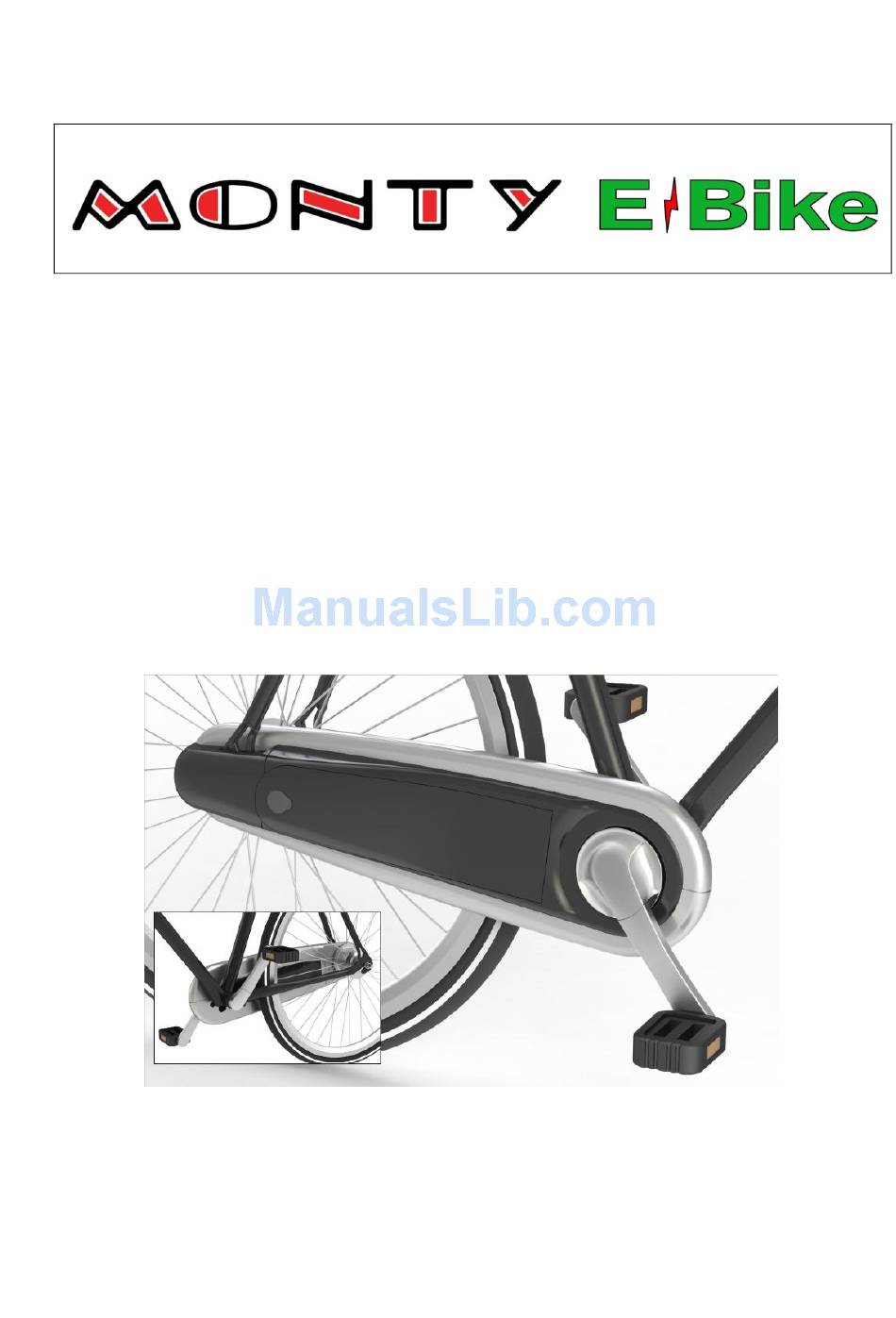

  • Page 1 Instruction Manual MONTY E50...

  • Page 2: Table Of Contents

    Contents INTRODUCTION DISPLAY AND KEY 1.1 Mounting/dismounting of the display ........5 1.2 Operation of the display and the throttle ......5 1.3 Display settings ..............6 1.4 Assist function ..............9 1.5 Troubleshooting ..............11 GEAR LEVER ADJUSTMENT OF HANDLEBARS ADJUSTMENT OF SADDLE BATTERY AND CHARGER 5.1 Mounting and dismounting of the battery ......

  • Page 3: Introduction

    INTRODUCTION WELCOME TO THE MONTY FAMILY Firstly, we would like to welcome you and thank you for choosing the Monty brand This “User’s Manual” for your new Monty electric bike con- tains important information which you will need to keep your bike in good condition.
  • Page 4 IMPORTANT WARNING NON-FULFILLMENT OF THE INSTRUCTIONS DETAILED IN THIS MANUAL MAY LEAD TO MECHANICAL FAILLURES, A LOSS OF CONTROL AND POSSIBLE FALLS, WITH SERI- OUS PHYSICAL INJURIES TO THE USER OR OTHERS, IN- CLUDING EVEN DEATH. INCORRECT USAGE MAY ALSO RISK YOUR PHYSICAL INTEGRITY AND THAT OF OTHERS.

  • Page 5: Display And Key

    1. DISPLAY AND KEY 1.1 Mounting/dismounting of the display Mount the display in center- positioned holder by inserting it at a 45° angle and then rotate it clockwise. Remove the display by rotating anti-clockwise. When the display is inserted, it activates the electrical system. In other words the display also functions as a key to the electrical system.

  • Page 6: Display Settings

    1.3 Display settings On and off The display is turned on and off by pressing the on/off button in the left lever. Sleep mode When turning off the display, it goes into "sleep" mode. Press the on/off button again to activate the display.
  • Page 7 Driving speed The current driving speed is shown in the display center area. Battery indicator The battery indicator is shown in the left side of the display. The indicator indicates the ap- proximate battery level. Assist level The selected assist level is shown in the right side of the display.
  • Page 8 Assist options It is possible to choose between 2 assist options – “speed mode” and “eco mode”. Press the up/down buttons on the left lever for 3-5 seconds to switch between the 2 assist options. Please see section 3.4 for further information about the 2 assist options.

  • Page 9: Assist Function

    3-5 seconds on the “mode” button on the left lever 1.4 Assist function The Monty E50 has 3 different assist options: a) Speed mode with 6 assist levels b) Eco mode with 3 assists levels c) Throttle with variable speed To switch between “speed mode”...
  • Page 10  Speed-mode: No assist 0-8 km/h 0-10 km/h 0-12 km/h 0-15 0-20 km/h 0-25 km/h km/h “Speed mode” has 6 assist levels. Choose “Speed mode” if you want to ride at a constant speed which is lower than the top speed. By pressing the up/down buttons on the left lever you may choose the appropriate assist level.

  • Page 11: Troubleshooting

     Throttle: When not pedaling, the “walk assist” feature can be activated by turning the throttle. This feature is well suited for pulling the e-bike uphill. When the pedals and the throttle are activated simultaneously it is possible to variably adjust the speed up to max speed level. It is advisable to use the throttle when driving in heavy traffic.

  • Page 12: Gear Lever

    Choose the appropriate gear according to speed and wish. The E50 model has 7 internal gears 3. ADJUSTMENT OF HANDLEBARS Push up the black button and raise the lever to allow for adjust- ment of the handlebars in desired position.

  • Page 13: Adjustment Of Saddle

    4. ADJUSTMENT OF SADDLE The height of the saddle can be adjusted by loosening the Allen bolt, and then adjusting the saddle to the desired posi- tion. The suspension of the seat post can be adjusted by turning the Allen bolt at the bottom of the seat post 5.

  • Page 14: Connection Of Charger

    5.2 Connection of charger There a 2 options for connecting the charger / battery charging: 1. Plug in the charger on the left side of the display. Please note that the battery must be mounted in the chain case. After charging insert the little rubber cap in the socket to protect against dirt.

  • Page 15: Use Of Battery Charger

    5.3 Use of battery charger 1. Charging must take place indoors or under a pent roof, since the charger is not waterproof. 2. Plug in the charger on the left side of the display or dismount the battery and attached the adapter to the battery. 3.

  • Page 16: Storage For The Winter

    Memory effect does not occur in Li-ION batteries. It is thus unnecessary to discharge the battery before starting a recharge. Charging of the Li-ION battery at many frequent intervals may prolong the battery life. However, please note that once charg- ing of the battery has been started you should not discontinue the process as this may have a negative influence on the battery life.

  • Page 17: Disposal Of Battery

    Likewise the controller will disconnect the motor when your speed exceeds 24.6 km/h. 7. EU STANDARDS, DECLARATION OF CONFORMITY The MONTY E50 e-bike is built according to the guidelines of the EU standards EN 14764 and EPAC EN 15194. The Monty Electric e-bike E50 is CE-approved.

  • Page 18: Technical Data

    8. TECHNICAL DATA MONTY E50 Gear Shimano Nexus 7 gear with coaster brake Motor 250W brushless DC hub motor with planetary gear Controller PWM/microprocessor with self-diagnostic system Mode PAS (Pedal Assist System) (EU standard EN 15194 og EPAC EN 15194)

  • Page 19: Warranty

    9. WARRANTY A warranty is being established through the vendor in accordance with the law 23/2003, dated July 10, on the consumer sales warranties, accord- ing to the Directive normative 1999/44CE. Additional conditions: The warranty does not cover the E-50 parts subjected to normal use, such as tires, chain, brakes, cables etc...

  • Page 20: Customer Applying Form

    10. CUSTOMER APPLYING FORM Dear client, If you want to be kept up-to-date on the latest Monty electric products, even everything related to the World of the Monty E-bikes, send us an e-mail with the following information to: e-bike@monty.es Name: Surname: Address Zip code:...
