USER MANUAL

BlackSys CH-100B
CAMMSYS
Blackbox
※ BlackSys Application may vary in function depending on mobile product and OS version.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAMMSYS CH-100B and is the answer not in the manual?

Questions and answers

Summary of Contents for BlackSys CAMMSYS CH-100B

  • Page 1: User Manual

    USER MANUAL BlackSys CH-100B CAMMSYS Blackbox ※ BlackSys Application may vary in function depending on mobile product and OS version.
  • Page 2 Thank you for choosing BlackSys. This manual is based on the CH-100B model. The latest firmware & manual can be found at our website www.blacksys.co.kr/en ■ Please read carefully before using this product. ※ This manual should be reviewed and retained for future reference.
  • Page 3: Table Of Contents

    Contents Instruction for Use 1-1. Product Precautions …………………… 5-4. Connecting to the BlackSys App …… 1-2. Installation caution …………………… 5-5. Upgrading the App Firmware …………… 1-3. GPS caution …………………… 5-6. BlackSys Viewer Program ………………… 1-4. Memory Card …………………… Firmware Update Features ……………………...
  • Page 4: Product Precautions

    Product Precaution 1-1 Caution 1. Do not expose product to direct sunlight or cold weather for extended periods of time. Product exposure to direct sunlight and extreme temperatures may cause damage to the product. 2. Do not dismantle or alter the product. Do not disassemble, modify, or attempt to repair the product.
  • Page 5 Disconnecting the power source may cause the product to malfunction. Please use only the recommended voltage for power connection. 12. Some PCs may not support BlackSys Viewer or there may be some disconnections in voice/image depending on the PC’s specifications.
  • Page 6 19. The left/right side image quality of this product may vary due to characteristics of the wide-angle lens. 21. Please ensure all accessories are connected to product(s) to avoid data loss. 22. The interworking draft using Wi-Fi between smartphone and product cannot be connected simultaneously, also when it is connected with product you cannot access internet.
  • Page 7: Installation Caution

    1-2 Installation caution 1. Keep product clear of clutter. Please ensure the surrounding area is clutter free to avoid reflections/vibrations that may reduce the image/audio quality. 2. Ensure camera lens is clean at all times. Allowing the camera lens to collect dust/oils will reduce the quality of the image. 3.
  • Page 8: Memory Card

    2. Be sure to periodically reformat the memory cards using the BlackSys Viewer or the product itself. Repetitive data creation and deletion by the product can cause damage to the memory card(s) and their file. 16G micro SD card should be formatted once a month.
  • Page 9: Features

    Features + Clear image with CMOS Sensor Front: Full HD Sony CMOS Sensor / Rear: HD Image Sensor + Distortion-free recording with Wide-angle lens Front: 1920x1080p Full HD, 30fps / 16:9 wide screen with 135° angle of view Rear: 1280x720p HD, 30fps with 130° angle of view + Wi-Fi Support (802.11b/g/n (2.4~2/4835FHz)) + Low Voltage Cut-off function Under 100uA Leakage current.
  • Page 10 + 8GB~128GB Memory Support + Multi Language Support Korean, English, Chinese (Mandarin, Cantonese), Arabic, Russian, French, Spanish (Europe, South America), Japanese, Thai language, Bahasa Indonesia, Vietnamese, German, Turkish, Italian, Czech, Portuguese, Bahasa Malaysia + Security LED Support + GPS Dual Band (GPS+GLONASS) + Built-in microphone Product records audio simultaneously with video.
  • Page 11 When the vehicle is turned off, the product will save all data before terminating. + Playing You can check the recorded video and driving information by BlackSys PC viewer and smartphone and also you can use other video player such as Windows media player.
  • Page 12: Package & Part Names

    Package & Part Names 3-1 Package Guide Standard Components Main Unit (Product) User Manual Cable Holder Micro SD Memory Cigar Jack Cable Option Bracket Rear Camera Wi-Fi Dongle Bracket type GPS DC Fuse Power Cable OBD Terminal ※ Actual components may be different from pictures and some components can be changed in case. If package doesn’t include below components, please contact a retail shop or company where product was sold.

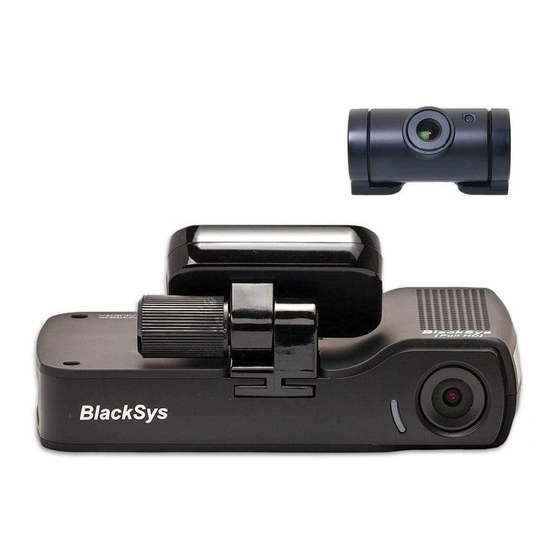

  • Page 13: Front & Rear

    3-2 Front & Rear Emergency Recording Button Volume Control For manual recording Speaker volume control (+) Camera Lens For video recording Volume Control Speaker volume control (-) MICRO SD Wi-Fi Wi-Fi ON/OFF Security LED LED indicator for parking or video recording Micro SD card slot External Micro SD card port USER MANUAL...
  • Page 14: Left & Right

    GPS Port OBD Terminal Check location Check driving information and speed of vehicle by using OBD cable through BlackSys Viewer program Rear Camera Connecting Port Wi-Fi Port Power cable port Connecting HD rear camera Wi-Fi Connecting port Cigar jack power cable port ①...
  • Page 15: Installation

    Installation 4-1 Front Camera (Main product) 1. Attaching double-sided adhesive tape 2. Installing unit Wipe up the foreign matters or moisture completely Installation is recommended on the left/right of room mirror. from the location of installation. Remove the Tightly fasten the adhesive of holder to the windshield by release paper on double sided tape and attach it pushing it.
  • Page 16 4-1 Front Camera (Main product) 3. Power cable arrangement and connection 4. Power cable connection and check the LED state By using the cable holder, arrange the Cigar jack cable After inserting the Cigar jack cable into cigar jack, turn on the and connect it to the DC IN port.
  • Page 17: Rear Camera

    4-2 Rear Camera 1. Rear Camera Installation 2. Installation Connect rear camera to the rear camera connector. Wipe up the foreign matters or moisture completely from the Clean up the cable of rear camera from the location location of installation. Remove the red adhesive on double of installation.
  • Page 18: Memory Card Usage

    4-3 Memory Card Usage - Video is recorded in 3 or 5 minute intervals for continuous recording. 30 second intervals for motion and event recording. - The number of files and usage times below is standard when set at 70% continuous, recording, 20% motion recording and 10% event recording. 1.
  • Page 19: Product Usage

    ※ While Event recording and manual recording mode, other event or manual mode will not be operated. 3. Video Playback - Playback the recorded video: To playback the recorded video, touch “SD Card” or “BLACKSYS” (When connecting Wi-Fi) of CammSys application. Also you can check the video on BlackSys Viewer on PC with Micro SD card.
  • Page 20 ※ Automatic conversation to parking mode can be programed in the Configuration Setting >> Basic Functions of the BlackSys viewer, or on the BlackSys mobile app : BlackSys Settings >> Basic Function. ※ As recording stops and converts to parking or driving mode, less than 5 seconds of video may be lost.
  • Page 21 ※ You can set the motion detection function on the BlackSys Viewer : Configuration Settings >> Notion Detection. Or directly from the BlackSys App : BlackSys Settings >> Motion Detection. ※ White LED will blink while motion recording is active.
  • Page 22: Led Indicator And Voice Guide

    5-2 LED Indicator and Voice Guide ※ Function can be changed according to product upgrade. - Sound effect Function Voice Guide Function Voice Guide System start Starting the recording Time signal 1O’clock (In case of using Fixed time alarm) System OFF Terminating the system Starting the voice recording (Disconnecting power)
  • Page 23 - Hardware (H/W) Status LED Red(REC) Green(Rear) Blue(GPS) Yellow(Wi-Fi) Rear camera Connect / Disconnect Connecting rear camera while operating / Rebooting when disconnecting Connection success ON(2CH) Connection failed ON(2CH) ON(2CH) Wi-Fi ON(2CH) - Security Status LED Red(REC) Green(Rear) Blue(GPS) Yellow(Wi-Fi) Security LED Standby ON(2CH)
  • Page 24: Operating Button/Long Key

    - Operating button (Option Key), Long Key (More than 3 sec.) Function Voice Guide Event Button Long Key Formatting is on standby. Press the left key to format SD Card Format Event Button Long Key Formatting the SD card. Do not turn off the power. Event Button Short / All key down except Long Key None Press long volume button (+)
  • Page 25: Using Blacksys App

    ※ Download the BlackSys application on your smartphone. The BlackSys application can be found on the Google Play Store and The App Store for iPhone. - The BlackSys application can be used with Android 4.2 or later, iOS 5.0 or later.
  • Page 26 5-4-1 Using BlackSys App - SD Card ※ You can view your recorded footage saved on the SD Card right from the BlackSys App. 1. Navigation : Navigate to the Main Screen 2. Front Camera : Display all footages except Front Camera 3.
  • Page 27 5-4-2 Using the BlackSys App - BlackSys Connection ※ Connect with your BlackSys product to view captured footage. ※ Green indicates a successful connect on the Main Screen. 1. Navigation : Navigate to the Main Screen 2. Front Camera : Display footage captured by the Front Camera 3.
  • Page 28 5-4-3 Using the BlackSys App - Configuration ※ Configuration only available when BlackSys product is connected to your Smartphone. ※ Menu items may vary depending on BlackSys model. ※ While saving changed value, either black box and smart phone have to be turned on.
  • Page 29 : Visit our homepage for more information 5-5 Upgrading Firmware on the BlackSys App 1. Connect to your BlackSys product to view current firmware version. 2. Navigate to Firmware Download (Information → Firmware Download) 3. Download the latest firmware available (Charges may apply depending on carrier).
  • Page 30 5-6 BlackSys Viewer 1. Program Installation - BlackSys Viewer can be found on the SD card(s) that come with your product. ※ You can download the BlackSys Viewer from our webpage www.blacksys.co.kr/en > GET SUPPORT > Download and execute. Once installation is completed, click BlackSys Player and execute it.
  • Page 31 3. PC Viewer Instructions Map View Time configuration Configuration Save recorded video Play List Print recorded image Folder open Play list and event information Front view indicator icon File name of front view video : alwa_20141112_071532_F.avi Mian Viewer screen Rear view indicator icon File name of rear view video : alwa_20141112_071532_R.avi File name of rear view video...
  • Page 32 4. Configuration - User can change the default setting value such as recording, system, time and more options using “Configuration” on the PC viewer program menu. CAMMSYS BLACKBOX...
  • Page 33: Recording Screen

    5. Recording screen Date, time Speed of vehicle (Only with GPS) Status of GPS ※A: GPS receiving ※ V: GPS not receiving ※ F: GPS is not connected Driving distance (Only with GPS) Power type Recording mode Plate number (Max 8 digit) Firmware version USER MANUAL...
  • Page 34: Firmware Update

    Turn off the ignition first and remove cigar jack cable from the unit. ② Access our webpage (www.blacksys.co.kr/en > GET SUPPORT > Download) and download the latest update file. ③ Connect SD card to PC and paste downloaded latest update file (CH100update.zip)
  • Page 35: How To Format Sd Card

    How to format SD card 7-1 PC format 1.PC format ※ “How to format?” is provided from PC viewer. We do not recommend to format on “My Computer”. ① Insert or connect SD card to PC. ② Click [Start] → [My Computer] ③...
  • Page 36: Technical Specification

    Micro SD card: SDHC/SDXC memory card Storage Front: 6Mbps 30fps Bitrate & Frame Rear: 4Mbps 30fps Video Playing Normal / BlackSys PC Viewer program Video H.264(AVI), Codec profile : HIP(High profile) Audio Built-in speaker and MIC & Audio Format Power and...
  • Page 37: Customer Service & As

    - Opening hour: 09:00 ~ 18:00 (Mon. ~ Fri.) -Closed: Saturday, Sunday and Public Holiday If you come to customer service center, service personnel will care for the service timely and properly. For further information regarding customer service, please refer to www.blacksys.co.kr USER MANUAL...
  • Page 38: Quality Assurances

    Quality Assurances 1. Warranty period • Product : 12 months from the purchase date (main unit) (But, if purchase date is not clear, it can be applying 3 months warranty after manufacturing date) • Accessory : 6 months including SD card. (expendable supply) (In case of using DC fuse power cable, memory card life can be shorter than general use) •...
  • Page 39: Product Warranty

    Product Warrarnty Model Name CH-100B Manufacturer Cammsys Co.,Ltd Serial No. Purchase Date 12 months from the purchase date Warranty Period (But, if purchase date is not clear, it can be applying 3 months after manufacturing date) Name Tel. Customer Information Address Assembler information Shop name...
  • Page 40 Daeil Bldg 3F, 681-17, Yeoksam-dong, Gangnam-gu, Seoul, Korea m.0.1.0e Tel. 070-4680-2599 / Fax. 070-8668-1161 / www.cammsys.net / www.blacksys.co.kr/en / www.mycar365.net...
