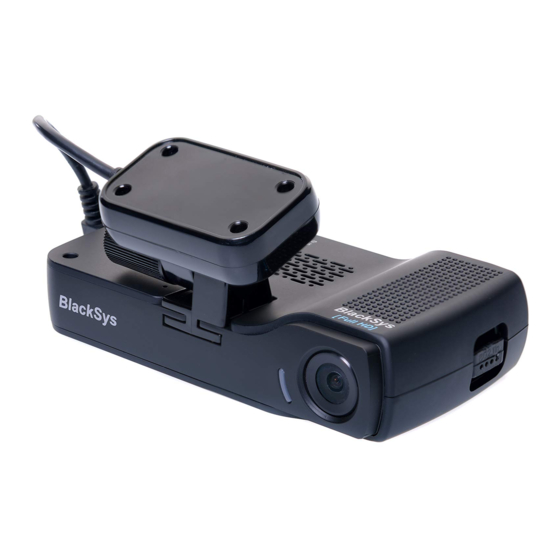

BlackSys CH-200 User Manual
  1. Manuals
  2. Brands
  3. BlackSys Manuals
  4. Camcorder
  5. CH-200
  6. User manual

BlackSys CH-200 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL
BLACKSYS CH-200
CAMMSYS
Blackbox
※ BlackSys Application may vary in function depending on mobile product and OS version.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH-200 and is the answer not in the manual?

Questions and answers

Related Manuals for BlackSys CH-200

Summary of Contents for BlackSys CH-200

  • Page 1 USER MANUAL BLACKSYS CH-200 CAMMSYS Blackbox ※ BlackSys Application may vary in function depending on mobile product and OS version.
  • Page 2 Thank you for choosing BlackSys. This manual is based on the CH-200 model. The latest firmware & manual can be found at our website www.blacksys.co.kr/en ■ Please read carefully before using this product. ※ This manual should be reviewed and retained for future reference.
  • Page 3 ※ Although this product was applied format free, Image defects (video recording missing, seamless, frame change or missing, other image saving defect, etc.) can occur due to general speed reduction of the memory card and other defects. CAMMSY is NOT responsible for any problems and/or damages that may occur from not using genuine SD card. It is strongly recommended that CAMMSYS memory cards are used to minimize memory card error, and the SD card should be formatted every month to maximize the lifetime of the memory card.

  • Page 4: Table Of Contents

    CONTENTS Contents Product Precaution 5-3. Using BlackSys App …………………… 1-1. Caution …………………… 5-4. Connecting the BlackSys App ……… 1-2. Installation caution …………………… 5-5. BlackSys Viewer …………………… 1-3. GPS caution …………………… 1-4. Memory Card …………………… Firmware Update 1-5. ADAS caution ……………………...

  • Page 5: Product Precaution

    Product Precaution 1-1 Caution 1. Do not expose product to direct sunlight or cold weather for extended periods of time. Product exposure to direct sunlight and extreme temperatures may cause damage to the product. 2. Do not dismantle or alter the product. Do not disassemble, modify, or attempt to repair the product.
  • Page 6 Disconnecting the power source may cause the product to malfunction. Please use only the recommended voltage for power connection. 12. Some PCs may not support BlackSys Viewer or there may be some disconnections in voice/image depending on the PC’s specifications.
  • Page 7 19. The left/right side image quality of this product may vary due to characteristics of the wide-angle lens. 21. Please ensure all accessories are connected to product(s) to avoid data loss. 22. The interworking draft using Wi-Fi between smartphone and product cannot be connected simultaneously, also when it is connected with product you cannot access internet.

  • Page 8: Installation Caution

    1-2 Installation caution 1. Keep product clear of clutter. Please ensure the surrounding area is clutter free to avoid reflections/vibrations that may reduce the image/audio quality. 2. Ensure camera lens is clean at all times. Allowing the camera lens to collect dust/oils will reduce the quality of the image. 3.

  • Page 9: Memory Card

    2. Be sure to periodically reformat the memory cards using the BlackSys Viewer or the product itself. Repetitive data creation and deletion by the product can cause damage to the SD card(s) and its file. SD card should be formatted once a month.

  • Page 10: Adas Caution

    1-5 ADAS caution 1. Only usable with GPS installed. 2. To use the ADAS Auto-calibration function, please install the product in accordance with the product installation guide. (see P.17) 3. The system may not operate adequately according to the actual driving conditions, resulting in an accident. (LDWS) - Driving on roads with tight curves.

  • Page 11: Features

    Features + Clear image with CMOS Sensor Front: Full HD Sony CMOS Sensor / Rear: Full HD Image Sensor + Distortion-free recording with Wide-angle lens Front: 1920x1080p Full HD, 30fps / 16:9 wide screen with 135° angle of view Rear: 1920x1080p Full HD, 30fps / 16:9 wide screen with 130° angle of view + Wi-Fi Support (802.11b/g/n (2.4~2/4835FHz)) + Low Voltage Cut-off function Under 100uA Leakage current.
  • Page 12 + 8GB~256GB Memory Support + Multi Language Support Korean, English, Chinese (Mandarin, Cantonese), Arabic, Russian, French, Spanish (Europe, South America), Japanese, Thai language, Bahasa Indonesia, Vietnamese, German, Turkish, Italian, Czech, Portuguese, Bahasa Malaysia + Security LED Support + GPS Dual Band (GPS+GLONASS) + Built-in microphone Product records audio simultaneously with video.
  • Page 13 When the vehicle is turned off, the product will save all data before terminating. + Playing You can check the recorded video and driving information by BlackSys PC viewer and smartphone and also you can use other video player such as Windows media player.

  • Page 14: Package & Part Names

    Package & Part Names 3-1 Package Guide Standard Components Main Unit (Product) User Manual Cable Holder SD card Cigar Jack Cable Option Bracket Rear Camera Wi-Fi Dongle Bracket type GPS DC Fuse Power Cable ※ Actual components may be different from pictures and some components can be changed in case. If package doesn’t include above components, please contact a retail shop or company where product was sold.

  • Page 15: Front & Rear

    3-2 Front & Rear Emergency Recording Button Volume Control For manual recording Speaker volume control (+) Camera Lens For video recording Volume Control Speaker volume control (-) MICRO SD Wi-Fi Wi-Fi ON/OFF Security LED LED indicator for parking , recording, GPS and ADAS SD card slot External SD card...

  • Page 16: Left & Right

    OBD Terminal GPS Port Check location Check driving information and speed of vehicle by using OBD cable through BlackSys Viewer program Rear Camera Connecting Port Wi-Fi Port Power cable port Connecting FHD rear camera Wi-Fi Connecting port Cigar jack power cable port ①...

  • Page 17: Installation

    Installation 4-1 Front Camera (Main product) 1. Attaching double-sided adhesive tape 2. Installing unit Wipe up the foreign matters or moisture completely Installation is recommended on the left/right of room mirror. from the location of installation. Remove the Tightly fasten the adhesive of holder to the windshield by release paper on double sided tape and attach it pushing it.
  • Page 18 4-1 Front Camera (Main product) 3. Power cable arrangement and connection 4. Power cable connection and check the LED state By using the cable holder, arrange the Cigar jack cable After inserting the Cigar jack cable into cigar jack, turn on the and connect it to the DC IN port.

  • Page 19: Rear Camera

    4-2 Rear Camera 1. Rear Camera Installation 2. Installation Connect rear camera to the rear camera connector. Wipe up the foreign matters or moisture completely from the Clean up the cable of rear camera from the location location of installation. Remove the red adhesive on double of installation.

  • Page 20: Memory Card Usage

    4-3 Memory Card Usage - Video is recorded at 3-minute interval for continuous recording, 30-second interval for motion and event recording. Below table is based the SD card setting which is set to the following proportional storage assignment for each recording mode : continuous 70%, motion 20%, event 10%.

  • Page 21: Product Usage

    ※ While Event recording and manual recording mode, other event or manual mode will not be operated. 3. Video Playback - Playback the recorded video: To playback the recorded video, touch “SD Card” or “BLACKSYS” (When connecting Wi-Fi) of CammSys application. Also you can check the video on BlackSys Viewer on PC with SD card.
  • Page 22 ※ Automatic conversion to parking mode can be programed in the Configuration Setting >> Basic Functions of the BlackSys viewer, or on the BlackSys mobile app : BlackSys Settings >> Basic Function. ※ As recording stops and converts to parking or driving mode, less than 5 seconds of video may be lost.
  • Page 23 ※ You can set the motion detection function on the BlackSys Viewer : Configuration Settings >> Motion. Or directly from the BlackSys App : BlackSys Settings >> Motion Detection. ※ White LED will blink while motion recording is active. ※ Motion detection may fail when the vehicle is in extreme lighting conditions.
  • Page 24 ※ Only usable with GPS option installed. ※ If you do not want to use ADAS, you can disable it on your PC viewer or app. ※ The functions of the ADAS have limitations: Always stay on course using the steering wheel and drive with care. The system is not designed to compensate for a driver’s lack of caution and if you rely too much on the ADAS it could lead to an accident.

  • Page 25: Led Indicator And Voice Guide

    5-2 LED Indicator and Voice Guide ※ Function can be changed according to product upgrade. - Sound effect Function Voice Guide Function Voice Guide Time signal System start Starting the recording 1O’clock (In case of using Fixed time alarm) System OFF Terminating the system Starting the voice recording (Disconnecting power)
  • Page 26 - Hardware (H/W) Status LED ※ If there is no WiFi connection or no response for 5 minutes, the WiFi will automatically switch off.(WiFi LED off) Red(REC) Green(ADAS) Blue(GPS) Yellow(Wi-Fi) Rear camera Connect / Disconnect Connection success Connection failed Wi-Fi ADAS - Security Status LED ※...
  • Page 27 - Operating button (Option Key), Long Key (More than 3 sec.) Function Voice Guide Event Button Long Key Formatting is on standby. Press the left key to format SD card Format Event Button Long Key Formatting the SD card. Do not turn off the power. Event Button Short / All key down except Long Key None Press long volume button (+)

  • Page 28: Using Blacksys App

    ※ The range of Wi-Fi reception may vary. ※ The path of recorded videos may vary depending on the smartphone. ※ The App is compatible with CH-100 and CH-200 and select model in the App before using the device. 5-4 Connecting the BlackSys App 1.

  • Page 29: Connecting The Blacksys App

    5-4-1 Using BlackSys App - SD Card ※ You can view your recorded footage saved on the SD Card right from the BlackSys App. 1. Navigation : Navigate to the Main Screen 2. Front Camera : Display all footages except Front Camera 3.
  • Page 30 5-4-2 Using the BlackSys App - BlackSys Connection ※ Connect with your BlackSys product to view captured footage. ※ Green indicates a successful connect on the Main Screen. 1. Navigation : Navigate to the Main Screen 2. Front Camera : Display footage captured by the Front Camera 3.
  • Page 31 5-4-3 Using the BlackSys App - Configuration ※ Configuration only available when BlackSys product is connected to your Smartphone. ※ Menu items may vary depending on BlackSys model. ※ While saving changed value, either black box and smart phone have to be turned on.
  • Page 32 5-4-4 Using the BlackSys App - Miscellaneous 1. Navigation : Navigate to the Main Screen 2. Application Version : Displays current mobile app version 3. Firmware Version : Displays current firmware version of your product 4. Call Service Center : Contact BlackSys for more information 5.

  • Page 33: Blacksys Viewer

    5-5 BlackSys Viewer 1. Program Installation - You can download the BlackSys Viewer from our webpage www.blacksys.co.kr/en > GET SUPPORT > Download and execute. Once installation is completed, click BlackSys Player and execute it. CH-200 Player 2. Uninstallation (Choose one of 3 options) Recommended System for PC viewer ①...
  • Page 34 3. PC Viewer Instructions Map View Time configuration Configuration Play List Save recorded video Folder open Play list and event information Front view indicator icon File name of front view video : alwa_20171112_071532_F.mp4 Mian Viewer screen Rear view indicator icon Sub Viewer screen : alwa_20171112_071532_R.mp4 Rear view video...
  • Page 35 4. Configuration - User can change the default setting value such as recording, system, time and more options using “Configuration” on the PC viewer program menu. USER MANUAL...
  • Page 36 5. Recording screen Date, time Speed of vehicle (Only with GPS) Status of GPS ※ A: GPS receiving ※ V: GPS not receiving ※ F: GPS is not connected Driving distance (Only with GPS) Voltage Recording mode Plate number (Max 8 digit) 2017/09/04 09:15:03 33Km/h 964.4Km 14.0V...

  • Page 37: Firmware Update

    Turn off the ignition first and remove cigar jack cable from the unit. ② Access our webpage (www.blacksys.co.kr/en > GET SUPPORT > Download) and download the latest update file. ③ Connect SD card to PC and paste downloaded latest update file (CH200update.zip)

  • Page 38: How To Format Sd Card

    How to format SD card 7-1 PC format 1.PC format ※ “How to format?” is provided from PC viewer. We do not recommend to format on “My Computer”. ① Insert or connect SD card to PC. ② Click [Start] → [My Computer] ③...

  • Page 39: Technical Specification

    Rear: 130° / Horizontal(105° ), Vertical(54° ) SD card: SDHC/SDXC memory card Storage Bitrate & Frame Front: 9Mbps 30fps , Rear: 7Mbps 30fps Video Playing Normal / BlackSys PC Viewer program Video H.264(MP4), Codec profile : MAIN L5.1 Audio Built-in speaker and MIC & Audio Format...

  • Page 40: Customer Service

    - Opening hour: 09:00 ~ 18:00 (Mon. ~ Fri.) -Closed: Saturday, Sunday and Public Holiday If you come to customer service center, service personnel will care for the service timely and properly. For further information regarding customer service, please refer to www.blacksys.co.kr/en CAMMSYS BLACKBOX...

  • Page 41: Quality Assurances

    Quality Assurances 1. Warranty period • Product : 12 months from the purchase date (main unit) (But, if purchase date is not clear, it can be applying 3 months warranty after manufacturing date) • Accessory : 6 months including SD card. (expendable supply) (In case of using DC fuse power cable, memory card life can be shorter than general use) •...

  • Page 42: Product Warranty

    Product Warrarnty Model Name CH-200 Manufacturer Cammsys Corp. Serial No. Purchase Date 12 months from the purchase date Warranty Period (But, if purchase date is not clear, it can be applying 3 months after manufacturing date) Name Tel. Customer Information...
  • Page 43 Memo USER MANUAL...
  • Page 44 (Songdo-dong)26, Venture-ro 100beon-gil, Yeonsu-gu, Incheon, 22013, Korea m.0.1.1e Tel. 070-4680-2595/ Fax. 070-4369-3778 / www.cammsys.net / www.blacksys.co.kr/en / www.pna360.com...
