Canoga Perkins 9120 User Manual

Gigabit ethernet media converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

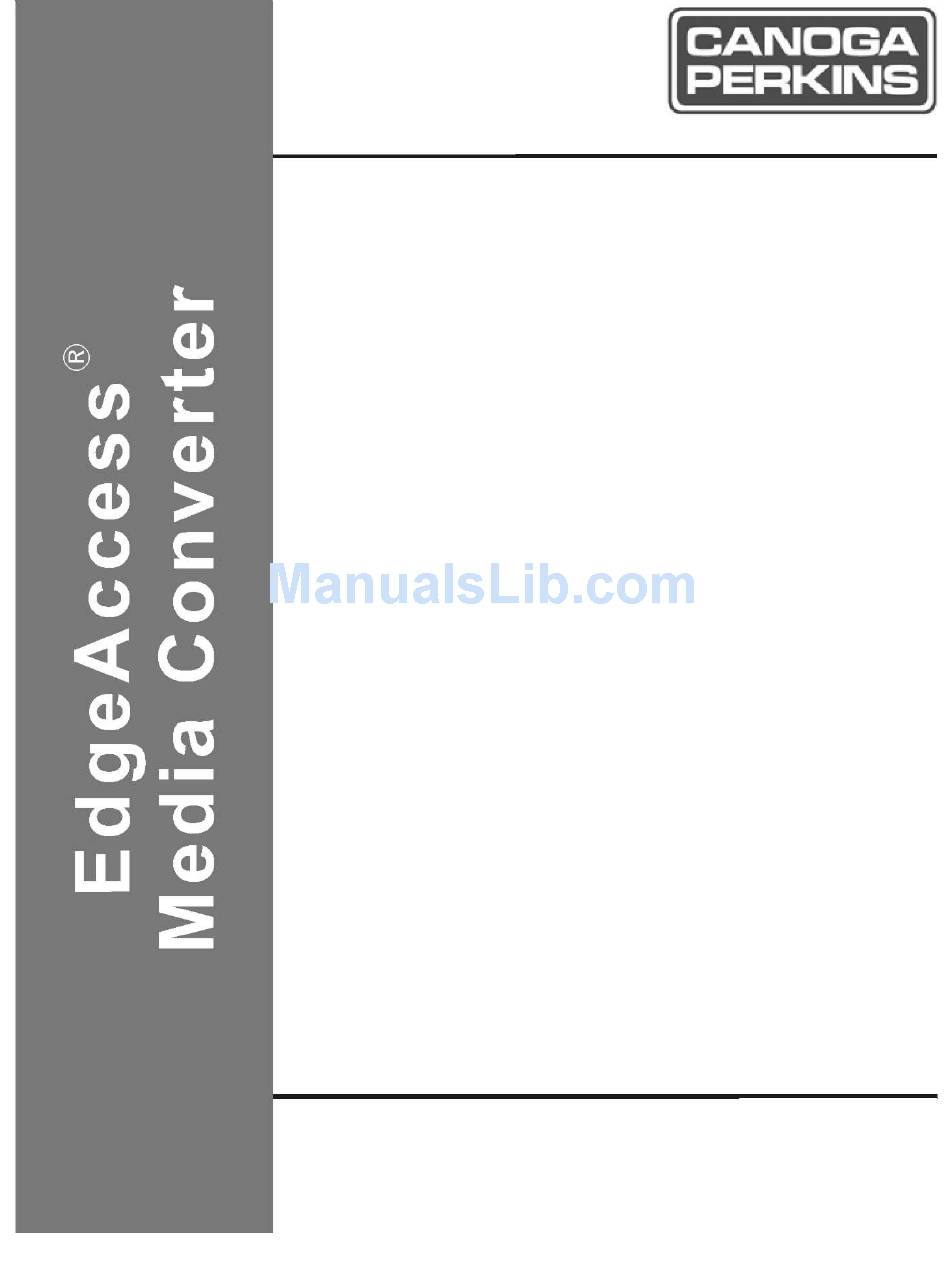

Model 9120
Gigabit Ethernet Media
Converter
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Canoga Perkins 9120

Summary of Contents for Canoga Perkins 9120

  • Page 1 Model 9120 Gigabit Ethernet Media Converter User Manual...
  • Page 2 This device contains static sensitive components. It should be handled only with proper ElectroStatic Discharge (ESD) grounding procedures. NOTE! Cet équipement contient des composants sensibles aux décharges électro-statiques. Il doit absolument être manipulé en respectant les règles de mise à la terre afin de prévenir de telles décharges. 9120 Gigabit Ethernet Media Converter...
  • Page 3 Perkins and any unauthorized use or disclosure of such drawings, specifications and information is prohibited. Canoga Perkins reserves the right to change or update the contents of this manual and to change the specifications of its products at any time without prior notification. Every effort has been made to keep the information in this document current and accurate as of the date of publication or revision.

  • Page 4: Table Of Contents

    Table of Contents Chapter 1 Overview....................1-1 Ship List ..........................1-2 Applications ..........................1-2 Chapter 2 Setup and Installation ................2-1 Unpacking ..........................2-1 Setup of the 9120 Media Converter ..................2-1 2.2.1 User Port Connection ......................2-1 2.2.2 Extension Port Connection.....................2-2 2.2.3 Four-Position DIP Switch ......................2-2 Installing the 9120 Media Converter..................2-3...
  • Page 5 Figure 14. Link Loss Forwarding - Extension to User..............3-4 Figure 15. Link Loss Echo Switch Position..................3-5 Figure 16. Link Loss Enable fault with 9120 to 9120 Link............... 3-5 Figure 17. Link Loss Enable fault with 9120 to Customer Premise Link.......... 3-6 List of Tables Table 1.
  • Page 6 Canoga Perkins This page is intentionally left blank. 9120 Gigabit Ethernet Media Converter...

  • Page 7: Chapter 1 Overview

    Chapter 1 Overview The 9120 is a Gigabit Ethernet Media Converter. It extends multi mode Gigabit segments up to 70km over single mode fiber. It is designed for installation into the Canoga Perkins 9101 Chassis and is also available as a standalone unit. The unit is especially suited for the long-distance extension of Gigabit LAN segments.

  • Page 8: Ship List

    Canoga Perkins 9120 Media Converter Feature List: • Full-duplex 1000Mbps Ethernet operation up to 70km • Multimode and single mode fiber support • Supports 850nm, 1310nm and 1550nm • Field installable into existing 9101 Chassis • Available as standalone or rackmount for EdgeAccess 9101Chassis •...

  • Page 9: Figure 3. 9120 Extended Application

    Canoga Perkins Figure 3. 9120 Extended Application. 9120 Gigabit Ethernet Media Converter...
  • Page 10 Canoga Perkins This page is intentionally left blank. 9120 Gigabit Ethernet Media Converter...

  • Page 11: Chapter 2 Setup And Installation

    The 9120 Gigabit Media Converter standalone model requires its own power source. The desktop version of the 9120 Media Converter is supplied with a wall-mount power supply that requires 100- 240VAC at 50-60Hz and provides +5VDC to the unit. The unit can be rack mounted in the 9101 LAN Chassis.

  • Page 12: Extension Port Connection

    Figure 5. User Port. 2.2.2 Extension Port Connection The 9120 Media Converter features a Duplex SC single mode fiber optical connector on the extension side of the network, located on the rear of the unit (Reference Figure 5). Figure 6. Extension Port.

  • Page 13: Installing The 9120 Media Converter

    2.3.1 Standalone Unit In addition to being placed on a desktop, the 9120 standalone can be attached to the side of any surface (PC, cabinet, desk, etc.). An attachment kit is shipped with the 9120 standalone unit for this purpose.

  • Page 14: Configuring The Fault/Forwarding Dip Switch

    Canoga Perkins 2.3.3 Configuring the Fault/Forwarding DIP Switch The 9120 includes a four-position DIP switch that must be configured for correct Link Loss and Canoga Remote Fault routing. This switch is on the front of the unit (Reference Figure 9): Figure 10.

  • Page 15: Chapter 3 Operation

    LLF is enabled and the direction is set to Extension Port to User Port. *** The 9120 is a transparent device which will detect the presence of any type of packets, data or otherwise, coming across the data link. This feature may cause the Rx and Tx indicators to illuminate green when data packets are not transmitted, yet other monitoring information is (e.g., auto negotiation - if this feature is enabled on the equipment...

  • Page 16: Canoga Remote Fault

    The unit that detected the link loss will display a red RMTF LED. Note the DIP switch RMTF setting must be enabled (up) to activate the RMTF functionality. Figure 12. Remote Fault Diagram. 9120 Gigabit Ethernet Media Converter...

  • Page 17: Link Loss Forwarding - User To Extension

    Extension port. The fault is then propagated to the remote link. Note: The DIP switch Link Loss Forwarding feature must be enabled (up) and the Direction switch set to "User to Extension (down)." Extension Port Figure 13. Link Loss Forwarding - User to Extension. 9120 Gigabit Ethernet Media Converter...

  • Page 18: Link Loss Forwarding - Extension To User

    Note: The DIP switch Link Loss Forwarding feature must be enabled (up) and the Direction switch set to "Extension to User (up)." Extension Port Figure 14. Link Loss Forwarding - Extension to User. 9120 Gigabit Ethernet Media Converter...

  • Page 19: Link Loss Echo

    9120 Linked to a 9120 When a 9120, linked to another 9120, detects a loss of signal on the User Port Rx, it will stop transmitting to the remote 9120. Two 9120s cannot be linked together with Link Loss Echo enabled on both units.

  • Page 20: Figure 17. Link Loss Enable Fault With 9120 To Customer Premise Link

    Canoga Perkins 9120 Linked to Customer Equipment When the 9120, linked to customer equipment, detects a loss of signal on the Extension Port Rx, the 9120 will stop transmitting to the customer equipment. Extension Port Graphics Legend Figure 17. Link Loss Enable fault with 9120 to Customer Premise Link.

  • Page 21: Models And Product Description

    1000BASE-EX, 1550nm Extended Distance DFB laser, SM, SC, 21dB, Full-duplex for use in the 9101 LAN Chassis 9120-828-1-1 1000BASE-EX, 1550nm Extended Distance DFB laser, SM, SC, 21dB, Full-duplex 120/240VAC AC Adapter Note: Typically the loss budgets are 2dB greater than listed. 9120 Gigabit Ethernet Media Converter...
  • Page 22 Canoga Perkins This page is intentionally left blank. 9120 Gigabit Ethernet Media Converter...

  • Page 23: Chapter 4 Troubleshooting

    Chapter 4 Troubleshooting In the case of the 9120 Media Converter, a hybrid device, there are two LNK LED indicators, marked User LNK and Extension LNK. When the 9120 Media Converter is put into service, if all cables are correctly connected and there are User and Extension devices attached to the cable, both LNK indicators should illuminate.
  • Page 24 Canoga Perkins This page is intentionally left blank. 9120 Gigabit Ethernet Media Converter...

  • Page 25: Chapter 5 Technical Specifications

    Gigabit Single Mode (SM) 1310nm LX Emitter Type: Laser Diode Wavelength: 1310nm nominal Transmit Launch Power: -3.0 dBm maximum -11.0 dBm minimum Receive Sensitivity: -18dBm minimum Overdrive: -3.0 dBm maximum Loss Budget: 7.0 dB minimum Optical Connector: Duplex SC 9120 Gigabit Ethernet Media Converter...

  • Page 26: Gigabit Single Mode (Sm) 1310Nm Ld (Dfb)

    Gigabit Single Mode (SM) 1550nm EX (DFB) Emitter Type: Laser Diode Wavelength: 1550nm nominal Transmit Power: +2.0 dBm maximum 0 dBm minimum Receive Sensitivity: -23.0 dBm minimum Overdrive: -3dBm maximum Loss Budget: 23 dB minimum Optical Connector: Duplex SC 9120 Gigabit Ethernet Media Converter...

  • Page 27: Functional

    Humidity: up to 90% (noncondensing) Regulatory Compliance: UL 1950/CSA C22.2 No. 950 IEC 60950 IEC 825-1 FCC Part 15 Class A/IC CS-003 EN 300386-2 (in 9101 Chassis) AS/NZS 3548 NEBS Level 3 (in 9101 Chassis) 9120 Gigabit Ethernet Media Converter...
  • Page 28 Canoga Perkins This page is intentionally left blank. 9120 Gigabit Ethernet Media Converter...

  • Page 29: Chapter 6 Glossary

    Chapter 6 Glossary CSMA/CD Carrier Sense Multiple Access with Collision Detection FDDI Fiber Distribution Data Interface Full-Duplex Light Emitting Diode NEBS Network Equipment Building Systems Network Interface Card nanometer SMF/PMD Single-Mode Fiber / Physical Media Dependent 9120 Gigabit Ethernet Media Converter...
  • Page 30 Canoga Perkins This page is intentionally left blank. 9120 Gigabit Ethernet Media Converter...

  • Page 31: Limited Lifetime Warranty

    Appendix A Warranty Limited Lifetime Warranty Effective July 1, 2005 and After, Canoga Perkins warrants that, at the time of sale, and, for its lifetime, with certain exceptions noted below, every Canoga Perkins' labeled product purchased will be free from defects in material and workmanship for its lifetime, if properly installed and used in conformity to Canoga Perkins' published specifications.

  • Page 32: Return Policy

    Canoga Perkins Limitations Canoga Perkins may at its sole discretion modify its Limited Warranty at any time and from time to time. Other than those expressly stated herein, THERE ARE NO OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AND SPECIFICALLY EXCLUDED BUT NOT BY WAY OF LIMITATION, ARE THE IMPLIED WARRANTIES FOR FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY.
  • Page 33 CANOGA PERKINS CORPORATION 20600 Prairie Street Chatsworth, California 91311-6008 USA Phone: (818) 718-6300 FAX: (818) 718-6312 Web Site: www.canoga.com Email: fiber@canoga.com...
