Steam mop
User guide
Model No: SM-04, SM-04B
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm
Or visit us at www.productcareuk.com
IMPORTANT:
RETAIN FOR FUTURE REFERENCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-04 and is the answer not in the manual?

Questions and answers

Paul
May 20, 2025

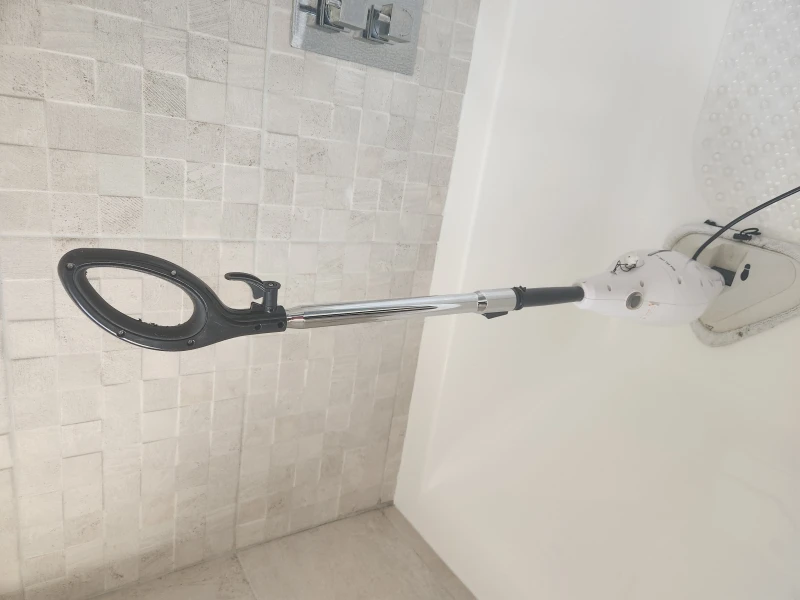

How much for the replacement handle for SM-04 please.

User image 682c48a74d896

Subscribe to Our Youtube Channel

Summary of Contents for Holme SM-04

  • Page 1 Steam mop User guide Model No: SM-04, SM-04B For Customer Services & Spare Parts please call 0345 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm Or visit us at www.productcareuk.com IMPORTANT: RETAIN FOR FUTURE REFERENCE...
  • Page 2: Table Of Contents

    …………………………………… Connection to the mains supply …………………………………… Thank you for purchasing your Holme Steam Mop. With a three corner mop head for flexible cleaning and an ergonomic handle for comfort, cleaning your floors has never been so easy. What’s more, you can rest assured in the knowledge that the detergent free sanitisation kills most known household germs whilst also being good for the environment.
  • Page 3: Safety Instructions

    Safety instructions IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to electrical parts.
  • Page 4 Safety instructions • Do not direct steam at people, animals, electrical outlets, or equipment containing electrical components. • Unplug from outlet when not in use. Do not leave steam mop unattended while plugged in. • Do not use with damaged cord or plug. •...
  • Page 5 Safety instructions • Do not use appliance in an enclosed space filled with vapor given off by oil-based paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors. • Do not use on leather, wax polished furniture or floors, synthetic fabrics, velvet or other delicate, steam-sensitive materials.
  • Page 6: Steam Mop Overview

    Steam mop overview Handle Measuring jug Cord storage Funnel Adjustable height Mop pad Main body Carpet glider ON/OFF switch Water tank Mop head Power cord...
  • Page 7: Assembly

    Assembly Before using your steam mop: Remove all packaging and lay out the separate components. Check the steam mop after unpacking for any visual damage such as: • Misaligned or damaged parts • Damage to the main body and separate components •...
  • Page 8: Filling The Water Tank

    Filling the water tank Remove the cap from the water tank. Rotate the cap anti clockwise and remove. Fill the measuring jug with water and then fill the water tank using the funnel to make sure all the water goes in the tank. Fill the tank to the maximum fill line.
  • Page 9: Using Your Steam Mop

    Using your steam mop IMPORTANT: Never use the steam mop without the cleaning pad correctly fitted. Fasten the cleaning mop pad on the base. Tighten the drawstring and toggle.
  • Page 10 Using the steam mop Plug the steam mop into a mains socket and turn the power on. Press the ON/OFF switch on the side of the steam mop body to turn the mop ON. The light on the front of the main body will illuminate green when the steam mop is switched on.
  • Page 11 Using the steam mop In the upright position the steam mop will create a little bit of steam, but it will stop after a short period standing still. When the handle of the steam mop is reclined or moved then it will start pumping and will start creating steam. To recline the handle, place your foot over the shoe symbol on the side of the mop head and gently pull the handle downwards.
  • Page 12 Using the steam mop On carpets, use the carpet glider. Place the mop head into the carpet glider. Note: The mop head does not attach to the carpet glider but just sits in it. For Customer Services & Spare Parts please call 0345 209 7461 Opening times: Monday - Friday 8am –...
  • Page 13: Storing Your Steam Mop

    Storing the steam mop When you have finished cleaning your floor, switch the steam mop off. Switch the power off at the plug socket and remove the plug. Remove the cleaning pad from the base of the mop head. The pad is machine washable at a maximum temperature of 40ºc.
  • Page 14: Cleaning And Care

    Storing the steam mop Wind the power cord around the top and bottom cord grips on the handle. Note: The top power cord grip can be rotated so the power cord cable can be easily removed when needed. Cleaning and care Before you clean the appliance, disconnect the mains plug from the wall socket.
  • Page 15: Problem Solving

    Problem solving PROBLEM POSSIBLE PROBLEM POSSIBLE SOLUTION Trouble 1. Difficult to 1. You may need to push the stud on the handle assembling assemble handle. inwards to fully insert the handle. steam mop 2. Difficult to attach 2. Lay the mop pad on the floor and lift the steam mop pad.
  • Page 16 Problem solving PROBLEM POSSIBLE PROBLEM POSSIBLE SOLUTION The light is on 1. The water tank is 1. Fill the supplied measuring jug with water and but the empty. follow instructions on page 8 of the instruction appliance is not manual provided. steaming 2.
  • Page 17: Guarantee

    Guarantee This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship the faulty product must be returned to the place of purchase. Refund or replacement is at the discretion of the retailer. The following conditions apply: •...
  • Page 18: Customer Services

    Customer services We’re here should you need us For Customer Services & Spare Parts please call 0345 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm Or visit us at www.productcareuk.com Produced for: Asda stores Ltd.
  • Page 19: Spare Parts

    Spare parts Carpet Glider Mop Pad Measuring Jug Funnel Handle For Customer Services & Spare Parts please call 0345 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm Or visit us at www.productcareuk.com...
  • Page 20: Connection To The Mains Supply

    Connection to the mains supply WARNING- THIS APPLIANCE MUST BE EARTHED This appliance is designed to operate from a mains supply of AC230V -240V ~ 50/60HZ. Check that the voltage marked on the product corresponds with your supply voltage. This product is fitted with a 13A plug complying with BS1363. If this plug is unsuitable or needs to be replaced, please note the following: Important: The wires in the mains lead are coloured in accordance...
  • Page 21 Connection to the mains supply For UK use only – Plug fitting details (where applicable): As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which is marked with the letter E or by the earth symbol or...
  • Page 22 Site code: 15A.08.14.148 & 15A.10.13.222 Model number: SM-04 & SM-04B...
