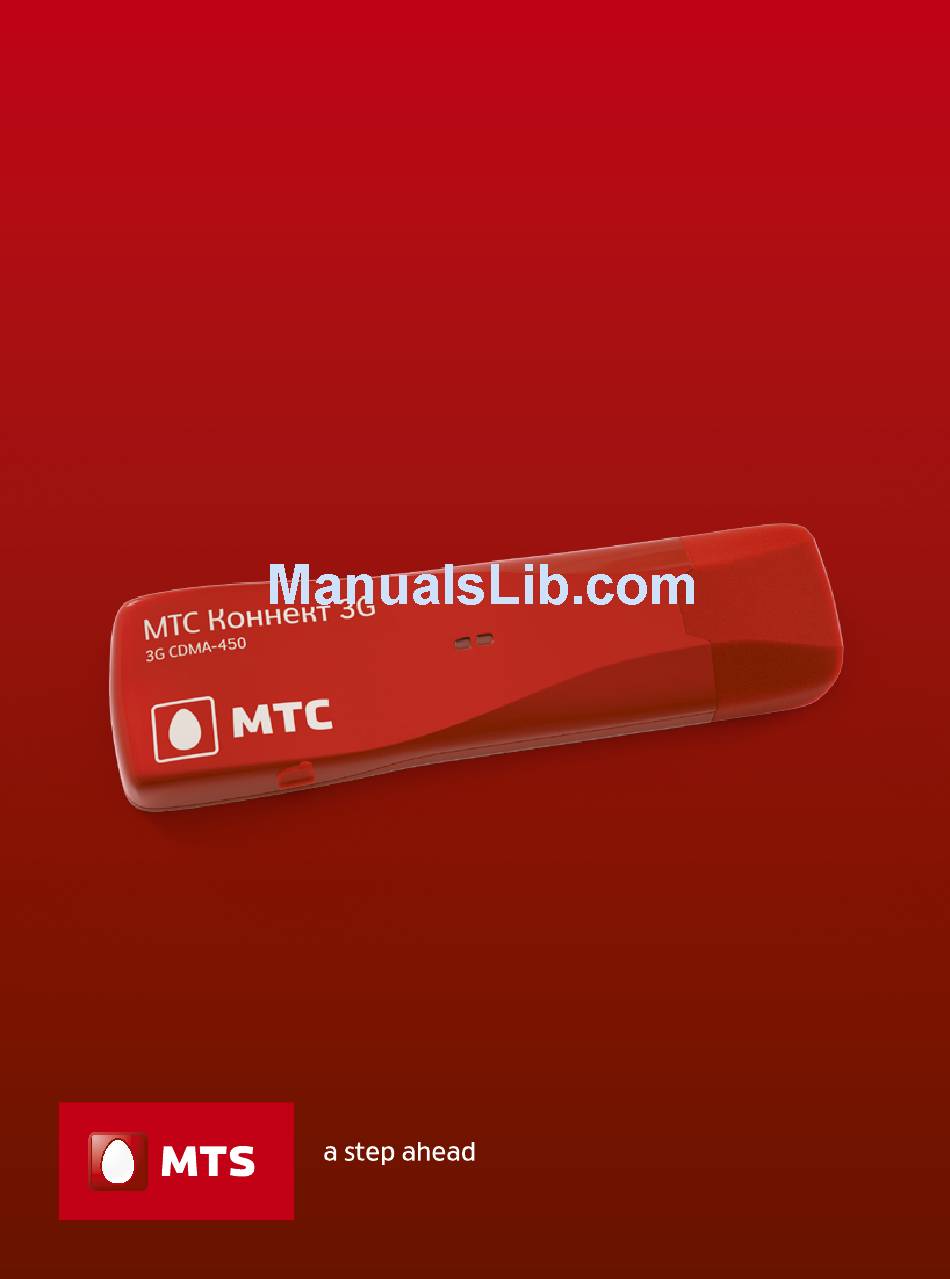

- Page 1 USB modem Wetelecom WM-D200 Installation and connection manual MTS Connect 3G • fast connecting to the Inernet network • more mobility and freedom of movement • maximum speed is to 3,1 Mbps 3G CDMA-450...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome 1.1. The WM-D200 Package 1.2. Manufacturer Address 1.3. Important Notice 1.4. Safety Hazards 1.5. Limitation of Liability Program Installation 2.1. Introduction 2.2. Minimum System Requirement 2.3. Insert RUIM Card 2.4. LED Status Indication 2.5. MTS Connect Installation and Uninstall (Windows ®... -
Page 3: Welcome
WELCOME Thank you for purchasing WeTelecom WM-D200 for МТS CDMA Network! Before installing the WM-D200, MTS Connect software and drivers, review this user guide, which outlines the features and functions of the WM-D200. This device operates over the high-speed МТS networks in the 450MHz band anywhere! 1.1. -
Page 4: Important Notice
МТS or its partners will not be held responsible for damages of any kind resulting from the delays or errors in data transmitted or received with the WM-D200 device, or failure of the WM-D200 device to transmit or receive such data. 1.4. SAFETY HAZARDS... - Page 5 1.4.2. Where explosive atmospheres may be present • Do not operate the WM-D200 in any area where a potentially explosive atmosphere may exist. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Be aware and comply with all signs and instructions.
-
Page 6: Limitation Of Liability
WM- D200 is removed from the USB port prior to boarding aircraft in order to comply with these regulations. The WM-D200 can transmit signals that could interfere with various onboard systems and controls. 1.4.5. While operating a vehicle The driver or operator of any vehicle should not operate a wireless data device while in control of a vehicle. -
Page 7: Program Installation
PROGRAM INSTALLATION 2.1. INTRODUCTION This section describes step-by-step method to install WM-D200 USB MODEM and MTS Connect Software. 2.2. MINIMUM SYSTEM REQUIREMENT 2.2.1. PC Hardware • Recommend to use PC/Notebook at speed of 300 MHz or higher. Minimum 233 MHz speed required, Intel... -
Page 8: Insert Ruim Card
2.2.2. Operating System • Windows XP Home or Professional ( with Service Pack 2 ) ® • Windows 2000 (with Service Pack 4 for optimal ® performances) • Windows Vista ® • Windows ® • Mac OS Recommended parameters Windows Update: Keep your computer up to date 2.3. -
Page 9: Led Status Indication
• Insert Tray into USB Modem. (Double check the position of the tray.) 2.4. LED STATUS INDICATION LED COLOR STATUS INFORMATION Green Internet Connection Status Green Blue System IDLE Status Green only The modem is Powered on but there is no service... -
Page 10: Mts Connect Installation And Uninstall
2.5. MTS CONNECT INSTALLATION AND UNINSTALL (WINDOWS ® 2.5.1. MTS Connect Installation (Automatic) • Connect the modem to USB port. If USB DRIVER is not present, Modem package Installer will run automatically. Note: If Modem package Installer doesn’t work automatically, Execute RunPack.exe manually. - Page 11 • Welcoming message for using MTS Connect Program window appears. • Press [Install] Button. The program starts automatically.
- Page 13 • Press [Finish] button once it is done with program installation.
- Page 14 Control Panel System Hardware Tab Device Manager) If Device Manager for Modems and Ports indicate “WeTelecom Mobile USB Modem” “WeTelecom Mobile Serial Port 1/2”, then the driver has been successfully installed. Note: If installing driver manually, find the driver from Driver...
- Page 15 2.5.2. USB Driver Uninstall • Disconnect the modem from USB port before uninstalling the driver. • By clicking [Uninstall] in the (Start All program wetelecom), it will start uninstalling as shown below.
-
Page 16: Mts Connect Installation And Uninstall
2.6. MTS CONNECT INSTALLATION AND UNINSTALL (WINDOWS VISTA/7) ® 2.6.1. MTS Connect Installation (Automatic) • Connect the modem to USB port. If USB DRIVER is not present, Modem package Installer will run automatically. Note: If Modem package Installer doesn’t work automatically, Execute Launcher.exe manually. - Page 17 • Welcoming message for using MTS Connect Program window appears. • Press [Install] Button. The program starts automatically.
- Page 19 • Press [Finish] button once it is done with program installation.
- Page 20 Control Panel System Hardware Tab Device Manager) If Device Manager for Modems and Ports indicate “WeTelecom Mobile USB Modem” “WeTelecom Mobile Serial Port 1/2”, then the driver has been successfully installed. Note: If installing driver manually, find the driver from Driver directory.
- Page 21 2.6.2. USB Driver Uninstall • Disconnect the modem from USB port before uninstalling the driver. • By clicking [Uninstall] in the (Start All program wetelecom), it will start uninstalling as shown below.
-
Page 22: Descriptions Of The Mts Connect Gui
DESCRIPTIONS OF THE MTS CONNECT GUI 3.1. LAUNCH THE MTS CONNECT To launch the MTS Connect, double-click the shortcut icon of the MTS Connect on the desktop. Note: If you are required to enter the Personal Identification Number (PIN) code, enter the correct one and click [OK]. - Page 23 3.2.2. Status Information Network signal. Indicates the signal strength of the network. Network information. Display the profile of the current network. Internet connection information. Display Internet Connection Status: Internet Connected. Internet Disconnected.
-
Page 24: Internet Services
INTERNET SERVICES 4.1. ACCESSING THE INTERNET After setting the network and proper connection, you can access the network through the MTS Connect. Proceed as follows to connect to the internet: • Click to display the Connection interface. • Click [Connect] to connect. -
Page 25: Settings And Information Query
SETTINGS AND INFORMATION QUERY 5 .1. VERSION INFORMATION • Click to display the Setting interface. • Select “About” Tab. • Shows Version Information. 5.2. UNLOCKING THE PIN • When the RUIM card is locked, the Unlock PIN dialog box is displayed after you start the MTS Connect. •... -
Page 26: Change Pin Code
5.4. CHANGE PIN CODE • Click to display the Setting interface. • Select “RUIM Card” Tab. • Select “Change” “PIN Mode”. • Enter pin code for Old PIN Code, New PIN Code and Verify New PIN Code, and then Click Note: Entering the wrong PIN codes for 3 times, the RUIM card will be locked and cannot use it until you have entered... -
Page 27: Selecting A Language
5 .7. SELECTING A LANGUAGE • 1. Click to display the Setting interface. • 2. Select “User” Tab. • 3. Select your language in Language list, and then Click... -
Page 28: How To Mac Os
Version Information: Supported MAC OS 10.4 or higher 6.1. DRIVERS INSTALL • Plug the WM-D200 modem in USB port. Open МТS CD, start mintechUSBCDC and install MAC Drivers. • Restart MAC PC. • Execute any connection manager for WeTelecom Mobile Products. -
Page 29: Product Specification
PRODUCT SPECIFICATION 7.1. TECHNICAL SPECIFICATION 7.1.1. Table 1: General Specifications Model WM-D200 Type USB Modem Weight 33 g Dimensions 29 × 102 × 12 mm Wireless Network CDMA 1X/EV-DO Power Consumption 500mA, max Chip set QUALCOMM MSM6800A Interface Type Type A USB port 7.1.2. - Page 30 www.mts.com.ua wap.mts.com.ua...
