PowerPro Technology 56101 Owner's Manual

2-stroke 900 rated watt generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

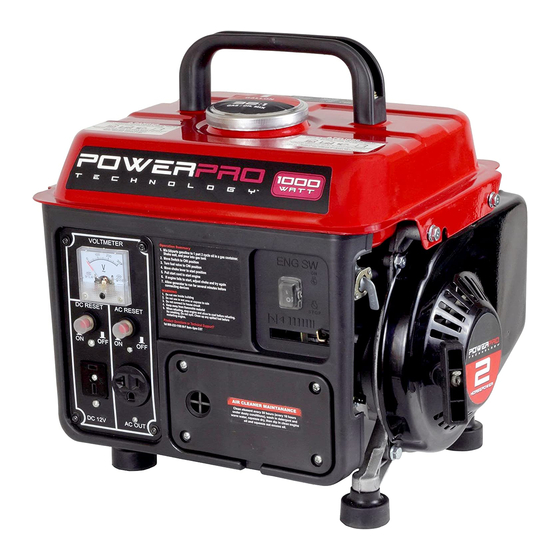

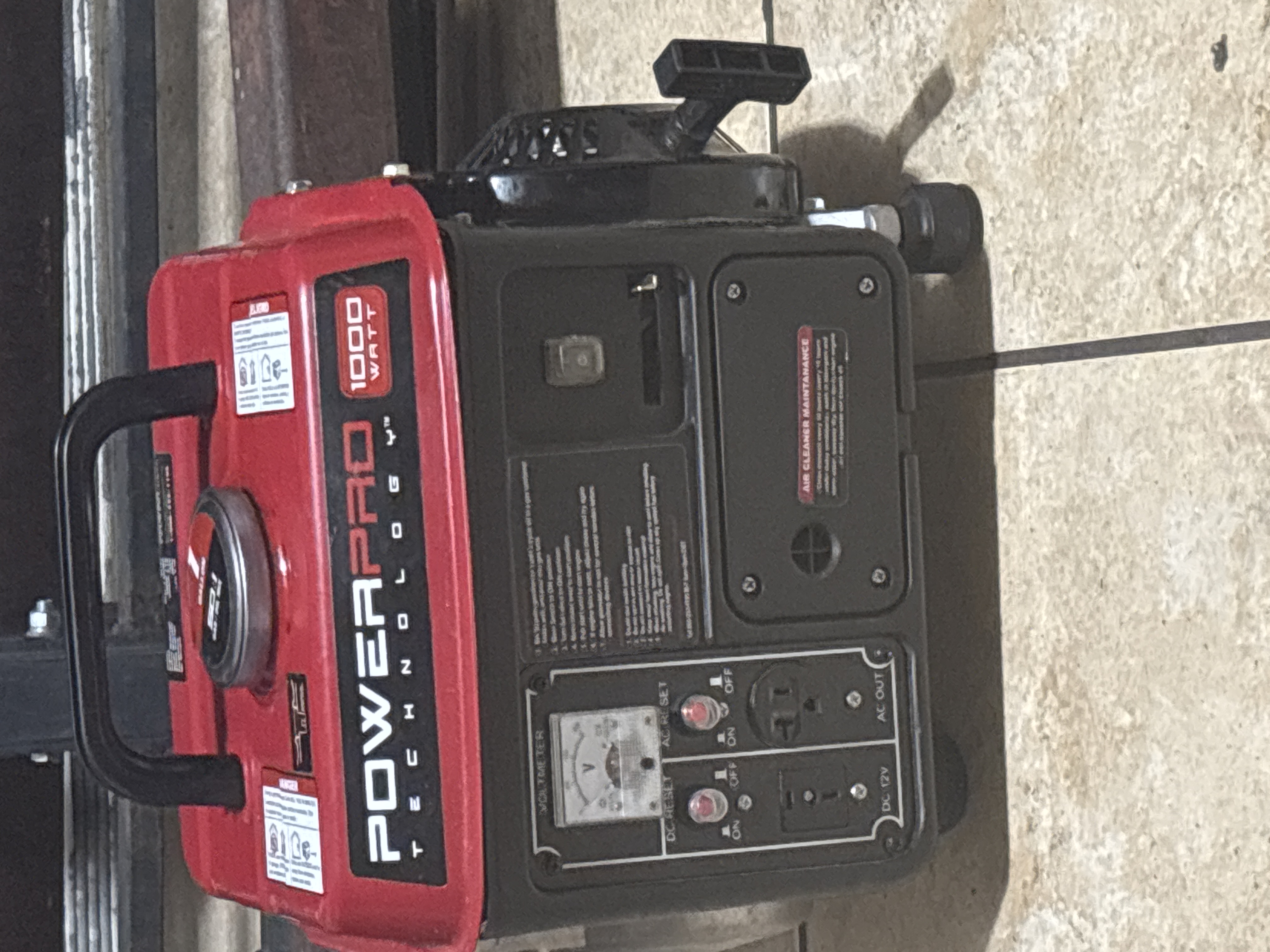

2-Stroke 900 Rated Watt Generator
Item # 56101
Owner's Manual

Manual del Propietario

FEATURES:
 1000 Surge Watt Output
 900 Rated Watt Output (7.5Amps at 120Volts)
 2 HP Single Cylinder 2-Stroke Engine
 One (1) 120Volt AC Receptacle
 One (1) 12Volt DC Receptacle
 Circuit Reset for AC Receptacle
 Circuit Reset for DC Receptacle
 One (1) Gallon Fuel Tank
 Fuel Mix 50 to 1 (Gasoline to Oil)
 Five (5) Hours Run Time at Half Load
 EPA and CARB Certified
 Low Noise Generator
 Spark Arrestor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 56101 and is the answer not in the manual?

Questions and answers

Related Manuals for PowerPro Technology 56101

Summary of Contents for PowerPro Technology 56101

  • Page 1: Manual Del Propietario

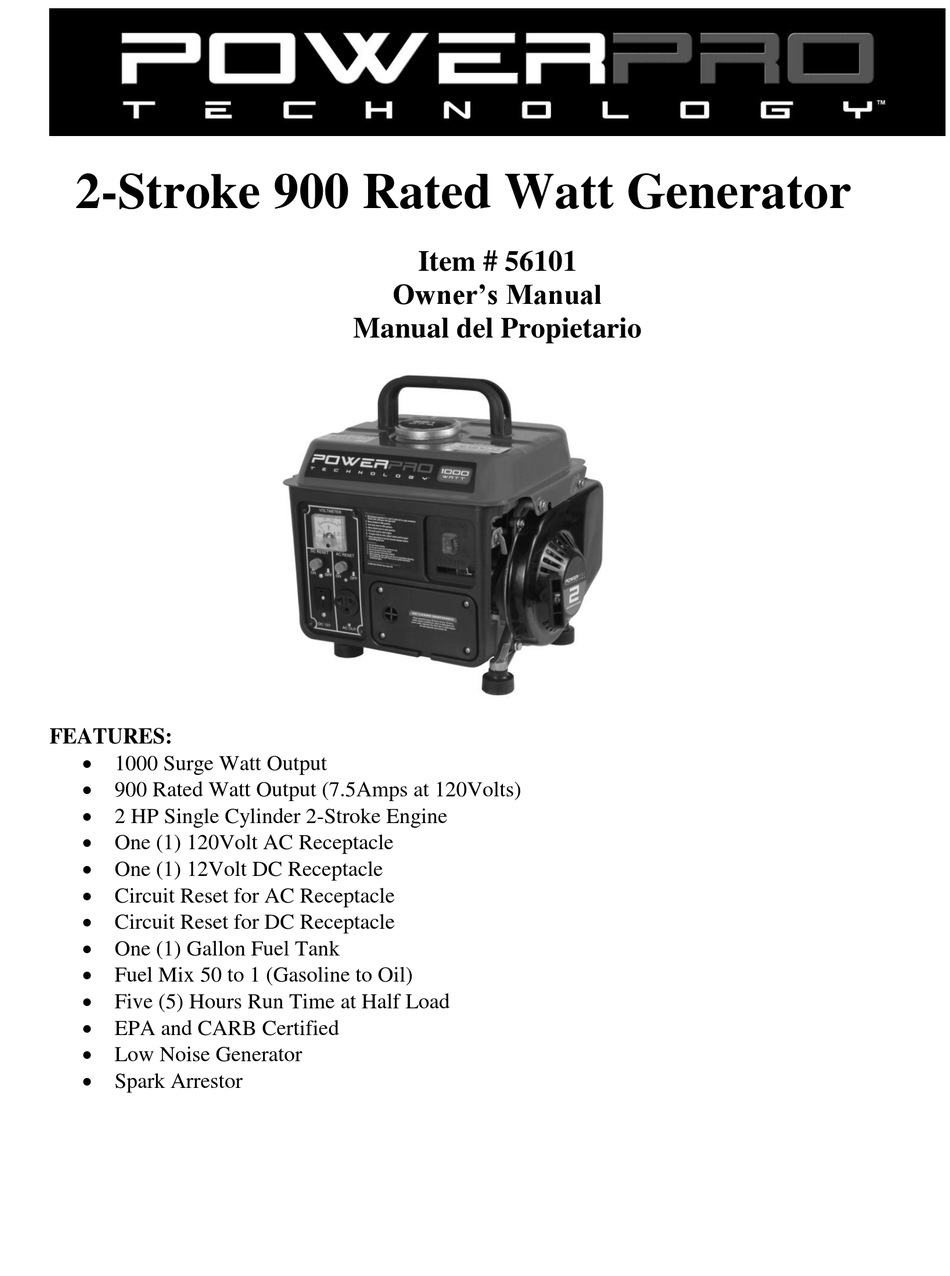

    2-Stroke 900 Rated Watt Generator Item # 56101 Owner’s Manual Manual del Propietario FEATURES:  1000 Surge Watt Output  900 Rated Watt Output (7.5Amps at 120Volts)  2 HP Single Cylinder 2-Stroke Engine  One (1) 120Volt AC Receptacle ...

  • Page 2: Generator Identification

    GENERATOR IDENTIFICATION For information and questions, please contact the Customer Service Help Line by calling 800-232- 1195. Certain information will be requested by the Customer Service Representative and to facilitate that, please fill in the information below. Refer to the illustration below for the location of Serial Number. Record generator information in the spaces provided below.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS GENERATOR IDENTIFICATION ....................i INTRODUCTION ..........................1 NOTICE REGARDING EMISSIONS ................... 1 SAFETY INFORMATION ......................2 SAFETY SYMBOLS AND MEANINGS ..................2 GENERAL SAFETY PROCEDURES ................... 3 IMPORTANT SAFETY INSTRUCTIONS ................... 5 GENERATOR COMPONENTS ..................... 6 ASSEMBLY ............................7 GENERATOR PREPARATION ....................

  • Page 4: Introduction

    INTRODUCTION Thank You for Purchasing a Power Pro Product. This manual provides information regarding the safe operation and maintenance of this product. Every effort has been made to ensure the accuracy of the information in this manual. Power Pro reserves the right to change this product and specifications at any time without prior notice. Please keep this manual available to all users during the entire life of the generator.

  • Page 5: Safety Information

    SAFETY INFORMATION Before operating this generator read and observe all warnings, cautions, and instructions on this sheet, on the generator, and in the Owner’s Manual. NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur. Read the entire Owner’s Manual for safety and operating instructions.

  • Page 6: General Safety Procedures

    GENERAL SAFETY PROCEDURES For any questions regarding the hazard and safety notices listed in this manual or on the (800) 232-1195 M-F 8-5 CST product, please call before using the generator. DANGER : CARBON MONOXIDE. Using a generator indoors CAN KILL YOU IN MINUTES.
  • Page 7 WARNING : This generator produces powerful voltage, which can result in electrocution.  ALWAYS ground the generator before using it (see the “Ground the Generator” portion of the “Generator Preparation” section).  Generator should only be plugged into electrical devices, either directly or with an extension cord.

  • Page 8: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS  SAVE THESE INSTRUCTIONS – This manual contains important instructions for the Power Pro 1000 generator.  Generators vibrate in normal use. During and after the use of the generator, inspect the generator as well as extension and power supply cords connected to it for damage resulting from vibration.

  • Page 9: Generator Components

    GENERATOR COMPONENTS Please familiarize yourself with the locations and functions of the various components and controls of your generator. Fig.2 - Component Location (1) Fuel Cap- Access to the fuel tank for adding (7) Air Cleaner- a removable, cleanable, sponge-like fuel.

  • Page 10: Assembly

    ASSEMBLY In order to best protect the generator while in the package, this product comes with some components disassembled. Please complete the following assembly steps before proceeding to use the generator. For ease of assembly, we recommend attaching the components in the order listed in this manual.

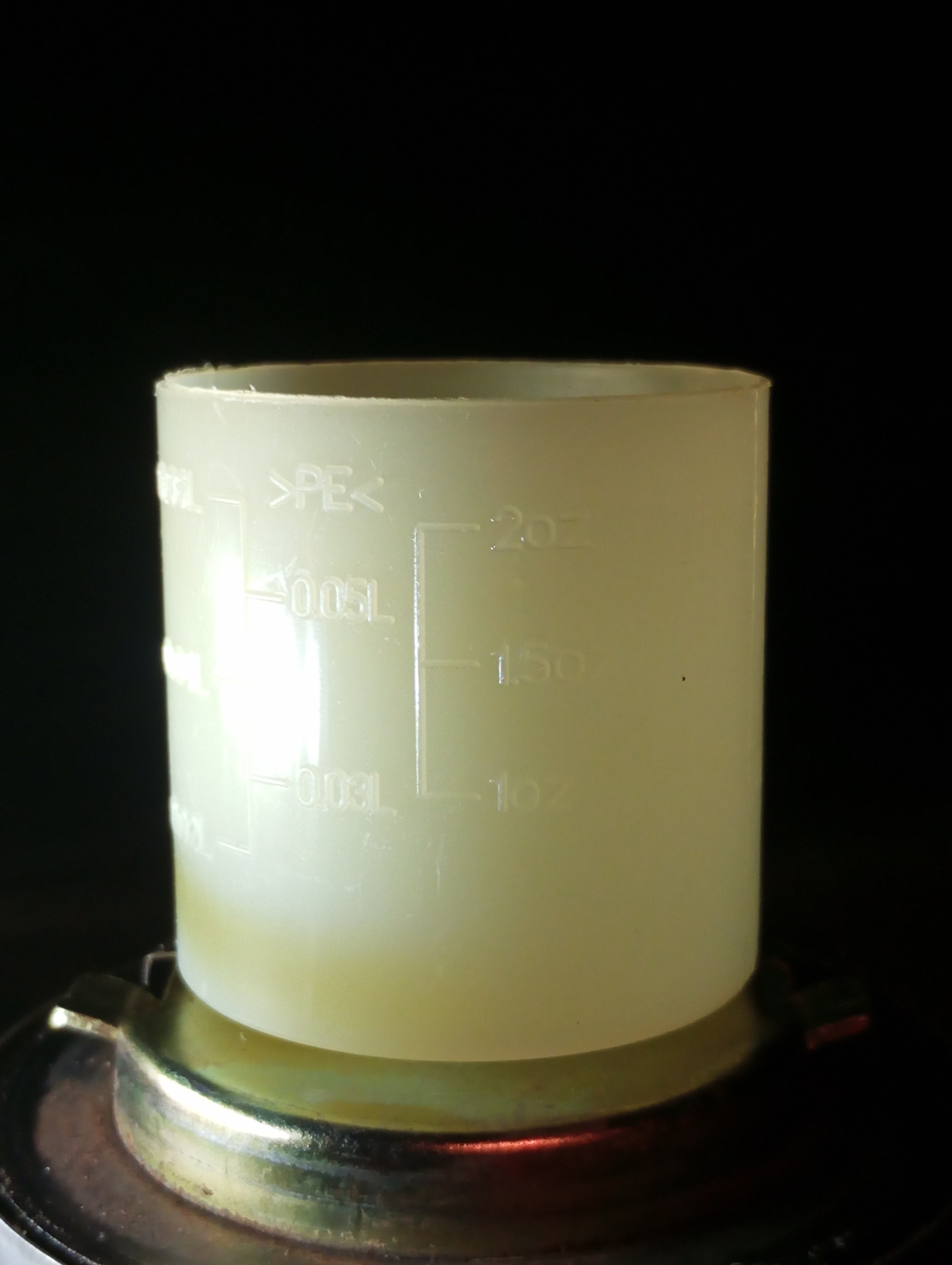

  • Page 11: Step 2 - Filling The Fuel Tank

    Mixing Gasoline and Oil WARNING Never store generator with fuel in the fuel tank inside a building with potential sources of ignition such as hot water tanks, space heaters, clothes dryers, electric motors, etc. Notes: DO NOT mix gasoline and oil directly in the fuel tank USE NMMA or TC-WII or TC-W3 or JASO FB or JASO FC classified oil.

  • Page 12: Step 3- Ground The Generator

    Step 3- Ground the Generator WARNING: Failure to properly ground the generator can result in electrocution. Ground the generator by first loosening the grounding nut, hooking a grounding wire under the nut and then tightening the grounding nut (see figure 3). A generally acceptable grounding wire is a No.
  • Page 13  ONLY use a generator outside and far away from windows, doors, and vents. These openings can pull in generator exhaust. Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery- powered or battery-backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air RIGHT AWAY.

  • Page 14: Subsequent Starting Of The Generator

    To start your generator, perform the following steps: 1. No electrical devices should be connected to the generator during starting. Devices can make it difficult for the engine to start. 2. Check that the generator is properly grounded (see “Ground the Generator”). 3.

  • Page 15: Step 1- Check The Fuel Level

    Step 1– Check the Fuel Level Before starting the generator, check to see that there is sufficient gasoline/oil mixture in the fuel tank.. Add fuel if necessary but leave sufficient room in tank for expansion. WARNING: This generator may emit highly flammable and explosive gasoline vapors, which can cause severe burns or even death if ignited.

  • Page 16: Using The Generator

    USING THE GENERATOR WARNING: When this generator is used to supply a building wiring system: Generator must be installed by a qualified electrician and connected to a transfer switch as a separately derived system in accordance with the National Electrical Code, NFPA 70. The generator shall be connected to a transfer switch that switches all conductors other than the equipment grounding conductor.
  • Page 17 When the rated wattage requirement of each electrical device has been determined, add these numbers to find the total rated wattage needed. If this number exceeds the rated wattage of the generator, DO NOT connect all these devices. Select a combination of electrical devices, which has a total rated wattage lower than or equal to the rated wattage of the generator.

  • Page 18: Dc Usage

    CIRCUIT RESET BUTTONS The circuit reset buttons help to prevent the generator from electrical overload. If your receptacle short circuits or becomes overloaded by an electrical device or devices with too great a wattage rating, the circuit protector may shut off power to the receptacle. In the event of such an overload, disconnect all electrical devices from the generator and press the circuit reset buttons.

  • Page 19: Stopping The Generator

    STOPPING THE GENERATOR To stop the generator: 1. Turn off all electrical devices prior to unplugging them from the generator. Unplugging running devices can cause damage to the generator. 2. Turn the start switch to the “off” position. (Move Rocker Switch to Lower position). 3.

  • Page 20: Air Cleaner Maintenance

    1. Undo the 4 bolts holding the air cleaner cover in place. 2. Remove the sponge-like elements from the casing. 3. Wipe the dirt from inside the empty air cleaner casing 4. Wash the sponge-like elements in household detergent and warm water. Allow to dry. 5.

  • Page 21: Storage / Transport Procedures

    4. Using a pair of pliers, slide the fuel line clamp off the fuel valve so the line can be disconnected. 5. Collect any fuel left in the fuel line going to the carburetor. 6. Place the fuel tank over the fuel collecting container and open the fuel valve. The fuel should drain from the tank.

  • Page 22: Specifications

    SPECIFICATIONS Generator DC Output Wattage 100W Voltage Amperage 8.3A AC Output Rated Wattage 900W Surge Wattage 1000 W Rated Voltage 120 V Rated Amperage 7.5A Rated Frequency 60 Hz Phase Single Dimensions(in): Length: 15 width: 12 height: 14.5 Dry mass 39 lbs Engine 2-stroke single cylinder with forced air cooling...

  • Page 23: Troubleshooting

    TROUBLESHOOTING IMPORTANT: If trouble persists please call our customer help line at (800) 232-1195 M-F 8-5 Central Time. Problem Cause Solution Engine will not Engine switch is set start to "off". Set engine switch to "on". Fuel valve is turned to "OFF”...

  • Page 24: Exploded View

    EXPLODED VIEW...

  • Page 25: Parts List

    Item Stock # Description Item Stock # Description left crankcase 56101-001 56101-042 intake valve gasket right crankcase intake valve assembly 56101-002 56101-043 56101-003 bearing 6004 56101-044 flange bolt M6x18 56101-004 circlip 42 56101-045 stub M6x60 56101-005 oil seal 20x30x7 56101-046...

  • Page 26: Wiring Diagram

    WIRING DIAGRAM...

  • Page 27: Notes

    NOTES:...

  • Page 28: Warranty Statement

    WARRANTY STATEMENT FOR POWER PRO GENERATORS Remember to save your receipt and to accurately fill out and mail your product registration card. You must provide proof of purchase for all warranty work. POWER PRO generators are warranted to be free from defects in materials and workmanship for a period of one (1) year from date of original purchase.
