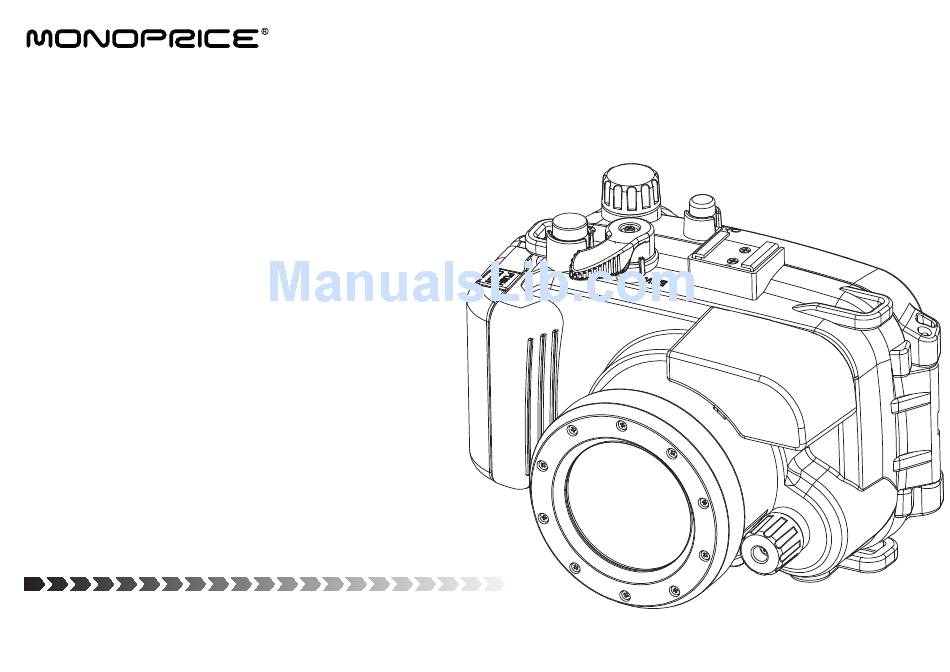

Waterproof Camera Dive Housing
FOR SONY RX100
PID 10603
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PID 10603 and is the answer not in the manual?

Questions and answers

Related Manuals for Monoprice PID 10603

Summary of Contents for Monoprice PID 10603

  • Page 1 Waterproof Camera Dive Housing FOR SONY RX100 PID 10603 User’s Manual...

  • Page 3: Read This First

    Waterproof Case approximate depth of 5.9 inches (15cm) for about three minutes. If it leaks, contact Monoprice Technical Support for assistance. Disclaimer • Monoprice reserves the right to change the contents of this guide at any time without prior notice.

  • Page 4: Safety Precautions

    Safety Precautions CAUTION Monoprice Technical Support for assistance. WARNING Denotes the possibility of serious injury or death. NOTICE CAUTION Denotes the possibility of injury. NOTICE Denotes the possibility of damage to the Waterproof Case and Camera WARNING Leaving the camera in the Waterproof Case and placing it in direct sunlight or other places subject to high temperatures may result in fire, or cause the case to burst.
  • Page 5 The following actions may warp the case and cause malfunctions: To ensure that the case remains watertight, you should replace the seal approximately once a year. Check the Monoprice website for replacement seals and additional silicone grease. Use only the supplied silicone grease or an exact replacement.
  • Page 6 Introduction Thank you for purchasing th waterproof case his manual explains not only how to use the waterproof case but also includes important precautions regarding its use. Please read this manual carefully before you use the waterproof case and retain it for future reference Before you use the waterproof case, check that it is functioning correctly and does not leak Refer to Preparing he Waterproof Case for details (P ) hall not be liable for any consequential damages arising from corrupted or lost...
  • Page 7 Safety Precautions Waterproof ase and for - While using the Waterproof ase underwater, pay close attention to your current situation at all times. Failure to do so may lead to an accident. Waterproof ase breaks or leaks, remain calm and surface according to usual safety conventions.
  • Page 8 - Do not damage the waterproof seal, scratch its contact surfaces, or allow, hair, sand, dirt, his may heater lead to injury. - Before installing the camera in the waterproof case, remove the wrist strap and any other optional accessories, from the camera.

  • Page 9: Handling Precautions

    Handling Precautions 1. Avoid opening or closing the aterproof ase near water. When you are installing the camera or changing the memory card or the batter pack, choose a place with low humidity well away from salty sea air. 2. Use only the supplied silicone grease. Use of other waterproo ng products may impair the strength of the aterproof ase.
  • Page 10 7. Moving the waterproof case rapidly between hot and cold temperatures may cause...
  • Page 11 About Water Leakage If the waterproof case leaks, stop using the camera immediately. Do not use it in this state under any circumstance. If you use the camera in this state, this may cause a fire, electric shock, or injury. Remove the battery pack and thoroughly wipe the waterproof case interior and the camera until they are dry.
  • Page 12 - Make sure you check the waterproof seal before use Debris (e.g. hair, sand, lint or dirt) to the waterproof seal may cause leaks Even a single strand of hair or a tiny grain - Use your ngers to apply grease to the seal. Do not use paper or cloth - A damaged or cracked waterproof seal may cause leaks.

  • Page 13: Names Of Parts

    Names of Parts 2. Zoom Lever 4. Light Shield 1. Shutter Button 3. Hot Shoe 5. Bracket Hole 6. Lens 7. Control Ring 8. Control Dial/Left 10. Fn Button 9. Set Button 11.Power On/O 12.Control Dial/Up 13.Mode dial 14.MENU Button 16.Safety Lock 15.Video Button 17.Control Dial/Right...
  • Page 14 Preparing The Waterproof Case Before securing the camera in the waterproof case, check over the waterproof case to make sure there are no problems. 1. Check the waterproof case Make sure the exterior is not damaged and the lens window is not dirty. If it is dirty, gently wipe it with a soft and dry cloth.
  • Page 15 4. Apply grease to the entire waterproof seal then attach the seal * Before the first use and after each successive use, put about a droplet of grease on your index finger, hold the seal between your index finger and thumb, and slide your fingers, around the seal so the grease is applied evenly.

  • Page 16: Preparing The Camera

    Preparing The Camera Set the camera's recording program to [underwater ] to ensure your recordings have natural looking colors with toned-down blues. Before using the camera underwater, make sure you save your important recordings to a computer. See saving and sharing your recordings in the camera's instruction manual. 1 Insert a memory card (if necessary) and attach a fully-charged battery pack 2 Remove the grip belt and the optional wrist or shoulder strap, if attached 3 Turn on the camera and change in advance the camera s settings as necessary...
  • Page 17 If necessary, adjust the LCD s brightness See Adjusting The Position and Brightness 4. Turn o the camera NOTES For important details about the cameras settings and restrictions while the recording program set to [underwater] or [surface], see the Power/Others section of the speci cations in the camera s instruction manual.
  • Page 18 Securing The Camera in the Waterproof Case The camera must be secured in the waterproof case before recording underwater. Perform the following procedure to secure the camera properly. 1. Open the waterproof case Squeeze the recessed buttons on each side of the cover latch. * Release the catch * Open the case 2.
  • Page 19 4 Make sure the buttons and zoom lever are operating correctly * If they are not operating correctly, remove the camera from the waterproof case the camera again. 5 Attach the wrist strap to the waterproof case Testing the waterproof case Before recording, it is important to make sure the waterproof case is functioning correctly and does not lea .
  • Page 20 Recording Movies and Taking Photos After the camera is secured in the waterproof case, you are ready to start recording movies and taking photos 1. Turn on the camera * Press “ POWER ” * The ON/OFF(CHG) indicator on the 2.
  • Page 21 Changing the camera s setting while it is secured in the waterproof case. While the camera is secured in the waterproof case, most settings can only be accessed using the camera's wireless controller. Make sure your hands are dry when you use the wireless controller.

  • Page 22: Removing The Camera

    Removing The Camera Make sure you wash the exterior of the waterproof case before removing the camera 1. Make sure the catch is securely closed 2. Wash the exterior of the waterproof case in fresh water Put the waterproof case in tub of fresh water (for example, Clean the waterproof case by moving it back and forth, 3.
  • Page 23 Cleaning The Waterproof Case Make sure you clean the waterproof case and waterproof seal as soon as possible after use 1 Close the waterproof case Make sure the catch is securely closed 2 Wash the exterior of the waterproof case in fresh water Put the waterproof case in tub of fresh water (for example, Clean the waterproof case by moving it back and forth up,...
  • Page 24 4 Wipe the exterior of the waterproof case with a soft, dry cloth and open the case 5 Remove the waterproof seal and remove any debris on it, its contact surfaces, and the To remove debris from the seal put about a droplet of grease on your index nger, hold the seal between your index nger and thumb and slide your ngers around the seal.
  • Page 25 Make sure there is no debris in the mounting groove. Replacing the waterproof seal We recommend that you replace the waterproof seal once a year to ensure that the waterproof case remains waterproof. Check the Monoprice website for replacement seals and additional silicone grease.
  • Page 26 Storing The Waterproof Case - Keep the waterproof case open when storing it his will prevent the waterproof seal from - If using the waterproof seal after it has been in storage, make sure that it is not deformed,...

  • Page 27: Specifications

    Specifications Maximum Depth: 130 ft. (40 m) Waterproofing: Waterproof seal Main Materials: PC, Clear plate glass, EPDM rubber, O-ring, etc. Filter Diameter: 55mm Dimensions: 6.1" x 5.0" x 4.8" (156 x 126 x 121 mm) Weight: 14.8 oz (420g) Camera Operating Temperature: +32 ~ +104° F (0 ~ +40° C)
