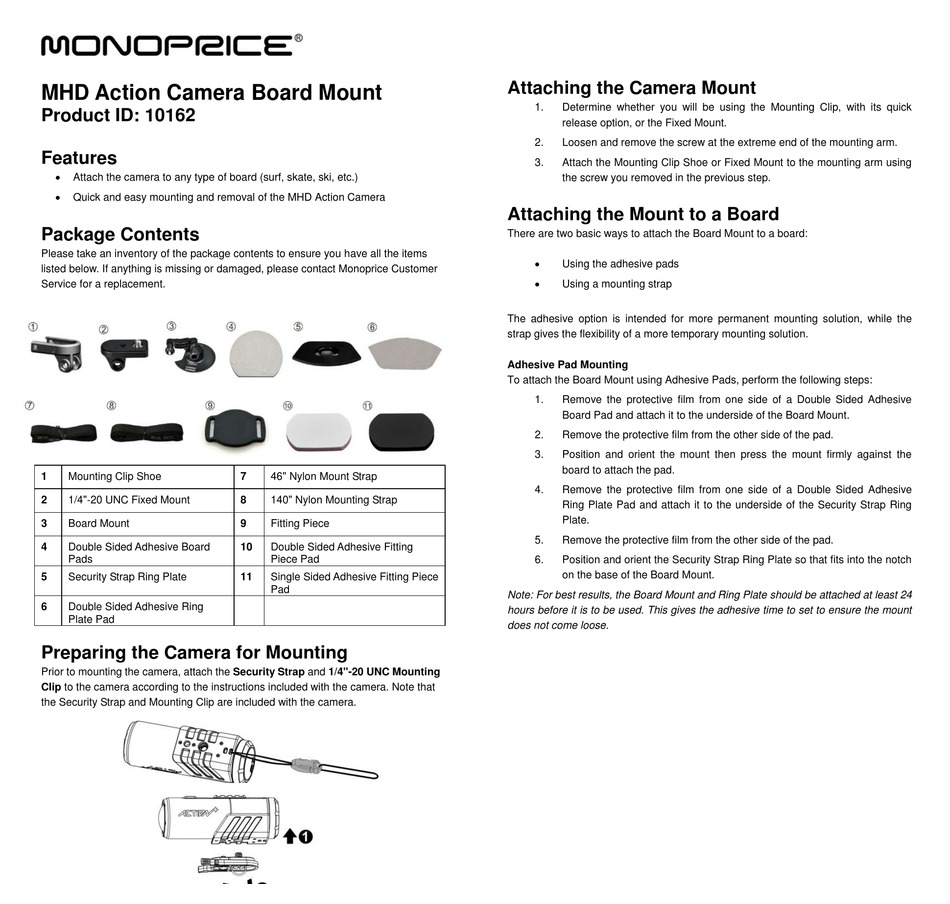

Monoprice MHD Action Camera Board Mount User Manual

MHD Action Camera Board Mount
Product ID: 10162

Features


Attach the camera to any type of board (surf, skate, ski, etc.)

Quick and easy mounting and removal of the MHD Action Camera

Package Contents

Please take an inventory of the package contents to ensure you have all the items
listed below. If anything is missing or damaged, please contact Monoprice Customer
Service for a replacement.
1 Mounting Clip Shoe
2 1/4"-20 UNC Fixed Mount
3 Board Mount
4 Double Sided Adhesive Board
Pads
5 Security Strap Ring Plate
6 Double Sided Adhesive Ring
Plate Pad

Preparing the Camera for Mounting

Prior to mounting the camera, attach the Security Strap and 1/4"-20 UNC Mounting
Clip to the camera according to the instructions included with the camera. Note that
the Security Strap and Mounting Clip are included with the camera.
7 46" Nylon Mount Strap
8 140" Nylon Mounting Strap
9 Fitting Piece
10 Double Sided Adhesive Fitting
Piece Pad
11 Single Sided Adhesive Fitting Piece
Pad

Attaching the Camera Mount

1. Determine whether you will be using the Mounting Clip, with its quick
release option, or the Fixed Mount.
2. Loosen and remove the screw at the extreme end of the mounting arm.
3. Attach the Mounting Clip Shoe or Fixed Mount to the mounting arm using
the screw you removed in the previous step.

Attaching the Mount to a Board

There are two basic ways to attach the Board Mount to a board:

Using the adhesive pads

Using a mounting strap
The adhesive option is intended for more permanent mounting solution, while the
strap gives the flexibility of a more temporary mounting solution.

Adhesive Pad Mounting

To attach the Board Mount using Adhesive Pads, perform the following steps:
1. Remove the protective film from one side of a Double Sided Adhesive
Board Pad and attach it to the underside of the Board Mount.
2. Remove the protective film from the other side of the pad.
3. Position and orient the mount then press the mount firmly against the
board to attach the pad.
4. Remove the protective film from one side of a Double Sided Adhesive
Ring Plate Pad and attach it to the underside of the Security Strap Ring
Plate.
5. Remove the protective film from the other side of the pad.
6. Position and orient the Security Strap Ring Plate so that fits into the notch
on the base of the Board Mount.
Note: For best results, the Board Mount and Ring Plate should be attached at least 24
hours before it is to be used. This gives the adhesive time to set to ensure the mount
does not come loose.
