Genwac GW-107L Operation Manual

ＩＮＴＲＯＤＵＣＴＩＯＮ：
Thank you for choosing the GW-107L, B/W CCD Camera.
GENWAC hopes that both the quality and design satisfy your requirements.
Before proceeding to install or operate the GW-107L, please read and understand thoroughly the contents of this
Operation Manual.
For future reference we also advise safe keeping of this manual.
ＣＡＵＴＩＯＮＳ：
1. Power supplied without voltage stabilization and/or the voltage range is not maintained at ±10% 24VA.C. may
cause damage to the GW-107L.
2. Do not expose the GW-107L to wetness or high moisture conditions. The GW-107L is designed and approved for
indoor use only.
If the location of the GW-107L is outdoors or in an outdoor like environment, we recommend that you use an
OUTDOOR CAMERA HOUSING.
3. Avoid the striking of hard objects or dropping the unit.
4. Do not disassemble and/or modify the GW-107L or the component parts or accessories. GENWAC can not be held
responsible for equipment failure or any damage or trouble caused by such action.
5. Do not install the GW-107L near a heat source, such as radiators or heating air ducts, or in a position subject
to direct sunlight ※ , excessive dust, mechanical vibration or shock.
6. When the GW-107L is used under fluorescent or mercury lighting conditions, a flickering phenomenon may occur on
the monitor screen. This does not mean that the GW-107L is damaged.
7. When installing the GW-107L in an industrial or commercial environment (i.e.within equipment housing, near
other electronic device, etc.) make sure to avoid any strong electromagnetic field, otherwise the video output
may be distorted and monitor sharpness compromised.
8. Check and protect the GW-107L from any source generating a strong electromagnetic field from your equipment,
when the GW-107L is fitted near or inside the unit.
9. Do not connect any power supply directly to the VIDEO OUT terminal of the unit. This may cause damage.
10. When a cable operation system, such as video/power multiplex transmission is being used,check the specifications
or requirements of your monitor for proper connection to the video signal terminal of the GW-107L.
11. Do not make connections and/or operate the GW-107L with wet hands.
12. Should the GW-107L not work properly, switch off the power and then, check that power and video terminals are
properly connected.
※ Sunlight shinning directly onto the camera lens can cause damage to the CCD.
ＣＯＮＴＥＮＴＳ：
Using the contents figures below, check to make sure all parts are present before use.
Lens cap

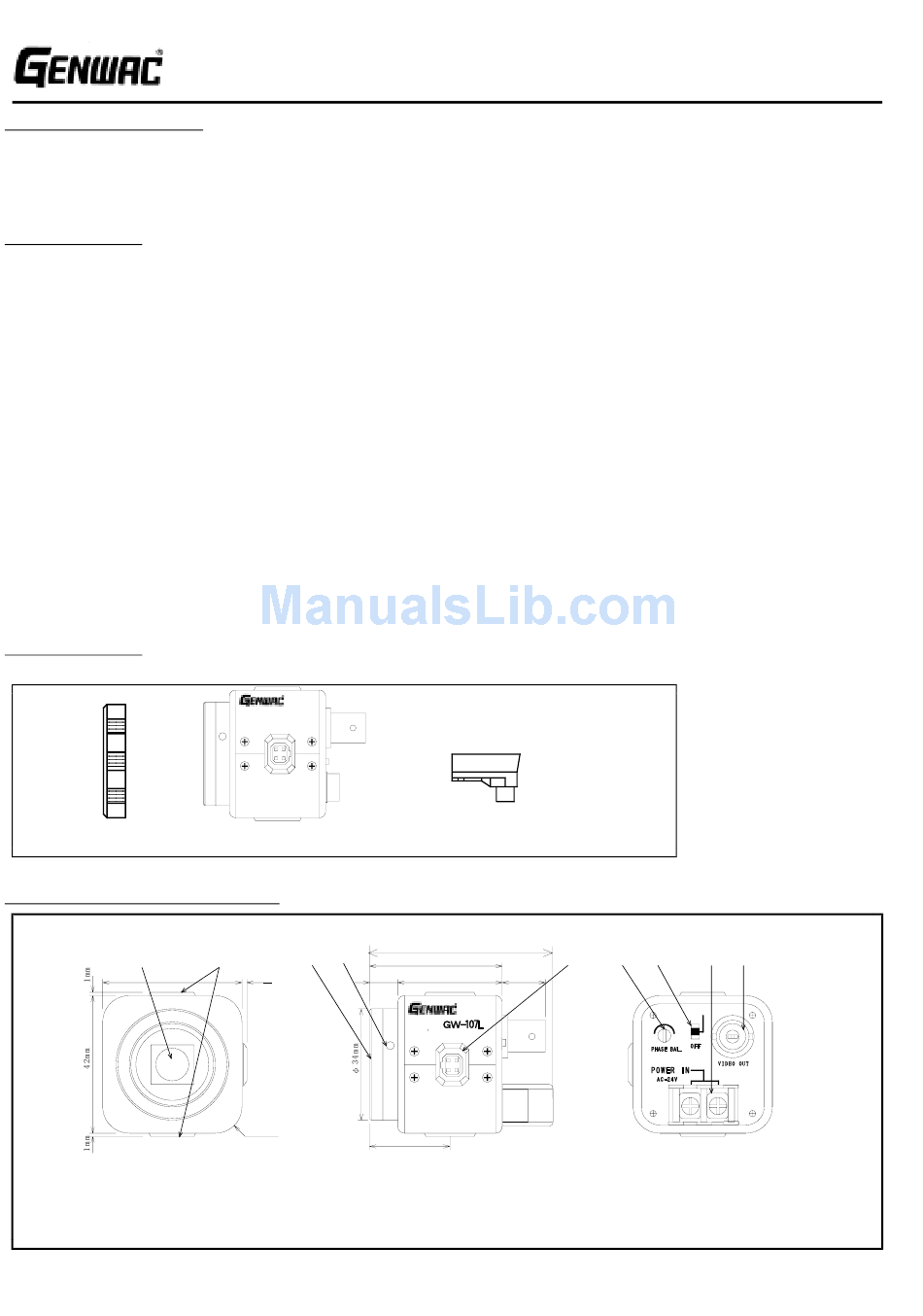

Description of Camera Parts(Unit:mm)
①
42 mm
（Front)
①CCD front face
④Tripod mounting screw holes(Upper and lower)
⑦SHUTTER switch
ＧＷ １０７Ｌ
ＣＣＤ ＣＡＭＥＲＡ
ＯＰＥＲＡＴＩＯＮ ＭＡＮＵＡＬ
AU T O IR IS
GW-107L
④ ② ③
1 .5m m
９ m m
4- R8
②Lens mount（CS mount type）
⑧POWER
－
Iris connector
55mm
⑤
40 mm
3 1m m
1 3m m
A U T O I R I S
24 mm
（Side）
③Hexagonal focusing adjustment screws(3pcs)
⑤AUTO IRIS
⑨VIDEO OUT
⑦ ⑨
⑥ ⑧
S HU T TE R
O N
（Rear）
⑥PHASE ADJUSTMENT VOLUME
