Genwac GW-220 Operation Manual

ＩＮＴＲＯＤＵＣＴＩＯＮ：
Thank you for choosing our GW-220 DIGITAL CCD COLOR Camera.
GENWAC hopes that both the quality and design satisfy your requirements.
Before proceeding to install or operate the GW-220, please read and understand thoroughly the contents
of this Operation Manual.
For future reference we also advise safe keeping of this manual.
ＣＡＵＴＩＯＮＳ：
1. Use only the AD-603 or equivalent power adaptor for the GW-220. Power supplied without voltage
stabilization and/or the voltage range maintained at +6～7.5V D.C. may cause damage.
2. Do not expose the GW-220 to wetness or high moisture conditions. The GW-220 is designed and approved
for indoor use only.
If the location of the camera is outdoors or in an outdoor like environment, we recommend that you use an
OUTDOOR CAMERA HOUSING.
3. Avoid the striking of hard objects or dropping the unit.
4. Do not disassemble and/or modify the GW-220 or any of its component parts or accessories. GENWAC can not
be held responsible for equipment failure or any damage and/or trouble caused by such action.
5. Do not install the GW-220 near heat sources, such as radiators or heating air ducts, or in a position
subject to direct sunlight ※ , excessive dust, mechanical vibration or shock.
6. When installing the GW-220 in an industrial or commercial environment (i.e. within equipment housing,
near other electronic device, etc.) make sure to avoid any strong electromagnetic field, otherwise
the video output may be distorted and monitor clearness compromised.
7. Do not connect any power supply directly to the VIDEO OUT terminal of the unit. This may cause damage.
8. When a cable operation system, such as video/power multiplex transmission is being used, check the
specifications or requirements of your monitor for proper connection to the video signal terminal of the
camera.
9. Do not make connections and/or operate the GW-220 with wet hands.
10. Should the GW-220 not work properly, switch off the power and then, check that power and video terminals
are properly connected.
※ Sunlight shining directly onto the camera lens can cause damage to the CCD.

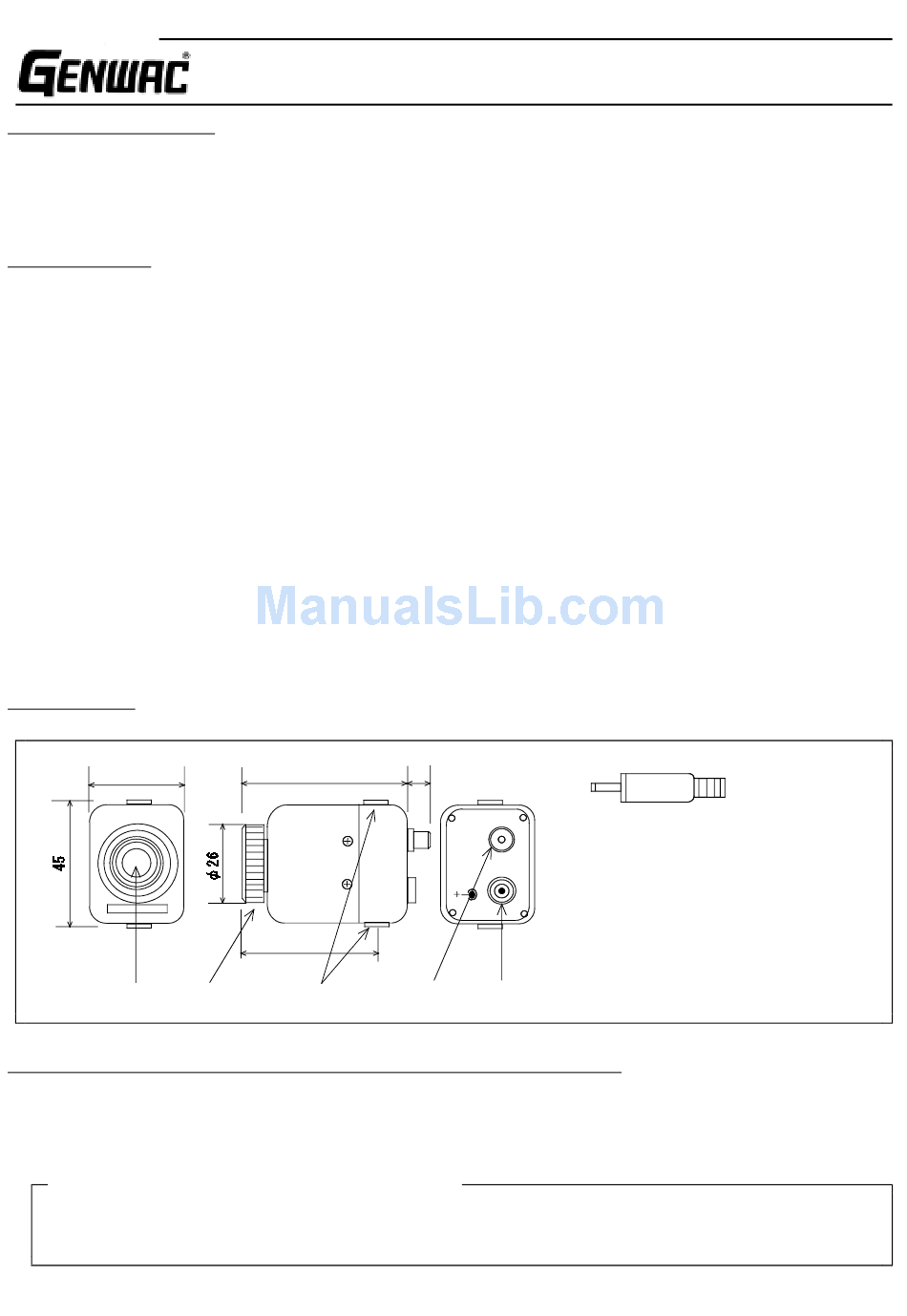

ＣＯＮＴＥＮＴ：
Using the contents figures below, check to make sure all parts are present before use.
38
①
ＳＥＴＴＩＮＧ ＵＰ ＡＮＤ ＯＰＥＲＡＴＩＯＮ ＯＦ ＴＨＥ ＧＷ－２２０
NOTE: Ensure that before any connections are made to the GW-220 the power is switched OFF.
1.Connect ④VIDEO OUT on the GW-220 to the monitor, using a coaxial cable with 75Ω impedance, such as
3C2V or 5C2V.
IMPORTANT NOTES ON THE MONITOR SPECIFICATIONS.
:Select a monitor with the same transmission mode as the GW-220,there are two versions,NTSC and PAL.
:A monitor with more than 500TV lines is recommended.
CAUTION: Do not use a monitor which uses a video signal/power multiplex transmission cable.
ＤＩＧＩＴＡＬ ＣＣＤ ＣＯＬＯＲ ＣＡＭＥＲＡ
ＯＰＥＲＡＴＩＯＮ ＭＡＮＵＡＬ
50
40
②
③
9
VIDEO
OUT
POWER
DC+6V
④
⑤
ＧＷ－２２０
DC Plug
①Lens
②Lens knob
③Tripod mounting screw holes.
(Upper/Lower)
④VIDEO OUT
⑤POWER
