Summary of Contents for ArcVision ARC19122

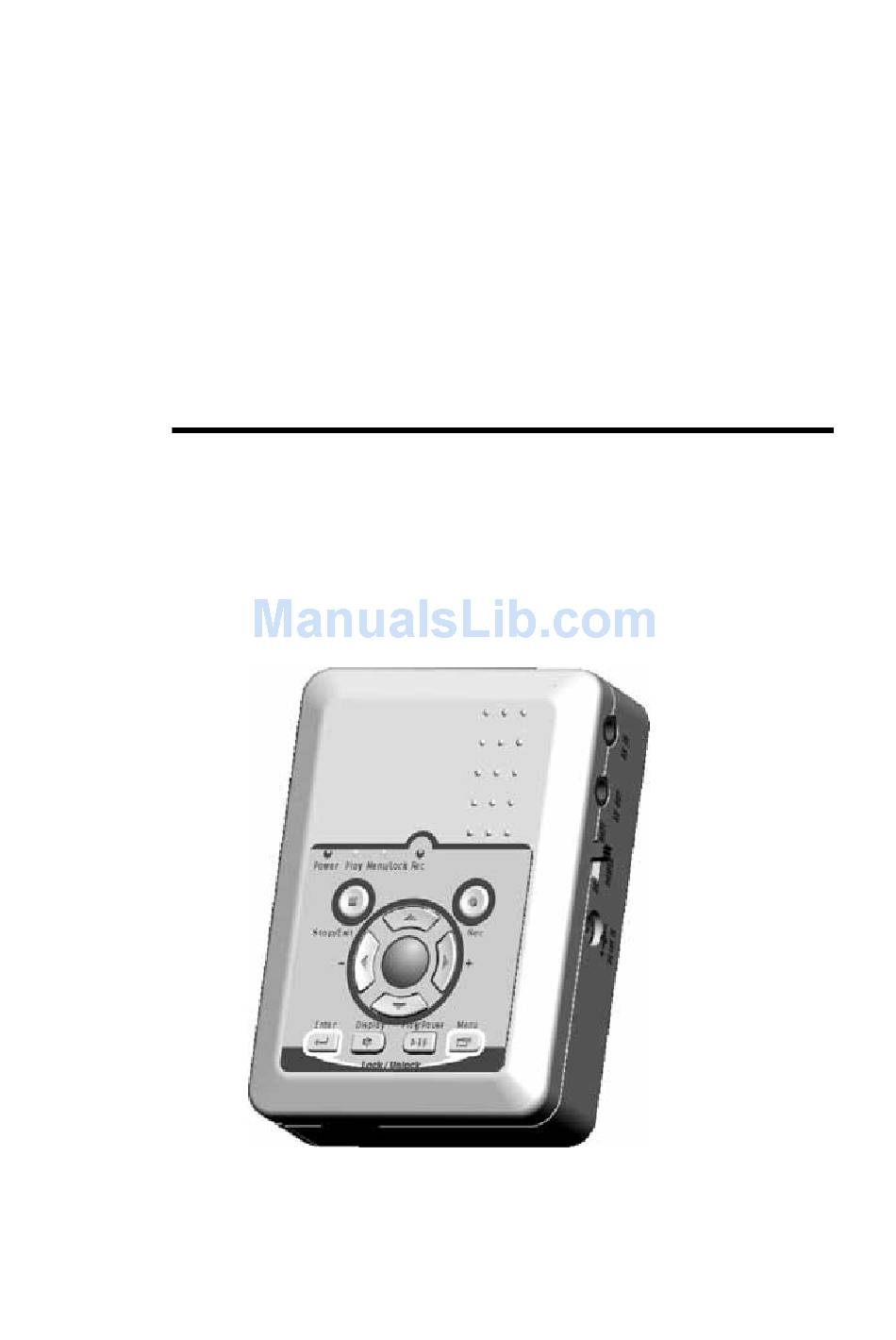

  • Page 1 錄 M i n i S e c u r i t y R e c o r d e r U S E R M A N U A L...

  • Page 2: Table Of Contents

    Contents 1. SAFETY PRECAUTIONS ......................1 2. FEATURES ..........................2 3. PACKING LIST........................... 3 4. NAME and FUNCTION of EACH PART ................... 4 4.1 Front View..........................4 4.2 Side View ..........................5 5. Basic Configuration ........................6 6. Operation............................7 6.1 Power On..........................

  • Page 3: Safety Precautions

    1. SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN! CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. It is advised to read the Safety Precaution Guide through carefully before operating the product, to prevent any possible danger.

  • Page 4: Features

    2. FEATURES The DVR supports NTSC or PAL video system, and auto detects video loss. The DVR is built-in with MPEG4-SP video and G.726 audio codec. It supports 1 channel video and 1 channel audio recording and playback operation. Audio/ Video data are recorded directly on the SD card with FAT16/ 32 file system and ASF file format.

  • Page 5: Packing List

    3. PACKING LIST Check to make sure all of the items shown below are included in your Portable Security Recorder Kit. If something is missing, contact your dealer as soon as possible. Item Description Item Picture Mini Portable Security Recorder Audio/ Video Cable Power Adaptor DC 5V/ 1A Input: AC 100~240V...

  • Page 6: Name And Function Of Each Part

    4. NAME and FUNCTION of EACH PART 4.1 Front View Power LED Power Indicator Play LED Play Indicator Menu/ Lock LED Menu / Key Lock Indicator Rec LED When SD card is writing data during recording, record indicator will flash slowly. When SD card is “read only”, recording function is disabled and the record indicator will flash quickly.

  • Page 7: Side View

    4.2 Side View (15) AV IN: Audio/ Video Input Audio/Video IN: 3.5 mm ∅ jack for audio/ video line in. (16) AV OUT: Audio/ Video Output Audio/Video OUT: 3.5 mm ∅ jack for audio/ video line out. (17) POWER: DC/ Battery Power Switch (18) DC 5V IN: 5V/ 1A Power Input (19) SD Card Slot (20) Battery Compartment Cover...

  • Page 8: Basic Configuration

    5. BASIC CONFIGURATION 1. Power: Use the power adaptor supplied, nickel metal hydride (NiMH), alkaline batteries. 2. Video System: Connect the camera, the device auto detects NTSC/ PAL video system (the output video system will be setup the same as its input video system). Without connecting the camera, the video system setup will be the same as its previous setup.

  • Page 9: Operation

    6. OPERATION 6.1 Power On 1. The power switch is situated on the right side of the device, switch to DC when using the supplied power adaptor or switch to BATT when using battery. NOTE: Each time after power-on, the system auto-detects its peripherals. When the REC LED flashes indicates that the SD card is proceeding testing (complete boot time is several seconds) When an image file error has been detected, the system will initiate auto repairing.

  • Page 10: Record Mode

    3 SD Card Status: SD Card has not been inserted or malfunction. SD Card is proceeding file testing. SD Card is functioning normally. Disk full and overwrite record. When SD card is not inserted, record and playback function is inapplicable, but monitoring is applicable.

  • Page 11: Playback Mode

    4. The event status is determined by the system recording, according to the order of priority. 5. The order of priority: Manual Record, Motion Detection and then Schedule Record. 6. Different recording modes may have different kinds of setups. Basic setup: video size, recording frames, video quality, and audio recording.

  • Page 12: Pc Playback

    Press Stop button to stop playback function and to return to live status. (2) Search and Playback: Enter MENU and select SEARCH AND PLAY item. S E A R C H A N D P L A Y D A T E L E S D A T E P A G E...

  • Page 13: Sd Card Maintenance

    6.6 SD Card Maintenance 1. The device supports only FAT16/ 32 file system; therefore it is unable to determine other file systems. Please format the SD card (enter MENU/ SD CARD OPTIONS and select “Format”). 2. The system supports only partial SD card file system repair. The system is unable to detect any file system damage, therefore please format the SD card (enter MENU/ SD CARD OPTIONS and select “Format”).

  • Page 14: Menu Setup

    7. MENU SETUP 7.1 Main Menu M E N U S E A R C H A N D P L A Y > S E T D A T E I M E > S E T M O T I O N D E T E C T >...

  • Page 15: Motion Detection

    7.3 Motion Detection 1. Window setup: A R E A M O D E C E L L M O D E P L A Y 1 Detection Cell: Whole screen is divided into 22x15 square cells. 2 Detection Block: Two or more cells form a block. 3 Cursor: Press PLAY button to switch to Select/ Edit mode.

  • Page 16: Manual Record & Schedule Record

    Color black indicates image variable value and color red indicates Sensitivity Bar the MD threshold. Current image variation value. MD Energy Press button, to change the motion detection threshold MD Threshold value. 7.4 Manual Record & Schedule Record Selectable manual or schedule recording, basic setups are shown below: 1.

  • Page 17: Sd Card Options

    Enable or disable schedule recording (ON/ OFF). RECORD ab:cd – ab:cd = 24 hour recording and 00:00 – 00:01 = Record of SCHEDULE one minute image from 00:00 to 00:01. Motion Detection Recording DURATION TIME Setup: DURATION Duration time when motion detection has been triggered (5SEC / 10SEC / 15SEC/ 20SEC / 30SEC).

  • Page 18: Factory Default

    7.7 Factory Default F A C T O R Y D E F A U L R E C A L D E F A U L N O W ? Y E S E N T E R Press Enter button, returns all settings to the factory default value.

  • Page 19: Specification

    8. SPECIFICATION System NTSC / PAL Video System and Video Loss Auto Detection Codec MPEG4-SP ASF File Format 1, 2, … , Maximum fps selectable Maximum: Record Frame Rate NTSC: 30 fps@352x240/ 24 fps@704x240/ 12 fps@704x480 PAL: 25 fps@352x280/ 20 fps@704x280/ 10 fps@704x560 Record Quality Low / Medium / High Frame Rate@...
