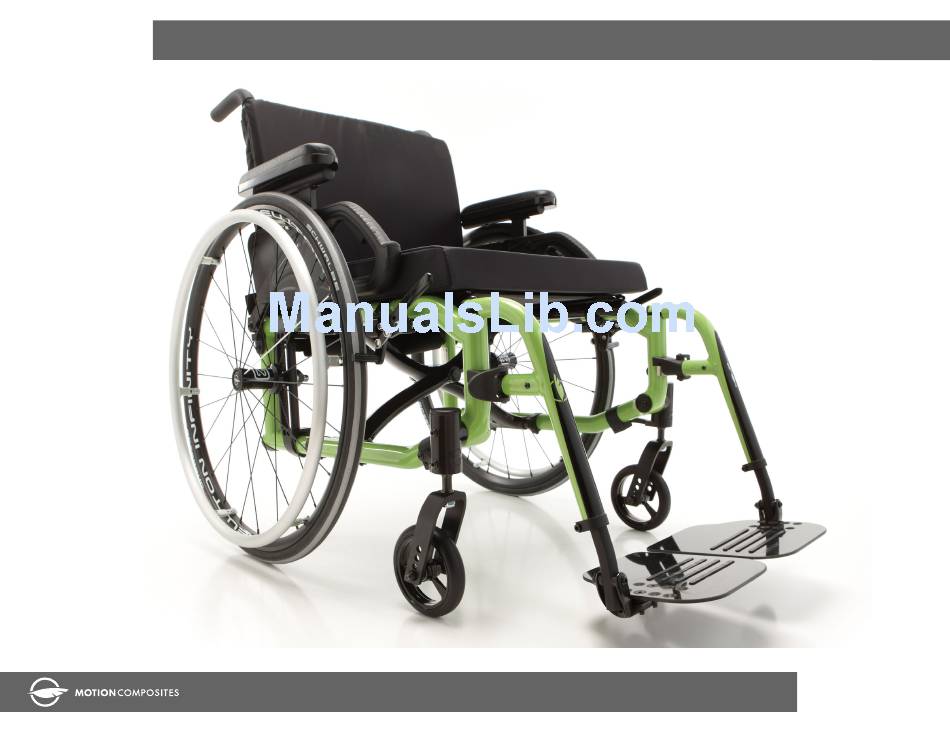

  • Page 1 USER MANUAL helio c2...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS helio c2 FRAME - 3 CROSSBRACE ASSEMBLY - 4 CROSSBRACE FRONT/REAR - 5 CENTRAL SHAFT KIT - 6 BASE SHAFT KIT - 7 LINK KITS - 8 LINK DIMENSION TABLE - 9 REAR WHEEL MOUNTING PLATE - 10...

  • Page 3: Frame

    HELIO C2 18" LEFT FRAME ASSEMBLY 2,3,4,5,10,11,12 1000800 HELIO C2 19" LEFT FRAME ASSEMBLY 2,3,4,5,10,11,12 1000801 HELIO C2 20" LEFT FRAME ASSEMBLY 2,3,4,5,10,11,12 1000802 HELIO C2 21" LEFT FRAME ASSEMBLY HOW TO MEASURE YOUR FRAME Ex: HELIO C2 X'' LEFT FRAME ASSEMBLY...

  • Page 4: Crossbrace Assembly

    CROSSBRACE ASSEMBLY helio c2 ITEM NO. PARTNO DESCRIPTION QTY. 12142 C2 XBRACE CENTER SHAFT 12145 C2 XBRACE CENTER PIVOT SLEEVE 12143 C2 XBRACE BASE SHAFT 12149 C2 XBRACE BASE PIVOT SHAFT PLASTIC CAP SOCKET CAP SCREW M5X0.8 X 14mm LONG,...

  • Page 5: Crossbrace Front/Rear

    CAP 1 IN CARBON 12145 C2 XBRACE CENTER PIVOT SLEEVE 12006 C2 XBRACE BASE PIVOT SLEEVE 1000541 HELIO C2 12'' FRONT XBRACE ASSEMBLY 1000542 HELIO C2 13'' FRONT XBRACE ASSEMBLY 1000543 HELIO C2 14'' FRONT XBRACE ASSEMBLY 1000544 HELIO C2 15'' FRONT XBRACE ASSEMBLY...

  • Page 6: Central Shaft Kit

    CENTRAL SHAFT KIT helio c2 ITEM NO. PARTNO DESCRIPTION QTY. FLANGE BUTTON HEAD CAP SCREW, M8X.8 X 90994 10mm 12145 C2 XBRACE CENTER PIVOT SLEEVE 12142 C2 XBRACE CENTER SHAFT 1000563 HELIO C2 XBRACE CENTRAL SHAFT ASSEMBLY...

  • Page 7: Base Shaft Kit

    C2 XBRACE BASE SHAFT 12150 C2 XBRACE BASE PIVOT SHAFT ALU PLUG 12006 C2 XBRACE BASE PIVOT SLEEVE 12149 C2 XBRACE BASE PIVOT SHAFT PLASTIC CAP SOCKET CAP SCREW M5X0.8 X 14mm LONG, 90745 FULLY THREADED 1000564 HELIO C2 XBRACE BASE SHAFT ASSEMBLY...

  • Page 8: Link Kits

    BUTTON HEAD CAP SCREW M5X0.8 X 30mm 90651 LONG, FULLY THREADED BUTTON HEAD CAP SCREW M5X0.8 X 30mm 90651 LONG, FULLY THREADED 1000581 HELIO C2 17" LINK ASSEMBLY 1000576 HELIO C2 12" LINK ASSEMBLY 1000582 HELIO C2 18" LINK ASSEMBLY 1000577 HELIO C2 13" LINK ASSEMBLY 1000583 HELIO C2 19"...

  • Page 9: Link Dimension Table

    LINK DIMENSION TABLE helio c2 ITEM NO. PARTNO DESCRIPTION QTY. 12152 LINK 12'' 12153 LINK 13'' 12154 LINK 14'' 12155 LINK 15'' 12156 LINK 16'' 12157 LINK 17'' 12158 LINK 18'' 12159 LINK 19'' 12160 LINK 20'' 12161 LINK 21''...

  • Page 10: Rear Wheel Mounting Plate

    REAR WHEEL MOUNTING PLATE helio c2 ITEM NO. PARTNO DESCRIPTION QTY. 21024 PLASTIC SLEEVE 21016 MOUNTING PLATE 21023 H-BLOCK V2 Metric JIS Pan Head Phillips Machine Screw M4 90988 X 0.7 X 8mm 99536 NUT M18X1.5 99597 LOCK WASHER M18 X 1.5 21008 0°...

  • Page 11: Amputee Axle Plate

    AMPUTEE AXLE PLATE helio c2 ITEM NO. PARTNO DESCRIPTION QTY. 21508 V2 0° BUSHING KIT 51119 UNIVERSAL 1.25IN ALU CLAMP 21026 LEFT AMPUTE PLATE V2 21025 RIGHT AMPUTE PLATE V2 21008 0° BUSHING 99597 LOCK WASHER M18 X 1.5 99536 NUT M18X1.5...

  • Page 12: Back Wheels

    BACK WHEELS helio c2 TUBES REAR WHEELS TIRES PARTNO DESCRIPTION PARTNO DESCRIPTION ITEM NO. PARTNO DESCRIPTION 21 250 20"x1" TUBE 21106 22" MAG WHEEL 21 305 20"x1" HP TIRE IRONCAP 21107 24" MAG WHEEL 21 306 22"x1" HP TIRE IRONCAP 21 251 22"x1"...

  • Page 13: Handrims

    HANDRIMS helio c2 ITEM NO. PARTNO DESCRIPTION 21 200 20" ALUMINUM ANODIZED HANDRIM 21 201 22" ALUMINUM ANODIZED HANDRIM 21 202 24" ALUMINUM ANODIZED HANDRIM 21 203 25" ALUMINUM ANODIZED HANDRIM 21 204 26" ALUMINUM ANODIZED HANDRIM 21 205 22" ALUMINUM ANODIZED HANDRIM/ MAG WHEEL 21 206 24"...

  • Page 14: Spokes Guard

    SPOKES GUARD helio c2 ITEM NO. PARTNO DESCRIPTION QTY. 51034 SPOKE SHIELD CLIP 51019 SPOKE GUARD 20" 51020 SPOKE GUARD 22" 51021 SPOKE GUARD 24'' 51025 SPOKE GUARD 26"...

  • Page 15: Titrfront Wheel Assembly

    TITRFRONT WHEEL ASSEMBLY helio c2 ITEM NO. PARTNO DESCRIPTION QTY. 22052 FRONT WHEEL CLAMP V2 22009 HOUSING SIDE CAP SOCKET CAP SCREW M6X1 X 45mm LONG, 90777 24mm THREADED SOCKET CAP SCREW M5X0.8 X 20mm LONG, 90749 FULLY THREADED 99700 CAP Ø1.5...

  • Page 16: Caster Lock

    CASTER LOCK helio c2 ITEM NO. PARTNO DESCRIPTION QTY. 22060 CASTER LOCK PIN PLATE 22061 FRONT TIE DOWN +1 FOR CASTER LOCK PIN 22062 FRONT TIE DOWN +2 FOR CASTER LOCK PIN FLAT HEAD CAP SCREW M6X1 X 12mm LONG,...

  • Page 17: Footrests

    FOOTRESTS helio c2 CARBON FOOTPLATE ALUMINUM FOOTPLATE STANDARD FOOTPLATE HEEL STRAP ASSEMBLY...

  • Page 18: Footrests

    FOOTRESTS helio c2 ITEM NO. PARTNO DESCRIPTION QTY. ITEM NO. PART NO. DESCRIPTION QTY. 31177 V2 FOOTREST 90° STRUCTURE 1000803 12-13" ALUMINUM RIGHT FOOTPLATE ASSEMBLY 31166 V2 FOOTREST 60° STRUCTURE 1000804 12-13" ALUMINUM LEFT FOOTPLATE ASSEMBLY 31167 V2 FOOTREST 70° STRUCTURE 1000805 14-16"...
  • Page 19 TITRE helio c2 ITEM NO. PARTNO DESCRIPTION QTY. 31555 V2 PF PIVOT SIDE EXTENSION TUBE - ASSEMBLY 31557 V2 6" PLATEFORM - ASSEMBLY 31558 V2 8" PLATEFORM - ASSEMBLY 31559 V2 10" PLATEFORM - ASSEMBLY V2 PF ANCHOR SIDE EXTENSION TUBE -...

  • Page 20: Elevating Legrests

    ELEVATING LEGRESTS helio c2 ITEM NO. PARTNO DESCRIPTION QTY. 31564 V2 ELEVATING LEGREST 14"-15" RIGHT 31565 V2 ELEVATING LEGREST 14''-15'' LEFT 31568 V2 ELEVATING LEGREST 18''-20'' RIGHT 31569 V2 ELEVATING LEGREST 18''-20'' LEFT 31562 V2 UNIVERSAL LEGREST HANGER LEFT - ASSEMBLY...

  • Page 21: Back Rests / Push Handles

    BACK RESTS / PUSH HANDLES helio c2 ITEM NO. PARTNO DESCRIPTION QTY. 32012 PUSH HANDLE 32023 HAND GRIP 7_8 90647 BUTTON HEAD CAP SCREW M5X0.8 X 18mm LONG, FULLY THREADED 99701 PLASTIC PLUGS 32013 BACK EXTENSION 32017 PUSH HANDLE BACK SLEEVE...

  • Page 22: Duo Armrest

    DUO ARMREST helio c2 ITEM NO. PARTNO DESCRIPTION QTY. 33039 ARMREST FULL LENGHT PAD 33038 ARMREST DESK PAD 33125 V2 ARMREST ADJUSTABLE ARM 10-14'' 33124 V2 ARMREST ADJUSTABLE ARM 8-12'' 33133 V2 ARMREST ADJUSTABLE ARM PLUG 99013 SCREW PHILLIPS PAN HD #10_32 X 1_1_2...

  • Page 23: Armrest Pivot Point

    ARMREST PIVOT POINT helio c2 ITEM PARTNO DESCRIPTION 99560 WASHER 1/4 17/64 ID X 1/2 OD X .032 THK 22004 TIE DOWN 32066 DOUBLE COVED WASHER 99512 M6 LOW NYLON LOCK 90667 BUTTON HEAD CAP SCREW M6X1 X 45mm LONG, 24mm THREADED...

  • Page 24: I" Armrest

    “I” ARMREST helio c2 ITEM NO. PARTNO DESCRIPTION QTY. 33502 RIGHT FLIP UP I ARM REST 33503 LEFT FLIP UP I ARM REST 33501 FLIP UP I ARMREST CLAMP - ASSEMBLY (M) 99560 WASHER 1/4 17/64 ID X 1/2 OD X .032 THK 99590 WASHER 5/16 - 21/64 ID X 19/32 OD X .062THK...

  • Page 25: Sideguard

    SIDEGUARD helio c2 ITEM NO. PARTNO DESCRIPTION QTY. 51112 SMALL SIDEGUARD - 3K FINISH + COLOR DECAL 51113 MEDIUM SIDEGUARD - 3K FINISH + COLOR DECAL 60201 1 1/4'' FRAME SAVER 60202 1'' FRAME SAVER 90664 BUTTON HEAD CAP SCREW M6X1 X 30mm LONG, FULLY THREADED...

  • Page 26: Mudguard

    MUDGUARD helio c2 BOM Table(Restructured) ITEM NO. PARTNO DESCRIPTION QTY. 51106 CARBON MUDGUARD SMALL RIGHT 51107 CARBON MUDGUARD SMALL LEFT 51108 CARBON MUDGUARD MEDIUM RIGHT 51109 CARBON MUDGUARD MEDIUM LEFT 51002 RIGID SIDEGUARD MEDIUM (PAIR) 51003 RIGID SIDEGUARD LARGE (PAIR) BUTTON HEAD CAP SCREW M4X0.7 X 8mm...

  • Page 27: L" Armrest

    “L” ARMREST helio c2 ITEM NO. PARTNO DESCRIPTION QTY. 33035 L TYPE ARMREST RIGHT (M) 33036 L TYPE ARMREST LEFT (M) 33049 FOAM GRIP_L ARMREST 33038 ARMREST DESK PAD 99013 SCREW PHILLIPS PAN HD #10_32 X 1_1_2 99702 CAP 1 IN ALU...

  • Page 28: Brakes

    BRAKES helio c2 ITEM NO. PARTNO DESCRIPTION QTY. 41013 WHEEL LOCK PUSH + EXTENSION (PAIR) 41014 WHEEL LOCK PULL + EXTENSION (PAIR) 41005 REMOVABLE EXTENSION HANDLE 41002 WHEEL LOCK PUSH (PAIR) 41003 WHEEL LOCK PULL (PAIR) 41004 WHEEL LOCK GRADE AID (PAIR)

  • Page 29: Anti-Tippers

    ANTI-TIPPERS helio c2 ITEM NO. PARTNO DESCRIPTION QTY. 51519 ANTI-TIPPER SMALL V2 - ASSEMBLY 51520 ANTI-TIPPER MEDIUM V2 - ASSEMBLY 51521 ANTI-TIPPER LARGE V2 - ASSEMBLY 51518 ANTI-TIPPER EXTENSION LONG V2 - ASSEMBLY 51517 ANTI-TIPPER EXTENSION SHORT V2 - ASSEMBLY...
