Rostra 250-7610 User Manual

Navigation System for GM MyLink with 7" LCD Screen
Parts Identification
Assembly Layout
Dashboard Disassembly
Interface Module Details
Interface Module Connections
Reassembly
CAUTION: It is strongly recommended to disconnect the negative battery cable for 3 minutes before
beginning installation of this product to avoid unintended air bag deployment. Note and record any anti-theft
radio codes prior to disconnecting.
To avoid dangerous distractions that may lead to an accident, the driver should never operate the system while the vehicle
is in motion. Before installing this product, the seller should inform the end-user of proper use and compliance with the
proper instructions and all state and federal laws.

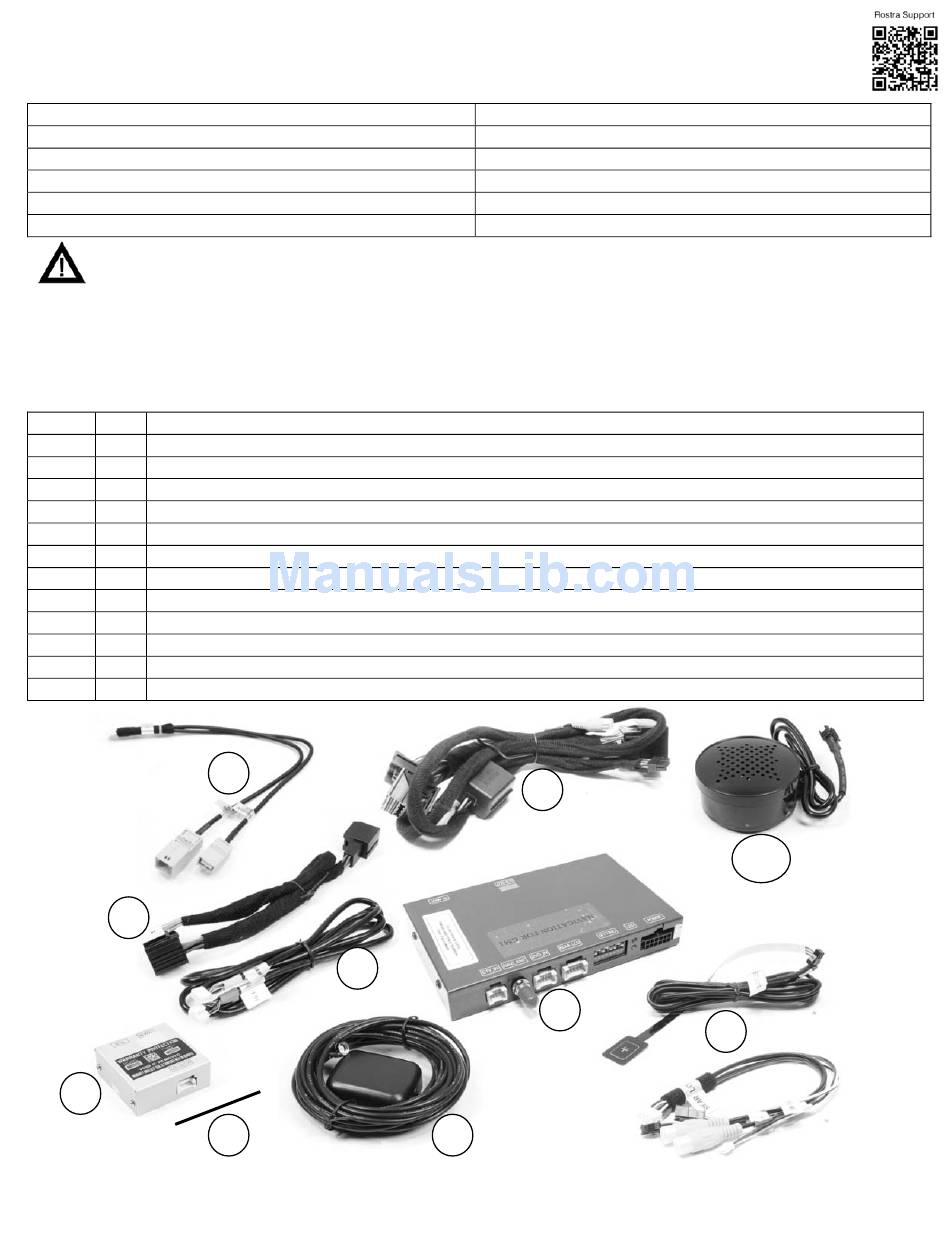

Item Qty.
1 1 LCD IN/OUT Harness (GVIF)
2 1 TP_IN to LCD harness
3 1 Video-switching control module
4 1 Stylus
5 1 TP_IN and LCD_IN Harnesses
6 1 GPS antenna
7 1 Navigation Interface Module
8 1 Vehicle T-harness
9 1 Membrane switch and harness
10 1 External speaker
2
3
Form #5383, REV C, 05-19-2014
Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-732-4744 - rostra.com
250-7610 GM Soft Touch Navigation System
Parts Identification
1
5
4
WARNING
Description
8
7
6
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
10
9
Page 1
