General Applicability:
Ford - 2011-2013 Explorer, 2011-2013 Taurus, 2011-2013 Flex, 2013 Fusion, 2013 F-150/250/350
Lincoln – 2012-2013 MKZ, MKX, MKS, MKT
For video installation instructions, please visit us online at www.rostra.com.
INSTALLATION PERFORMED ON FORD EDGE FOR REFERENCE ONLY!
Parts Identification
Vehicle Preparation
Programming Switch Settings
Installation

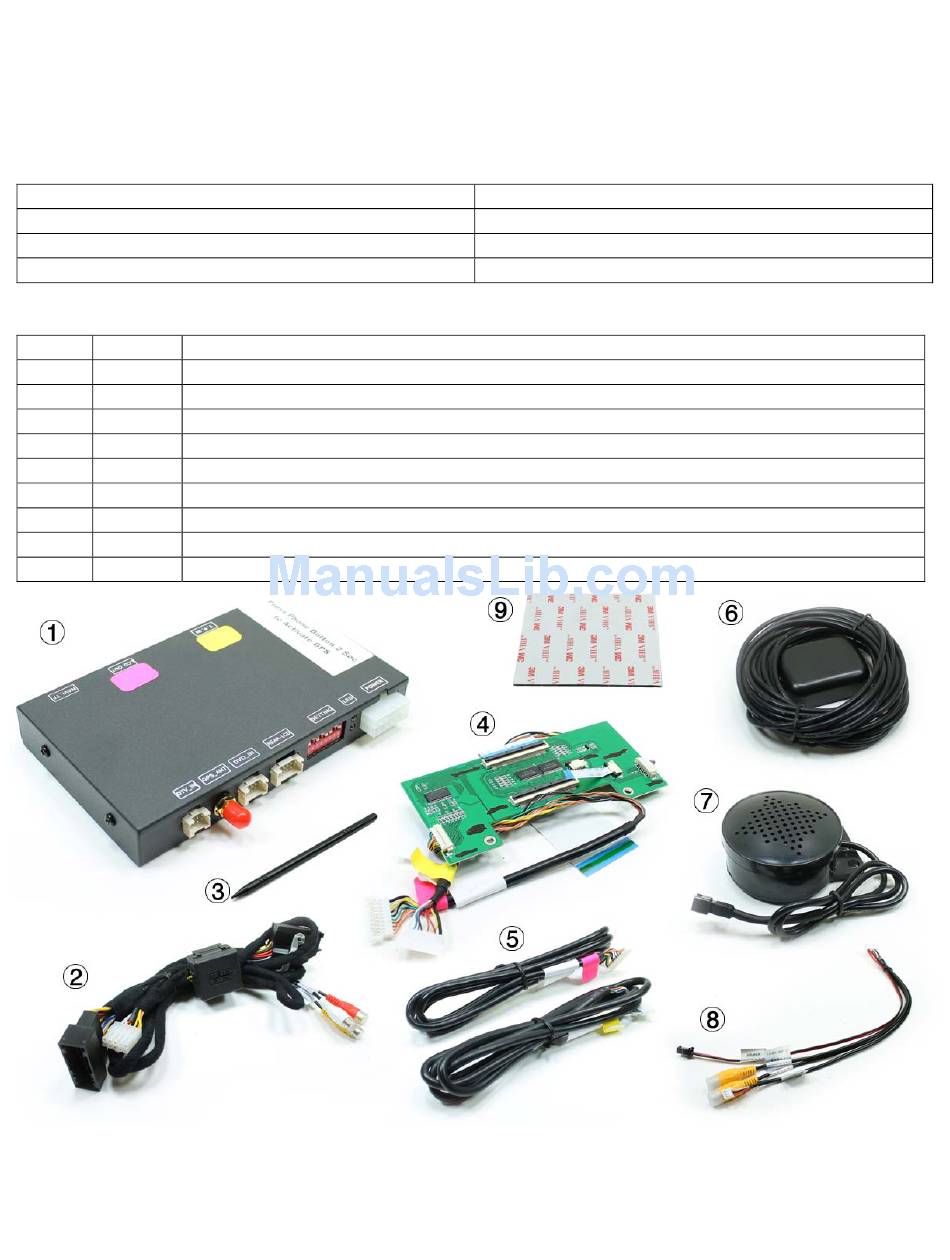

Parts Identification
Item
Qty.
1
1
2
1
3
1
4
1
5
1
6
1
7
1
8
1
9
1
Form #5417, Rev. A, 03-08-13
Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com
SoftTouch Navigation System
250-7614 2011-2013 Ford Edge Installation Instructions
Description
Navigation interface module
Vehicle interface harness
Stylus
Navigation interface board
LCD IN harness and LCD IN harness
GPS antenna with magnetic base
GPS speaker
Speaker and reverse camera input harness
VHB tape
Page 1
Page 2
Page 2
Page 3
Page 1
Advertisement
Related Manuals for Rostra 250-7614 2011-2013 Ford Edge
Summary of Contents for Rostra 250-7614 2011-2013 Ford Edge
- Page 1 LCD IN harness and LCD IN harness GPS antenna with magnetic base GPS speaker Speaker and reverse camera input harness VHB tape Form #5417, Rev. A, 03-08-13 Page 1 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
- Page 2 Radio Head Unit in the vehicle. INSTALLATION DAMAGE TO THE VEHICLE RADIO HEAD UNIT IS NOT THE RESPONSIBILITY OF ROSTRA PRECISION CONTROLS, INC. AND IS EXPRESSLY NOT COVERED UNDER THE PRODUCT WARRANTY. Page 2 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
- Page 3 To use an aftermarket camera – Place switch #1 in OFF position. To use the vehicle’s factory camera – Place switch #1 in ON position. Visit www.rostra.com to view all compatible backup cameras! Page 3 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
-
Page 4: Installation
Remove the four screws attaching the factory radio Decouple the clips attaching the radio trim to the shift trim to the dashboard. lever trim. Page 4 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com... - Page 5 Gently remove these harnesses (Note: the large side of the vehicle to easily access the factory wiring factory harness includes a locking retainer clip.) harnesses. Page 5 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
- Page 6 Gently lift open the casing of the touch screen unit to touch screen unit. gain access to the ribbon cables on the interior. Page 6 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
- Page 7 Remove the four screws securing the touch screen …this exposes the interface plug underneath. interface board to the touch screen unit… Page 7 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
- Page 8 Connect the ribbon cables from the navigation interface board to the touch screen interface board and re-secure the four mounting screws. Page 8 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
- Page 9 Remove the four screws securing the factory CD replacing the four previously removed screws. player to the dashboard and gently lift it out of the way. Page 9 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
- Page 10 Connect the TP-IN and LCD-IN harness to the PINK of the vehicle above the headliner, down the and YELLOW ports on the navigation control module. passenger-side A-pillar, and behind the glovebox. Page 10 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
- Page 11 Connect the vehicle interface harness to the factory it to the navigation control module. wiring harness on the car. (Note: the large factory harness includes a locking retainer clip.) Page 11 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
- Page 12 TP-IN and LCD-IN harnesses from the navigation interface module. Page 12 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
- Page 13 Always seal any holes drilled with the provided sealing putty to prevent water infiltration through unprotected areas. • Confirm integrity of mechanical and electrical connections before moving to next installation sequence. Installation Notes _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ Page 13 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
-
Page 14: Installation Notes
Installation Notes Page 14 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com... - Page 15 Installation Notes Page 15 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
- Page 16 Page 16 Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com...
