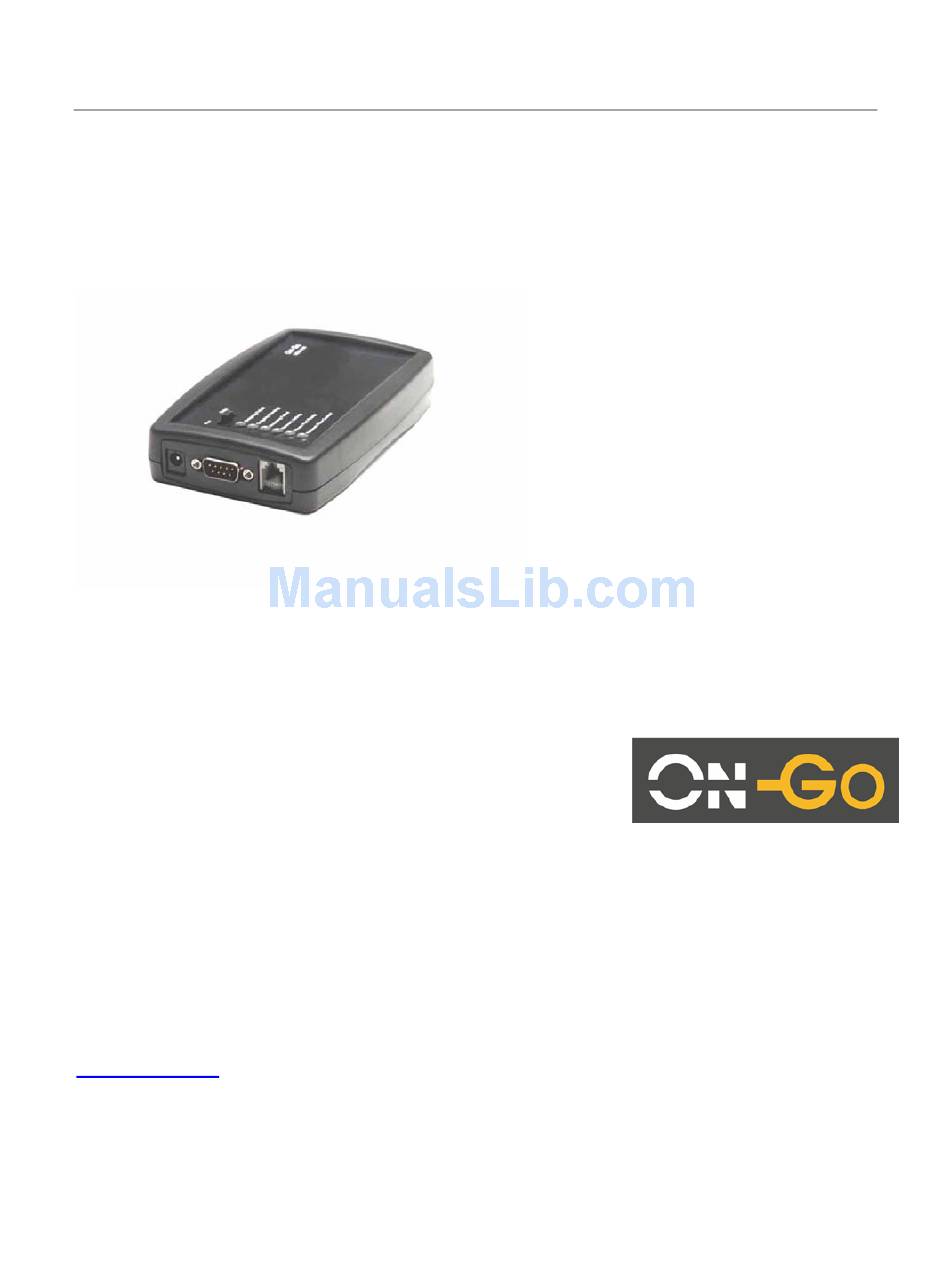

- Page 1 Universal Communication Hub UCH-100 Quick Start Guide On-Go Inc. P.O.Box 341726 Bethesda, MD 20817 Tel: +1.301.765.8030 Fax: +1.301.765.8031 www.on-go.com Note: The information in this document applies to UCH-100 product. Revision: 1.4 Revision Date: 9/5/2005...
- Page 2 Universal Communication Hub (UCH-100) Interface 1. Front View AC Adapter Jack Db 9 Serial RJ11 Port (connect Port (connect to fax machine or to satellite data modem) phone data cable) 2. Top View LED Indicators (1- Three position POWER 3. Battery Orientation (Please ensure proper battery orientation to avoid damaging the...
- Page 3 General Concept The Universal Communication Hub UCH-100 comes with two ports, Serial (DB9) and Modem (RJ11). It simply provides telephony interface to data/fax devices over digital network. Equipment such as fax machine, credit card terminal, security alarm, data modem, which all uses...
- Page 4 the format: COUNTRY_CODE + NUMBER. Do not dial any prefix like 00 or 011, the system will handle that automatically. 3.1.1.3 Mobile Terminated Fax Mobile terminated fax is automatic. When the user subscribes to a service plan, a “MAILBOX” number will be assigned to the unit. When a fax is sent to that MAILBOX number (this number is not the same as the mobile data number), a notification is sent to the unit and the unit will connect to the Gateway to pick up that message.
- Page 5 Service Provider only. The DIP switch position will dictate the personality of the UCH-100. LED indication The UCH-100 has 6 LEDs that indicate the operational status of the unit. The LEDs status are: Function Slow Blink...
- Page 6 LOCAL commands Though the UCH-100 has no built-in keypad, the user can still command UCH-100 to perform certain tasks or retrieve internal status and report. This command is performed through a tone- based telephony device (such as a phone or fax machine). To enter the command, simply take the attached telephony device off hook, enter the key sequence and then hang up.
-
Page 7: Dip Switch Settings
DIP SWITCH SETTINGS DIP switches are located on the top of the board close to the battery compartment. FAX MODE: IRIDIUM 9505 IRIDIUM 9500 GLOBALSTAR 1600 GLOBALSTAR fixed GLOBALSTAR Celluar IRIDIUM CREW CALLING Aces FG190G Thuraya Reserved AT&T Wireless GPRS T-MOBILE GPRS Nextel GPRS... -
Page 8: Data Mode
Verizon GPRS Cingular GPRS Sprint GPRS USER CONFIGURATION No Printing Print Acknowledgement Dialtone length 0.75 s Dialtone length 1.5 s Dialtone length 1.2 s Dialtone length 0.5 s Bypass initial connect Perform initial connect DATA MODE: IRIDIUM 9505 IRIDIUM 9500 GLOBALSTAR 1600 GLOBALSTAR fixed GLOBALSTAR... - Page 9 Quick Connect No Quick Connect Auto 1200 bps 2400 bps 4800 bps 9600 bps 19200 bps 38400 bps...
- Page 10 38400 bps, 8 bit, no parity, no hardware/software flow control. The users must be familiar with UCH-300 configuration structure. UCH-300 comes with a 16-key keypad. The command input mapped to the keys are: UCH-300 keypad UCH-100 command input 0 – 9, *, # 0 – 9, *, # CONFIG/SELECT NEXT >...
-
Page 11: Operating System
SOFTWARE UPDATE facility In some cases, where software needs to be updated, UCH-100 provides a field update capability. This capability is only available from APPLICATION software version 1.6.x. This should only be performed by qualified technical staff, otherwise it could cause irreversible damage to the software and can only be repaired by the manufacturer. - Page 12 4:configuration (cfg.bin) Download: Bye... At this time, it is necessary to restart the system for new software to take effect. It is very important to make sure software is loaded properly… otherwise, the system will not come back up again.
