AVS Uriel Systems SCOPE212WIR3 User Manual

H.264 mega-pixel network ir bullet camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

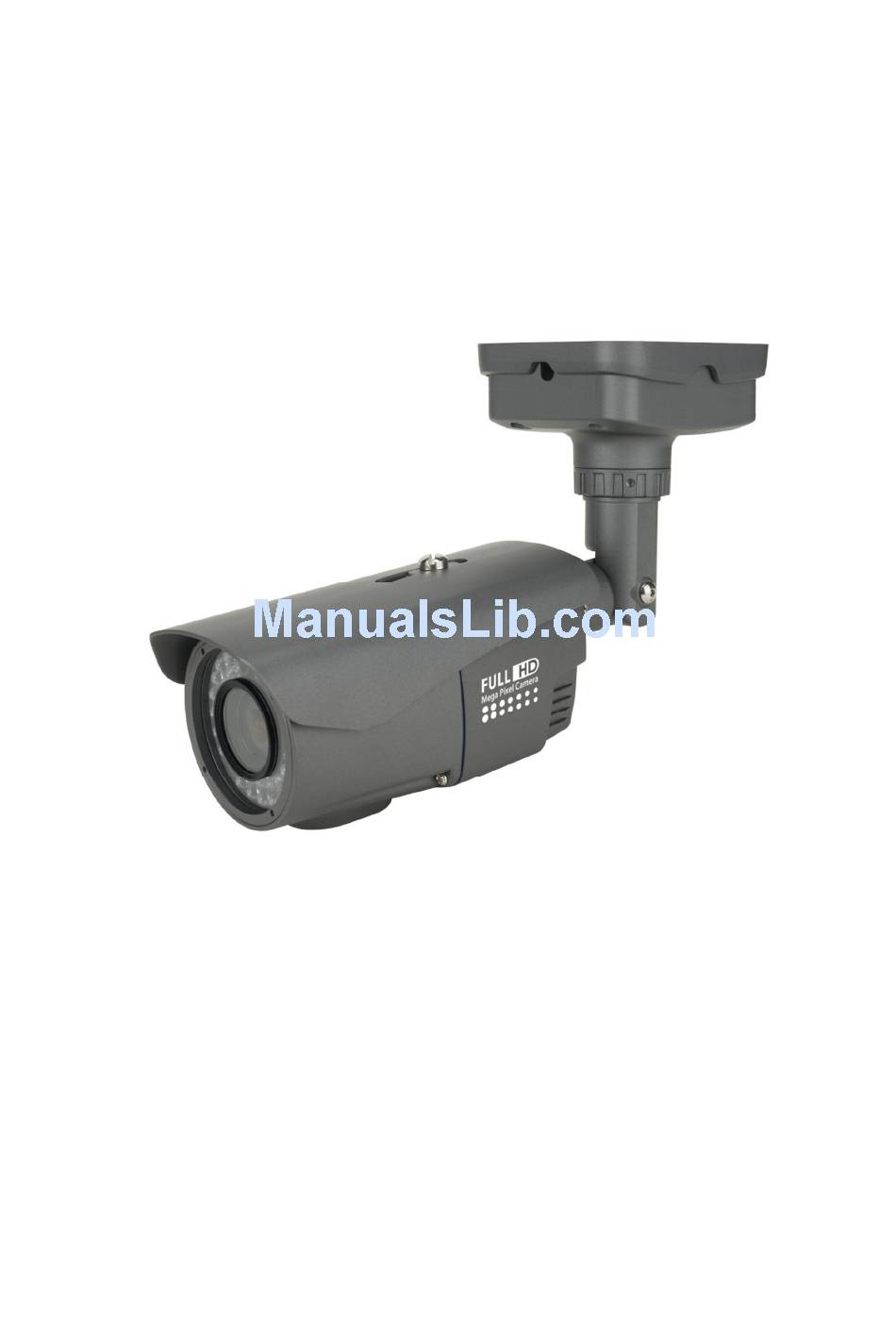

H.264 Mega-Pixel
NETWORK IR BULLET CAMERA
USER MANUAL
(Ver 1.7)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCOPE212WIR3 and is the answer not in the manual?

Questions and answers

Summary of Contents for AVS Uriel Systems SCOPE212WIR3

  • Page 1 H.264 Mega-Pixel NETWORK IR BULLET CAMERA USER MANUAL (Ver 1.7)

  • Page 3: Table Of Contents

    INDEX Introduction ..............................6 Safety Cautions ..............................6 Chapter 1. Package ............................7 1.1 Camera Features ..........................7 1.2 Package ............................... 7 1.3 HOW TO INSTALL ..........................8 1.3.1 Camera installation ........................8 1.3.2 Lens adjustment ......................... 9 1.3.3 Dimension ..........................9 1.4 Specification .............................
  • Page 4 5.6 DDNS ..............................31 5.7 Date & Time ............................31 5.8 User Registration ..........................32 5.9 Firmware Upgrade ..........................33 5.10 System Reset/Restart ........................33 Chapter 6. Stream Information ........................34 6.1 Video ..............................34 6.2 Audio ..............................35 6.3 RTSP Setting ............................. 35 6.4 OSD ..............................
  • Page 5 Chapter 12. Troubleshooting ........................... 58 Chapter 13. Warranty Card ..........................59...

  • Page 6: Introduction

    Introduction This is a megapixel network camera which uses a 1/2.8-inch megapixel progressive scan SONY CMOS sensor. Built-in H.264, MPEG4, MPEG CODEC and streaming server, the advantage of this camera allow you to monitor real time image from a remote location via internet. This camera supports both static IP and dynamic IP, and can change communication port, resulting in one IP address supporting multiple servers.

  • Page 7: Chapter 1. Package

    Chapter 1. Package 1.1 Camera Features 1) Firmware upgrading and function controlling are available by network. 2) Built-in 3 Mega pixel 1/2.8" progressive scan SONY CMOS sensor. 3) Triple codec(H.264, Mpeg4, MJPEG) 4) This camera has a mechanical exchange of two filters with Sense up function to receive the maximum available light at night.

  • Page 8: How To Install

    1.3 HOW TO INSTALL 1.3.1 Camera installation Fix the camera set with the supplied screws on ceiling or wall mount. If you don't use supplied screws, the camera may fall off. Put a sticker on the ceiling and make holes according to the spots marked on a sticker.

  • Page 9: Lens Adjustment

    1.3.2 Lens adjustment 1.3.3 Dimension...

  • Page 10: Specification

    1.4 Specification 1.4.1 Camera Specification Item Specification Type Megapixel network IR Bullet camera Image Sensor 3 Mega Pixel SONY CMOS Image Sensor Total pixel 2144 (H) × 1588 (V) approx. 3.40M pixels Effective pixel 2048 (H) × 1536 (V) approx. 3.14M pixels Scanning System Progressive Scan S/N ratio...

  • Page 11: Network Specification

    1.4.3 Network Specification Classification Item Specification Embedded Linux Network Interface RJ45 10/100BaseT, Ethernet Setting By web browser Leased Line, Cable Modem, Support Dynamic IP Network support and Static IP. ADSL usable under Router Summary TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, Supported Protocol FTP, SMTP, DNS, DDNS Security...

  • Page 12: Alarm Input/Output

    Operation Temp. ~ 50 ℃ ℃ Preservation Temp. ~ 60 ℃ ℃ Weight Approx.1100g T he specification is subject to change without any prior notice to improve the quality. ※ ※ ※ ※ 1.4.5 Alarm Input/Output 1.4.6 Interface...

  • Page 13: Chapter 2. Installation And Video Check

    Chapter 2. Installation and Video check 2.1 Installation On the assumption that User PC and the camera are used under static IP, and the camera is to be directly connected with User PC or Local Network, The installation procedure is to be; (1) Connect the camera and PC with LAN cable(Direct cable or cross cable).

  • Page 14: Video Check

    2.2 Video check Basic network setting value of the unit is to be; To connect the unit in user's PC, change the setting value of PC network environment. Set IP Address, Subnet Mask and Gate-way of user's PC with 192.168.1.50 / 255.255.255.0 / 192.168.1.1 as shown on [Pic.

  • Page 15: Connect The Camera With Web Browser

    2.2.2 Connect the camera with web browser [Pic. 2-2] Web browser address Input (1) Run web browser as shown [Pic. 2-2]. (2) Input 192.168.1.30 (default value) in URL and press "ENTER" button. (3) And then, [Pic. 2-3] is to be shown. [Pic.

  • Page 16: See The Video

    2.2.3 See the video Shown as [Pic. 2-3], input ID and password and click on “Viewer” to see the video feed. User’s authority to see the video feed is as follow Password Authority Detail Stream, admin admin Web management root root Stream guest...
  • Page 17 [Pic. 2-5] ActiveX Download...

  • Page 18: Installation Complete

    2.2.5 Installation complete Upon installation, Web Viewer [Pic. 2-6] appears and image of camera is to be seen. [Pic. 2-6] Web Viewer Installation and check video are completed successfully. Must change ID/PASSWORD.

  • Page 19: Net Viewer Description

    2.2.6 Net Viewer description Item Description Stream Select stream codec and resolution menu related to live-view was ① ① ① ① selection defined only by the admin.(H.264/MPEG/MJPEG) Default size is 640X480. Adjust the screen to the optimal size ② ② ② ② Window size (Recommendation : Select the same size with stream resolution) Connection /...

  • Page 20: Chapter 3. Network Setting

    Chapter 3. Network Setting 3.1 Check Network and Installation Type This Chapter is for basic setting regarding Network. To install hardware, basic understanding of network is required. [Warning] The setting value might be different in accordance with network environment of user's PC. [Reference] Please refer to Appendix for better understanding.
  • Page 21 [Pic. 3-1] Main Page (4) Administration page log-in Shown as [Pic. 3-1], input ID and password and click on “Manager” to see the admin page. [Caution] If you logged in first in administrator mode, please change the password and ID of administrator.
  • Page 22 (5) Network Setting Click 'Network Setting' on [Pic. 3-3], [Pic. 3-4] appears. [Pic. 3-4] Network Setting (6) DNS Server Setting For setting of DNS server, input DNS address to fit with network environment to set(Default address is DNS address of 'Dacom', 'Hanaro telecom'). Use DNS value normally set in PC.
  • Page 23 [Pic. 3-5] IP change [Pic. 3-6] IP Change page...

  • Page 24: Dynamic Ip Setup

    (8) Remove LAN Cable(cross cable) connected between the camera and PC. (9) Connect the camera to network with LAN cable(Direct cable). (10) Connect PC to network with LAN cable(Direct cable). (11) Set up IP address, Subnet Mask and Gate way of PC according to network environment (Recommended to user to remember the value before changing user's PC setting).
  • Page 25 [Pic. 3-8] Network Setting (4) DNS server setting For setting of DNS Server, input DNS address to fit with network environment to set(Default address is DNS address of 'Dacom', 'Hanaro telecom'). Use DNS value normally set in PC. DNS address should be necessarily input. Click Save button to save setting value.

  • Page 26: Installation With Ip Sharing Device(Router)

    (6) Remove LAN cable(cross cable) connected between the camera and PC. (7) Connect the camera to network with LAN cable(direct cable). (8) Connect PC to Network with LAN cable(direct cable). (9) Set up IP address, Subnet Mask and Gate way of PC according to network environment. (10) Installation check.
  • Page 27 (4) DNS Server Setting For setting of 'DNS server', input DNS address to fit with network environment to set. (Default address is DNS address of Dacom', 'Hanarotelecom'.) Use DNS value normally set in PC. Click Save button to save the setting value. (5) IP Address Setting Click 'Static IP Address' in 'IP Setting' of [Pic.

  • Page 28: Chapter 4. General Information

    Chapter 4. General Information 1. General Information User can find product information as like H/W version, F/W version, and the URL for RTSP connection.

  • Page 29: Chapter 5.System Information

    Chapter 5. System Information 5.1 Camera Name Server title would be shown on the top of the video when you see the video by the viewer. Server title is to be English without space(Max. 10 characters). Click ‘Save’ button to save title after inputting name. 5.2 Language This is to select language to be displayed in all web pages such as Administrator's page, web viewer and main page.

  • Page 30: Administrator's Id And Password Change

    5.3 Administrator's ID and Password Change Administrator's ID and password should be English, within 20 characters, without space. Click 'Save' button to save the changed value after changing Administrator's ID and password. In case of forgetting Administrator's ID and password, click 'Factory Set' button for 3 sec to return to initial value, and change Administrator's ID.

  • Page 31: Ddns

    5.6 DDNS DDNS is an abbreviation of Dynamic Domain Name Service that converts the IP address of a camera into a general Host Name so that the user can easily remember it. 1) Click [Enable]. 2) Enter the product domain name(over 4 characters) and email address. 3) Perform the duplicate check for the domain that you entered by clicking [Check].

  • Page 32: User Registration

    5.8 User Registration This is to register an account of user who monitors and controls video. Administrator's ID and password should be English, within 20 characters, without space. Allow the authority to users and click 'Save' button. A maximum user to allow registration is 20 persons. Click ‘Delete’...

  • Page 33: Firmware Upgrade

    5.9 Firmware Upgrade In case firmware is upgraded in the near future, our upgrade server(http://iplinker.net) will automatically upgrade firmware of the unit. 5.10 System Reset/Restart This is the function to restart the camera system.

  • Page 34: Chapter 6. Stream Information

    Chapter 6. Stream Information 6.1 Video 1) Image mirror Select a video source mode(Normal, Flip, Mirror, Both) 2) Resolution Set the video size. This camera supports 2 kinds of resolution simultaneously. 3) Stream Setting Set the stream. This camera supports 3 kinds of stream simultaneously.(H.264, MPEG4, MJPEG) Choose the input source of resolution and codec.

  • Page 35: Audio

    6.2 Audio You can configure the I/O settings of the audio source from the camera. 6.3 RTSP Setting This camera provides the RTSP/RTP stream transmission as well as TCP/IP stream. The function is based on VLC(http://www.videolan.org/) media player. If duplicated port used in this function with the port used from other process, it will not be working well. RTSP Port : Setting of RTSP port.(default port: TCP 554) RTP Port range: Setting the port of RTCP with RTP * The maximum and minimum have at least 3 range gap.

  • Page 36: Osd

    value, the router will discard the data. The TTL Value determines how far the data is delivered. Generally the value is 128. 6.4 OSD Configure the settings as necessary of OSD in stream.

  • Page 37: Privacy Zone

    6.5 Privacy Zone You can specify a certain area of the camera video to be protected for your privacy. Check the ‘Enable’ to activate the function. ‘Show’ is to specify the privacy zone. * You can specify up to 6 zones. 6.6 External Video Analog video output for installation.

  • Page 38: Http/Cgi

    6.7 HTTP/CGI This function transfer the stream by using Server Push method and can use the control function by CGI calls.(EX. Port I/O control) Good point of this function is using web port , so it is able to transfer the stream and control which is not affected by fire wall.

  • Page 39: Chapter 7. Event Information

    Chapter 7. Event Information 7.1 Motion Enable : To use motion detection function, click ‘Enable’. Sensitivity Level : Setting up sensitivity to detect motion to adjust input video by situation. You can select 1~5, and 5 is the highest. 7.2 Alarm Input 1) Alarm Input Click ‘Enable’...

  • Page 40: Alarm Output

    7.3 Alarm Output 1) Alarm Output Click ‘Enable’ to activate the alarm output function. 2) Linkage Alarm input : Alarm output function operates only by alarm input event. Motion : Alarm output function operates only by motion event. 3) Duration Time Set duration time upon alarm events.

  • Page 41: Ftp

    7.5 FTP 1) FTP Server : To send the recorded video to FTP server upon alarm event, Input FTP server address, folder name, user IP and password, Passive mode : Select it if you need to connect in passive mode due to the firewall or the FTP server settings. 7.6 Recording You can configure the event recording settings so that you can transfer the images stored in the camera to the FTP server if an event(motion or alarm input) occurs.

  • Page 42: Chapter 8. Camera Information

    Chapter 8. Camera Information 8.1 Day & Night This menu is to set IR Cut filter, IR LED On/Off, Color and B/W mode. Auto : Automatic day(Color) & night(B/W) switching by setting value. Please set the value properly according to the environment. Day : The picture is always displayed in Color(using IR cut filter).

  • Page 43: White Balance

    8.3 White Balance Auto : Adjust white balance automatically. Indoor : Adjust white balance to indoor environment(3200˚K). Outdoor : Adjust white balance to outdoor environment(5600˚K). Fluorescent : Adjust white balance to fluorescent environment(4000˚K). User : User can adjust the red and blue gains of the camera video manually. 8.4 WDR It displays a sharp image of the objects in a scene where both bright and dark areas exist.

  • Page 44: Sense Up

    8.6 Sense Up This is relating to sense up function. Low shutter speed which can gather more light by increased exposure of the light is suitable for the dark circumstances and at night. Using this mode, you can distinguish the outline and the color of the objects.

  • Page 46: Chapter 9. Ip Manager

    Chapter 9. IP Manager 9.1 Use of IP Manager This program is the utility to find out the unit connected to local network. It is useful for the application of the unit connected by DHCP function. It can provide you the information such as IP address, MAC, web port for easy installation and use. 9.1.1 Run IP Manager program Double click "IP Manager"...

  • Page 47: Find Ip Address

    Subnet Mask information of the unit 9.1.2 Find IP address Click “Find” button to find the cameras that are currently connected to the local network. Below picture will be shown, after IP finding completed. [Pic. 5-2] IP finding completed User can connect easily by inputting the information of IP address and web port. 9.1.3 Change IP address After finding IP address, if you want to change IP address, Gateway or Subnet Mask, double click IP address you want to change or check the list on the “index”...
  • Page 48 [Pic 5-3] Change of IP address Check the “Static IP Address”, input the information (IP Address, Subnet Mask, Default Gateway, ② Web Port, Stream port) you want to change. Input ID and password. ③ Click the “Change” button. After a while, setup will be completed. ④...
  • Page 49 [Pic. 5-4] IP address change window Click the “Batch” button, the dialog appears. ② [Pic. 5-5] IP address change dialog Check the “Static IP Address”, input the information (IP Address, Subnet Mask, Default Gateway, ③ Web Port, Stream port) you want to change. Input the “Last Address”...
  • Page 50 Input ID and password, and click the “Save” button. After a while, the changed IP address dialog ⑤ appears.(Pic. 5-6) [Pic. 5-6] Changed IP address dialog Click the “Change” button. After a while, setup will be completed. ⑥ Click the “Find” button one more time to check the changed information. ⑦...

  • Page 51: Chapter 10. Basic Network

    Chapter 10. Basic Network This chapter is the basic explanation for installation. 10.1 Public IP [Pic. 6-1]Internet environment All hosts connected to internet have the exclusive number called IP address. Communication among hosts is available by using it. There are two ways to allocate IP address. One is fixed by the way of static IP address whenever connected to internet.

  • Page 52: Private Ip

    10.2 Private IP [Pic. 6-2]Internet connection by IP sharing device. The most common use of these addresses is in home networks, since most Internet Service Providers (ISPs) only allocate a single IP address to each customer, but many homes have more than one networking device (for example, several computers, or a printer).

  • Page 53: Ping Test

    10.3 Ping test Ping is the test to check response among the devices connected with network. Input "Ping IP address" to command window of PC and check response. In case of Ping failure, there is some communication problem between the devices. By firewall, this test can not be available.
  • Page 54 [Ping Failure] [Ping Success]...

  • Page 55: Chapter 11. Appendix

    Chapter 11. Appendix 11.1 Basic setting table Item Default(Basic setting) Remarks Network Static IP / Dynamic IP Static IP IP Server Enable IP address 192.168.1.30 Gateway 192.168.1.1 Subnet Mask 255.255.255.0 Web Connection Port Do not duplicate the same Port. RTSP port RTP port range 5000 ~ 5999 ID and Password...

  • Page 56: Troubleshooting Of Cable Connection

    11.2. Troubleshooting of cable connection 11.2.1 Power cable connection check Check if the power cable is connected to the camera properly. Check whether the output of the adaptor is regulated 12V DC 1A(for built-in IR LED model) or ※ 500mA(for No IR LED model) 11.2.2 Network cable(LAN Cable) connection check Check whether the network cable is connected correctly.

  • Page 57: Troubleshooting Of Network Connection

    11.3 Troubleshooting of network connection 11.3.1 Cannot connect with network Check with "7.2.2 Network cable(LAN cable) and cable connection check". [PING Test] In case camera uses Static/Public IP : input "Ping IP address" to command window of PC and check ①...
  • Page 58 Chapter 12. Troubleshooting ※ ※ ※ ※ I f you can not solve the problem, please contact an authorized technician.
  • Page 59 Chapter 13. Warranty Card...
