IMPORTANT
INFORMATION
Read all instructions before using the heater
Protect the heater from rain and wind, even from
water that can flow over the edge, use for
instance, SpaDealers protective box
As gas, propane (LPG) with 30 mbar pressure
reducer and 2 kg / h of gas flow is used
Natural gas (methane) 20 mbar operating
pressure can also be used
Place the supplied rubber seal between the brass
connector and gas inlet on the stove
Check that there are no gas leaks before the
stove is used
At freezing temperatures the stove should be
disconnected and stored in a warm place to
prevent freezing damage
Also remember to empty the connection hoses
Read information about insulation and how it
makes use in winter easier
Observe separate information on how the gas
pressure affects the function
If you have any questions, contact us at
info@spadealers.fi
OPERATING
INSTRUCTIONS
When operating the gas water heater always make sure that there is good ventilation. During operation the
gas water heater will produce carbon monoxide which is harmful if inhaled in large quantities. It is
therefore important that all users strictly observe the proper installation instructions and use as prescribed
in this manual.. Unless otherwise authorized, refitting of this product by other than authorized and
qualified personnel will render the warranty void and we shall hold ourselves free from any liabilities in
case of accidents.

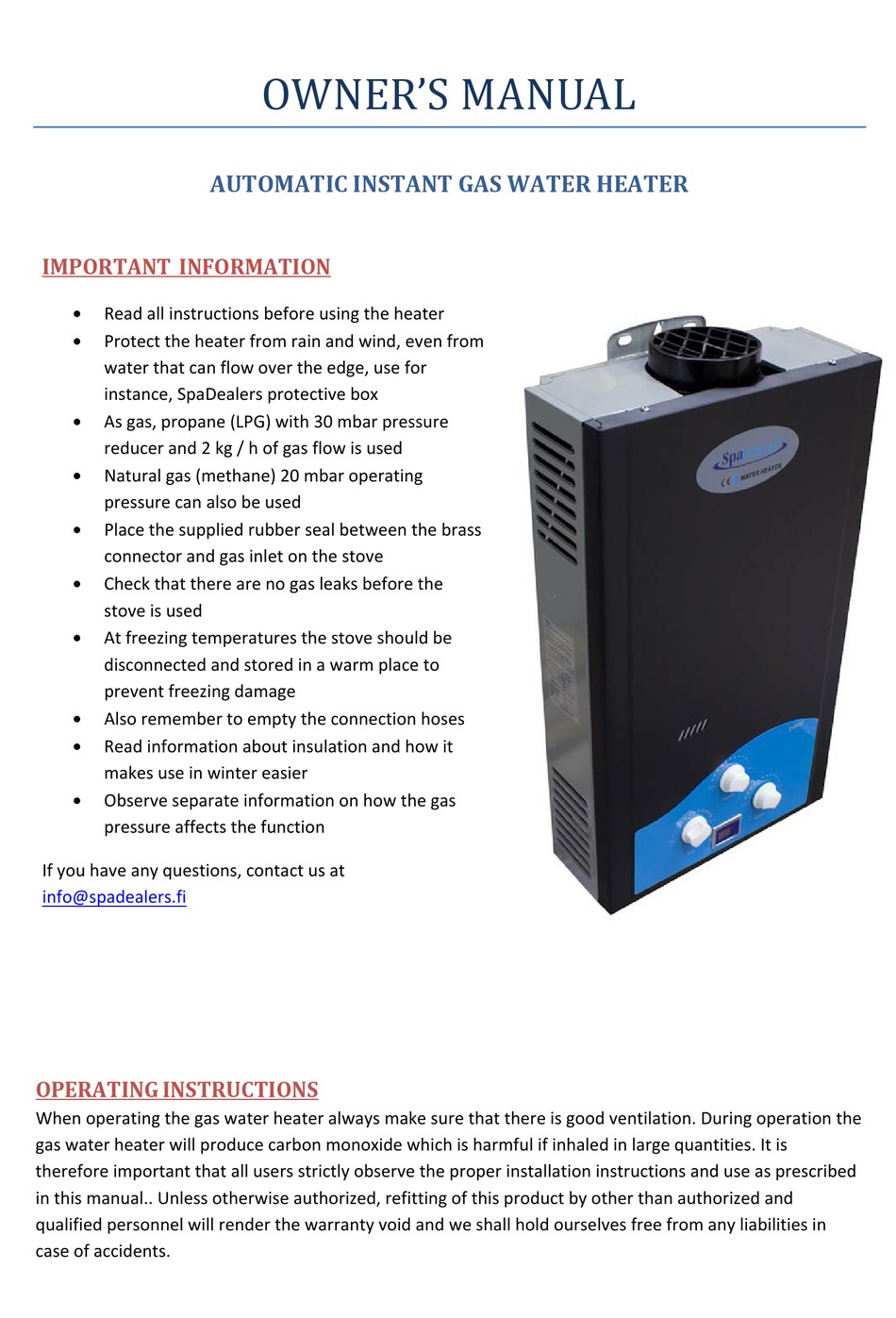

OWNER'S MANUAL
AUTOMATIC INSTANT GAS WATER HEATER
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SpaDealers JSD?12L
Summary of Contents for SpaDealers JSD?12L
-
Page 1: Important Information
OWNER’S MANUAL AUTOMATIC INSTANT GAS WATER HEATER IMPORTANT INFORMATION Read all instructions before using the heater Protect the heater from rain and wind, even from water that can flow over the edge, use for instance, SpaDealers protective box As gas, propane (LPG) with 30 mbar pressure reducer and 2 kg / h of gas flow is used Natural gas (methane) 20 mbar operating pressure can also be used Place the supplied rubber seal between the brass connector and gas inlet on the stove Check that there are no gas leaks before the stove is used At freezing temperatures the stove should be disconnected and stored in a warm place to prevent freezing damage ... -
Page 2: Table Of Contents
ONTENTS ................................ 2 EATURES ............................ 4 NSTALLATION EGULATIONS ................................ 5 NSTALLATION ........................... 5 OADING THE ATTERY ............................ 5 NSTALLATION OF AS PIPE ...................... 6 NSTALLATION OF OT AND OLD ATER ............................... 6 SER NSTRUCTIONS . ........ 7 HE GAS PIPE MAY BECOME CRACKED AND LEAK GAS DUE TO LONG TIME USE NSPECT IT REGULARLY N CASE OF GAS LEAKAGE NEVER MAKE A FIRE OR TOUCH ANY ELECTRIC SWITCHES NOT MAKE TELEPHONE CALL IN THE ....................... 7 ROOM OPEN ALL DOORS AND WINDOWS ................................ 8 REVENT ... -
Page 3: Features
EATURES Water controlled, fully automatic and easy to operate. Open the water valve, start pump to start ignition. The hot water will come out immediately. Close the water valve, stop pump. The hot water stops and the flame goes out immediately. Ability to start at very low water pressure, applicable for many places. If the flame goes out unexpectedly during use, the gas supply will shut off automatically to protect against gas leakage. If the water pressure is too high, the water will come out from the security valve to release pressure, ensuring safety for the appliance and the user. Equipped with a protection unit to prevent over‐heating in the water tank and “dry‐burn”. In the event of pressure fluctuations in the water supply, the water heater will maintain a relatively constant outlet water flow. (This instruction is for the functions of the external housing only, and does not represent the external shape of other models.) Outer structure 1. Air input 2. Warning stitch 3. Technical label 4. Smoke discharge joint 5. Gas flow 6. Burners 7. Water flow 8. Battery box 9. Water inlet (cold) 10. Water outlet (hot) 11. Ignition switch 12. -
Page 4: Installation Regulations
NSTALLATION EGULATIONS 1. It is forbidden to install this water heater in a closed room. It must be installed in a well‐ventilated area larger than 7.5㎡. Because the water heater requires a larger quantity of oxygen when working, the area should have a minimum air‐induction opening of 0.06㎡ (20x30 cm). 13 15 14 2. Do not install the water heater in a location with strong wind (unless it is protected from the wind); otherwise, the flame may go out or cause incomplete burning. (Fig. 3) 3. It is forbidden to install the heater outside if it’s not protected from wind and rain, because wind and rain may put out the flame; Moreover, the appliance might get frozen and damaged in a cold winter season. 4. A water supply with a minimum 0.02Mpa water pressure is required on the installation site to ensure the normal operation of the water heater. 5. We recommend a cold water valve be installed close to the water heater for maintenance convenience. See Fig 4. 6. Keep a minimum space from the wall or ceiling on the installation site. Keep clear of stove, combustible and dangerous objects. See Fig 3. 13. Gas inlet 14. Water inlet (cold) 15. Water outlet (warm) 16. Water valve 17. -
Page 5: Installation
) NSTALLATION PERMANENT WALL MOUNT Hanging and installing the water heater (for reference only) Mark the holes on the wall, the position is subject to the actual model of your water heater, drill 4 holes of 8mm, put in the plastic dowels if needed. Hang the water heater, tighten the screws. OADING THE ATTERY The battery box is located under the water heater. Load the batteries in the following order: See Fig.1 Open the cover of the battery box. Load two 1.5V batteries (D size) into the battery box, make sure of the proper polarity. Improper polarity will affect the performance of the water heater. Close the cover on the battery box. NSTALLATION OF AS PIPE Hose must be designed for LPG gas and a maximum of 1.2 m long and 10 mm internal diameter. Or according to other national standard. Attachment of the hose must be secured with a hose clamp at both ends. Use the included coupling with gasket so that the gasket sits against the gas inlet on the heater. If using a piped gas supply, ask the gas supplier to connect the pipe. Use pressure reducer 30mbar, 2kg/h (not included) : XAMPLE ... -
Page 6: Installation Of Hot And Cold
NSTALLATION OF OT AND OLD ATER IPE Use hoses that can withstand pressure to connect incoming and outgoing water connection. Note that the °C outgoing pipe also must withstand temperatures up to 70 SER NSTRUCTIONS EFORE TART GNITION Please check to make sure that the gas type is in accordance with the one stipulated on the name plate (see page 2). Before igniting, open the cold water valve. Open the master gas switch and check that there is no leakage (see further instructions on page 7). TART IGNITION ATER OMES Start ignition: Open the cold water valve, (or start the pump) the burner starts to ignite with a continuous “pa”sound, which stop after burning starts; hot water comes out immediately Note: When using this appliance for the first time, or after a long period between uses, repeat ignition is needed to discharge any existing air in the gas pipe. Use the knob “Gas”, “Water” and “Power” to adjust the water temperature. With “Gas” and “Power” set to the Max position gives the maximum power. The knob "Water" adjust the water flow so that the Max position gives greater water flow and thus lower temperature out from the heater and vice versa. For a temporary stop during use, close the hot water valve or stop the pump. The burner will stop burning automatically. Open the valve or start the pump for hot water again. Note: Because the water will get very hot during a temporary stop, wait for a few seconds before coming into contact with the water TOPPING THE HEATER WATER STOPS COMING OUT ... -
Page 7: I N Case Of Gas Leakage
HE GAS PIPE MAY BECOME CRACKED AND LEAK GAS DUE TO LONG TIME USE NSPECT IT . REGULARLY (Fig. 6) Check the connections of the gas pipe regularly with soapy water (Fig. 6) to make sure there is no gas leakage. In case of gas leakage, never make fire or touch any electric‐switches for the ventilation fan, etc. Do not connect or disconnect any power plugs; otherwise, a flame or spark could ignite the gas, causing a fire or explosion. Close the master gas valve, open all the doors and windows to exhaust the gas outside the house. Stop using the water heater and contact a service department or the gas supplier. N CASE OF GAS LEAKAGE NEVER MAKE A FIRE OR TOUCH ANY ELECTRIC SWITCHES NOT MAKE TELEPHONE CALL IN THE ROOM OPEN ALL DOORS AND WINDOWS Regularly check the pipe to make sure of good air tightness. If cracked, replace the pipe at once. Under normal conditions, the gas pipe needs to be checked once a year. If the gas pipe is cracked, stop using it and replace it. For users of Propane: if the flame of the water heater is inconsistent, it may be due to a malfunction of the gas pressure reducer, Stop using the pressure reducer and replace it, or get it repaired and installed by a professional technician. For users of piped gas or natural gas: if the flame is abnormal, it is due to an unstable gas pressure. Stop using the water heater temporarily. Continued use will damage the water heater and possibly cause an accident. ... -
Page 8: Prevent Fire
REVENT IRE It is absolutely forbidden to leave the burning water heater unattended. The water heater must be stopped before going to bed or going out. It is forbidden to put combustible or explosive objects close to the water heater. Never put a towel or clothes on the exhaust vent. A gas leakage from the gas pipe can easily causes a fire. 1. Air intake 4. Smoke discharge joint 13. Gas inlet 18. Ventilation hatch 19. Hot water 20. Air extraction (Fig.7) REVENT XYGEN EPLETION AND NCOMPLETE URNING • Because a large quantity of oxygen is used during burning, the installation site for the water heater must be well. During operation, the water heater will give off fumes; therefore, a chimney must be installed to the water heater to extract the fumes outside the house and keep fresh air in the house, to ensure complete burning. • When in use with natural gas: in case of low gas pressure, it is highly possible that a “flame‐ retrace” will be created. This can cause a carbon build‐up in the burner. Should this occur, the blue flame becomes yellow and the level of carbon monoxide notably rises. In such a case, stop using the heater and contact the gas supplier. REVENT URNS ON YES ... -
Page 9: Replace The Batteries
• : In very cold areas (with temperatures below 0 ), please REVENT THE HEATER FROM FREEZING remove the draining stopper after use to release access water. It’s also recommended to disconnect the heater and move it to a storage place without risk for freezing. • Some parts of the water heater may become loose due during transportation. In case of damages to the external housing after opening the package, get a repairman to check before use. . EPLACE THE ATTERIES • Replace the batteries if you see the following situations upon ignition or as the water comes out. • Longer interval of sounds of “Pa,Pa” during ignition (approx. 2 sounds a second) • The flame goes out shortly after ignition. “L ” OW TO REPLACE THE BATTERIES SEE PARAGRAPH OADING THE ATTERY FOR DETAIL • Please use moisture proof batteries with a sealed metal shell. Under normal conditions, the batteries need replacing once a year. BNORMAL ANDLE •... -
Page 10: Rouble Roubleshooting
& ROUBLE ROUBLESHOOTING Troubles Causes Troubleshooting The master gas Open the master gas valve remains valve or replace • • closed,or gas the gas bottle used up Malfunction of Open the master gas • • • ...
