Summary of Contents for Klearbar Mini

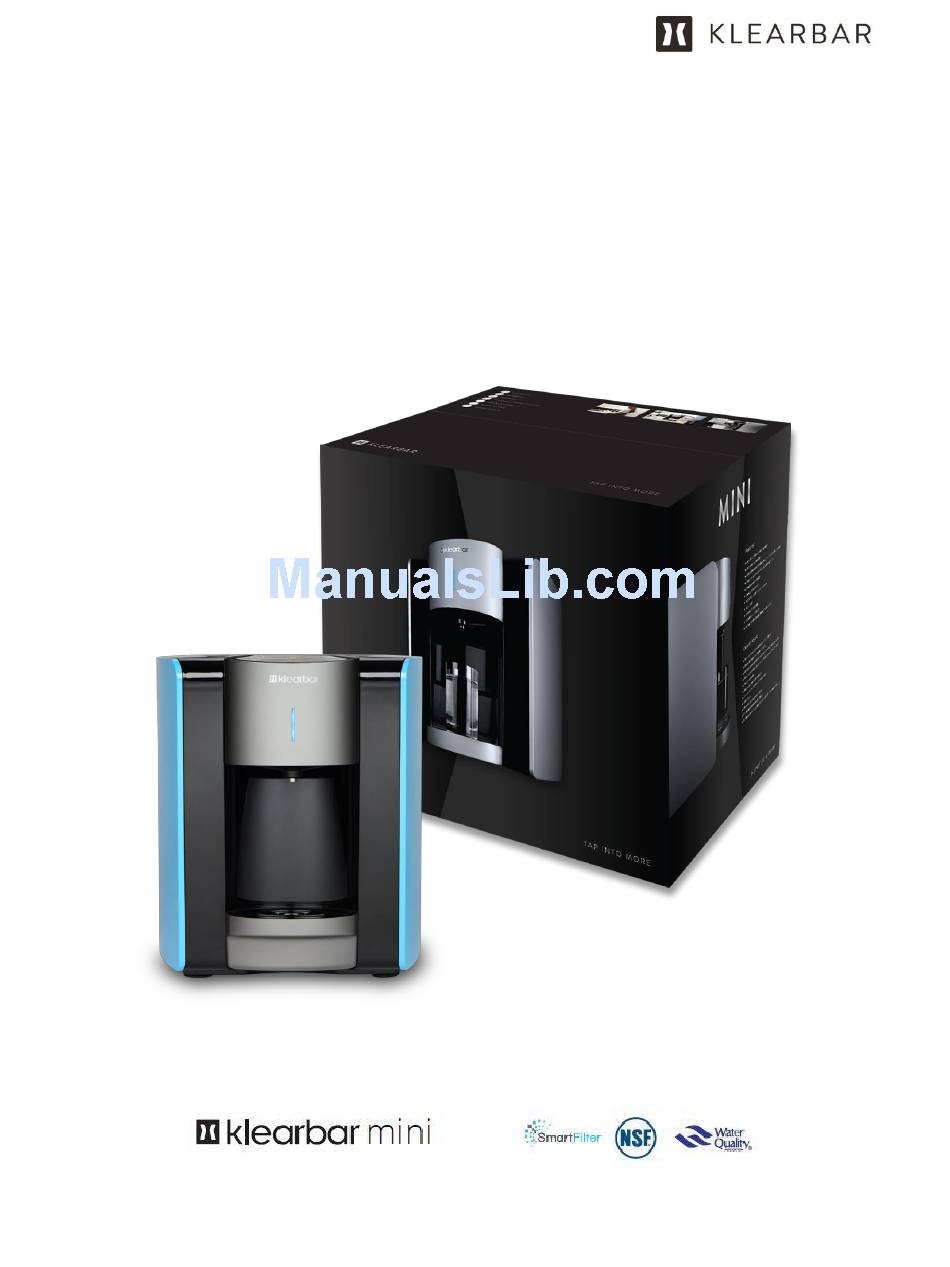

- Page 1 KLEARBAR hot/cold countertop filter water dispenser INSTALLATION/USER MANUAL...
-
Page 2: Overview & Diagram
Overview & Diagram 1. Touchscreen operation panel 5. Removable top panel 2. Front panel indicator light: 6. On/Off cold water compressor and Blue - COLD water delivery pump - HOT water 7. On/Off hot water tank Purple - ENERGY SAVE mode (Energy 8. -
Page 3: Installation And Maintenance
ALWAYS PLUG KLEARBAR MINI ELECTRICAL CORD INTO A GFCI PROTECTED POWER OUTLET There are multiple ways to connect your Klearbar Mini but regardless of your choice it is recommended to follow local plumbing codes or consider hiring a licensed plumber. But should you decide to DIY (do it yourself) we have provided a basic blueprint to get you on your way. - Page 4 (tubing) to the union tee. 3. Place the Klearbar Mini within a few feet of an available GFCI electrical socket and connect the included 1/4 stem elbow into the water inlet port on the back of the unit (be careful not to connect to the optional overflow port).
-
Page 5: User Maintenance
Once full the Klearbar Mini will automatically stop filling with water. MAKE SURE THE HOT WATER SWITCH IS IN THE OFF POSITION BEFORE PLUGGING IN. Once the Klearbar Mini has filled and water is no longer flowing in, it is now safe to turn on the hot and cold water tanks. - Page 6 8. If poor odor/taste exists with new installation, dispense 1-2 full pitchers of cold water. It may be necessary to repeat 12, 24 and 48 hours after installation. Repeat as needed. NOTE: ANOTHER DRAINING METHOD IS TO REMOVE SILICON PLUGS FROM BOTTOM OF KLEARBAR MINI. REMEMBER TO REPLACE BEFORE REFILING.
- Page 7 4. Fully drain both hot and cold sides of reservoir 5. Remove top reservoir cover and slowly pour sanitizing solution into top of empty reservoir. Hot tank will fill before upper part of cold tank reservoir. 6. Dispense from both hot and cold water sides to fill internal lines with solution 7.
- Page 8 Cleaning Your Klearbar Mini Using a microfiber or soft cloth dampened with warm water you can wipe your Klearbar Mini’s outer panels. Do not use harsh detergents or other cleaning aids which can possibly damage the outer surface. Use only a dry cloth to wipe the touch screen. Do not use water or any other detergent to clean the back of the machine.
-
Page 9: Safety Instructions
In case there is an official recommendation by the public health authority to boil water prior to drinking tap water in your area, do not use the Klearbar Mini. The Klearbar Mini is intended for use with approved potable water only. Replace the filter, sanitize and thoroughly flush the Klearbar Mini immediately after boil water advisory has lifted. -
Page 10: Technical Specifications
32 ounce/1.0 liter ambient water capacity above cold water baffle; 105 ounce/3.1 liter total main tank capacity Purification and Filtration Systems 300 gallon, 1 micron carbon block filter o Klearbar Smart filter part # 37MC235 o NSF 42 o Replace a minimum of every six months Water Supply ... -
Page 11: Troubleshooting
Water line not connected Immediately turn off water properly supply and reconnect Water leakage Leakage from within the Mini Immediately turn off water supply call for service Overflowing drip tray Remove and empty drip tray Emergency reservoir float... - Page 12 NOTES...
-
Page 13: Service Provider
Service Provider Serial #______________________________________________ Klearbar │ (855) GO-KLEAR │ www.klearbar.com...
