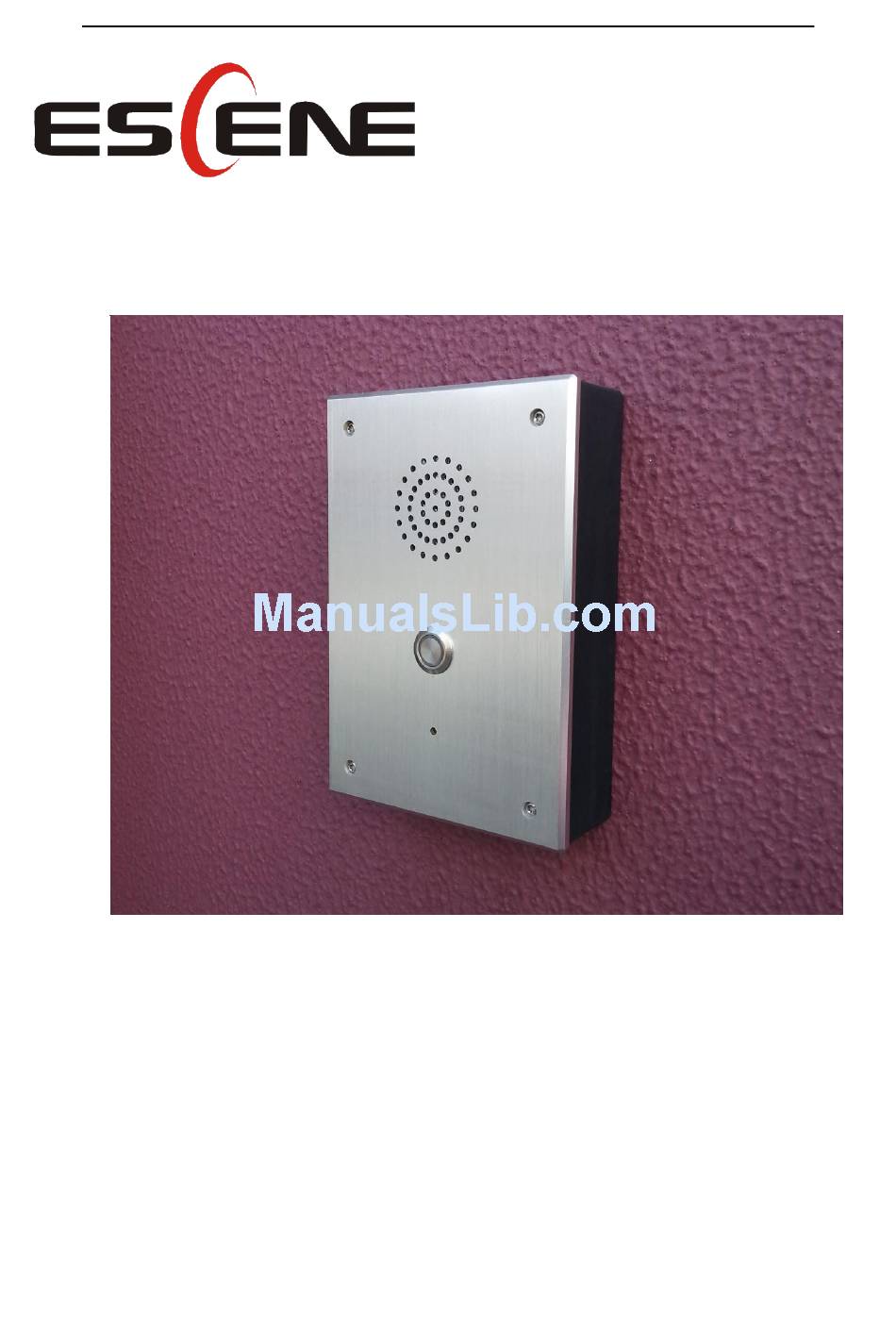

Smart Security IP Intercom Smart Security IP Intercom IS710v2 User Manual... -
Page 2: Table Of Contents
Smart Security IP Intercom Contents Copyright and Disclaimer ......................2 1. Getting Started ..........................4 1.1 Outline ..........................4 1.2 Product Features ......................4 1.3 Technical Information ...................... 4 2. Intercom Installation ........................7 2.1 Dimensions ........................7 2.2 Flush Mount ........................7 2.3 Surface Mount ........................ -
Page 3: Getting Started
Smart Security IP Intercom 1. Getting Started 1.1 Outline The ESCENE IP Intercom - IS710(V2), has been developed to customers’ needs. Its classic fascia design is waterproof, dustproof and vandal resistant. It is ideal for many applications where SIP connectivity is required. 1.2 Product Features ... - Page 4 Smart Security IP Intercom DTMF: In-Band, RFC2833, SIP Info, Auto HTTP/HTTPS Web Management IP Assignment: Static/DHCP/PPPoE Network support Bridge mode; TFTP/DHCP/PPPoE Security LLDP, VLAN QoS (802.1pq),VPN(L2TP) Transport Layer Security (TLS) Digest authentication using MD5/MD5-sess. secure configuration file via AES encryption;...
- Page 5 Smart Security IP Intercom Mother Board Interface...
-
Page 6: Intercom Installation
Generally, your system administrator will connect your new IS710v2 IP Intercom to company LAN network. If not, please refer to the following information. Open IS710v2 packing box, according to the packing list, check the related attachment to make sure to no omitting. Packing list is as follows. - Page 7 Smart Security IP Intercom intercom on the wall at 4 edges. Please refer to following picture. The front and rear view of flush mount installations are shown below. Front view Rear view...
-
Page 8: Surface Mount
Smart Security IP Intercom 2.3 Surface Mount IS710 can also be used for surface mount to provide rating of IP65. The internal and external installation of surface mount is shown below. Internal view external view 3. Configuration of IP intercom You need to know the IP address of IP Intercom before starting setting. -
Page 9: Network
Smart Security IP Intercom After the log-in，the administration web page of the intercom will pop up. The setting and parameter of each option will be described as follows. 3.2 Network This option is used for network setting, please notice that you could set the LAN and VPN. -
Page 10: Lan Setting
Smart Security IP Intercom 3.2.1 LAN Setting This option is used for setting speaker IP, as shown below. -
Page 11: Sip Account
Smart Security IP Intercom 3.3 SIP Account ESCENE IP Intercom can be set up one SIP account. Account’s user name, password and server address are mandatory. If all the information filled is valid and correct, then register will be launched from SIP server after submitting and saving. - Page 12 Smart Security IP Intercom...
-
Page 13: Programmable Keys
Smart Security IP Intercom 3.4 Programmable keys This function is reserved for the future. 3.5 Voice You can adjust the speaker volume and microphone level which are shown in the following table. Please note that in most cases, if you open the microphone setting and set to level 7, it is recommended that you use speaker volume at no more than level 4, unless the environment is such that a higher speaker level is required. - Page 14 Smart Security IP Intercom...
-
Page 15: Phone Book
Smart Security IP Intercom 3.6 Phone Book This function is reserved for the future. 3.7 Advanced Setting In advanced configuration, system parameters are the main points, other options, such as web dial-up, dialing rules, IP filtering strategy, ring tones, certificate management and global server, etc., are functions which can be ignored. -
Page 16: Vlan Setting
Smart Security IP Intercom can be set for delay. 3.7.1.3 Time Setting IP Intercom’s time access can be SNTP, manual setting and update at the SIP server below, PSTN is reserved options. 3.7.2 VLAN Setting When IP Intercom‘s application environment involves the VLAN, the below operating settings will guide you. -
Page 17: Maintenance
Smart Security IP Intercom 3.8 Maintenance This part mainly introduces some maintenance method. According to below, you can reconfigure the Intercom IP Phone or view Intercom IP Phone log to gain more information about maintenance. 3.8.1 Log For most systems, the log document will offer the record of behavior change of Intercom IP Phone. -
Page 18: Password
Smart Security IP Intercom 3.8.2 sword If you need to change the default password of Intercom IP Phone, you will need to configure password information. Please note that password changes should be recorded and kept secure. 3.8.3 Factory reset The following will direct you on how to reset the factory default. Please note that factory reset will erase all original configuration information, so be mindful when using this function. -
Page 19: Auto Provision
Smart Security IP Intercom 3.8.4 Auto Provision Intercom IP Phone's automatic update feature is that it automatically reads related configuration files from the server, thus replacing manual update operations. The following will illustrate related operations, such as the server name or address, verifying the user name and password (optional), inspection cycle, reboot detection, etc. -
Page 20: Tr069 Upgrade
Smart Security IP Intercom 3.8.5 69 Upgrade This function will cooperate with telecom IMS platform to use. Please follow below. -
Page 21: Ftp Upgrade
Smart Security IP Intercom 3.8.6 Upgrade The following will direct you when you use FTP to upgrade. -
Page 22: Tftp Upgrade
Smart Security IP Intercom 3.8.8 P Upgrade The following will direct you when you use TFTP to upgrade. -
Page 23: Http Upgrade
Smart Security IP Intercom 3.8.9 P Upgrade The following will direct you when you use HTTP to upgrade. 3.8.10 boot The following will direct you if rebooting Intercom. Please note that do not need to reboot unless no response or hanging or freezing occurs... -
Page 24: Intercom Status
Smart Security IP Intercom 3.9 Intercom Status The following will direct you information of system operation working time, account registration status and network setting 3.10 System Info The following will direct you equipment name, software/hardware version No, kernel version No. and related server address. -
Page 25: Language
Smart Security IP Intercom 3.11 Language The following will direct you how you to change language with the intercom. 4. Brief pictures for application environment The following pictures introduce the practical application of IP intercom. Take door security and fire protection for example. More compatibility application is subject to actual test. -
Page 26: Door Security System Application
Smart Security IP Intercom 4.1 Door security system application 4.2 Fire protection system application... - Page 27 Smart Security IP Intercom Notes: Distributed By: Aristel Networks Pty Ltd Unit 1, 25 Howleys Rd Notting Hill Vic 3168 P. 03 8542 2300...
