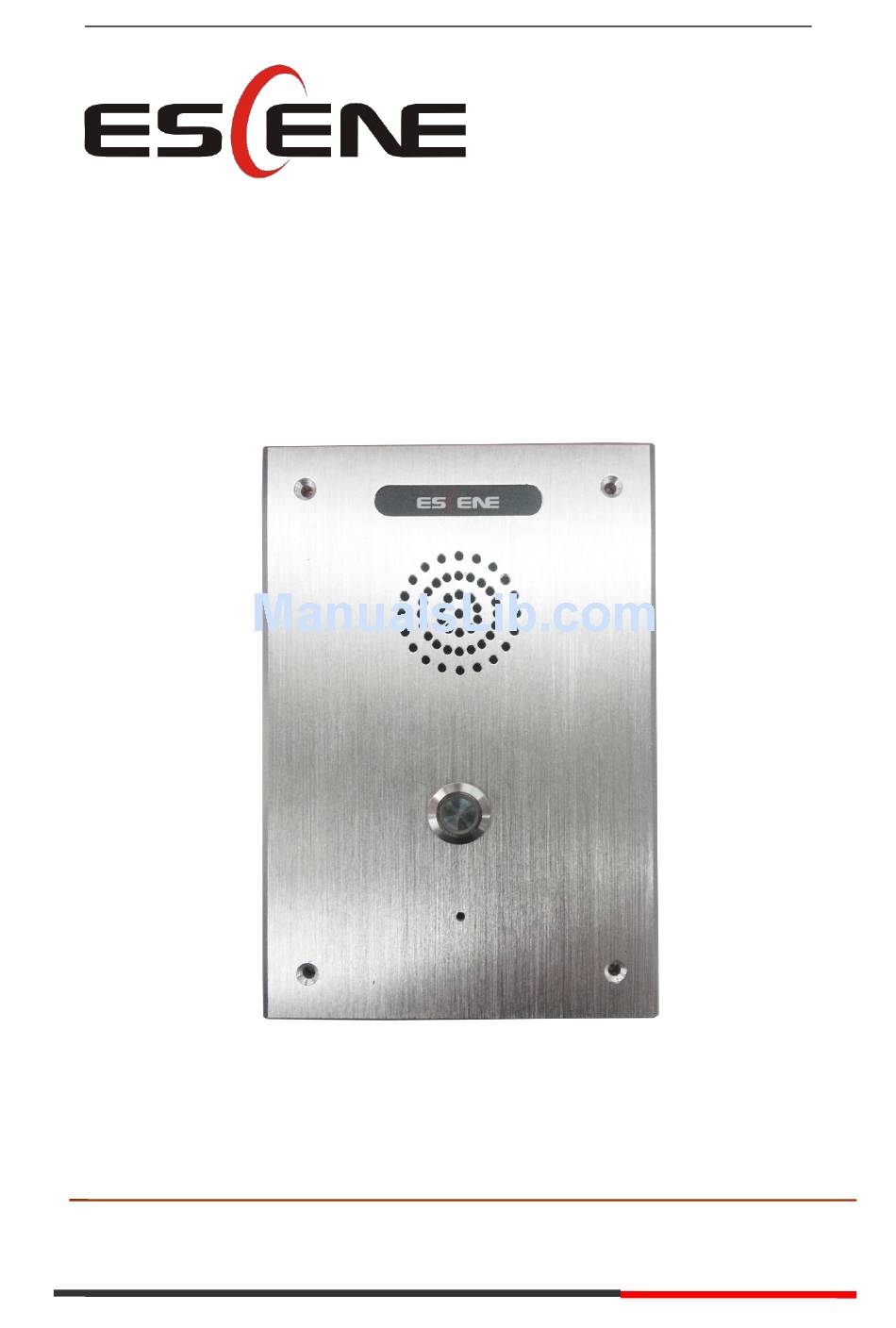

  • Page 1 Smart Security IP Intercom Smart Security IP Intercom IS710v2 User Manual ESCENE Communication Co. Ltd www.escene.cn/en ESCENE Communication CO. LTD.

  • Page 2: Copyright And Disclaimer

    Intercom. If this is your first time to use Smart Security IP Intercom IS710v2 ,we recommend that you should read the quick installation guide and product technical manual. The document can be downloaded from the following website: http://www.escene.cn/en.

  • Page 3: Table Of Contents

    Smart Security IP Intercom Summary Copyright and Disclaimer........................ 2 Summary............................3 1. Getting Started..........................4 1.1 Outline..........................4 1.2 Product Features....................... 4 1.3 Technical Information......................4 2. Intercom Installation........................6 2.1 Embedded...........................6 2.2 Equipment installation.......................7 3. Configuration of IP intercom.......................8 3.1 Remote WEB Management..................... 8 3.2 Network..........................9 3.2.1 LAN Setting......................

  • Page 4: Getting Started

    Smart Security IP Intercom 1. Getting Started 1.1 Outline ESCENE security intercom series IP Intercom IS710(V2) is well developed according to customers requirements based on VOIP Phone. It has Fashion classic aluminum wire drawing surface shell with the design of waterproof, dustproof, anti-dismantle. The traits of strong compatibility and supporting extra access swiping card device make it perfectly to be used in bank, subway, power plant, mine, prison, steel companies and so on.
  • Page 5 Smart Security IP Intercom SIP v1 (RFC2543), v2 (RFC3261);DNS SRV (RFC3263);NAT Traversal: STUN mode;DTMF: In-Band, RFC2833, SIP Info, Auto;HTTP/HTTPS Web Management;IP Assignment: Static/DHCP/PPPoE;Network support Bridge mode; TFTP/DHCP/PPPoE client;DNS client, NAT/DHCP server; Security LLDP, VLAN QoS (802.1pq),VPN(L2TP);Transport Layer Security (TLS);Digest authentication using MD5/MD5-sess;Secure configuration file via AES encryption;Phone lock for personal privacy protection;Admin/User 2-level configuration mode;...

  • Page 6: Intercom Installation

    Generally system administrator will connect your new IS710v2 IP Intercom to company LAN network. If not, please refer to below illustration. Open IS710v2 packing box, according to the packing list, check the related attachment to make sure to no omitting. Packing list as follows.

  • Page 7: Equipment Installation

    Smart Security IP Intercom 2.2 Equipment installation 1、Open the aluminum housing. 2、 Put the IP intercom into it according to the cutting embedded specification. After that, fix four M3*12 screws on the wall with the screw driver. www.escene.cn/en ESCENE Communication CO. LTD.

  • Page 8: Configuration Of Ip Intercom

    Smart Security IP Intercom 3 、 After installing inter housing, well-set the related wiring and replace the aluminum housing. Power on and start testing. 3. Configuration of IP intercom You need to know the IP address of IP Intercom before starting setting. You could learn how to get IP address below.

  • Page 9: Network

    Smart Security IP Intercom “root” After the log-in，the administrate web page of the intercom will pop up. The setting and parameter of each option will be described as follow. 3.2 Network This option is used for the network setting, please notice that you could set the LAN and VPN.

  • Page 10: Lan Setting

    Smart Security IP Intercom 3.2.1 LAN Setting This option is used for setting speaker IP, as shown below. www.escene.cn/en ESCENE Communication CO. LTD.

  • Page 11: Sip Account

    Smart Security IP Intercom 3.3 SIP Account ESCENE IP Intercom can be set up one SIP account. Account’s user name, password and server address are mandatory. If all the information filled is valid and correct, then register will be launched from SIP server after submitting and saving. www.escene.cn/en ESCENE Communication CO.
  • Page 12 Smart Security IP Intercom www.escene.cn/en ESCENE Communication CO. LTD.

  • Page 13: Programmable Keys

    Smart Security IP Intercom 3.4 Programmable keys This function is reserved for the future. 3.5 Voice ou can manage the speaker volume ranks and microphones which showed in the following table. Please note that in most cases, if you open the microphone and switch to level 7, then don’t use speaker volume more than level 4, unless you can ensure that your coverage is small or noise reduction level is high.
  • Page 14 Smart Security IP Intercom www.escene.cn/en ESCENE Communication CO. LTD.

  • Page 15: Phone Book

    Smart Security IP Intercom 3.6 Phone Book This function is reserved for the future. 3.7 Advanced Setting In advanced configuration, system parameters are the main points, other options, such as web dial-up, dialing rules, IP filtering strategy, ring tones, certificate management and global server, etc., most are reserved function which could be ignored.

  • Page 16: Vlan Setting

    Smart Security IP Intercom 3.7.2 VLAN Setting When IP Intercom‘s application environment involves the VLAN, the below operating will guide you how to use. 3.7.3 VPN Setting When IP Intercom‘s application environment involves the VPN, the below operating will guide you how to use. 3.8 Maintenance This part mainly introduces some maintenance method.

  • Page 17: Log

    Smart Security IP Intercom reconfigure Intercom IP Phone or view Intercom IP Phone log to gain more information about maintenance. 3.8.1 Log For most famous systems, log document will offer the record born by behavior change of Intercom IP Phone. Log document information contains the question you need to investigate.

  • Page 18: Factory Reset

    Smart Security IP Intercom 3.8.3 Factory reset The following will direct you how to reset the factory default. Please note that factory reset will erase all original configuration information, so be cautious to use this function. IP address will recover to be default: 192.168.1.153. 3.8.4 Auto Provision Intercom IP Phone's automatic update feature is that it automatically read related configuration files from the server, thus to replace manual update operations.

  • Page 19: Tr069 Upgrade

    Smart Security IP Intercom 3.8.5 TR069 Upgrade This function will cooperate with telecom IMS platform to use. Please follow below. www.escene.cn/en ESCENE Communication CO. LTD.

  • Page 20: Ftp Upgrade

    Smart Security IP Intercom 3.8.6 FTP Upgrade The following will direct you when you use FTP to upgrade. www.escene.cn/en ESCENE Communication CO. LTD.

  • Page 21: Tftp Upgrade

    Smart Security IP Intercom 3.8.8 TFTP Upgrade The following will direct you when you use TFTP to upgrade. 3.8.9 HTTP Upgrade The following will direct you when you use HTTP to upgrade. www.escene.cn/en ESCENE Communication CO. LTD.

  • Page 22: Reboot

    Smart Security IP Intercom 3.8.10 Reboot The following will direct you if rebooting Intercom. Please note that do not reboot unless hooking or no reaction situations which is rare occurrence. 3.9 Intercom Status The following will direct you information of system operation working time, account registration status and network setting www.escene.cn/en ESCENE Communication CO.

  • Page 23: System Info

    Smart Security IP Intercom 3.10 System Info The following will direct you equipment name, software/hardware version No, kernel version No. and related server address. www.escene.cn/en ESCENE Communication CO. LTD.

  • Page 24: Language

    Smart Security IP Intercom 3.11 Language The following will direct you how you to change language with the intercom. 4. Brief pictures for application environment The following pictures introduce the practical application of IP intercom. Take door security and fire protection for example. More compatibility application is subject to actual test. 4.1 Door security system application www.escene.cn/en ESCENE Communication CO.

  • Page 25: Fire Protection System Application

    Smart Security IP Intercom 4.2 Fire protection system application www.escene.cn/en ESCENE Communication CO. LTD.
