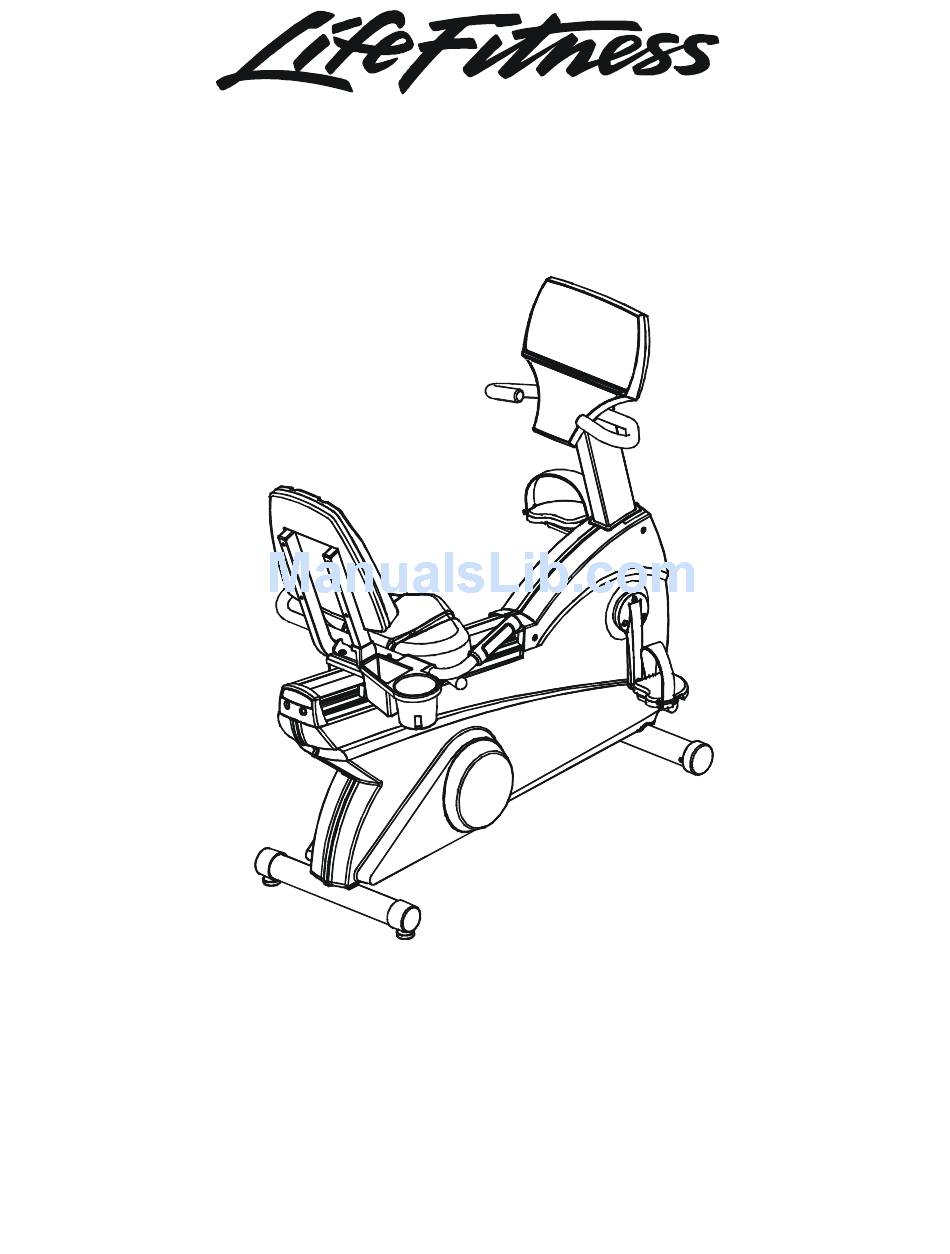

- Page 1 Classic Recumbent Bike CLSR-0XXX-01 Customer Support Services PARTS MANUAL rev 09 Apr 2008...
-
Page 2: Table Of Contents
CLASSIC RECUMBENT BIKE CLSR-0XXX-01 Contents S/N CLR100000 and up Miscellaneous ... 3 Console Components... 4 Console Support Assembly ... 5 Shrouds, End Cap, Crank Arms, and Pedals ... 6 Belts and 6V Battery ... 7 Resistor Assembly ... 8 Power Control Board... 9 Alternator w/Pulley ...10... -
Page 3: Miscellaneous
POWER OPTION KIT 240V+AUS POWER OPTION KIT 230/50V CON .5 OZ BOTTLE W/APPLICATOR Description OPERATION MANUAL HARDWARE BAG TOUCH UP PAINT: SPRAY CAN .33 OZ PEN SERVICE MANUAL CLSR-0XXX-01 S/N CLR100000 and up Part No. M051-00K39-A167 GK39-00002-0002 GK39-00002-0004 GK39-00002-0005 GK39-00002-0006 GK39-00002-0008 0017-00008-0204... -
Page 4: Console Components
Case 0K63-01028-0001 Decal 0K63-01277-0000 Part No. Console Overlay/Bezel/ Assembly Switch Assembly AK39-00133-0001 AK63-00165-0001 AK39-00133-0002 AK63-00165-0001 AK39-00133-0003 AK63-00165-0003 AK39-00133-0004 AK63-00165-0004 AK39-00133-0006 AK63-00165-0006 AK39-00133-0007 AK63-00165-0007 AK39-00133-0008 AK63-00165-0008 AK39-00133-0009 AK63-00165-0009 CLSR-0XXX-01 S/N CLR100000 and up Phillips Pan Screws (13) 0017-00101-1650 Battery Door 0K63-01029-0001... -
Page 5: Console Support Assembly
CLASSIC RECUMBENT BIKE Console Support Assembly Grips (2) 0K39-01005-0001 Console Support AK39-00003-0002 Frame Post Bolts (4) 0017-00101-1756 S/N CLR100000 and up Console Mounting Screws (4) 0017-00101-1744 Frame Post CLSR-0XXX-01... -
Page 6: Shrouds, End Cap, Crank Arms, And Pedals
0K39-01109-0000 Right Shroud AK39-00136-0000 Decal 0K39-01109-0000 End Cap Screws (2) 0017-00101-1614 Left Pedal AK63-00263-0004 Pedal Strap (not shown) 0K63-01238-0004 Crank Arm, LT 0K39-01042-0008 Screws (3) 0017-00101-1855 CLSR-0XXX-01 S/N CLR100000 and up End Cap AK39-00050-0005 Decal 0K51-01085-0001 Shroud Screws (4) 0017-00101-1741... -
Page 7: Belts And 6V Battery
CLASSIC RECUMBENT BIKE Belts and 6V Battery Screw 0017-00101-1193 Alternator Belt 0017-00009-0735 S/N CLR100000 and up Intermediate Pulley Belt 0K63-01066-0001 Screw 0017-00101-1193 Mounting Screw(2) 0017-00101-0975 6V Battery 0017-00003-0685 CLSR-0XXX-01 Bracket 0K51-01036-0000... -
Page 8: Resistor Assembly
CLASSIC RECUMBENT BIKE Resistor Assembly Resistor Assembly AK39-00020-0001 Pan Screws (2) 0017-00101-1057 Mounting Rod 0K63-01166-0000 Washers (2) 0017-00104-0309 Resistor 100E-00002-0092 Mounting Bracket 0K39-01036-0000 CLSR-0XXX-01 S/N CLR100000 and up Resistor Retainer 0K39-01043-0000 Hex Nuts (3) 0017-00103-0081 Power Cable Assy. AK39-00006-0000... -
Page 9: Power Control Board
CLASSIC RECUMBENT BIKE Power Control Board Power Control Board Assembly AK39-00022-0001 S/N CLR100000 and up Plastic Grommets (4) 0017-00042-0821 Bracket 0K39-01027-0000 CLSR-0XXX-01 Philip Screws (4) 0017-00101-0823 Power Control Board B084-92218-D002... -
Page 10: Alternator W/Pulley
CLASSIC RECUMBENT BIKE Alternator w/Pulley Assembly Alternator w/Pulley Assembly AK63-00093-0000 Locking Nut 0017-00103-0117 Alternator Pulley 0K61-02500-0001 Washer 0017-00104-0044 CLSR-0XXX-01 S/N CLR100000 and up Alternator 0017-00009-0841 Bolt 0017-00101-0956... -
Page 11: Crankshaft And Bearing Assembly
*Small Thrust Washer (2) 0K63-01129-0000 *Needle Bearing (2) 0K63-01344-0000 *Small Snap Ring (2) 0017-00100-0241 Crank Arm Hub (2) 0K63-01095-0001 CLSR-0XXX-01 S/N CLR100000 and up *Crankshaft & Bearing Kit GK63-00002-0077 *Large Thrust Washer (2) 0K63-01129-0001 *Bowed Retainer Ring (2) 0017-00100-0243 Washer (2) -
Page 12: Intermediate Shaft And Bearing Assembly
DELRIN Washers (2) 0017-00104-0455 (part of kit) GK63-00002-0007 Clutch Assembly AK63-00026-0000 Intermediate Bearing 0017-00006-0276 (part of kit) Spacer 0K63-01236-0000 Intermediate Pulley Assembly (includes magnet) AK63-00052-0000 CLSR-0XXX-01 S/N CLR100000 and up Intermediate Bearing 0017-00006-0276 (part of kit) Intermediate Pulley AK63-00087-0000 (part of kit) -
Page 13: Idler Bracket Assembly
CLASSIC RECUMBENT BIKE Idler Bracket Assembly Idler Bracket Assembly AK63-00021-0000 Idler Bracket 0K63-01050-0000 Idler Bearing AK63-00008-0000 Lock Nut 0017-00103-0218 CLSR-0XXX-01 S/N CLR100000 and up... -
Page 14: Seat Assembly
0017-00101-1282 Flat-Flex Cable AK19-00082-0001 Screws (4) 0017-00101-1745 Tape (2) 0K19-01222-0000 Cable Sleeve 0K19-01230-0000 Hex Bolts (4) 0017-00101-1749 CLSR-0XXX-01 S/N CLR100000 and up End Caps (4) 0K19-01208-0001 Heart Rate Electrode AK63-00014-0003 Handlebar w/Insert AK39-00024-0002 Seat Assembly AK51-00023-0003 Upper Flex Cable Clamp... -
Page 15: Seat Assembly - Bottom
Spacers (4) 0K51-01044-0000 Washers (4) 0017-00104-0462 Bolts (4) 0017-00101-1743 Roller Assembly AK51-00056-0001 Rollers, RT Rollers, LT 0K51-01034-0001 0K51-01034-0002 CLSR-0XXX-01 S/N CLR100000 and up Roller Shields (4) 0K51-01059-0001 Washer 0017-00104-0461 Locking Nuts (4) 0017-00103-0326 Washers (4) 0017-00104-0463 Screws (2) 0017-00101-1748 Lock Assembly... -
Page 16: Seat Frame Assembly
CLASSIC RECUMBENT BIKE Seat Frame Assembly Screws (4) 0017-00101-1746 Washers (4) 0017-00104-0462 Front Stop Bracket 0K51-01062-0000 Plastic Shield 0K19-01185-0001 Push Mount Wire Clips (2) 0017-00042-0879 CLSR-0XXX-01 S/N CLR100000 and up Seat Assembly Frame AK39-00036-0002 Split Clamp 0017-00042-0880 Pan Screw 0017-00101-1295... -
Page 17: Seat Pads And Accessory Tray
CLASIC RECUMBENT BIKE Seat Pads and Accessory Tray Accessory Tray AK39-00052-0003 Washers (4) 0017-00104-0462 Mounting Screws (4) 0017-00101-1743 S/N CLR100000 and up Seat Back 0K51-01055-0001 CLSR-0XXX-01 Seat Bottom 0K51-01054-0001... -
Page 18: Extrusion Assembly
CLASIC RECUMBENT BIKE Extrusion Assembly Seat Extrusion Assembly AK39-00027-0005 Locking Rack 0K51-01013-0002 Screws (2) 0017-00101-1750 Bolts (2) 0017-00101-1183 S/N CLR100000 and up Stop Bracket 0K51-01061-0001 Screws (2) 0017-00101-1751 Plastic Grommet2 (2) 0017-00042-1055 Extrusion Assy. AK39-00029-0001 CLSR-0XXX-01 Bumper 0017-00041-0654 Decal 0K51-01039-0001... -
Page 19: Seat Locking Assembly
Locking Assembly Locking Assembly AK51-00053-0001 Knob AK51-00029-0001 Retainer Bearing 0K51-01011-0000 E-Ring 0017-00100-0018 S/N CLR100000 and up TORX Screw 0017-00101-1742 Anti-Rattle Washer 0K51-01060-0001 Handle Shaft 0K51-01007-0000 Washer 0017-00104-0421 Housing-Insert Assembly AK51-00030-0001 Locking-Block Assembly AK19-00147-0000 CLSR-0XXX-01 Groove Pin 0017-00007-0245 Compression Spring 0K51-01012-0000... -
Page 20: Wheel And Leveler
CLASSIC RECUMBENT BIKE Wheel and Leveler Pan Screws (2) 0017-00101-1747 Flat Washer 0K63-01041-0000 Wheel Screw 0017-00101-1747 Leveler Assembly AK61-00035-0000 Wheel Assembly AK63-00016-0001 Wheel Insert 0K63-01039-0000 CLSR-0XXX-01 S/N CLR100000 and up Rear Stabilizer GK39-00002-0012 End Cap 0K63-01219-0001 Lock Nut 0017-00103-0273 Leveler 0017-00009-0795... -
Page 21: Cables
CLASSIC RECUMBENT BIKE Cables Life Pulse Extension AK19-00081-0002 AK63-00050-0000 Reed Switch Assy. Cable Coax - AK32-00020-0001 Cable Power Ext - AK32-00078-0001 CLSR-0XXX-01 S/N CLR100000 and up...
