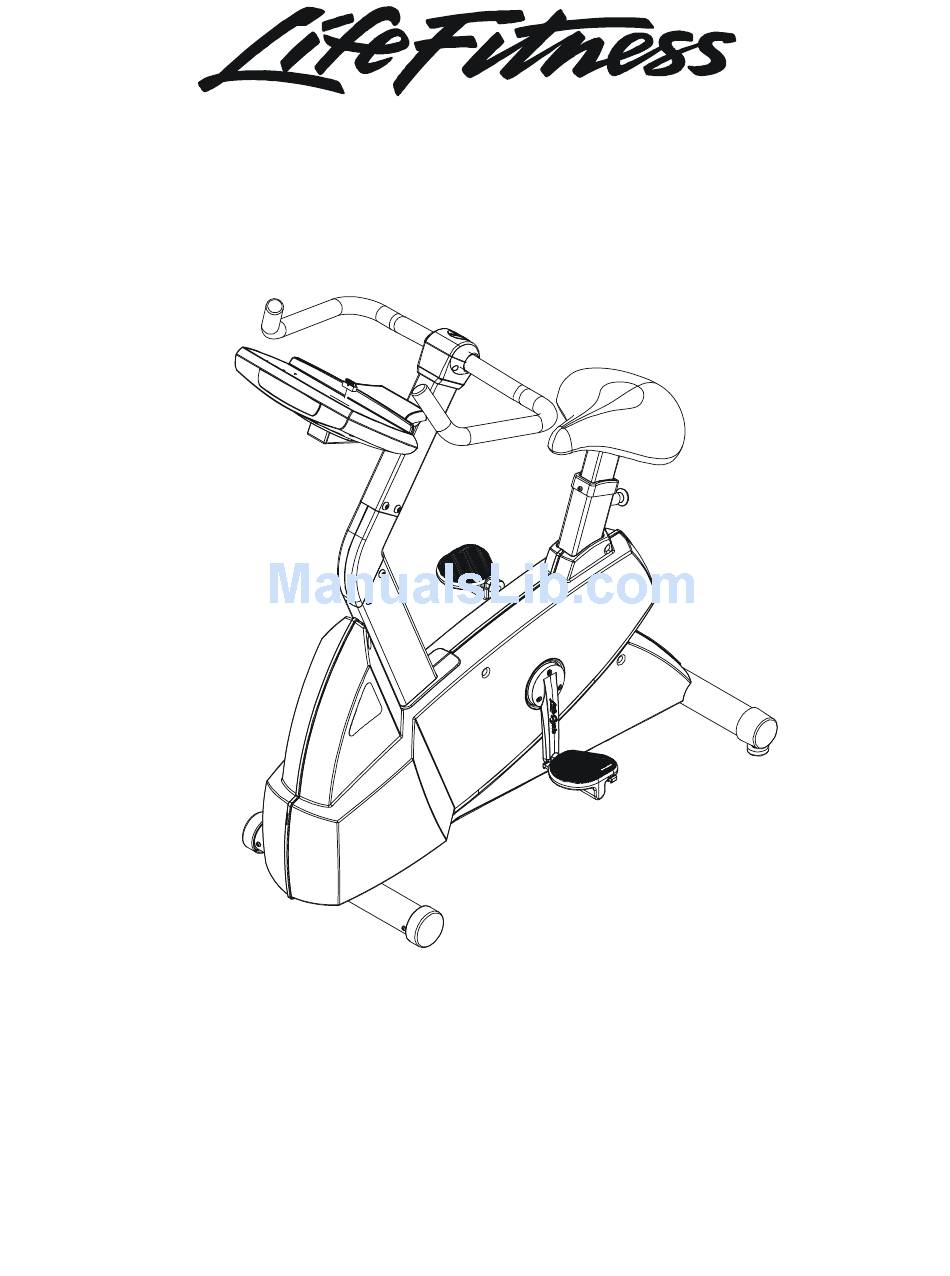

- Page 1 Classic Upright Bike CLSC-XXXX-01 Customer Support Services PARTS MANUAL rev 09 Apr 2008...
-
Page 2: Table Of Contents
CLASSIC UPRIGHT BIKE CLSC-0XXX-01 Contents S/N CLU100000 and up Miscellaneous ... 3 Console Components... 4 Console Mounting Screws and Polar Covers ... 5 Alternator w/Pulley... 6 Crankshaft and Bearing Assembly ... 7 Intermediate Shaft and Bearing Assembly ... 8 Seat Latch Assembly ... 9 Seat Post Assembly...10 Seat Post Shrouds ...11 Idler Bracket Assembly ...12... -
Page 3: Miscellaneous
CLASSIC UPRIGHT BIKE Miscellaneous OPERATION MANUAL HARDWARE BAG NETWORK C-SAFE KIT POWER OPTION KIT – 120V POWER OPTION KIT – 220/50 UK POWER OPTION KIT – 240V+ AUS POWER OPTION KIT – 220/50 TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN SERVICE MANUAL Description... -
Page 4: Console Components
CLASSIC UPRIGHT BIKE Console Components Overlay Bezel Cable Lower Display PCB B084-92222-B000 Language Eng Met Ger Met Spn Met Jap Met Frn Met Itl Met Dut Met Console Board - Upper A084-92219-A027 Phillips Pan Screws (13) 0017-00101-1650 Phillips Pan Screws (13) 0017-00101-1650 Battery Door 0K63-01029-0001... -
Page 5: Console Mounting Screws And Polar Covers
CLASSIC UPRIGHT BIKE Console Screws and Polar Covers Console Mounting Screws (4) 0017-00101-1744 Accessory Tray 0K63-01030-0001 Accessory Tray Screws (4) 0017-00101-1744 Bolts (2) 0017-00101-1755 S/N CLU100000 and up Upper Cover 0K63-01145-0001 Lower Cover 0K63-01146-0001 Cover Screws (4) 0017-00101-1744 Polar Receiver AK40-00045-0001 Leg leveler AK61-00035-0000 (2) -
Page 6: Alternator W/Pulley
CLASIC UPRIGHT BIKE Alternator w/Pulley Alternator w/Pulley Ak63-00093-0000 Locking Nut 0017-00103-0117 Alternator Pulley 0K61-02500-0001 Washers (2) 0017-00104-0044 CLSC-0XXX-01 S/N CLU100000 and up Alternator 0017-00009-0841 Brushes 0017-00009-0895 Bolt 0017-00101-0956... -
Page 7: Crankshaft And Bearing Assembly
CLASSIC UPRIGHT BIKE Crankshaft and Bearing Assembly Crank Arm Hub 0K63-01095-0001 Pulley Assembly AK63-00051-0000 Pulley 0K63-01018-0000 Washers (3) 0017-00104-0458 Flywheel Screws (3) 0017-00101-1715 *Crankshaft 0K63-01012-0001 *Needle Bearing (2) 0K63-01344-0000 *Small Snap Ring (2) 0017-00100-0241 Crank Arm Hub (2) 0K63-01095-0001 CLSC-0XXX-01 S/N CLU100000 and up *Crankshaft &... -
Page 8: Intermediate Shaft And Bearing Assembly
CLASSIC UPRIGHT BIKE Intermediate Shaft and Bearing Assembly Intermediate Shaft and Bearing Assembly Kit GK63-00002-0007 Retaining Ring 0017-00100-0242 DELRIN Washers 0017-00104-0455 Clutch Assembly AK63-00026-0000 Spacer CLSC-0XXX-01 S/N CLU100000 and up... -
Page 9: Seat Latch Assembly
CLASIC UPRIGHT BIKE Seat Latch Assembly Seat Latch Assembly AK63-00043-0001 Latch Spring 0K63-01117-0000 Latch Bracket 0K63-01064-0000 E-Ring 0017-00100-0050 NYLINER 0017-00042-1129 NYLINER 0017-00042-1129 Link Shaft Assembly AK63-00113-0001 CLSC-0XXX-01 S/N CLU00000 and up Setscrews (2) 0017-00101-0333 Latch Rack 0K63-01061-0000... -
Page 10: Seat Post Assembly
CLASIC UPRIGHT BIKE Seat Post Assembly Seat Post Assembly AK63-00232-0002 Screw 0017-00101-1750 Pan Screws (3) 0017-00101-1614 Seat Adjustment Rack 0K63-01049-0001 Deluxe Seat Assembly Seat Post Decal AK63-00229-0003 0K63-01310-0000 Lock Washers (4) 0017-00104-0064 Guide Base 0K63-01045-0000 Polylastomer Bumper 0017-00042-1131 CLSC-0XXX-01 S/N CLU100000 and up Hex Bolts (4) 0017-00101-1121 Extrusion Guide Cap... -
Page 11: Seat Post Shrouds
CLASSIC UPRIGHT BIKE Seat Post Shrouds Left Seat Post Shroud 0K63-01092-0010 Screw 0017-00101-1741 Right Seat Post Shroud 0K63-01092-0009 CLSC-0XXX-01 S/N CLU100000 and up... -
Page 12: Idler Bracket Assembly
CLASSIC UPRIGHT BIKE Idler Bracket Assembly Idler Bracket Assembly AK63-00021-0000 Lock Nut 0017-00103-0218 S/N CLU100000 and up Idler Bracket 0K63-01050-0000 Idler w/Bearing AK63-00008-0000 CLSC-0XXX-01... -
Page 13: Console Support Assembly
CLASIC UPRIGHT BIKE Console Support Assembly End Cap 0K63-01320-0000 Support Screws (4) 0017-00101-1755 Pan Screws (4) 0017-00101-1753 Handlebar Cover-RT 0K63-01192-0003 I-Beam Joint 0K63-01178-0002 Cable Assembly: Jack/Hr AK36-00021-0003 Console Support Weldment Assembly AK63-00089-0002 Handlebar Cover-LT 0K63-01192-0004 CLSC-0XXX-01 S/N CLU100000 and up Polar Bracket 0K63-01113-0000 Nuts (2) -
Page 14: Left Side Shroud And Crank Arm
CLASIC UPRIGHT BIKE Left Side Shroud and Crank Arm Shroud Screws (3) 0017-00101-1741 Decal 0K63-01358-0000 Left Side Shroud w/decal AK63-00299-0000 Shroud Plug 0K63-01084-0001 Crank Arm, LT 0K39-01042-0008 CLSC-0XXX-01 S/N CLU100000 and up Crank Arm Screws (3) 0017-00101-1855 Left Pedal AK63-00263-0004 Left Pedal Strap 0K63-01238-0004... -
Page 15: Right Side Shroud And Crank Arm
CLASIC UPRIGHT BIKE Right Side Shroud and Crank Arm Right Pedal AK63-00263-0003 Right Pedal Strap 0K63-01238-0003 Crank Arm Screws (3) 0017-00101-1855 Crank Arm, RT 0K39-01042-0007 S/N CLU100000 and up Right Side Shroud w/decal AK63-00298-0000 Decal 0K63-01358-0000 Right Side Shroud Screws (8) 0017-00101-1741 CLSC-0XXX-01... -
Page 16: Pcb Mounting Bracket Assembly
CLASSIC UPRIGHT BIKE PCB Mounting Bracket Assembly PCB Mounting Bracket Assembly AK63-00049-0000 Plastic Grommets (4) 0017-00042-0821 PCB Circuit Board B084-92218-D002 Pan Screws (4) 0017-00101-0823 S/N CLU100000 and up Battery Screws (2) 0017-00101-0975 Battery - 6V 0017-00003-0685 Battery Mounting Bracket 0K63-01211-0000 CLSC-0XXX-01 Positive Terminal... -
Page 17: Front Wheels
CLASSIC UPRIGHT BIKE Front Wheels Front Wheels AK63-00017-0001 Wheel/Bearing Assembly AK63-00016-0001 Wheel Insert 0K63-01039-0000 Wheel Screw 0017-00101-1747 Flat Washer 0K63-01041-0000 CLSC-0XXX-01 S/N CLU100000 and up Pan Screws (2) 0017-00101-1747... -
Page 18: Resistor Assembly
CLASSIC UPRIGHT BIKE Resistor Assembly Resistor Assembly AK63-00047-0001 Resistor .5 OHM 240 Watt 100E-00002-0092 Retainer 0K63-01215-0000 Resistor Brackets (2) 0K63-01165-0000 Nuts (3) Resistor Mounting Rod 0017-00103-0081 0K63-01166-0000 Pan Screws (2) 0017-00101-1057 Power Control Cable Assembly AK63-00029-0001 CLSC-0XXX-01 S/N CLU100000 and up... -
Page 19: Handlebar Assembly
CLASSIC UPRIGHT BIKE Handlebar Assembly Handlebar Assembly AK63-00091-0001 Molder Grip Handlebar AK63-00156-0001 Handlebar End Caps (2) 0K63-01114-0001 Electrode Molded Inserts (4) AK63-00014-0003 Electrode Cable Assembly AK63-00028-0001 Phillips Screws (4) 0017-00101-1752 CLSC-0XXX-01 S/N CLU100000 and up Insulated Plugs (4) 0K63-01167-0001... -
Page 20: Belts
CLASSIC UPRIGHT BIKE Belts Alternator Belt 0K63-01065-0000 S/N CLU100000 and up Intermediate Belt 0K63-01066-0001 CLSC-0XXX-01... -
Page 21: Classic Upright Bike Clsc-0Xxx
CLASSIC UPRIGHT BIKE CLSC-0XXX-01 Cables S/N CLU100000 and up...
