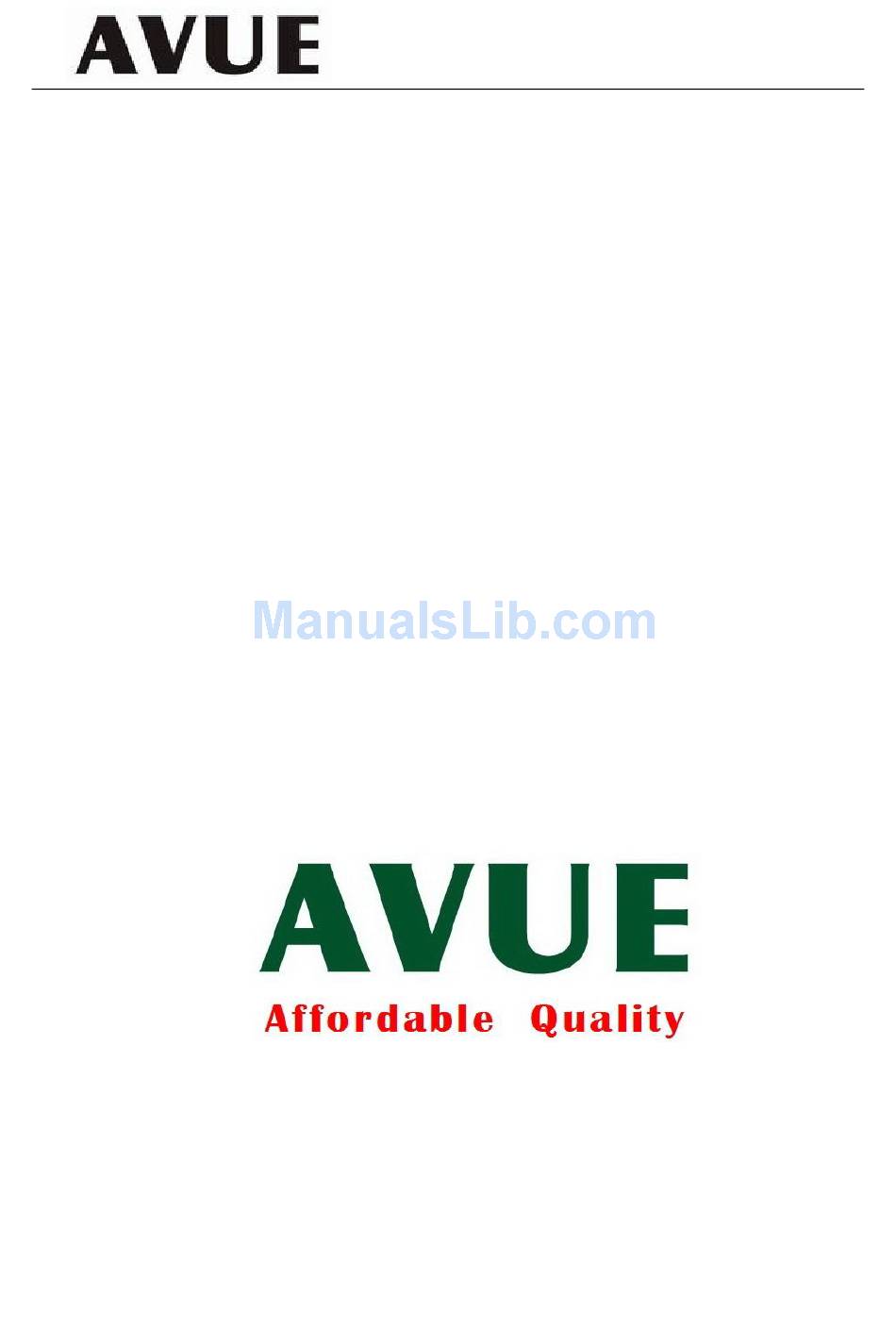

Page 1: Quick Start Guide
AVUE Technical Manual Quick Start Guide ADR8100ME Series 4/8/16-Ch DVR... -
Page 2: Install Hard Drive &Dvd Writer
ADR8100ME Series 4/8/16DVR Quick Start Guide 1. Install Hard Drive &DVD Writer 1.1Install Hard Drive Notice: 1. Support two SATA hard drives. Please use the hard drive the manufacturers recommend specially for security and safe field. 2. Please disconnect the power before being connected to other devices. Don't hot plug in/out STEP1 Unscrew and Open the top cover, connect the power and data cables. - Page 3 ADR8100ME Series 4/8/16DVR Quick Start Guide Fig 1.3 Connect the DVD Writer STEP2 Screw the DVD writer as below. Fig 1.4 Screw the Writer 2. Connections 2.1 Rear view for 4-ch DVR Fig 2.1 Rear view for 4-ch DVR Connect to monitor Connect to monitor as an AUX output channel by channel.
- Page 4 ADR8100ME Series 4/8/16DVR Quick Start Guide Fig 2.2 Rear view for 8-ch DVR Connect to monitor Connect to monitor as an AUX output channel by channel. Only video display, no menu show Audio output, connect to the Video input channels from 1-8 sound box POWER INPUT For cooling the device...
-
Page 5: Basic Setup
ADR8100ME Series 4/8/16DVR Quick Start Guide 3. Power on Step1: connect with the source power; switch on the power button near the power port on the rear panel Step2: the device will be loaded, and the power indicator will display blue Step3: before start, a WIZZARD window will be pop-up and show some information about time zone，time setup，network configuration, record configuration and disk management. - Page 6 ADR8100ME Series 4/8/16DVR Quick Start Guide Fig 4-2 Main menu setup Basic configuration: user can set video system, menu language, audio, time and authorization check. Live configuration：User can set name/time display, picture color and hide cameras. Record configuration：User can set record quality, frame rate, resolution, time stamp and recycle.
- Page 7 ADR8100ME Series 4/8/16DVR Quick Start Guide Enter into main menu—schedule configuration (refer to Fig 4-3). Users can set different schedule time for every day in one week. If user wants a special schedule for one day can use Holiday function. The column means the seven days of a week from Monday to Sunday, the row means 24 hours of a day.
- Page 8 ADR8100ME Series 4/8/16DVR Quick Start Guide Fig 4-5 motion detection area setup 4.2.4 Alarm Recording Enter into main menu-Alarm configuration-Sensor alarm (refer to Fig 4-6), enable Detection first, setup the device type. Fig 4-6 sensor alarm record Enter into Trigger configuration, select alarm out and recording cameras and linked PTZ;...
- Page 9 ADR8100ME Series 4/8/16DVR Quick Start Guide Fig 4-7 live playback 4.3.2 Time search Enter into Search configuration, select Time search. If it recorded in a certain day, the date will show highlight. Select a date, press Search button, click the time grid to set the play start time or input play record time manually.
- Page 10 ADR8100ME Series 4/8/16DVR Quick Start Guide Click Search button, the searched event information will displayed in the event list box, user can select date, channel, tick off Motion, Sensor or All accordingly. Double click a video file to playback. Fig 4-9 Event search Back up This unit supports backup by built-in SATA DVD Writer, with USB Flash and USB HDD.
- Page 11 ADR8100ME Series 4/8/16DVR Quick Start Guide Remote Surveillance To making remote access, the DVR should be connecting to LAN or Internet. There are three kind of method for remote accessing. Using DHCP to get IP address automatically Click the Menu button, enter into System—Network configuration (refer to Fig 5-1), enable DHCP in the both the DVR and the router.
- Page 12 HTTP port is not 80, add the port number after IP address or domain name. IE will download ActiveX automatically. Then a window pops up and asks for user name and password. Input name and password correctly, and enter to view. 6. Specifications 6.1 ADR8104ME Specification Sheet...
- Page 13 ADR8100ME Series 4/8/16DVR Quick Start Guide Model ADR8104ME Compression format Standard H.264 Video input Composite: BNC×4 Video output Composite: BNC×2, VGAX1 Audio input RCA X 4 Audio output RCA X 1 Alarm input NO or NC 4CH Alarm output Relay out 1CH...
- Page 14 ADR8100ME Series 4/8/16DVR Quick Start Guide Model ADR8108ME Compression format Standard H.264 Video input Composite: BNC×8 Video output Composite: BNC×2, VGAX1 Audio input RCA X 4 Audio output RCA X 1 Alarm input NO or NC 8CH Alarm output Relay out 1CH Display Resolution CVBS: 720*576(PAL), 720*480(NTSC) VGA: 1280*1024...
- Page 15 ADR8100ME Series 4/8/16DVR Quick Start Guide Model ADR8116ME Compression format Standard H.264 Video input Composite: BNC×16 Video output Composite: BNC×2, VGAX1 Audio input RCA X 4 Audio output RCA X 1 Alarm input NO or NC 16CH Alarm output Relay out 1CH Display Resolution CVBS: 720*576(PAL), 720*480(NTSC) VGA: 1280*1024...
