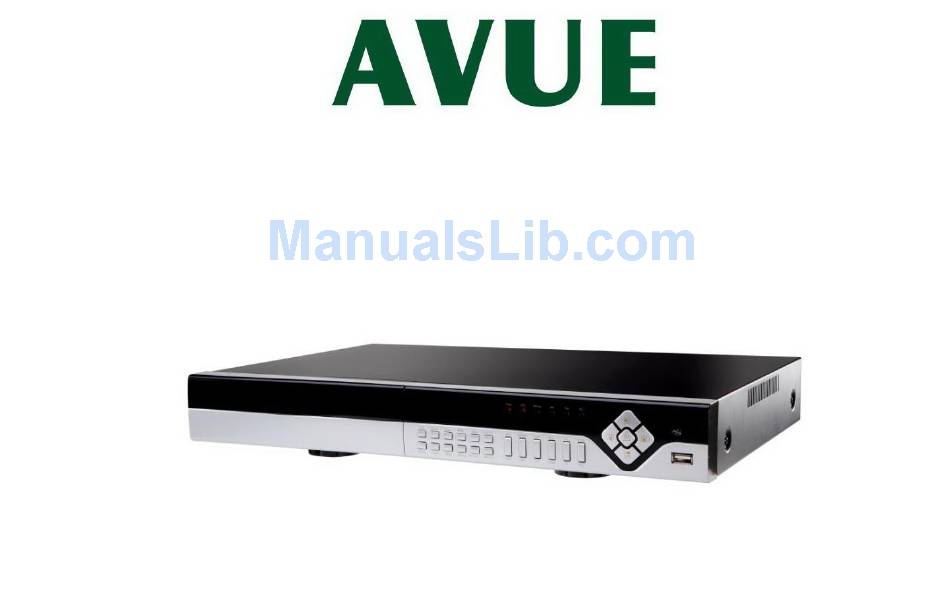

  • Page 1 DVR User Manual ADR8100ME Series All rights reserved...
  • Page 2 Digital Video Recorder User Manual CAUTION  Please read this user manual carefully to ensure that you can use the device correctly and safely  We do not warrant all the content is correct. The contents of this manual are subject to change without notice ...

  • Page 3: Table Of Contents

    Digital Video Recorder User Manual Table of Contents 1 Introduction ..............................1 1.1 DVR Introduction ..................................1 1.2 Main Features..................................1 2 Hardware Installation............................4 2.1 Install Hard Drive &DVD Writer ..............................4 2.1.1 Install Hard Drive ......................................4 2.1.2 Install DVD Writer ......................................4 2.2 Front Panel Descriptions .................................
  • Page 4 Digital Video Recorder User Manual 4.1.3 DST ..........................................19 4.2 Live configuration .................................. 20 4.2.1 Live ..........................................20 4.2.2 Main monitor ........................................21 4.2.3 Spot ..........................................22 4.2.4 Mask..........................................22 4.3 Record configuration ................................23 4.3.1 Enable ........................................... 23 4.3.2 Record stream ....................................... 24 4.3.3 Time ..........................................
  • Page 5 Digital Video Recorder User Manual 4.6.3 Email ..........................................36 4.6.4 Other settings ........................................ 37 4.7 User management configuration............................40 4.8 P.T.Z configuration ................................. 42 4.9 Advanced ....................................45 4.9.1 Reset ..........................................45 4.9.2 Import/Export ......................................... 45 4.9.3 Block/Allow list ....................................... 45 5 Record search &...
  • Page 6 Digital Video Recorder User Manual 7.1 IE Remote Surveillance ................................. 52 7.1.1 On LAN ......................................... 52 7.1.2 On WAN ........................................52 7.2 Remote Surveillance through Apple PC ..........................54 7.2.1 On LAN ......................................... 55 7.2.2 On WAN ........................................57 7.3 The remote live preview interface ............................58 7.4 Remote playback &...
  • Page 7 Digital Video Recorder User Manual Appendix F 16-CH DVR Specifications..........................103...

  • Page 8: Introduction

    Digital Video Recorder User Manual Introduction 1.1 DVR Introduction This model DVR (Digital Video Recorder) is designed specially for CCTV system. It adopts high performance video processing chips and embedded Linux system. Meanwhile, it utilizes many most advanced technologies, such as standard H.264 with low bit rate, Dual stream, SATA interface, VGA output mouse supported, IE browser supported with full remote control, mobile view(by phones), etc., which ensure its powerful functions and high stability.
  • Page 9 Digital Video Recorder User Manual  Support built-in SATA DVD writer to backup  Support saving recorded files with AVI standard format to a remote computer through internet RECORD & PLAYBACK  Record modes: Manual, Schedule, Motion detection and Sensor alarm recording ...
  • Page 10 Digital Video Recorder User Manual SECURITY  Customize user right: log search, system setup, two way audio, file management, disk management, remote login, live view, manual record, playback, PTZ control and remote live view  Support 1 administrator and 63 users. ...

  • Page 11: Hardware Installation

    Digital Video Recorder User Manual Hardware Installation Notice: Check the unit and the accessories after getting the DVR. Please disconnect the power before being connected to other devices. Don't hot plug in/out 2.1 Install Hard Drive &DVD Writer 2.1.1 Install Hard Drive Notice: 1.

  • Page 12: Front Panel Descriptions

    Digital Video Recorder User Manual 2. This device is only for backup Step1: Unscrew and Open the top cover Step2: Connect the power and data cables. Place the DVD writer onto the bottom case as Fig2.3. Step3: Screw the DVD writer as Fig2.4 Fig 2.3 Connect the DVD Writer Fig 2.4 Screw the Writer Front Panel Descriptions Notice: The front panel descriptions are only for reference;...

  • Page 13: Rear Panel Instructions

    Digital Video Recorder User Manual Type Item Name Description button 1. Rewind key REW/SPEED 2. SPEED function enables at PTZ mode 1. Enter search mode SEARCH/ZOOM 2.ZOOM function enables at PTZ mode. 1. Enter play interface PLAY /IRIS 2. IRIS function enables at PTZ mode 1.
  • Page 14 Digital Video Recorder User Manual Fig 2.5 Rear Panel for 4-ch Item Name Description Video out Connect to monitor Connect to monitor as an AUX output channel by channel. Only Spot out video display, no menu show Audio out Audio output, connect to the sound box Connect to speed dome Connect to keyboard ALARM IN...
  • Page 15 Digital Video Recorder User Manual The rear Panel interface for 8-ch is shown as Fig 2.6: Fig 2.6 Rear Panel for 8-ch Item Name Description Video out Connect to monitor Connect to monitor as an AUX output channel by channel. Only Spot out video display, no menu show Audio out...
  • Page 16 Digital Video Recorder User Manual Item Name Description ALARM IN Connect to external sensor1-8 Audio in 4 CH Audio input Tab 2.2 Definitions of Front Panel Buttons The rear Panel interface for 16-ch is shown as Fig 2.7: Fig 2.7 Rear Panel for 16-ch Item Name Description...

  • Page 17: Remote Controller

    Digital Video Recorder User Manual Item Name Description + 5V and GND +5 V and Grounding ALARM OUT 1-ch relay output. Connect to external alarm. To connect external USB devices like USB flash, USB HDD for backup or USB port update firmware;...
  • Page 18 Digital Video Recorder User Manual Fig 2.8 Remote Controller Item Name Function Power Button Soft switch off to stop firmware running. Do it before power off. INFOR Button Get information about the DVR like firmware version, HDD information REC Button To record manually Digital Button Input digital or choose camera...

  • Page 19: Control With Mouse

    Digital Video Recorder User Manual Operation processes with remote controller to control multi-DVR The device ID of the DVR is 0. When use of remote controller to control single DVR, it’s not necessarily to reset the device ID, user can do operation directly; when control multiple DVR with remote controller, please refer to below steps: Step1: Activate remote controller to control DVR: enable DVR: turn the IR sensor of the remote controller to the IR receiver that on the front panel, press the number key 8 twice, then input device ID (Range from: 0-65535;...
  • Page 20 Digital Video Recorder User Manual Click left button to enter. Click right button to cancel setup, or return to the previous. If want to input the value, move cursor to the blank and click. An input window will appear as Fig2.9. It supports digitals, letters and symbols input.

  • Page 21: Basic Function Instruction

    Digital Video Recorder User Manual Basic Function Instruction 3.1 Power On/Off Before you power on the unit, please make sure all the connection is good. 3.1.1 Power on Step1: connect with the source power; switch on the power button near the power port on the rear panel Step2: the device will be loaded, and the power indicator will display blue Step3 before start, a WIZZARD window will be pop-up and show some information about time zone，time setup，network configuration, record configuration and disk management.

  • Page 22: Login

    Digital Video Recorder User Manual 3.2 Login User can login and logout the DVR system. User cannot do any other operations except changing the multi-screen display once logout. Fig 3-1 Login Notice: the default user name and password is “admin” and 123456 ”...

  • Page 23: Live Playback

    Digital Video Recorder User Manual 3.3.1 Live playback Click Play button to playback the record. Refer to Figure3-3. User can do concrete operation by click the buttons on screen. Fig 3-3 live playback...

  • Page 24: Main Menu Setup Guide

    Digital Video Recorder User Manual Main menu setup guide Click right mouse or press ESC button on the front panel, the control bar will display on the bottom of the screen, refer to Fig 4-1: Fig 4-1 main menu toolbar Click the icon beside the screen display mode to display a channel select dialog.

  • Page 25: Basic Configuration

    Digital Video Recorder User Manual controller to display the main menu. Click Setup icon will pop-up the configuration menu: Fig 4-2 system setup 4.1 Basic configuration Basic configuration includes three sub menus: system、 date& time and DST. 4.1.1 System Step1: enter into system...

  • Page 26: Time & Date

    Digital Video Recorder User Manual Password check: enable this option, user needs to input user name and password can do corresponding operations with the relevant right in system configuration. Show time: display time in live. Show wizard: tick off this item, there will display an opening wizard with time zone and time setup information Max network uses: set the max user amount of network connection VGA resolution: the resolution of live display interface, range from: VGA800*600、VGA1024*768、VGA1280*1024and CVBS Note：...

  • Page 27: Live Configuration

    Digital Video Recorder User Manual Step1: enter into system configurationbasic configurationDST; refer to Fig 4-5: Step2: in this interface, enable daylight saving time, time offset, mode, start & end month/week/date, etc. Step3: click “default” button to resort default setting; click “apply”...

  • Page 28: Main Monitor

    Digital Video Recorder User Manual Fig 4-6 live configurationlive Fig 4-7 live-color adjustment Step3: in this interface, user can adjust brightness, hue, saturation and contrast in live; click “default” button to resort default setting, click “OK” button to save the setting. Step4: user can setup all channels with same parameters, tick off “all”, then do relevant setup.

  • Page 29: Spot

    Digital Video Recorder User Manual Click button to set the latter channel groups of dwell picture. Step5: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface. 4.2.3 Spot Step1: enter into system configurationlive configurationSpot;...

  • Page 30: Record Configuration

    Digital Video Recorder User Manual Setup mask area Live image mask area 4.3 Record configuration Record configuration includes six sub menus: enable, record bit rate, time, recycle record, stamp and snap. 4.3.1 Enable Step1: enter into system configurationrecord configurationenable; refer to Fig 4-11: Parameter Meaning Record...

  • Page 31: Record Stream

    Digital Video Recorder User Manual 4.3.2 Record stream Step1: enter into system configurationrecord configurationrecord bit rate; refer to Fig 4-12: Step2: setup rate, resolution, quality, encode and max bit stream Step3: user can setup all channels with same parameters, tick off “All”, then to do relevant setup. Step4: click “default”...

  • Page 32: Stamp

    Digital Video Recorder User Manual Expire time: the hold time of saved records. If the set date is overdue, the record files will be deleted automatically. Step2: u user can setup all channels with same parameters, and then tick off “all” to do relevant setup. Step3: click “default”...

  • Page 33: Recycle Record

    Digital Video Recorder User Manual Before drag after drag 4.3.5 Recycle record Step1: enter into system configurationrecord configurationrecycle record; Step2: tick off recycle record to enable the recycle record function. It will cover the earlier recorded files and keep recoding when HDD is full;...

  • Page 34: Motion

    Digital Video Recorder User Manual Fig 4-15 schedule configuration-schedule Step2: select channel and double-click to pop up a window as Fig 4-16. Now user can edit week schedule: Fig 4-16 schedule-week schedule ① Click “add” button to add a certain day schedule; click “delete” button to delete the selected schedule; Copy: user can copy the specify schedule to other dates.

  • Page 35: Sensor

    Digital Video Recorder User Manual Fig 4-17 schedule configuration-motion Note: the default schedule of motion detection is full-selected, that is, the color of schedule setting interface is blue. 4.4.3 Sensor Step1: enter into system configurationschedule configurationalarm; refer to Fig 4-18: Step2: the setup steps of alarm are familiar with schedule;...

  • Page 36: Sensor

    Digital Video Recorder User Manual 4.5.1 Sensor Sensor includes three sub menus: basic, alarm handling and schedule. ① Basic Step1: enter into system configurationalarm configurationsensorbasic; refer to Fig 4-19: Step2: enable sensor alarm and then set the alarm type according to triggered alarm type. Two option: NO and Step3: user can setup all channels with same parameters, tick off “all”...

  • Page 37: Motion

    Digital Video Recorder User Manual Step 3: If Buzzer is selected, there will be triggered buzzer alarm out. Full screen alarm: when alarm is triggered, there will pop up full screen alarm; Email: Select this function. When an alarm is triggered, a notification email will be sent to user’s designed email box including trigger events, time, snap pictures, device name, ID camera name etc.
  • Page 38 Digital Video Recorder User Manual Step2: enable motion alarm, set alarm hold time which means time interval between two adjacent detective motions. If there is other motion detected during the interval period which considered continuous movement; otherwise, it will be considered that those two adjacent detective motions are two different motion events.

  • Page 39: Video Loss

    Digital Video Recorder User Manual Note: when user drag mouse to set motion detection area, they have to click icon to clear all set detection area firstly, and then make the operation. Step6: user can setup all channels with same parameters. Step7: click “default”...

  • Page 40: Other Alarm

    Digital Video Recorder User Manual Fig 4-26 alarm configuration-video loss 4.5.4 Other alarm Step1: enter into system configurationother alarm; refer to Fig 4-27: Disk full: user can choose the capacity of the disk storage and select the related alarm. If the disk is full, the system will alarm according to the setup.

  • Page 41: Alarm Out

    Digital Video Recorder User Manual 4.5.5 Alarm out Alarm out includes three sub menus: alarm out, schedule and buzzer ① Alarm out Step 1: enter into system configurationalarm out; refer to Fig 4-28: Step 2: in this interface, user can set relay alarm out name and select hold time which means the interval time between the two adjacent alarms.

  • Page 42: Sub Stream

    Digital Video Recorder User Manual Server port: communication port. Step 3: If user selects the "Obtain an IP address automatically", the device will distribute IP address, subnet mask, and gateway IP and DNS server. Step 4: enable PPPoE to directly connect the DVR to internet via ADSL, and then input the user name and password.

  • Page 43: Email

    Digital Video Recorder User Manual Definitions and descriptions of Sub stream: Parameter Meaning Range from: 1-25 Resolution Support CIF The quality of the clients’ image. The higher the value is, the clearer the record image. Quality Six options: lowest, lower, low, medium, higher and highest. Encode VBR and CBR Max bit rate...

  • Page 44: Other Settings

    Digital Video Recorder User Manual 4.6.4 Other settings Step 1: enable DDNS server: user needs to input user name， password and host domain name of the registered website, click TEST to test the effectiveness of the relevant information. Step 2: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.
  • Page 45 Digital Video Recorder User Manual If “Show icons for networked UPnP devices” can’t display in the “Network Tasks” list box, please follow the below operation:  Click “Tools”-- “Folder options”  Select the “Show common tasks in folders” in the “Tasks” check box to display the UPnP icon. 1．...
  • Page 46 Digital Video Recorder User Manual After user fill in the blank, click “Add to cart”. Then Dynamic DNS Hosts dialog box will be displayed. Next, create user account. For example, the username is “bcd”, password is “123456”. Click” Create Account” button to create user account. 2．...

  • Page 47: User Management Configuration

    Digital Video Recorder User Manual （2） Username and password According to the above registration, username is “bcd”. According to the above registration, password is “123456” 3． Application Connect DVR to the Network Client. Enter into Main menuNetworkother settings, tick off DDNS, select “Dyndns” at the DDNS Sever pull down list box and ①...
  • Page 48 Digital Video Recorder User Manual Fig 4-33 user management configuration Fig 4-34 add-general ① General: Input user name, password; select user type: normal and advance, input the MAC address of the PC; click OK button. Then this user will be added into the user list box; click Exit button to exit the current interface. Note: when the default value of binding PC MAC address is 0, the user is not bind with the specify computer;...

  • Page 49: Configuration

    Digital Video Recorder User Manual 4.8 P.T.Z configuration P.T.Z configuration includes two submenus: serial port and advance ① Serial port Step 1: enter into system configuration  P.T.Z configurationserial port; refer to Fig 4-36: Step 2: tick off Enable and then setup the value of address, baud rate and protocol according to the settings of the speed dome.
  • Page 50 Digital Video Recorder User Manual Fig 4-37 P.T.Z configuration-advance Fig 4-38 advance-preset setting a. in the preset set interface, while clicking Setting button, a dialog will pop-up as Fig 3-39: Fig 4-39 preset set-setting b. user can control the dome rotates up, up left, down, right down, left , left down, right and up right and stop rotating; adjust the rotate speed and the value of zoom, focus and iris of the dome;...
  • Page 51 Digital Video Recorder User Manual Fig 4-40 cruise set a. click Add button to add cruise line in the list box (max 8 cruise line can be added); select a cruise line and click Setup button to see a dialog box as Fig 4-41: b.

  • Page 52: Advanced

    Digital Video Recorder User Manual a. user can control the dome rotates up, up left, down, right down, left, left down, right and up right and stop rotating; adjust the rotate speed and the value of zoom, focus and iris of the dome; click Start Record button to record the move track of PTZ;...

  • Page 53: Record Search & Playback And Backup

    Digital Video Recorder User Manual Record search & playback and backup Search configuration includes four submenus: time search, event search, file management and image. 5.1 Time search Step1: enter into Search configurationtime search; refer to Fig 5-1: Fig 5-1 Search configuration-time search Step2: select channel, screen display mode, the highlight date in the calendar means have record data Step3: select a date, press Search button, click the time grid to set the play start time or input play record time manually.

  • Page 54: Event Search

    Digital Video Recorder User Manual Step4: click Play button to playback record; click the relevant buttons on the screen to do operation: Playback buttons Note: when the monitor resolution is VGA800*600, the time search interface will appear a hide button, click this button, the whole interface can be expanded.

  • Page 55: File Management

    Digital Video Recorder User Manual Note: when the monitor resolution is VGA800*600, the event search interface will appear a hide button. Then click this button to expand the whole interface. 5.3 File management Step1: enter into Search configurationfile management; refer to Fig 5-3: Fig 5-3 Search configuration-file management Step2: After clicking Search button, the searched files will be displayed in the file list box;...

  • Page 56: Image

    Digital Video Recorder User Manual 5.4 Image In this interface, user can set start, end time and channels to search the captured images and save, lock or delete these images. There are at most 2000 images which can be saved in the SATA disk. If there are more images saved in the SATA disks than 2000 images, those additional images will supersede prior images.

  • Page 57: Manage Dvr

    Digital Video Recorder User Manual Manage DVR 6.1 Check system information Check system information includes five submenus: system, event, log, network and online user. 6.1.1 System information In this interface, user can check the hardware version, MCU version, kernel version, device ID, etc. 6.1.2 Event information In this interface, user can check record events according to the set date.

  • Page 58: Disk Management

    Digital Video Recorder User Manual 6.3 Disk management Format the disk Step1: enter into disk management interface Note: please format the hard disk before record. If not being formatted, it will show the status of the disk-free space, and total space show OM at the bottom of screen. Step2: click Refresh button to refresh the disk information of the list box;...

  • Page 59: Remote Surveillance

    Digital Video Recorder User Manual Remote Surveillance 7.1 IE Remote Surveillance In order to view the DVR from a network it must be connected to a LAN/WAN or internet. The network setup should be done accordingly. Please refer to 4.6 Network Setup. This DVR supports IE browser, on Windows XP and Vista platform. 7.1.1 On LAN Step 1: Enter into the DVR’s Main MenuSetupNetwork interface to input IP address, Subnet Mask, etc .If using DHCP, please enable DHCP in both the DVR and the router.
  • Page 60 Digital Video Recorder User Manual after IP address or domain name. Step 6: IE will download ActiveX automatically. Then a window pops up and asks for user name and password. Input name and password correctly, and enter to view. Note: If you cannot download and install ActiveX, please refer to 0 This DVR supports mobile surveillance by Iphone, Gphone，blackberry or smart phones with Windows mobile and symbian OS.

  • Page 61: Remote Surveillance Through Apple Pc

    Digital Video Recorder User Manual Step5：Input the server’s address, ID and password respectively in the columns of “Server”, “User” and “Password”, and click “Go” to log on the server. It will show the picture if access successfully. Refer below picture in the left: Step6：Camera 1 is the default channel after login.
  • Page 62 Digital Video Recorder User Manual Step1：Firstly enable the network access on mobile phone. Then run Web browser. Step2：Input the DVR server’s IP address in a new-built bookmark. Click this bookmark to connect to the DVR. Refer picture in the left: Step3：A welcome window will pop up and requires a package.
  • Page 63 Digital Video Recorder User Manual Step8：Input the server’s address, ID and password respectively. Then save. Notice: About Access point, there may be different access points in different countries or from service providers. Step9：Enter Live View, it will connect the server and display pictures. Refer picture in the left: Notice: User name and password here are the same with that used on the DVR.
  • Page 64 Digital Video Recorder User Manual 7.4 The Software installation for iPhone mobile clients 1. Install through iphone. Step 1. Open App Store function of iphone. Step 2. Enable “search” function to search “SuperCam”. Step 3: Click SuperCam, enter into “introduce” interface and then click “FREE”, it will change into “INSTALL”...
  • Page 65 Digital Video Recorder User Manual Step 4: Input iTunes Store password and then click “OK”, the software will be installed automatically. Note: if it was the first time for user to operate, please enter user ID; if there is no Store account, user needs to apply one.
  • Page 66 Digital Video Recorder User Manual Step 1: Install iTunes store in PC and then login Step 2: Connect iPhone and PC Step 3: Enable “search” function to search “SuperCam” Step 4: Click “free application” button...
  • Page 67 Digital Video Recorder User Manual Step 5: Input apple ID and password, then click “acquire” Step 6: Tick off “synchronously apply program” and “SuperCam”, and then click “apply” button Operation Instruction for SuperCam (iphone) Login interface Enter server’s IP address (or domain name), user name and password Click “Remember server”...
  • Page 68 Digital Video Recorder User Manual Main Interface 【Playback】 【Image】 playback record file image view 【Log】 【Server List】 device list log record 【Live】 live view 【Settings】 software setting 【Information】 device information view 【Help】 software help center 【Logoff】 logoff and return to login interface Live View Interface Mark 1 Current viewing channel...
  • Page 69 Digital Video Recorder User Manual Close the video of the current channel Live audio Switch to the single image Switch to four images Upward rotates the PTZ Downward rotates the PTZ Leftward rotates the PTZ Rightward rotates the PTZ Stop rotating the PTZ Zoom In/Focus In/Iris Add Zoom Out/Focus Out/Iris Sub Preset...
  • Page 70 Digital Video Recorder User Manual Server list Interface, refer to below picture in the left: Config interface, refer to below picture in the right: Main parameters for mobile phone video config Record file clip size: Single video size. When the video size is greater than setup value, change another video files Reserved disk space: Reserved SD Card disk space, when the disk space is less than setup value, the video will be stopped Display config：...
  • Page 71 Digital Video Recorder User Manual 7.5 The installation & operation methods for Android mobile clients Software Installation Step 2: search”SuperCam” Step 1: run Google Market program...
  • Page 72 Digital Video Recorder User Manual Step 3: press “Install” button Step 4: click “OK” button Step 5: user can view the download and install process in notifications; finished download, the software will install automatically.
  • Page 73 Digital Video Recorder User Manual Login Enter into server’s IP address (or domain name), user’s ID and password. Click “Remember server” to save the setting; click button can quick input saved server address, user name and password. Main menu 【Playback】 【Image】...
  • Page 74 Digital Video Recorder User Manual Live view （Fig 2） ( Fig 1） Mark 1 Current viewing channel Mark 2 Channel status Switch channels PTZ, click to switch to Fig 2 interface Snap record talk Live audio Full screen Return Upward rotates the PTZ Downward rotates the PTZ Leftward rotates the PTZ Rightward rotates the PTZ...
  • Page 75 Digital Video Recorder User Manual Stop rotates the PTZ Zoom In/Focus In/Iris Add Zoom Out/Focus Out/Iris Sub Preset Select the preset point Group Set the cruise line Image view Previous Next Zoom out Delete Return to main Zoom in menu Record playback Play/pause Full screen...
  • Page 76 Digital Video Recorder User Manual Click the record file (Fig 3) to playback (Fig 4) Server list ， Alarm setting Tick Sound Alarm when Video Loss/Sensor/Motion happen ， trigger sound alarm; Tick Vibrate Alarm, when Video Loss/Sensor/Motion happen，trigger vibrate alarm Storage setting User can setup the relevant parameters of mobile video.
  • Page 77 Digital Video Recorder User Manual Config interface setup value, change another video files Remove all recorder delete all current video files files before Information view...
  • Page 78 Digital Video Recorder User Manual 7.6 Installation and operation Methods for BlackBerry Mobile phone Client 7.6.1 Installation instruction for BlackBerry Mobile phone Client 1. Open the browser of BlackBerry phone and enter sever address 2. Click “SuperCam” to link 3. Click “Download” button on the popup interface and the download progress will be shown. 4.
  • Page 79 Digital Video Recorder User Manual Note: If the software fails to download, please check in accordance with the following steps: Check whether the network of mobile phone is normal or not Check whether DVR server connect network normally or not Modify the option of Browser Configuration.
  • Page 80 Digital Video Recorder User Manual Enter server’s IP address (or domain name), user’s ID and password. Click “Remember server” to save the setting; click button can quick input saved server address, user name and password. Main interface Playback playback record file Image image view log record...
  • Page 81 Digital Video Recorder User Manual Note: User can click Return button on the Blackberry phone to return the previous interface.
  • Page 82 Digital Video Recorder User Manual Mark 1 Current viewing channel Mark 2 Channel status Switch channels PTZ, click to switch to Fig 2 interface Snap Full screen Background alarm Stop rotating the PTZ Upward rotates the PTZ Downward rotates the PTZ Leftward rotates the PTZ Rightward rotates the PTZ Zoom In/Focus In/Iris Add...
  • Page 83 Digital Video Recorder User Manual Information view 2. Connect the DVR to internet directly. Step 1: Enter into the DVR’s Main MenuSetupNetwork interface to enable PPPoE and then input user name and password received from your ISP. Next, click ‘Apply’. The DVR will connect to the server and would give a confirmation message.
  • Page 84 Digital Video Recorder User Manual Fig 7-1 View with IE browser 7.7 Remote Surveillance through Apple PC Note: Because the current plug-in version of client end just only supports 32-bit mode, so the safari browser shall start 32-bit mode. If the browser is the earlier MACOS version, the default setting is 32-bit mode and the setting can be skipped. The Setting steps are as follows: and select “Show in Finder”.
  • Page 85 Digital Video Recorder User Manual Third: Select “open in 32- bit mode”.

  • Page 86: On Lan

    Digital Video Recorder User Manual 7.7.1 On LAN icon. The following window will pop up. Please select “System Step 1: After starting Apple computer, click Preferences””Internet &Wireless”click “Network”...
  • Page 87 Digital Video Recorder User Manual Step 2: Enter into Network interface and then click “Ethernet Connected” to check the internet connection of Apple PC. Step 3: After acquiring the IP address, Subnet Mask and so on, please enter into the DVR’s Main MenuSetupNetwork interface to manually input IP address, Subnet Mask and Gateway according to the configuration of PC.

  • Page 88: On Wan

    Digital Video Recorder User Manual Step 5: Click icon and then select the Active X control, the welcome interface will be shown. Click “Continue””Install” button，the following window will pop up： Input the name and password of Apple PC and then click “OK” to install this Active X control. Step 6: After finishing installing the Active X control, please quit from the Safari browser.

  • Page 89: The Remote Live Preview Interface

    Digital Video Recorder User Manual 7.8 The remote live preview interface Fig 7-2 Remote live preview interface Symbol and function Definitions: ① ② ③ Channel indicator Screen display mode Volume ④ ⑤ ⑥ Snapping picture Start manual record Start IE record ⑦...
  • Page 90 Digital Video Recorder User Manual Screen display mode: Click the icon beside the screen display mode, channel select dialog will appear as below: Take 8-channel DVR for example: user can tick off channels form 1-ch to 16-ch at random to display the live pictures, 8 channels can be selected at most.
  • Page 91 Digital Video Recorder User Manual Buttons definition: Buttons Description means the dome rotate up. means the dome rotate up left. means the dome rotate up right means the dome rotate down. means the dome rotate left down. means the dome rotate right down. means the dome rotate left.

  • Page 92: Remote Playback & Backup

    Digital Video Recorder User Manual Fig 7-4 right key sub menu Stream: this DVR supports master stream and sub stream. Master stream has higher frame rate, max 25FPS（PAL）/30 FPS （NTSC）for every channel, but it needs higher network bandwidth simultaneously; second stream has low frame rate, max 6FPS （PAL）/7FPS（NTSC）...
  • Page 93 Digital Video Recorder User Manual Fig 7-5 Play record file interface This DVR supports remote time search, event search and file management. By Time Search: Step1: Enter into Searchtime search; refer to Fig 7-6:...
  • Page 94 Digital Video Recorder User Manual Fig 7-6 time search interface Step2: click “Search” button. The record data will be displayed in the data information list box; the highlight date in the area② means have record data, click those data; select the record channels in area③ Step3: User can set the data playing time and display mode in the area①...
  • Page 95 Digital Video Recorder User Manual research, etc. refer to Fig 7-7: Fig 7-7 Time search playback By Event Search: Step1: Enter into Searchevent search; refer to Fig 7-8:...
  • Page 96 Digital Video Recorder User Manual Fig 7-8 event search interface Step2: click the highlight date and select record channels and then tick off the event type: motion and sensor. Then click “search” button Step3: the events will be display in the event list box and then double-click certain item to playback File Management Step1: Enter into Searchfile management;...
  • Page 97 Digital Video Recorder User Manual Fig 7-9 file management interface Lock: select certain file item in the file list box and then click “Lock” button to lock this file that ca not be deleted or overlaid Unlock: select a locked file and then click “unlock” button to unlock this file Delete: select an unlock file and then click “delete”...

  • Page 98: Remote Backup

    Digital Video Recorder User Manual 7.9.2 Remote backup Click Backup button to enter into backup interface, refers to Fig 7-10: Fig 7-10 remote backup interface Step1: select channels, set the start and end time and then click “search’ button to display the file information in the file list box Step2: select backup files and click “browse”...

  • Page 99: Remote System Configuration

    Digital Video Recorder User Manual 7.10 Remote System configuration User can remote setup the parameters of the device. Functions of remote configurations include: basic configuration, live configuration, record configuration, schedule configuration, alarm configuration, network configuration, PTZ configuration and user configuration. User should firstly select an item in the menu list on the left, and then setup the relative parameters. When one user setup parameters of a certain item, others cannot setup this one.

  • Page 100: Remote Management

    Digital Video Recorder User Manual 7.11 Remote Management Remote Information Search The system will automatically record the working condition and operation process during the period of work. User can view information, such as username, IP address and so on. Enter into INFO→Log. User can set the start time to view the log record as follows: Fig 7-12 Remote information search Note: There may be subtle differences with respect to functions of remote surveillance between through IE and through...

  • Page 101: Mobile Surveillance

    Digital Video Recorder User Manual Mobile Surveillance This DVR supports mobile surveillance by Iphone, Gphone，blackberry or smart phones with Windows mobile and symbian OS. At the same time, it supports 3G network. We tested Dopod D600 (WM5) and Dopod S1 (WM6), which work fine with the DVR. It wants to make mobile surveillance, need first enable network service on the DVR, and refer to Chapter 4.6 Network configuration.

  • Page 102: By Phones With Symbian

    Digital Video Recorder User Manual Step5：Input the server’s address, ID and password respectively in the columns of “Server”, “User” and “Password”, and click “Go” to log on the server. It will show the picture if access successfully. Refer below picture in the left: Step6：Camera 1 is the default channel after login.
  • Page 103 Digital Video Recorder User Manual Step1：Firstly enable the network access on mobile phone. Then run Web browser. Step2：Input the DVR server’s IP address in a new-built bookmark. Click this bookmark to connect to the DVR. Refer picture in the left: Step3：A welcome window will pop up and requires a package.

  • Page 104: The Software Installation For Iphone Mobile Clients

    Digital Video Recorder User Manual Step8：Input the server’s address, ID and password respectively. Then save. Notice: About Access point, there may be different access points in different countries or from service providers. Step9：Enter Live View, it will connect the server and display pictures. Refer picture in the left: Notice: User name and password here are the same with that used on the DVR.
  • Page 105 Digital Video Recorder User Manual Step 3: Click SuperCam, enter into “introduce” interface and then click “FREE”, it will change into “INSTALL” Step 4: Input iTunes Store password and then click “OK”, the software will be installed automatically.
  • Page 106 Digital Video Recorder User Manual Note: if it was the first time for user to operate, please enter user ID; if there is no Store account, user needs to apply one. 2. Install through PC. Step 1: Install iTunes store in PC and then login Step 2: Connect iPhone and PC...
  • Page 107 Digital Video Recorder User Manual Step 3: Enable “search” function to search “SuperCam” Step 4: Click “free application” button Step 5: Input apple ID and password, then click “acquire” Step 6: Tick off “synchronously apply program” and “SuperCam”, and then click “apply” button...
  • Page 108 Digital Video Recorder User Manual Operation Instruction for SuperCam (iphone) Login interface Enter server’s IP address (or domain name), user name and password Click “Remember server” to save the setting; click button can quick input saved server address, user name and password. Main Interface 【Playback】...
  • Page 109 Digital Video Recorder User Manual Mark 1 Current viewing channel Mark 2 Channel status Switch channels PTZ, click to switch to Fig 2 interface Snap picture Record Close the video of the current channel Live audio Switch to the single image Switch to four images Upward rotates the PTZ Downward rotates the PTZ...
  • Page 110 Digital Video Recorder User Manual Image view interface, refer below picture in the left: Record Playback interface, refer below picture in the right: Click the record file to playback. Server list Interface, refer to below picture in the left: Config interface, refer to below picture in the right:...

  • Page 111: The Installation & Operation Methods For Android Mobile Clients

    Digital Video Recorder User Manual Main parameters for mobile phone video config Record file clip size: Single video size. When the video size is greater than setup value, change another video files Reserved disk space: Reserved SD Card disk space, when the disk space is less than setup value, the video will be stopped Display config：...
  • Page 112 Digital Video Recorder User Manual Step 2: search”SuperCam” Step 1: run Google Market program Step 3: press “Install” button Step 4: click “OK” button...
  • Page 113 Digital Video Recorder User Manual Step 5: user can view the download and install process in notifications; finished download, the software will install automatically. Login Enter into server’s IP address (or domain name), user’s ID and password. Click “Remember server” to save the setting; click button can quick input saved server address, user name and password.
  • Page 114 Digital Video Recorder User Manual 【Playback】 playback record file 【Image】 image view 【Log】 【Server List】 device list log record 【Live】 【Settings】 live view software setting 【Information】 device information view 【Help】 software help center 【Logoff】 logoff and return to login interface Live view （Fig 2）...
  • Page 115 Digital Video Recorder User Manual Mark 1 Current viewing channel Mark 2 Channel status Switch channels PTZ, click to switch to Fig 2 interface Snap record talk Live audio Full screen Return Upward rotates the PTZ Downward rotates the PTZ Leftward rotates the PTZ Rightward rotates the PTZ Stop rotates the PTZ...
  • Page 116 Digital Video Recorder User Manual Record playback Play/pause Full screen stop Return to record file interface (Fig 3) （Fig 3） （Fig 4） Click the record file (Fig 3) to playback (Fig 4) Server list...
  • Page 117 Digital Video Recorder User Manual Config interface ， Alarm setting Tick Sound Alarm when Video Loss/Sensor/Motion happen ， trigger sound alarm; Tick Vibrate Alarm, when Video Loss/Sensor/Motion happen，trigger vibrate alarm Storage setting User can setup the relevant parameters of mobile video.

  • Page 118: Installation And Operation Methods For Blackberry Mobile Phone Client

    Digital Video Recorder User Manual 8.5 Installation and operation Methods for BlackBerry Mobile phone Client 8.5.1 Installation instruction for BlackBerry Mobile phone Client 1. Open the browser of BlackBerry phone and enter sever address 2. Click “SuperCam” to link 3. Click “Download” button on the popup interface and the download progress will be shown. 4.

  • Page 119: Operation Method For Blackberry Mobile Phone Client

    Digital Video Recorder User Manual Note: If the software fails to download, please check in accordance with the following steps: Check whether the network of mobile phone is normal or not Check whether DVR server connect network normally or not Modify the option of Browser Configuration.
  • Page 120 Digital Video Recorder User Manual Enter server’s IP address (or domain name), user’s ID and password. Click “Remember server” to save the setting; click button can quick input saved server address, user name and password. Main interface Playback playback record file Image image view Server List...
  • Page 121 Digital Video Recorder User Manual Note: User can click Return button on the Blackberry phone to return the previous interface. Mark 1 Current viewing channel Mark 2 Channel status Switch channels PTZ, click to switch to Fig 2 interface Snap Full screen Background alarm Stop rotating the PTZ...
  • Page 122 Digital Video Recorder User Manual Server list Software configuration Information view...

  • Page 123: Appendix A Faq

    Digital Video Recorder User Manual Appendix A FAQ Q1. Why the DVR cannot start after connected to the power? a. The adapter has been damaged. Please change an adapter b. The power of the adapter is not enough. Please remove the HDD to check c.
  • Page 124 Digital Video Recorder User Manual a. Don't format HDD. Please format it manually first. b. Don't enable record function or incorrect setup. Please refer to Chapter 5 Record search & playback and backup. c. HDD is full and not enables recycle function. Please refer to 4.3 Record configuration. Chang a new HDD or enable recycle. d.
  • Page 125 Digital Video Recorder User Manual ③ Enable all the sub options under “ActiveX controls and plug-ins” refer to Fig 8-2 ④ Then click ok to finish setup. b. Other plug-ins or anti-virus block activeX. Please uninstall or close them. Fig8-1 Fig8-2 Q9: How to deal with when DVR starts, it displays “please wait…”all the time First possible reason: hard-disk cable and data cable are not well connected.
  • Page 126 Digital Video Recorder User Manual Solution: Please check the connection of hard-disk cable and data cable and make sure they are well connected; If still not working, please unplug them and then try re-plugging again; Second possible reason: It is forced to stop because hard disk has disabled track which causes the system checking hard disk cannot skip Solution: Change another new hard disk or reformat the broken one Q10: How to input password and digital numbers...
  • Page 127 Digital Video Recorder User Manual 512M NVIDIA GeForce MX440/FX5200 ATIRADEON 7500/X300 Windows 2000(SP4 above) /Windows XP(SP2 above) /VISTA DirectX Q13: What are the PC configurations for 16-ch real time product with fully open channel mainstream? PC Module Parameters Intel Core(TM)2 Duo CPU E4600 Motherboard G31/P31 chip GMA3100/NVIDIA GeForce 8400/...
  • Page 128 Digital Video Recorder User Manual b. Right click IE browser (refer to Fig 14-2), select Run as administrator to run browser.

  • Page 129: Appendix B Calculate Recording Capacity

    Digital Video Recorder User Manual Appendix B Calculate Recording Capacity Users can calculate the size of hard disk according to the saving time and DVR recording settings. The DVR uses fixed video bit rate. The below are the details at different settings. Frame Rate Bit Rate...

  • Page 130: Appendix C Compatible Devices

    Digital Video Recorder User Manual Appendix C Compatible Devices 1. Compatible USB drive after test. Brand Capacity 512MB, 1G, 2GB Netac Kingston Aigo Smatter vider SanDisk 2. Compatible SATA CD/DVD writers after test Brand Model TECLAST GH22NP20/TL-22XD BENQ DW220S-0K4 LITEON DH—20A6S01C LITEON DH-20A4P02C...
  • Page 131 Digital Video Recorder User Manual 3. Compatible HDD list Brand Capacity Seagate Barracuda LP ST3200542AS Seagate Barracuda 7200.11 ST31500341AS 1.5T Seagate SV35.3 ST31000340SV Seagate Pipeline HD.2 500G Seagate Barracuda 7200.10 320G Seagate Barracuda 7200.10 ST3250310AS 250G Seagate Barracuda 7200.11 ST3160813AS 160G Seagate Barracuda 7200.10 ST380815AS Maxtor Diamondmax 21 STM3160215AS...
  • Page 132 Digital Video Recorder User Manual Appendix D 4-CH Specifications Compression format H.264 Main Profile Video output Composite：1.0V p-p/75Ω BNC×2 , VGAX1 Video input Composite：1.0V p-p/75Ω BNC×4 VGA Resolution 1280*1024 /1024*768/ 800*600 Record Resolution 352*288/704*576 (PAL), 352*240/704*480(NTSC) Display Frame Rate 100FPS (PAL), 120FPS (NTSC) Record Frame Rate 100/25FPS (PAL),...
  • Page 133 Digital Video Recorder User Manual Appendix E 8-CH Specifications Compression format H.264 Main Profile Video output Composite：1.0V p-p/75Ω BNC×2 , VGAX1 Video input Composite：1.0V p-p/75Ω BNC×8 VGA Resolution 1280*1024 /1024*768/ 800*600 Record Resolution 352*288/704*576 (PAL), 352*240/704*480(NTSC) Display Frame Rate 200FPS (PAL), 240FPS (NTSC) Record Frame Rate 200/50FPS (PAL),...
  • Page 134 Digital Video Recorder User Manual Appendix F 16-CH Specifications Compression format H.264 Main Profile Video output Composite：1.0V p-p/75Ω BNC×2, VGAX1 Video Input Composite：1.0V p-p/75Ω BNC×16 VGA Resolution 1280*1024 /1024*768/ 800*600 Record Resolution 352*288/704*576 (PAL), 352*240/704*480(NTSC) Display Frame Rate 400FPS (PAL), 480FPS (NTSC) Record Frame Rate 400/100FPS (PAL),...

Table of Contents
