Page 1: User Manual
VONETS——VAR11N 150M Mini WIFI Router 150M Mini WIFI Router VAR11N User Manual... -
Page 2: Table Of Contents
VONETS——VAR11N 150M Mini WIFI Router Contents Chapter1 Product Overview................4 1.1 Product Descrption……………………………………………………………………….………..…...4 1.2 Main Features………………………………………………… …………………………………………….4 Chapter 2 Hardware Descrption ..............6 2.1 Panel Layout…………………………………………………………………………………………….……6 2.2 Reset….…………………………………………………………………………………………..…………….8 2.3 System Requirement..……………………………………… ………….…………………….……..8 Chapter 3 Quick Installation guide ...............8 3.1 Work Mode Introduction ………………………………………………………………………….…..8 3.1.1... - Page 3 Can’t do commodity distribution for any commercial or profitable purposes by any ways(electricity, mechanical, photoprint, record or other methods). VONETS is the registered trademark of Shenzhen HouTian Network Communication Technology Co.Ltd. The other all trademarks or registered trademarks mentioned in this documents are belong to the individual owners.
-
Page 4: Chapter1 Product Overview
1.1 Product Description In order to fully utilize various functions, please read this user manual carefully. VAR11N 150M Mini WIFI Router is designed specially to meet the needs for business people who travel frequently and that need WIFI network. It is based on IEEE 802.11N standard, can spread WIFI network wide and supply the stable transmission... - Page 5 VONETS——VAR11N 150M Mini WIFI Router Support SSID broadcast control, prevent SSID broadcast divulge effectively. Ø Support WIFI router mode and WIFI intelligent bridge mode Ø In WIFI intelligent bridge mode, it can intelligent control the device WIFI mode WIFI AP Client (it can be used for access from WIFI to wired Ethernet)
-
Page 6: Chapter 2 Hardware Descrption

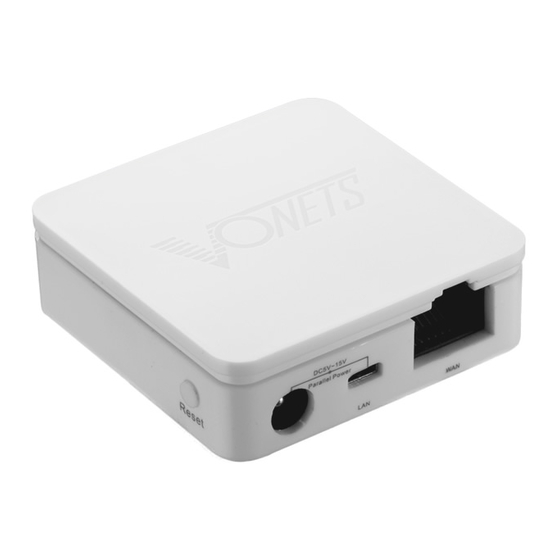

VONETS——VAR11N 150M Mini WIFI Router Chapter 2 Hardware Description 2.1 Panel Layout Picture 2-1 WIFI Router Product Picture... - Page 7 VONETS——VAR11N 150M Mini WIFI Router Picture 2-2 WIFI Router Pilot light Diagram WAN Port: In WIFI router mode, this port is used as WAN port, use to connect Ethernet cable or xDSL Modem/Cable Modem. In bridge mode, this port is used as LAN port, use to connect hubs, switchboard or the computer installed network card in local area network.
-
Page 8: Reset
3.1 Work Mode Introduction 3.1.1 WIFI Router Mode In this mode, VAR11N default Ethernet cable as LAN port, the port as WAN port, users can switch during work mode. The following diagram is the status connection after switching (after switching, Ethernet cable as WAN port usage, the port as LAN port usage), connect VAR11N to ADSL Modem or wired network, then share the power supply to VAR11N, the whole house can achieve WIFI coverage easily. -
Page 9: Wifi Bridge Mode
Hotel Mode In this mode, VAR11N can transfer wired network to WIFI network. VAR11N connect to wired network, computer/WIFI mobile phone/tablet computer can connect to VAR11N to get network by WIFI. Please see the following connection diagram of this mode:... - Page 10 Repeater mode is used for expanding the WIFI signal coverage of AP or WIFI router. In this mode, RJ45 port as LAN port, computer can be connected to VAR11N through wired or WIFI. The encryption method of VAR11N and WIFI router should be the same, SSID is WIFI router name + the last two characters of VAR11N, users can change VAR11N SSID and encryption method.
- Page 11 AP or WIFI router. To avoid the IP address conflict with the WIFI router, the IP address of VAR11N LAN port should be changed to different IP address of WIFI router. In this mode, VAR11N DHCP server is closed, if you need login the webpage of VAR11N, you should configure the computer IP address in the same segment of WIFI router manually.
-
Page 12: Chapter 4 Hardware Connect
Picture 4-1 VAR11N Hardware installation diagram Remark: VAR11N can be powered by mobile power adapter and computer USB port, to omit the troubles to carry multiple power adapters. 4.1 Build correct IP configuration The default LAN IP address of VAR11N is 192.168.1.254, the default subnet mask is 255.255.255.0. - Page 13 VONETS——VAR11N 150M Mini WIFI Router introduces the steps of configuring computer parameters. Right click Local Area Connection, choose Property . 2. Double click Internet Protocol Version 4 (TCP/IPv4)。 3. In WIFI router mode, please choose Obtain an IP address automatically and Obtain...
- Page 14 VONETS——VAR11N 150M Mini WIFI Router 4. In WIFI Bridge mode, because VAR11N DHCP server is closed and can’t assign IP address for computer, then you should configure the IP address for Local Area connection manually to login the webpage of VAR11N. The IP address of computer should be configured to 192.168.1.X (2≤X≤253), the subnet mask to...
- Page 15 VONETS——VAR11N 150M Mini WIFI Router 5. Check if the computer and VAR11N is connected by Ping command. In Windows 7, click Start, then enter “cmd” command in “Search programs and files”, then Enter to go to the interface shown below: Input command 192.168.1.254, then Enter...
- Page 16 1) Whether the hardware connection is correct? The USB port pilot light of VAR11N and network card of computer should be blink. 2) Whether the configuration of computer TCP/IP is correct? If the IP address is configured manually, please make sure if VAR11N IP address is 192.168.1.254, computer IP address must be automatic obtained or 192.168.1.X...
-
Page 17: Connect To Wifi Network
VONETS——VAR11N 150M Mini WIFI Router 4.2 Connect to WIFI network If you need login Webpage of VAR11N, first please make sure computer or mobile phone must connect to VAR11N wireless network or LAN port. 4.2.1 Windows 7 WIFI connect Here take Windows 7 for example. -
Page 18: Chapter 5 Router Settings
Our product supplies setup tool based on WEB browser. In order to connect to Internet by VAR11N successfully, please configure WEB browser first. Open WEB browser, input IP address 192.168.1.254 of VAR11N WIFI router in browser address field, the picture 5-1 will show login webpage, then input username and... -
Page 19: Operative Status
VONETS——VAR11N 150M Mini WIFI Router Picture 5-1 Login webpage 5.1 Operative Status Picture 5-2 Operative Status page will display in browser after login, the default display is English page, user can click the upper right button to switch, user can see the every... -
Page 20: Operating Mode
DHCP Clients: Here display the current all clients information that connected to VAR11N, include Hostname, MAC address and IP address. Wireless Network: Here display all clients information connected to VAR11N by wireless. 5.2 Operating Mode Click operating mode button, can switch operating mode, such as Router mode and... -
Page 21: Wan Settings
If ISP provides PPTP method, ISP will provide username and password. If any questions, please contact ISP. Remote Management Ø Remote management can allow user to configure VAR11N by wide area networks and allow you to perform administrative tasks from a remote host. -
Page 22: Ddns
MAC Clone Ø The default is MAC address of VAR11N WAN port. If ISP provides a MAC address and require to bind WAN port MAC address, just input it to “MAC address” column. Unless ISP has special requests, or don’t suggest to change MAC address. -
Page 23: Lan Settings
In LAN Settings, you can set up the router local area network IP address and Subnet mask, the user of local area network can manage this VAR11N WIFI router by this IP address. For ordinary families sharing the internet, no need change the IP address of LAN port, keep the default value is ok. -
Page 24: Dhcp Client
After the configuration, DHCP server assigns to the intranet. The host IP address is between these two addresses. Choose the subnet mask of VAR11N WIFI router to local area network. Subnet Mask: Should input LAN Port IP address of VAR11N WIFI router, it should Default Gateway: be 192.168.1.254. -
Page 25: Mac Binding Ip
Add: Click the Add button will add an entry to the address reserved table. Remark: Choose the address reserved table entries to delete and modify. 5.5 WIFI Settings The function of WIFI settings can enable the wireless function of VAR11N WIFI router to access the network safely and conveniently. 5.5.1 Basic Settings... -
Page 26: Wifi Security
You can input what you like, it will display the WIFI network lists searched by Wirless card. Hidden: This function doesn’t allow the VAR11N WIFI router SSID to display in Ø the WIFI network lists searched by Wirless card. - Page 27 VONETS——VAR11N 150M Mini WIFI Router WPA-PSK WPA is a standards-based, interoperable the WLAN security enhancement solutions, can greatly enhance the level of data protection and access control for existing and future wireless LAN systems. The WPA derived from the IEEE802.11i Standard and maintain forward compatible.
-
Page 28: Firewall
VONETS——VAR11N 150M Mini WIFI Router 5.6 Firewall 5.6.1 ACL Setting (Access Control List, ACL) is a list of instructions of a router and switch interfaces, used for controlling the data packets in and out ports. ACL applies to all routing protocols, such as IP, ipx, appletalk, and others. -
Page 29: Connection Filter
VONETS——VAR11N 150M Mini WIFI Router 5.6.2 Connection filter Filter rules: Select the filtering service, include Proxy, Java, Activext. Ø URL: Fill in the need to filter the domain name or domain name, such as Ø www.baidu.com, baidu.com keyword: fill in the web filtering keywords, such as: Baidu, Google.. -
Page 30: Forwarding Rule
VONETS——VAR11N 150M Mini WIFI Router Ping form WAN Filter: If this function is enabled, WAN computer will not be able Ø to ping through router. Block Port scan: Prevent the WAN computer to port scan. Ø Block SYN Flood: For prevent SYN Flood (ie flooding attack), please open this Ø... -
Page 31: Dmz
VONETS——VAR11N 150M Mini WIFI Router server, you need to set up a virtual server entry. “Virtual Server” defines the correspondence relationship between the router of the Internet service port and the LAN server IP address. Internet all this port service... -
Page 32: System Settings
VONETS——VAR11N 150M Mini WIFI Router DMZ Setting: Disable and enable this function. Ø DMZ IP Address: Enter the DMZ Host IP Address column is set to the DMZ host Ø LAN computer's IP address. 5.8 System Setting 5.8.1 Device Reboot Restart equipment will set in after the change to take effect. -
Page 33: Chapter 6 Wifi Bridge Mode Settings
Picture 6-1 Operative Status page Here display the hardware and software version and operative System Info: Ø mode and system uptime. Here displays the VAR11N WIFI bridge connected to the hotspots Hotspots Info: Ø info. SSID: The wireless network name of Hotspots.. - Page 34 VONETS——VAR11N 150M Mini WIFI Router TKIP, AES, TKIP/AES and so on. Channel: The present channel of VAR11N. Here displays the device MAC address connected to the router Wireless Network: Ø via wireless devices 6.2 Operating Mode Click Operating mode button, can switch from bridge mode to router mode.
- Page 35 VONETS——VAR11N 150M Mini WIFI Router After the search is completed, the list will show the wireless signal around the Ø hotspot information, including SSID, channel, signal percentage, encryption mode, encryption algorithms, network mode. If the list is blank after searching, please click refresh list to scan again.
-
Page 36: System Setting
VONETS——VAR11N 150M Mini WIFI Router Apply: Click Apply button after confirmation, the device will connect to WIFI Ø hotspot automatically, if the password is correct, the following page will display, it means the connection is successful, please see the following: , If the password input is wrong, the following page will display: 6.4 WIFI Repeater...
