- Page 1 1. Contents 2. Introduction 3. Features 4. 5. Specifications 6. Amplifier installation 7. 8. Features and controls 9. 10. 11. 12. System wiring 13. 14. Troubleshooting O P T I O W N E R ' S M A N U A L - 1...

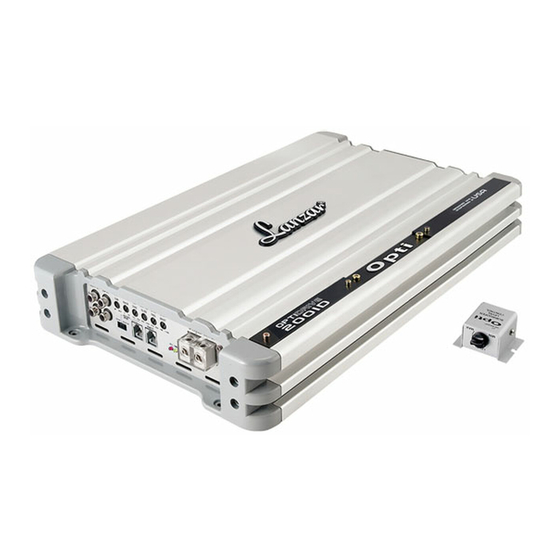

- Page 2 Thank you for purchasing the Lanzar OPTI Class-D amplifier. Rest assured you have purchased a quality product designed and engineered to give you many years of uncompromised musical service. The OPTI Class-D amplifier has been designed using the latest in electronic technology available today.
- Page 3 CLASS-D DESIGN Low - frequency information for subwoofer only. High efficient power POWER SUPPLIES Stiffly regulated PWM power supplies. MOSFET switches maintain rated power over a wide range of battery voltages. LOW PASS FILTER Adjustable from 50Hz to 150Hz with a slope of 24dB per octave. This allows for the adjustment of the upper point of the frequency bandwidth and the respective subwoofer.
- Page 4 OPTI 1000D OPTI 1400D OPTI 1500D RMS Power, INTO 4 Ohms 350W MONO 500W MONO 500W MONO RMS Power, INTO 2 Ohms 650W MONO 800W MONO 800W MONO RMS Power, INTO 1.3 Ohms 900W MONO 1000W MONO 1200W MONO MAX Power, INTO 1.3 Ohms 1000W MONO 1300W MONO 1900W MONO...
- Page 5 1. Find a suitable location in the vehicle to mount the amplifier. 2. Make sure there is sufficient air flow around the intended mounting location. 3. Bolt the amplifier to the mounting surface. 4. Connect the power ground terminal to the nearest point on the chassis of the car.
- Page 6 OPTI 1 000D/ 1400D/2000D Remote Phase Bass Level Subsonic Shift Pass Boost Bridged Mode Power Protection Slave Master 0dB 18dB Data Link Line out Input OPTI 1500D/1900D Bass Speaker Level Sonic Pass Phase Boost Prot 0dB 18dB Master Slave Mode Line out Input Data Link...
-
Page 7: Level Control
1. Line Out RCA Jacks - The LINE OUT allows you to build multiple amplifier systems with out having to use splitter cords to distribute the signal. Now it is simple a matter of bringing one set of RCAs into the first amplifier, then using the line out RCA jacks as the feed to the next amplifier. - Page 8 OPTI 1500D/1900D Bass Speaker Level Sonic Pass Phase Boost Prot 0dB 18dB Master Slave Mode Line out Input Data Link SPEAKER IMPEDANCE 1~8 Ohm TO OUTPUT FROM HEAD UNIT SUBWOOFER Fuses Power CHASSIS GROUND FUSE (BARE METAL) TO CAR STEREO AUTO ANTENNA TO REMOTE GAIN CONTROLLER Fuse R ating MODEL...
-
Page 9: Speaker Impedance
BRIDGING TWO AMPLIFIER Master Amp Bass Speaker Level Sonic Pass Phase Boost Prot 0dB 18dB Master Slave Mode Line out Input Data Link Master Slave SPEAKER IMPEDANCE 2 Ohms! (BRIDGED SWITCH : MASTER POSITION) Slave Amp Bass Speaker Level Sonic Pass Phase Boost... - Page 10 Before removing your amplifier, refer to the list below and follow the suggested procedures. Always test the speakers and their wires first. Check for good ground connection. Check that remote DC terminal has at least 13.8v DC. Check that there is battery power on the +terminal. Check all fuses.
- Page 11 Check for shorts on speaker leads. Check that the volume control on the head unit is turned down low. Remove speaker leads, and reset the amplifier. If the Protection LED still comes on, then the amplifier is faulty. Check that the minimum speaker impedance for that model is correct. Check for speaker shorts.
- Page 12 Lanzar Audio Inc. 1600 63rd Street, Brooklyn, NY 11204 (718)535-1800 www.lanzar.com...
