AZ Patio Heaters F-1108-FPT Owner's Manual

Outdoor fire pit
Hide thumbs
Table of Contents

Advertisement

Quick Links

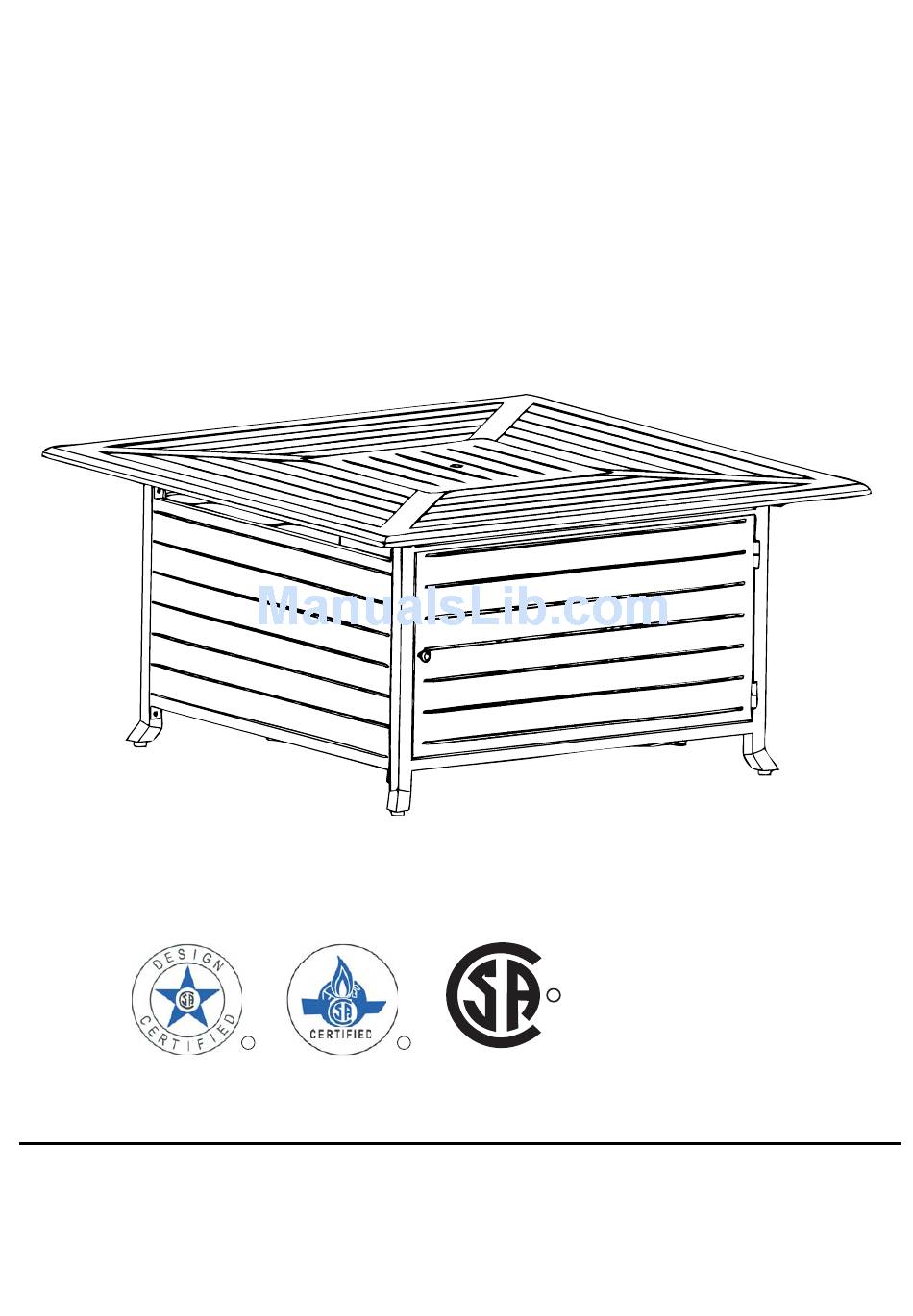

Owner's Manual
OUTDOOR FIRE PIT
ANS Z21.97-2010, Outdoor Decorative Gas Appliances
CGA CR 97-003 Outdoor Gas Fireplaces
Questions, problems, missing parts?
service department at 1-888-775-1330, 8 a.m. - 4 p.m. PST, Monday - Friday.
R
R
Before returning product to your retailer, call our customer
Model #F-1108-FPT
R
C
US
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-1108-FPT and is the answer not in the manual?

Questions and answers

Related Manuals for AZ Patio Heaters F-1108-FPT

Summary of Contents for AZ Patio Heaters F-1108-FPT

  • Page 1 Owner's Manual Model #F-1108-FPT OUTDOOR FIRE PIT ANS Z21.97-2010, Outdoor Decorative Gas Appliances CGA CR 97-003 Outdoor Gas Fireplaces Questions, problems, missing parts? Before returning product to your retailer, call our customer service department at 1-888-775-1330, 8 a.m. - 4 p.m. PST, Monday - Friday.
  • Page 2 REPLACEMENT PARTS LIST PART DESCRIPTION QUANTITY Removeable Burner Cover Table Top Burner Burner Bracket Side Panel Side Panel Side Panel Gas Tank Bracket(side) Gas Tank Support(bottom) Door frame Bolt(8*38mm,Washer,Spring washer) Bolt(6*18) Wrench Allen wrench Printed in China...
  • Page 3 HARDWARE CONTENTS Bolt (6*18mm) Bolt(8*38mm) Wrench Allen wrench Washer Washer Qty. 1 Qty. 1 Spring washer Qty. 11 Qty. 4 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. This appliance has been tested to and complies with the ANS Z21.97-2010, Outdoor Decorative Gas Appliances CGA CR 97-003 Outdoor Gas Fireplaces.

  • Page 4: Safety Information

    SAFETY INFORMATION DANGER DANGER • EXPLOSION - FIRE HAZARD • CARBON MONOXIDE HAZARD • Keep solid combustibles, such as building materials, • This fire pit is a combustion appliance. All combustion paper or cardboard, a safe distance away from the appliances produce carbon monoxide (CO) during the fire pit as recommended by the instructions.
  • Page 5 SAFETY INFORMATION WARNING WARNING California Proposition 65 • This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and described as a “rotten egg”...
  • Page 6 OPERATION CHECKLIST Operation Checklist For a safe and pleasurable heating experience, perform this check before each use. Before Operating: 1. I am familiar with entire owner’s manual and understand all precautions noted. 2. All components are properly assembled, intact and operable. 3.
  • Page 7 ASSEMBLY INSTRUCTIONS 1.Connect (F)(E)(E1)(I) Side panel using (K) Bolt(6*18mm), like the figure 1 show. Be careful the side of (E)Side panel with a hole should be on the bottom to place The(G)gas Tank Bracket(side) Hardware Used Bolt(6*18mm) 2.Use (K)Bolt (6*18) to connect and fix the (G)Gas Tank Bracket and (H)Gas Tank Support onto the unit.(Refer to the following figures, and DO NOT OVER TIGHTEN the screws)
  • Page 8 ASSEMBLY INSTRUCTIONS 3.Fix the Burner Brecket(D)Burner(C) onto the Unit, Make sure the switch of the burner is aligned with the Side Panel(E). Hardware Used 4. Fix the (B)Table Top on the Side panel,using (J) Bolt(8*38mm)Washer, Spring Washer. Hardware Used Bolt (8*38mm) Washer, Spring washer...
  • Page 9 ASSEMBLY INSTRUCTIONS 5.Put the(A) burner cover on the burner. 6. Connect hose and regulator to cylinder. The propane gas and cylinder are sold separately. Use a standard 20 lb. propane cylinder only. Use this heater only with a propane vapor withdrawal supply system.
  • Page 10 ASSEMBLY INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S.
  • Page 11 OPERATION INSTRUCTIONS Leak Check WARNING • Perform all leak tests outdoors. • Extinguish all open flames. • NEVER leak test when smoking. • Do not use the fire pit until all connections have been leak tested and do not leak. Hose / Regulator Regulator / Cylinder connection...
  • Page 12 OPERATION INSTRUCTIONS DANGER WARNING • CARBON MONOXIDE HAZARD Very hot while in operation! Never lean over the fireplace while in use. • For outdoor use only. Never use inside house, or other Do not touch tile of spark guard while the fire pit is in unventilated or enclosed areas.
  • Page 13 OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this fire pit. Holding in the control know for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When fire pit is ON: Burner will display tongues of blue and yellow flame.
  • Page 14 CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Fire pit does NOT reach the desired temperature. Fire pit glow is excessively uneven. Fire pit makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage fire pit and render it unsafe for use.
  • Page 15 TROUBLESHOOTING Wait until the propane cylinder Propane cylinder is frosted over warms up and becomes unfrosted Burner won’t light Blockage in orifice Clear blockage Control knob is not in ON position Turn control knob to ON Turn cylinder valve OFF and fill the Gas pressure is low cylinder Outdoor temperature is less than 40ºF and...
  • Page 16 If you have any questions regarding the warranty or service, please call our toll free number: 1-888-775-1330. AZ PATIO HEATERS 8550 N 91 AVE, SUITE C-25 PEORIA, AZ 85345...
