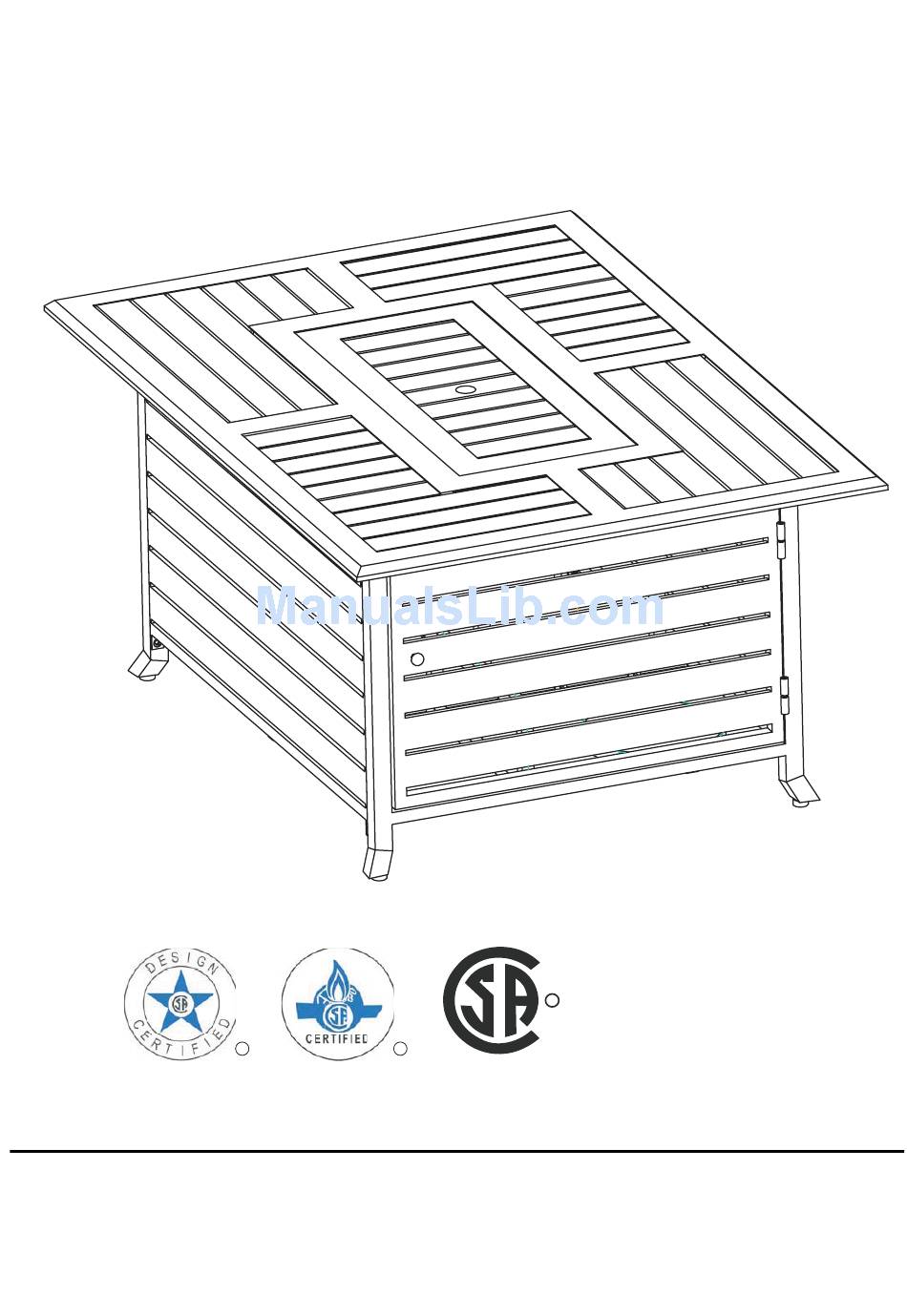

Owner ´s Manual
OUTDOOR
ANS Z21.97-2010, Outdoor Decorative Gas Appliances
CGA CR 97-003 Outdoor Gas Fireplaces
Q ue s ti o n s , pr o blems ,m is si ng pa rt s?
Before returning product to your retailer,call our customer service department at 1-888-775-1330 ,
8 a.m.-4 p.m.PST,Monday-Friday.

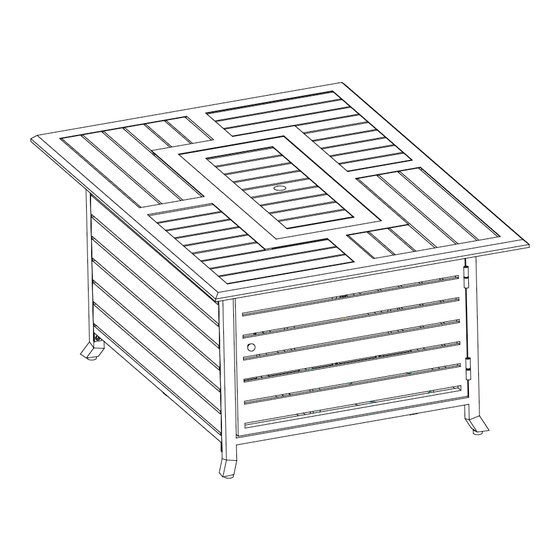

FIRE PIT
R
R
Model # FS-1010-T-12
R
C
US
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS-1010-T-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AZ Patio Heaters FS-1010-T-12

Summary of Contents for AZ Patio Heaters FS-1010-T-12

  • Page 1 Owner ´s Manual Model # FS-1010-T-12 FIRE PIT OUTDOOR ANS Z21.97-2010, Outdoor Decorative Gas Appliances CGA CR 97-003 Outdoor Gas Fireplaces Q ue s ti o n s , pr o blems ,m is si ng pa rt s? Before returning product to your retailer,call our customer service department at 1-888-775-1330 ,...

  • Page 2: Replacement Parts List

    REPLACEMENT PARTS LIST PART DESCRIPTION QUANTITY Bur ne r C o v e r Table Top Burner Burner Bracket Side P anel 1 Side Panel 2 Support frame Gas Tank Bracket(side) Gas Tank Support(bottom) Guard bar Door frame olt(8*50mm,Washer,Spring washe r,Nut) Bolt(6*20mm)、Washer Screwdriver Wrench...

  • Page 3: Hardware Contents

    HARDWARE CONTENTS Bolt(8*50mm) Wrench Screwdriver Bolt (6*20 Nut(M8) Qty. 1 Qty.1 Washer Washer Spring washer Qty. 4 Glass Beads Allen wrench Self-tapping screw(4*15 Qty. 1 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product.

  • Page 4: Explosion - Fire Hazard

    SAFETY INFORMATION DANGER DANGER EXPLOSION - FIRE HAZARD CARBON MONOXIDE HAZARD Keep solid combustibles, such as building materials, This fire pit is a combustion appliance. All combustion paper or cardboard, a safe distance away from the appliances produce carbon monoxide (CO) during the fire pit as recommended by the instructions.

  • Page 5: Burn Hazard

    SAFETY INFORMATION WARNING WARNING California Proposition 65 This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and "...

  • Page 6: Operation Checklist

    OPERATION CHECKLIST Operation Checklist For a safe and pleasurable heating experience, perform this check before each use. Before Operating: 1. I am familiar with entire owner’s manual and understand all precautions noted. 2. All components are properly assembled, intact and operable. 3.
  • Page 7 ASSEMBLY INSTRUCTIONS using (M) Bolts (E)(F)( K ) and 1.Connect Side panels show figure 1 sure (6*20mm)、Was hers (M6), wi th the hole on the bottom. the s side panel (E) is installed Hardware Used Bolt(6*20mm) Washer (M6) 2. Using 4(M) Bolts (6*20mm) and Was hers (M6) to and Gas T ank connec t the Gas Tank Bracket...
  • Page 8 ASSEMBLY INSTRUCTIONS 3.Fix the Burner(C) onto the Burner Bracket (D) using the Self-tapping screws(R).Make sure the switch of the burner alig ned with the Side Panel(E). Hardware Used mm ) Self-tapping screw(4*15 4. Fix the (B)Table Top on the Side panel,using (L) Bolt(8*50mm) Washer, Spring Washer Hardware Used...
  • Page 9 ASSEMBLY INSTRUCTIONS 5.Put the Glass Beads (Q) around the Burner (C). Put the Burner Cover (B) on the burner when the Fire Pit is NOT in use or after use. 6. Connect hose and regulator to cylinder. The propane gas and cylind er are sold separately. Use a standard 20 lb.
  • Page 10 ASSEMBLY INSTRUCTIONS A dent ed, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a p ropane cylinder with a damaged valve co nnection. The propane cylinder must be constructed and ma rked in accor dance with the specifications f or LP gas cylinder s of the U.S.
  • Page 11 OPERATION INSTRUCTIONS Leak Check WARNING Perform all leak tests outdoors. Extinguish all open flames. NEVER leak test when smoking. Do not use the fire pit until all connections have been leak tested and do not leak. Hose / Regulator Regulator / Cylinder connection connection 1.
  • Page 12 OPERATION INSTRUCTIONS DANGER WARNING • CARBON MONOXIDE HAZARD Very hot while in operation! Never lean over the fireplace while in use. • For outdoor use only. Never use inside house, or other Failure to comply with these instructions may result in unventilated or enclosed areas.

  • Page 13: For Your Safety

    OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this fire pit. Holding in the control knob for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When fire pit is ON: Burner will display tongues of blue and yellow flame.
  • Page 14 CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Fire pit does NOT reach the desired temperature. Fire pit glow is excessively uneven. Fire pit makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage fire pit and render it unsafe for use.

  • Page 15: Troubleshooting

    TROUBLESHOOTING Wait until the propane cylinder Propane cylinder is frosted over warms up and becomes unfrosted Burner won`t light Blockage in orifice Clear blockage Control knob is not in ON position Turn control knob to ON Turn cylinder valve OFF and fill the Gas pressure is low cylinder Outdoor temperature is less than 40ºF and...
