Summary of Contents for Newwave ThermoChef Natura

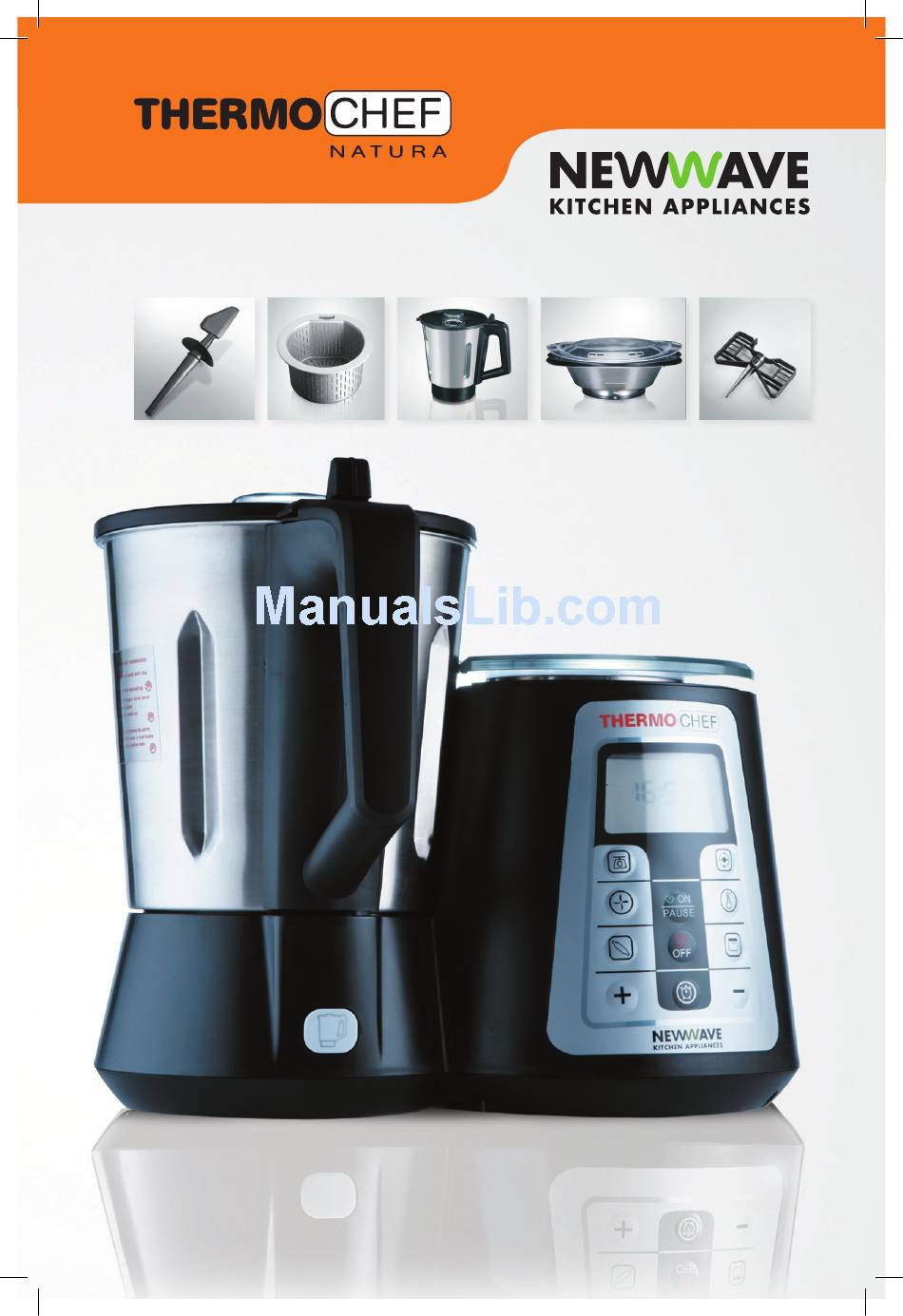

- Page 1 Instruction Manual...
-
Page 2: Table Of Contents
CATALOGUE Safety notes Risk of Electric Shock Risk of Blade injury Risk of Projection of High-temp Food Avoid scalding by out-flowing vapor or condensed water bubble Risk of scalding by hot spare parts Risk of injury by splashed food Risk of using foreign ingredients or unwarrantable parts Possible shift of Thermo Chef Natura Damage of hot vapor Risk of Other hot resources... - Page 3 CATALOGUE Instruction for use Technical parameter Start to use Explanation of characters in the display Button instruction Operational instruction for functions Things to remember Sleep mode Electronic motor protection First use and overload Cleaning How to clean the blender bowl and the bowl lid How to clean blade base How to clean steamer How to clean the main body...
-
Page 4: Safety Notes
SAFETY NOTES Thermo Chef Natura can be used in home (or similar Risk of Electric Shock places such as hotels or restaurants). Thermo • Please unplug the application when cleaning Chef Natura is conforming with the most advanced • Please do not immerse the main body in the SAA safety standard. -
Page 5: Avoid Scalding By Out-Flowing Vapor Or Condensed Water Bubble
SAFETY NOTES Avoid scalding by outflowed vapor or as a soup spoon or spatula for blending, or else condensed water bubble they will bump with the blender blade components • Be aware vapour will outflow through the top which will cause danger. cover or sides. -
Page 6: Technical Data
TECHNICAL DATA Motor power : 550W Motor Rotation range: 110 to 8700 rounds per minute Power consumption: 1000w, over heat protection Heating device device. Electronic Scale Range of weighting: 0g to 3000g. resolution rate: 4g Housing Material: stainless steel, maxi capacity: 2L, with heating Steamer system and temperature sensor 220-240Vac, 50/60Hz... -
Page 7: Your Thermo Chef Natura
YOUR THERMO CHEF When opening the packing box, take out all the accessories and get to know them according to the components list. The spare parts are as follows: 1. Main body 2. Steamer cover 3. Steaming mesh 4. Steamer 5. - Page 8 YOUR THERMO CHEF...
-
Page 9: Accessories
ACCESSORIES Before you start to use Thermo Chef Natura, we would like to introduce the accessories to you in detail: Blender bowl: There are bowl capacity graduations on one side of the bowl (see picture 1). Each graduation represents 0.5L. The maximum capacity of the bowl is 2.0L. -
Page 10: Scraper Bar
ACCESSORIES • Soft food such as meat or fish balls should be put in the basket filter to stew. Easy to dismantle the basket filter: put the scraper shaft into the notch Pressing direction and press the scraper to the direction of the edge to finish the assembly. -
Page 11: Butterfly Bar
ACCESSORIES Butterfly bar: • Installed on the blade, the butterfly bar can help to mix fresh milk or egg white. It is also the best utensil to make milk pudding or milk mixture. • When boiling milk or making pudding or fruit puree, the butterfly bar can prevent the food from binding together and keep the food mixing. - Page 12 ACCESSORIES Combination of the steamer: There are two combinations: There is no need to use the cup lid if steamer is used. Install the steamer onto the blender cup according to the way of assembling cup lid. Combination 1 Steamer + steaming mesh + steamer lid (Picture 9). This is the best combination way for cooking various food.
-
Page 13: Instructions Before Use
INSTRUCTIONS BEFORE USE Before you start At the early stage of using this unit, there will be a light peculiar smell produced by the motor which is normal. After a period of time, this smell will disappear. • Please put the unit on a clean, stable and flat table. •... -
Page 14: Before Use
INSTRUCTIONS BEFORE USE Reassemble blade base: The assembly procedure of blade base is just opposite to “dismantling blade base”. NOTICE Be careful not to be hurt The blade is very sharp. Please wrap the blade with Washcloth when dismantling or assembling the blade base. -
Page 15: Instruction For Use
INSTRUCTION FOR USE Explanation of characters in the display Before using the Thermo Chef, please put the appliance safely on the table. Do not put it too close to Display “ ” the edge, and keep it away from the built-in wardrobe meaning: heating function or hanging bracket. -
Page 16: Button Instruction
INSTRUCTION FOR USE In scale mode, it shows the weight on the scale plate • kneading dough function. with “g” as the unit. But if the user set the time, in 4. Turbo boost button“ ” working mode, the left time will be countdown in the •... -
Page 17: Operational Instruction For Functions
INSTRUCTION FOR USE 10. start “ ” user will forget to turn off it and with “End” appearing • In electricity saving mode, if you press this button for on the display and warning sound to show the end of 2 seconds, then the appliance is in local time setting the operation. - Page 18 INSTRUCTION FOR USE 4. Blending Blending + timer + adjusting speed Note: step 1 and step 2 are in no particular order. Processing beef: each time 200g can be processed • Step 1: choose blending function and set up rotation and the max continuous operation can continue for •...
- Page 19 INSTRUCTION FOR USE • Step 5: rotation speed is allowed to be reset in • Step 2: start the appliance. After the button“ ” blending mode.Note: this step can be chosen or is pressed, the appliance starts to work at skipped.Refer to: step 3 in chapter of “blending + the set temperature.
- Page 20 INSTRUCTION FOR USE • Step 4: the temperature can be reset in heating • Note: mode. Note: this step can be chosen or skipped. a) Condition of adjustable rotation speed: the Refer to: step 3 in the chapter of “heating + flickering icon “...
- Page 21 INSTRUCTION FOR USE 7. Cooking 9. Electronic scale: Note: the max load of the weighing plate: 3Kg. Error (Note: step 1 and 2 are in no particular order) code of “E4” will appear if the weight exceeds the max • Step 1: choose cooking. After pressing cooking weight of the scale.
-
Page 22: Things To Remember
THINGS TO REMEMBER Sleep mode First use and overload When the appliance is used for the first time or if If the power switch of the Thermo Chef Natura is on the motor is overloaded during food preparation, but without any operation, it will enter into sleep mode the motor may transmit some abnormal smells. -
Page 23: Cleaning
CLEANING Just like all new appliances or tableware, Thermo Chef Natura should be cleaned thoroughly before use, especially the blade, bowl cover, scraper, blending bowl and basket filter. How to clean the blender bowl and the bowl lid Now, clean the inside and outside of the bowl with hot water (not including the blade) (picture 1) Wash the scraper shaft, butterfly bar, basket filter, measuring cup, bowl lid and steamer.If there are sticky... -
Page 24: How To Clean The Main Body
CLEANING IMPORTANT NOTICE All the parts except the main body and blending bowl can be washed in the dish washer. Some ingredients such as curry and carrot juice may stain the container. How to clean the main body Please pull out the plug from the outlet before cleaning. NOTICE Avoid risk of electric shock Please do pull out the plug from the outlet when you... -
Page 25: Notes For Your Own Recipes
NOTES FOR YOUR OWN RECIPES Please refer to the attached recipe book during cooking which will make the cooking simpler and more effective. The order of ingredients Please take the order of ingredients you will use into account when preparing the food according to your recipe. -
Page 26: Trouble Shooting
TROUBLE-SHOOTING Thermo Chef has a self-diagnostic function, namely when the fault happens, the fault information will be shown. If the fault still cannot be solved by unplugging the plug and connecting it again, Please contact our customer service department and tell us the fault code displayed on the screen. -
Page 27: Handy Suggestions
HANDY SUGGESTIONS It is important before starting to work with your Thermo Chef Natura to please read the attached instructions to get the most out of your appliance and avoid warranty issues. It is also important to be aware of the safety and management requirements referred to in the Instruction Manual. The ability to select the time affects the degree of milling, baking, spraying, etc. -
Page 28: Measurement Guide
MEASUREMENT GUIDE Use as a Guide In other foods 1 tsp 1 teaspoon You may also find useful the table measurements 1 knob of butter 10 g that we offer below, although it should be noted that 1 onion 100 g the measurement of fluids is usually expressed in 1 medium lemon 100 g... -
Page 29: Warranty
2 YEAR WARRANTY Date of Purchase Name of Retail Outlet Address of Retail Outlet Customer Name Customer Address Email Address Please return this copy to New Wave Kitchen Appliances to receive a 2 year limited warranty on your oven or log onto newwaveka.com.au and fill out your warranty on line. -
Page 30: New Wave Appliance Range
NEW WAVE APPLIANCE RANGE 5-in-1 Cucina Multi Cooker Pizza Makers Induction Cook Top Crema Latte - Milk Frother... -
Page 31: After Sales Service
2. Enclose your name and address on all correspondence 3. Give the reason why you are returning it 4. Send it to our Customer Service Department at the address below: Customer Service Department Newwave Kitchen Appliances PO Box 421 Moorabbin BC Moorabbin VIC 3189 Phone: 1800 337 211 Email: info@newwaveka.com.au... - Page 32 Newwave Kitchen Appliances PO Box 421 Moorabbin BC Moorabbin VIC 3189 Phone: 1800 337 211 Email: info@newwaveka.com.au newwaveka.com.au...
