Summary of Contents for PROEL PC260

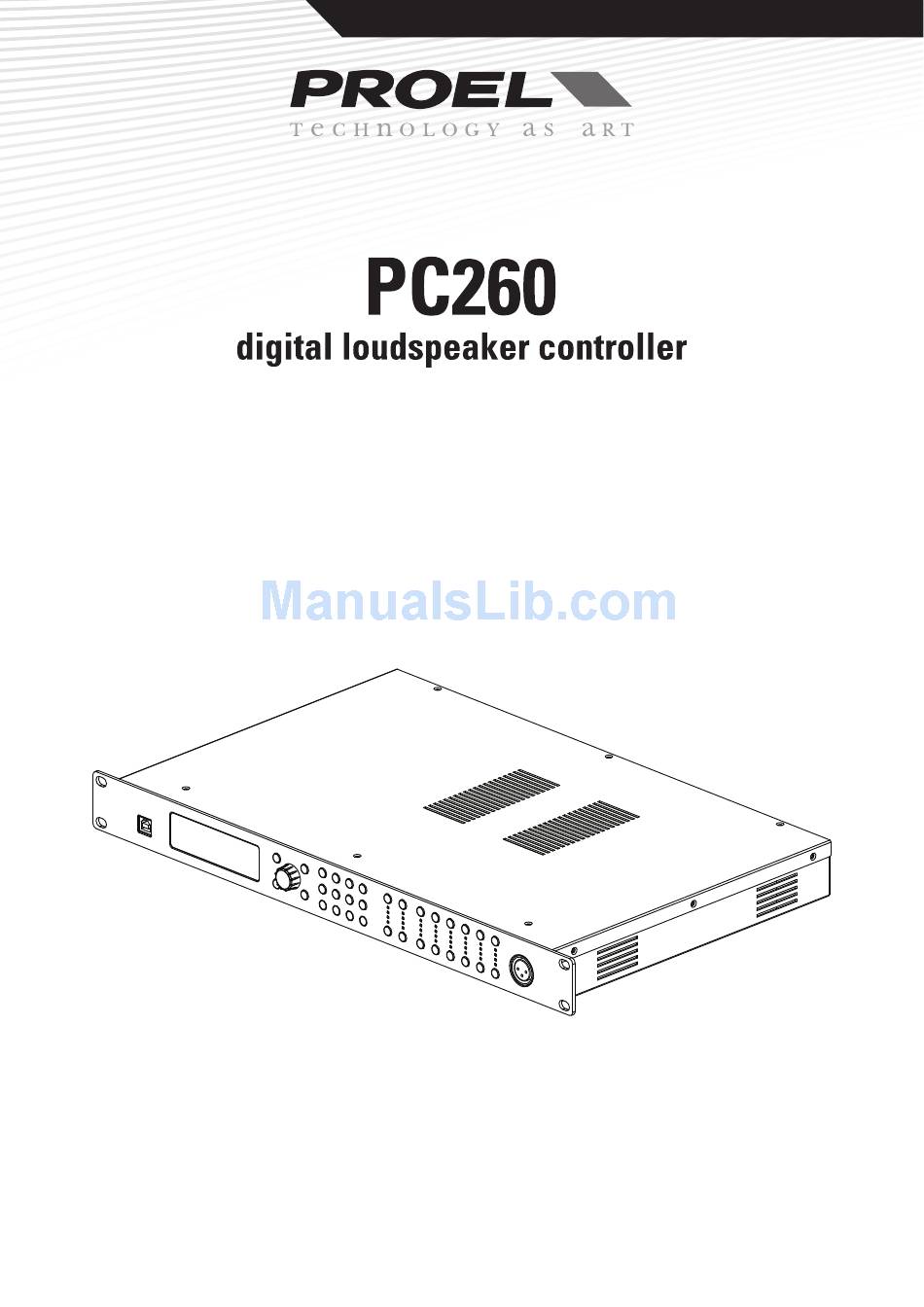

- Page 1 USER’S MANUAL ENGLISH www.proel.com...
-
Page 3: Table Of Contents
20 . PRONET Network OUT connector . . . . . . . . 12 PC260 2 x 2 xover + 1 zone 21 . PRONET Network IN connector . . . . . . . . . 12 (advanced live or disco pub system) . -
Page 4: Fcc Compliance Notice
FCC COMPLIANCE NOTICE This is a class A digital device, which is marked for use in a commercial, industrial or business environment, exclusive of used by the general public or used in the home . This device complies with Part 15 of the FCC Rules . Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause... - Page 5 PROEL . PROEL reserves the right to make any aesthetic, functional or design modification to any of its products without any prior notice . PROEL assumes no responsibility for the use or application of the products or circuits...
-
Page 6: Safety And Precautions
Noise / Hum • Whenever possible, preferably use only balanced cables. Unbalanced lines may also be used but may result in noise over long cable runs . • Sometimes it helps to plug all audio equipment into the same AC circuit so they share a common ground. CE CONFORMITY • Proel PC260 complies with directive 2004/108/EC (EMC), as stated in EN 55103-1 and EN 55103-2 standards and with directive 2006/95/CE (LVD), as stated in EN 60065 standard. -
Page 7: Packaging, Shipping And Complaint
This warranty does not extend to damage resulting from improper installation, misuse, neglect or abuse . Proel S .p .A . will verify damage on returned units, and when the unit has been properly used and warranty is still valid, then the unit will be replaced or repaired . Proel S .p .A . is not responsible for any "direct damage" or "indirect damage" caused by product defectiveness. -
Page 8: Overview
OVERVIEW PRESET RECALL DATA VALUE SELECT PAGE USB PORT DISPLAY AND SAVE AND INPUT SCROLL DIGITAL AUDIO TERMINATE PRONET NETWORK MAINS AC POWER OUTPUT CONNECTIONS INPUT BUTTON CONNECTIONS... - Page 9 CHANNEL SELECT CHANNEL MUTE EXTERNAL MIC ESCAPE BUTTON PROCESSING MENU LED METERS BUTTONS BUTTONS INPUT FOR RTA OUTPUT CONNECTIONS INPUT PAD BUTTON GROUND LIFT BUTTON INPUT CONNECTIONS...
-
Page 10: Introduction
1. USB port USB port for connection to a PC running Windows XP, Vista, Seven 32 or 64 bit . Using the PRONET application, the PC260 can be operated, edited and configured for installation with an easy to use, intuitive interface . -
Page 11: Esc Button
-6dBu (Yellow) LED indicators . As the PC260 is a digital audio device, the digital clipping produces very unpleasant results, so the Clip (red) LED should never light . If the PC260's input does clip, reduce the output level of the connected mixer . The -6dB PAD button at the rear panel can be used for adjusting the input level also . -
Page 12: Rta Mic Input
The PC260 features a standard IEC A .C . inlet that will accept universal power cords . The PC260 power supply is auto-ranging and can accept voltages from 100 - 240 V AC, 50 – 60 Hz . Only A .C . cords approved for use in your country should be connected to the PC260 . -
Page 13: Cable Connections
NE8MC, reliable self-made cables require the use of a good crimping tool that usually is too much expensive . The CAT5 or CAT6 net cables are readily available in any computer dealers . The NEUTRIK NE8MC ethercon carrier is available from PROEL . -
Page 14: Operating Mode
RUN TIME MODE The run time mode is the normal operating mode of the PC260, then after turn on the unit the following screen appears: The display shows the main status of the unit: name, preset, SPLM status, routing, real time clock . All control buttons are active . -
Page 15: Recall A Preset
Now you have to enter a name: Rotate the DATA knob to select the letter or symbol, then push the DATA knob to skip to the next character in the name field . The PC260 provides the complete ANSI character set, in this order: !"#$%&'()*+,-./0123456789:;<=>?@... -
Page 16: Setup
. DEVICE NAME This page is where the PC260 name is set . Push the DATA knob to navigate then rotate the DATA knob to scroll the value, confirm all data pressing SETUP . CHANNEL NAME... -
Page 17: Firmware Update
TURN OFF and TURN ON again the PC260 . LOCK This page is where the PC260 can be locked or unlocked by the installer/operator . There are four LOCK levels available, indicated by a padlock in the first line of the display:... -
Page 18: Processing Menu
-30dB to +15dB for the output channels . The TRIM value is present only in the output channels and can be set between -6dB to +6dB . This parameter can be adjusted also if the PC260 unit is in PARTIAL lock status . -
Page 19: Delay
This figure shows the frequency spectrum of an output with Xo1 set as H-pass, Butt 24, 100Hz and Xo2 set as L-pass, Butt 24, 1KHz all signal highlighted is cut out . TYPE The PC260 offers a wide choice of HiPass and LoPass filters with different slopes and responses . The Type parameter defines the characteristics of the crossover filter: • Butterworth: 6dB, 12dB, 18dB, 24dB, 48dB... -
Page 20: Geq - Graphic Equalizer
= d / c where c is the speed of sound (about 344 m/s) . The PC260 processor also allows the delay to be set directly in meters or feet . Example: If the subwoofer is positioned 2 metres forward from the line of satellite units, the equation would work as follows: d = 2 m T = d / c = 2 / 344 = 0.006 s = 6 ms... -
Page 21: Peq - Parametric Equalizer
DW buttons for scrolling the pages of the five filters available for each input and output . The PC260 PEQ provides a very powerful and complex set of multi-mode filters . Care must be taken when configuring these filters as they interact and can produce unexpected results . - Page 22 Low-shelf. A shelf filter has three parameters that determine the frequency response: frequency, gain and slope . In a Low-shelf filter the frequencies below its frequency setting can be boosted or cut . The extent of width of the filter’s transition band is the Slope, it can be fixed at 6 or 12dB or vary in this range .
-
Page 23: Deq - Dynamic Equalizer
TYPE (PC260) TYPE (PRONET) FREQ GAIN SHAPE SLOPE Peak Param . Eq . 15 .6 Hz - 22 .627 KHz +/- 15 dB Q = 28 .5 - 0 .4 / oct = 0 .05 - 3 .0 Notch Notch 15 .6 Hz - 22 .627 KHz... - Page 24 Time definitions for DEQ cells. TIME Determines how quickly the DEQ filter reacts to signals that reach Label Attack Time (ms) Release Time (ms) the threshold (attack) and how slowly it is restored after signal goes Fast 1 goes away from the threshold (release) . The table to the left shows all possible settings and the relative attack and release time .
-
Page 25: Dyn - Dynamic Processor
. Use PG UP and PG DW buttons for scrolling between the two pages available . Each input and output of the PC260 has a dynamic processor hat can be configured as limiter or compressor and that provides a very complete set of parameters to control the sound dynamics . - Page 26 . The PC260 processors, like other loudspeaker processors, can protect the speaker from excessive heating using the OUTPUT LIMITER (though it is not possible to protect a speaker from every possible cause that occurs to damage it, such as over-excursion, very unnatural sound signals or an erroneous cross-over filter setting) .
-
Page 27: Spl Management
INSTALLATIONS . Using the SPLM the user can program changes in the settings of the audio system at a specified time in a specified day of the week . The PC260 has an internal clock that keeps the time also if the unit is turned off, so when an SPLM program is activated, the event programmed can be performed in real time . -
Page 28: Rta
The PC260 processor has a built in 1/3 octave Real Time Analyzer, which is a useful tool for measuring the acoustic response of the sound system in order to make the proper EQ adjustments . This RTA is not a precise measurement system such as dedicated computer software, but it can be used to get a general overview of the system's response in a not too much reverberant and noisy enviroment . -
Page 29: Typical Configurations
HIGH sat out amp2 MID sat out amp1 LOW sub out PC260 2 x 2 xover + 1 zone (advanced live or disco pub system) high low full high low full amplifier rack input output amp3... -
Page 30: Pronet Network
To configure a single processor like PC260 you can use a direct connection from your computer to the front panel USB port: PC260 has both a USB and a network connection, so you'll need to select which connection you want to use in the SETUP menu (see above in this manual) . -
Page 31: Assign The Id Number
Note 1: If you add a new device as the last device in a Pronet network you have to re-set correctly the termination . Note 2: Each device is issued from the PROEL factory has ID=1 . Often also a device that returns from a technical assistance center will be ID=1 . -
Page 32: Usb2Can Converter
USB2CAN converter To work with a Pronet network you need a USB2CAN converter that converts the USB data flow into the CAN bus . The USB2CAN converter needs to be connected to a USB 2 .0 full speed port . USB2CAN Features: ARM7 microcontroller inside Galvanic isolation 500 V... -
Page 33: Clock Battery Replacement
IMPORTANT AT THIS POINT ALWAYS FOLLOW CAREFULLY THESE TWO STEPS IN ORDER TO AVOID ABNORMAL CONSUMPTION OF THE BATTERY 6 . SWITCH ON THE PC260 AND WAIT SOME SECONDS UNTIL THE DISPLAY SHOWS THE INITIAL PAGE . 7 . SWITCH OFF, WAIT 2 SECONDS THEN SWITCH ON AGAIN . -
Page 34: Technical Specification
TECHNICAL SPECIFICATION Input Section Inputs 2 electronically balanced Input Impedance > 10 kohm Maximum Input Level +20 dBu (+26 dBu with -6dB pad) Input gain +6 dB to –30 dB in 0,2 dB steps Input Connectors XLR F - XLR M to link Digital Input AES/EBU (32 - 96 KHz sample rate converter inside) Output Section... -
Page 35: Appendix A (Signal To Power)
Appendix A (signal to power) With the following table is possible to set the limiters without using a scientific calculator . To explain how to use it we make an example . You have two loudspeaker with this data: Power handling: 250 Waes Nominal Impedance: 8 ohm and an amplifier capable of 600 Wcontinuos at 4 ohm with a FIXED GAIN of 32 dB, so the loudspeakers are arranged in parallel resulting a power handling of 500 Waes at 4 ohm,... - Page 36 PROEL S.p.A. (World Headquarters - Factory) Via alla Ruenia, 37/43 64027 Sant’Omero (TE) - ITALY Tel. +39 0861 81241 Fax +39 0861 887862 REV . 30/13 CODE 96MAN0040 www.proel.com...
