StorageWorks EK–SMRAB–IG Installation Manual

Raid array 310 v3.1 for hp–ux
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Getting Started
RAID Array 310 V3.1 for HP–UX
Installation Guide
EK–SMRAB–IG. B01
Digital Equipment Corporation
Maynard, Massachusetts

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EK–SMRAB–IG and is the answer not in the manual?

Questions and answers

Related Manuals for StorageWorks EK–SMRAB–IG

Summary of Contents for StorageWorks EK–SMRAB–IG

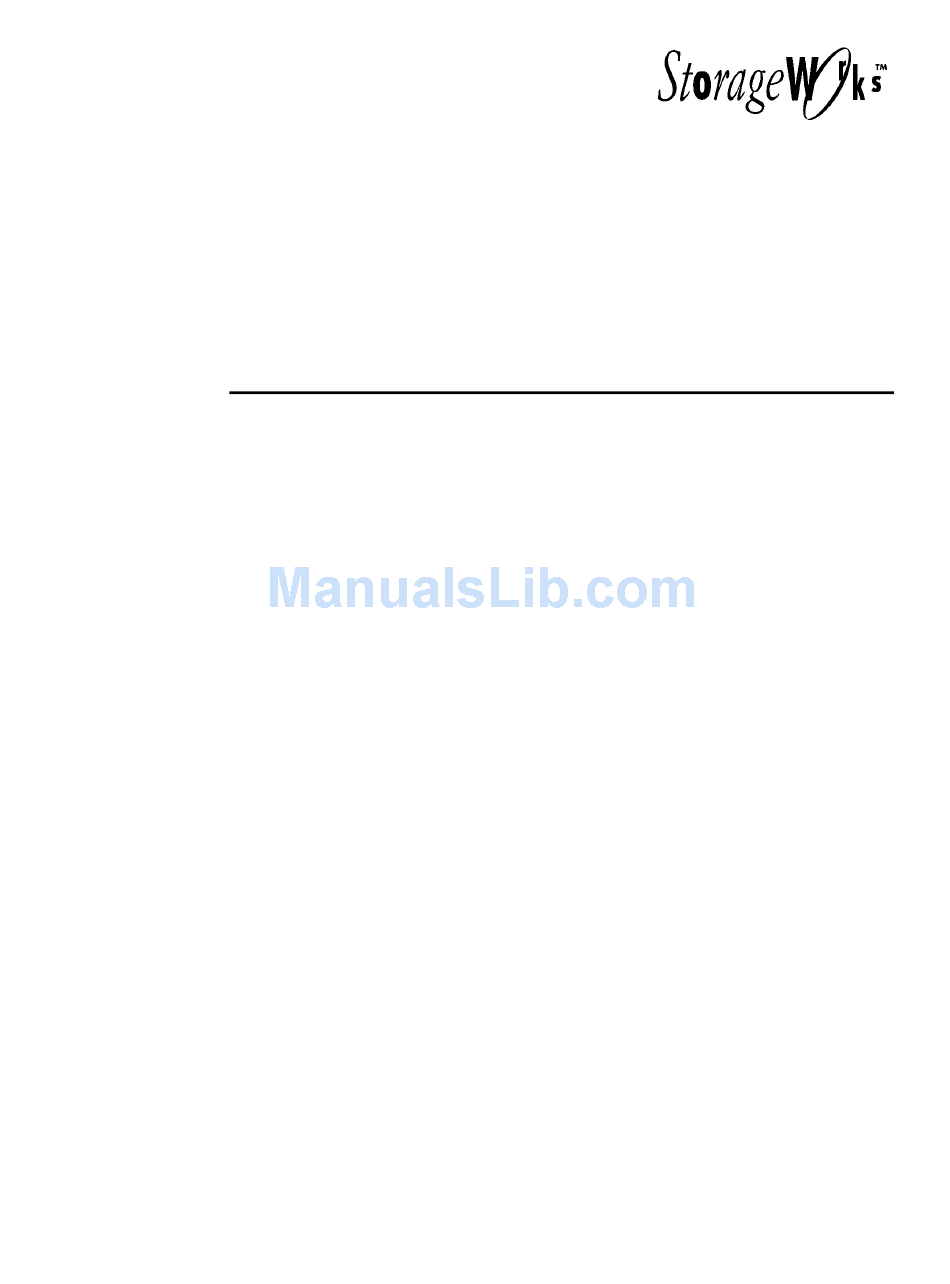

  • Page 1 Getting Started RAID Array 310 V3.1 for HP–UX Installation Guide EK–SMRAB–IG. B01 Digital Equipment Corporation Maynard, Massachusetts...
  • Page 2 The following are trademarks of Digital Equipment Corporation: DEC, RAID Array 310, StorageWorks, and the Digital Logo. UNIX is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company, Ltd.

  • Page 3: Table Of Contents

    Add the RAIDset as a Logical Unit ..............2–8 2.7.3 Set Writeback Cache ..................2–8 2.7.4 Verify and Record Your Configuration..............2–9 3 Preparing the HP 9000 Series Systems for Use with the StorageWorks Controller Installing Hardware ....................3–1 Installing the Host Device Driver................3–2 3.2.1 Determine the Device Driver Required ..............3–2...
  • Page 4 Getting Started – RAID Array 310 V3.1 for HP-UX 4 Installing Command Console Agent on Your Host System Introduction ......................4–1 Minimum System Requirements ................4–1 ® Installing and Configuring CC Agent for HP-UX ..........4–2 Installing and Configuring Automatically............. 4–2 Running CC Agent ....................
  • Page 5 Mounting the Base ....................1–4 1–4 Subsystem AC Power Receptacles................1–6 1–5 Subsystem CLI Serial Connector ................1–7 1–6 StorageWorks SCSI Bus Port and Default SCSI ID Assignment ......1–10 2–1 Distribution Example....................2–6 C–1 Select Send Binary Files from the Transfers Menu ..........C–8 C–2 Select the V31Z.IMG File ...................

  • Page 7: Revision Record

    The following revision history lists all revisions of this publication and their effective dates. The publication part number is included in the Revision Level column, with the last entry denoting the latest revision. This publication supports the StorageWorks RAID Array 310 Subsystem.

  • Page 9: About This Guide

    Intended Audience This guide is intended for administrators of StorageWorks RAID Array 310 Subsystems. Installing the StorageWorks RAID Array 310 Subsystem requires a general understanding of UNIX system administration and product installation procedures...
  • Page 10 This chapter describes how to install a copy of the Command Console (CC) Agent on each of your host systems connected to StorageWorks RAID Array 310 subsystems. You can install and configure the CC Agent automatically, using a script, or manually by copying files from the CC Agent distribution CD-ROM and editing Agent configuration and your host system ASCII files.
  • Page 11 About This Guide Conventions This guide uses the following documentation conventions: Table 2 Style Conventions Style Meaning boldface monospace type To be input by the user and filenames plain monospace type Text italic type For emphasis and manual titles Represents the HP-UX system prompt. Do not type it as part of information given here as to be input by the user.

  • Page 13: Getting Started

    This section provides an overview for preparing and installing RAID Array 310 for HP-UX. Detailed information is contained in Chapters 1 through 5. Thank you for purchasing a StorageWorks RAID Array 310 Subsystem. The following is an overview of the installation steps that are required.
  • Page 14 Before starting your installation, follow these steps: • Verify the availability of user-supplied hardware and software. • Inventory the contents of the StorageWorks RAID Array 310 Subsystem platform kit. • Inventory the contents of the StorageWorks RAID Array 310 Subsystem.
  • Page 15 Getting Started The StorageWorks RAID Array 310 Subsystem provides the following components: • RAID Array 310 Configuration and Maintenance Guide (EK-SMCS2-UG) • RAID Array 310 Deskside Subsystem Hardware User's Guide (EK-SMCPL-UG) • The StorageWorks RAID Array 310 Subsystem • Serial cabling kit (see Section 1.7.1) for connecting the maintenance port of the controller to the serial port of the host computer, a personal computer, or a terminal •...

  • Page 17: Unpacking And Setting Up Your Raid Array 310 Subsystem Components

    Unpacking and Setting Up Your RAID Array 310 Subsystem Components This chapter describes the site preparation and unpacking procedures for the RAID Array 310 Subsystem. It also describes the procedure to recharge the controller write-back cache battery and making the CLI interface connection between the subsystem and the host system or maintenance terminal.

  • Page 18: Unpacking The Raid Array 310

    Getting Started - RAID Array 310 V3.1 for HP–UX Figure 1–1 Minimum Installation Clearance Measurements Unpacking the RAID Array 310 The shipping containers provide maximum protection for the subsystem and all components. We recommend that you unpack the subsystem in the installation area. NOTE Before unpacking the equipment, inspect the shipping carton for signs of external damage.

  • Page 19: Preparing The Raid Array 310 For Operation

    Chapter 1. Unpacking and Setting Up Your RAID Array 310 Subsystem Components Figure 1–2 Unpacking the RAID Array 310 Preparing the RAID Array 310 for Operation Preparing the RAID Array 310 for operation involves the following procedures: 1. Mounting the base as described in Section 1.5. 2.

  • Page 20: Mounting The Base

    Getting Started - RAID Array 310 V3.1 for HP–UX Mounting the Base Mount the stabilizing base to the subsystem as follows: 1. Place the subsystem on its top. 2. Align the base with the bottom of the subsystem as shown in Figure 1–3. 3.

  • Page 21: Country Specific Power Cords

    Chapter 1. Unpacking and Setting Up Your RAID Array 310 Subsystem Components Table 1–1 Country-Specific Power Cords Country Length Order No. Australia 2.5 m BN19H-2E C. Europe 2.5 m BN19C-2E Denmark 2.5 m BN19K-2E India 2.5 m BN19S-2E Ireland 2.5 m BN19A-2E Israel 2.5 m...

  • Page 22: Subsystem Ac Power Receptacles

    Getting Started - RAID Array 310 V3.1 for HP–UX Figure 1–4 Subsystem AC Power Receptacles 1–6 EK–SMRAB–IG. B01...

  • Page 23: Connecting The Cli Serial Interface

    Chapter 1. Unpacking and Setting Up Your RAID Array 310 Subsystem Components Connecting the CLI Serial Interface The RAID Array 310 requires a terminal or terminal emulation program connected to the CLI serial connector on the rear panel of the subsystem (see Figure 1–5). The serial interface default settings are 9600 baud, with 8 data bits, 1 stop bit, and no parity.

  • Page 24: Serial Connection

    Getting Started - RAID Array 310 V3.1 for HP–UX 1.7.2 Serial Connection From the components listed in Table 1–2, construct a cable to connect the DB-9 CLI serial connector on the subsystem to your terminal or the host serial port as follows: •...

  • Page 25: Cli Serial Interface Verification

    Chapter 1. Unpacking and Setting Up Your RAID Array 310 Subsystem Components The following window appears: Establish the connection with the controller. 1. Now you can access the RAID Array 310 with the command: cu -l cul0p0 (note that this is the first entry from the list shown above). 2.

  • Page 26: Charging The Raid Array Controller Cache Battery

    Getting Started - RAID Array 310 V3.1 for HP–UX Figure 1–6 StorageWorks SCSI Bus Port and Default SCSI ID Assignment Charging the RAID Array Controller Cache Battery The Cache Module in the controller contains a battery that may have discharged since the time it was factory-installed.

  • Page 27: Creating An Initial Controller Configuration

    Creating an Initial Controller Configuration This chapter contains instructions for creating an initial configuration for your RAID Array Controller. It also briefly describes the CLI (Command Line Interpreter) and how to access it. The configuration steps include verifying the default configuration, adding drives, creating and initializing RAIDsets, declaring the storagesets as units to the host, and verifying and recording your final configuration.

  • Page 28: Accessing The Cli

    Getting Started – RAID Array 310 V3.1 for HP–UX NOTE The Maintenance Terminal can be any VT100 compatible terminal or terminal emulator. e.g.: PC with a terminal emulation program, such as the Microsoft Windows Terminal program. You can also use most commercially-available communications programs.
  • Page 29 Chapter 2. Creating an Initial Controller Configuration The controller responds with a display similar to that shown below: CONTROLLER: HSZ20 CX44332211 FIRMWARE V27Z-0, HARDWARE A02 SCSI ADDRESS 7 TIME: NOT SET HOST PORT: SCSI TARGET(S) (0, 1, 2) NO PREFERRED TARGETS CACHE: 16 MEGABYTE WRITE CACHE, VERSION 2 CACHE IS GOOD...
  • Page 30 Getting Started – RAID Array 310 V3.1 for HP–UX NOTE The subsystem can be configured with the battery condition LOW, however the Write Back Cache cannot be initialized. You can use the commands, ADD RAIDSET ADD MIRRORSET regardless of the write-back cache battery condition.

  • Page 31: Add Disks To The Configuration

    Chapter 2. Creating an Initial Controller Configuration Add Disks to the Configuration The CONFIG utility locates and adds disks to the controller configuration. Run the CONFIG utility whenever you add new disks to the controller. Enter the following command to start the configuration utility: HSZ20>...

  • Page 32: Setting Up A Communications Lun For A Command Console

    Getting Started – RAID Array 310 V3.1 for HP–UX Figure 2–1 Distribution Example Setting Up a Communications LUN for a Command Console Before installing the agent on the host system, at least one storage device must be configured on the RAID Array 310. This can be any type of storage device. Select a storageset that you plan to configure and that is not likely to change.

  • Page 33: Create A Raidset

    Chapter 2. Creating an Initial Controller Configuration Create a RAIDset The next sections contain examples of two different sets of configuration. Create a RAIDset, Mirrorset, and Stripeset show one set and Create a Striped Mirrorset shows the second set. If your site requires RAIDsets for storage, you must assign disks to each RAIDset. RAIDsets must have at least three members, and can have as many as fourteen.

  • Page 34: Add The Raidset As A Logical Unit

    Getting Started – RAID Array 310 V3.1 for HP–UX 2.7.2 Add the RAIDset as a Logical Unit To make a RAIDset available to the host computer, you must add it as a host logical unit with a unique unit number. The unit number is a one or three digit number preceded by “D”, such as “D0”...

  • Page 35: Preparing The Hp 9000 Series Systems For Use With The Storageworks Controller

    This chapter describes the steps for installing the required device drivers onto HP 9000 Series systems running HP-UX 10.01 or higher. The installation steps include loading the device driver(s) to communicate through the SCSI Adapter to the StorageWorks RAID Array Controller. Installing Hardware Fast wide differential (FWD) host adapters manufactured by HP can be used with the RAID Array 310 and your HP platform.

  • Page 36: Installing The Host Device Driver

    Reboot the system and verify the successful installation (Section 3.2.5) 3.2.1 Determine the Device Driver Required The device drivers you will need for the StorageWorks RAID Array Controller are listed in Table 3–1. This driver is software configurable and is a standard part of the HP-UX operating system.

  • Page 37: Verify Host Adapter And Driver

    Chapter 3. Preparation (HP 9000 Series) 3.2.2 Verify Host Adapter and Driver Verify that you have the required SCSI Host Adapter and Drivers available to your sys- tem. On a Series 800 System (except for D or K Class machine), type: # ioscan -f -d scsi3 The output from this command will be similar to: Class...

  • Page 38: Hp-Ux Series 800 Patch Installation (10.01 Only)

    Getting Started – RAID Array 310 V3.1 for HP–UX 3.2.2.2 Editing the Kernel Using Commands (if not using SAM) 1. Edit the kernel configuration file using a text editor. 2. Reconfigure the kernel using the uxgen command. Refer to “Setting up Devices Using HP-UX Commands” in the Installing Peripherals manual.

  • Page 39: Installing Command Console Agent On Your Host System

    This chapter describes how to install a copy of the Command Console (CC) Agent on each of your host systems connected to StorageWorks RAID Array 310 subsystems. You can install and configure the CC Agent automatically, using a script, or manually by copying files from the CC Agent distribution CD-ROM and editing Agent configuration and your host system ASCII files.

  • Page 40: Installing And Configuring Cc Agent For Hp-Ux

    4 MB free space for Agent installation directory Operating System HP-UX version 10.01, 10.10 or 10.20 Controller Compatibility StorageWorks 2 or 6-port controller running operating firmware Version 3.0, 5.0 or higher. ® 4.3 Installing and Configuring CC Agent for HP-UX CC Agent is the CC Client’s ( the Graphical User Interface) network assistant.
  • Page 41 Chapter 4. Installing the Command Console Agent On Your Host System ***************************************** Agent and SCSI pass-through driver Installation Script ***************************************** Install the SCSI pass-through driver for 800 series NIO systems. NOTE: SYSTEM WILL NEED TO BE REBOOTED Install Agent for all HP-UX systems. Configure the Agent.
  • Page 42 Getting Started – RAID Array 310 V3.1 for HP–UX Please enter the LUN of the pass-through device. ----> This is the SCSI LUN assigned to communicate with the SCSI pass-thru driver in Chapter 2. For this example, Type 0, then the ENTER key. The H/W Path of the host adapter device is: 8 The Target of the pass-through device is: 0 The LUN of the pass-through device is: 0...
  • Page 43 Chapter 4. Installing the Command Console Agent On Your Host System For this example, type 0, then the ENTER key. Waiting... Class H/W Path Driver S/W State H/W Type Description ext_bus scsi3 CLAIMED INTERFACE HP 28696A - Fast/Wide SCSI Interface ext_bus scsi3 CLAIMED...
  • Page 44 Getting Started – RAID Array 310 V3.1 for HP–UX To Configure the subsystem using the Command Console GUI, you need to setup a password. The install program does not echo what you type. The STEAM Agent can operate with other SNMP applications. For this reason, it needs information about the Agent manufacturer and the Enterprise object identifier for use with its MIB.
  • Page 45 Chapter 4. Installing the Command Console Agent On Your Host System 1 = Notification via a TCP/IP Socket (E-Mail, syslog, GUI shows color status indications.) 2 = Notification via the SNMP protocol (E-Mail, syslog, and Informed of only predefined events) 3 = Notification via both TCP/IP and SNMP (All of the options in this category) Enter Error Notification Level (0, 1, 2, 3) :...
  • Page 46 Getting Started – RAID Array 310 V3.1 for HP–UX Type the User e-mail address, then the ENTER key. Enter the error notification level for this user. The user will be notified of errors at this level and above. The possible options are: 1 = Fatal Errors 2 = Warning and Fatal Errors 3 = Info, Warning and Fatal Errors...
  • Page 47 Chapter 4. Installing the Command Console Agent On Your Host System The StorageWorks and Command Console Agent Installation and Configuration Menu. You can make configuration changes at any time by typing: /installation_directory /steam/bin/stgwrks.sh This allows changes to be made to the configuration and operation of the CC Agent. When the Agent Maintenance Option is selected and changes are made to the CC Agent, it must be restarted for changes to become effective.

  • Page 48: Running Cc Agent

    Getting Started – RAID Array 310 V3.1 for HP–UX NOTE If you type “y”, the output is shown below. Be sure to re-enter the configuration menu and restart the Agent. Type y, then press the ENTER key. The STEAM Agent has been terminated. -- Hit RETURN to continue -- The Agent configuration menu is displayed again.
  • Page 49 Chapter 4. Installing the Command Console Agent On Your Host System 4. Type insf -e, then press the ENTER key. The HP system will create the device special files needed to communicate with each storageset. (Use ioscan -nf to verify). Use SAM to set up the filesystem or refer to the System Administration Tasks manual for instructions on the following tasks: •...

  • Page 51: Installing The Command Console Client

    Command Console Plus must be purchased. Install a copy of the Command Console Client program on each of the Intel-based systems on your network from which you want to configure or monitor a StorageWorks RAID Array 310 subsystem. Before you can install Client, make sure that the system you’ll be installing it on meets the minimum requirements listed in Table 5–1.

  • Page 52: Uninstalling Command Console

    Repeat these steps to install a copy of CC client on each of the systems from which you want to configure and monitor a StorageWorks RAID Array 310 subsystem. This completes the installation of the Command Console Client. Refer to Appendix D to start it.

  • Page 53: Appendix A Configuration Records - Blank Forms

    Configuration Records – Blank Forms This appendix contains copies of the two tables used in Chapter 2 to record the configuration of your sys- tem. If additional copies are required, these tables can be reproduced as necessary. EK–SMRAB–IG. B01 A–1...
  • Page 54 Getting Started - RAID Array 310 V3.1 for HP–UX Date_____________ Uses A–2 EK–SMRAB–IG. B01...

  • Page 55: Appendix B Configuration Guidelines

    Configuration Guidelines This appendix contains a list of guidelines that will assist in optimizing the performance of your RAID Array 310 Subsystem. Use the following guidelines, as appropriate, to optimize you system performance. 1. Evenly distribute the devices across separate ports. This permits parallel activities on the controller’s available ports to the attached devices.

  • Page 57: Backing Up Your System

    Upgrading Controller Software This appendix contains the procedures for backing up and upgrading the controller software. Backing Up Your System Before performing the upgrade, backup all data and files from your RAID Array 310 subsystem. Saving the RAID Array 310 Configuration In the following steps, you need to record your configuration for use in the event that the configuration is not correctly preserved during the software upgrade.

  • Page 58: Record Logical Units

    Getting Started – RAID Array 310 V3.1 for HP–UX Extended information: Terminal speed 9600 baud, eight bit, no parity, 1 stop Operation control: 00000004 Security state code: 95018 Configuration backup disabled C.2.1 Record Logical Units List the Logical Units by entering: HSZ20>...

  • Page 59: Logical Unit Table

    Appendix C. Upgrading Controller Software Table C–1 Logical Unit Table USES WRITE READ WRITEBACK PROTECT CACHE CACHE CACHED TRANSFER SIZE D100 Next, list the storagesets you have configured: SWXRC> show storagesets full The controller responds with a display similar to that shown below: Name Storageset Uses...

  • Page 60: Storageset Table

    Getting Started – RAID Array 310 V3.1 for HP–UX Record the storageset information in the Storageset Table (Table C–2). The first row shows how to record for S28 of the sample: NOTE Not all column headings apply to all storagesets Table C–2 Storageset Table STORAGE- USES...

  • Page 61: Upgrading Controller Software Using Windows Nt

    CD−ROM, on which the new software image was distributed, to the controller. To do this, you need the following: • The software distribution CD−ROM that came in the StorageWorks RAID Array 310 upgrade kit. • Windows 3.1 or 3.11, Windows for WorkGroups, Windows NT, or Windows 95 running on a PC with a CD−ROM drive and a serial connection to the RAID Array...

  • Page 62: Downloading The Software

    Getting Started – RAID Array 310 V3.1 for HP–UX 6. Double-click the HSZ term icon. You should receive the error message, “Cannot find the settings file HSZ.TRM”. Click OK. After the Terminal Program starts, select the Communications option from the Settings menu. Set these communication parameters: •...

  • Page 63: Downloading The Software

    Appendix C. Upgrading Controller Software C.4.1 Downloading the Software To download the new software, follow these steps: 1. Insert the distribution CD-ROM containing the binary file of the new software image into a CD-ROM drive of a computer connected to the RAID Array controller. 2.

  • Page 64: Select Send Binary Files From The Transfers Menu

    Getting Started – RAID Array 310 V3.1 for HP–UX 8. Exit any MS-Windows sessions and select Binary Transfers from the Settings menu to start Kermit. 9. Select Kermit and click OK. 10. Select Send Binary File from the Transfers menu to begin downloading the new software as shown in Figure B-1 CAUTION You must use a binary transfer mode.

  • Page 65: Select The V31Z.img File

    Appendix C. Upgrading Controller Software Figure C−2 Select the V31Z.IMG File When the download completes, the utility displays the following message before reprogramming the controller's program care: CAUTION Do not interrupt the power to the RAID subsystem while the CLCP Utility reprograms the controller. The CLCP utility saves the software in non-volatile RAM on the controller.

  • Page 66: C.5 Firmware Upgrade Procedures For Windows 95 And Windows Nt 4.0

    Getting Started – RAID Array 310 V3.1 for HP–UX The CLI displays information indicating the current software version of the controller similar to the following: Controller Model: HSZ20 Serial Number: CX54300265 Hardware version: A02(02) Software Version:V31Z Informational Report Instance Code: 0102030A Last Failure Code:86000020 (No Last Failure Parameters) Controller:...
  • Page 67 Appendix C. Upgrading Controller Software 4. At the “Connect To” menu, change the connection settings for your particular system setup by pressing the Enter key. Choose the appropriate com port for your system and click OK. NOTE COM1 is the default connection setting 5.

  • Page 68: C.5.1 Downloading The Software

    Getting Started – RAID Array 310 V3.1 for HP–UX C.5.1 Downloading the Software To download the new software, follow these steps: NOTE The Code Load/Code Patch (CLCP) Utility messages shown are for a RAID Array 310 Subsystem. The CLCP Utility messages for other RAID Array subsystems are similar.

  • Page 69: Select Send File From The Transfer Menu

    Appendix C. Upgrading Controller Software 7. Type: 2 and press the Return key. The utility displays the following message: Perform the following steps before continuing: • get new image file on the serial line host computer • configure KERMIT with the following parameters: •...

  • Page 70: Select The V31Z.img File

    Getting Started – RAID Array 310 V3.1 for HP–UX Figure C−4 Select the V31Z.IMG File When the download completes, the utility displays the following message before reprogramming the controller's program care: CAUTION Do not interrupt the power to the RAID subsystem while the CLCP Utility reprograms the controller.

  • Page 71: Reverting To Software Image Version 2.7

    Appendix C. Upgrading Controller Software Controller: HSZ20 CX54300265 Software V31Z, Hardware A02 Not configured for dual-redundancy SCSI address 7 Time: NOT SET Host Port: SCSI target(s) (0, 1, 2, 3), Preferred target(s) (0, 1, 2, 3) TRANSFER_RATE_REQUESTED = 10MB Cache: 16 megabyte write cache, version 2 Cache is GOOD Battery is GOOD...

  • Page 73: Appendix D Configuring Stripesets, Mirrorsets, And Striped Mirrorsets

    Configuring STRIPEsets, MIRRORsets, and Striped MIRRORsets This appendix supplements Chapter 2 and contains instructions for configuring STRIPEsets, MIRRORsets, and Striped MIRRORsets. Create a STRIPEset (Configuration Example 1) If your site requires STRIPEsets for storage, you must assign disks to each STRIPEset. STRIPEsets must have at least two members, and can have as many as fourteen.

  • Page 74: Add The Stripeset As A Logical Unit

    Getting Started – RAID Array 310 V3.1 for HP–UX D.1.2 Add the STRIPEset as a Logical Unit To make a STRIPEset available to the host computer, you must add it as a host logical unit with a unique unit number. The unit number is a one or three digit number preceded by “D”, such as “D0”...

  • Page 75: Add The Mirrorset As A Logical Unit

    Appendix D. Configuring STRIPEsets, MIRRORsets, and Striped MIRRORsets D.2.2 Add the MIRRORset as a Logical Unit To make a MIRRORset available to the host computer, you must add it as a host logical unit with a unique unit number. The unit number is a one or three digit number preceded by “D”, such as “D0”...

  • Page 76: Initialize The Striped Mirrorset

    Getting Started – RAID Array 310 V3.1 for HP–UX D.3.3 Initialize the Striped MIRRORset You must initialize the striped MIRRORset before you can put it into service. When you initialize a STRIPEset, you can optionally specify a chunksize. The chunksize is the number of blocks of data that are transferred at one time.

  • Page 77: Add Individual Disks As Logical Units (Configuration Example 2

    Appendix D. Configuring STRIPEsets, MIRRORsets, and Striped MIRRORsets Add Individual Disks as Logical Units (Configuration Example 2) Before you can put an individual disk into service, it must be initialized: HSZ20> INITIALIZE DISK120 HSZ20> INITIALIZE DISK220 If you require individual Disks to be available to the host as Logical Units, you must now identify the Disks as host logical units by using the ADD UNIT command.

  • Page 78: Verify And Record Your Configuration

    Getting Started – RAID Array 310 V3.1 for HP–UX The Auto New Spare feature only operates when the newly-inserted disk drive does not contain any metadata, such as a disk drive from the factory. You can use the transportable function to initialize a used device so that it no longer contains metadata by issuing the following CLI commands: HSZ20>...
  • Page 79 Appendix D. Configuring STRIPEsets, MIRRORsets, and Striped MIRRORsets Date__________________ Uses EK–SMRAB–IG. B01 D–7...
  • Page 80 Getting Started – RAID Array 310 V3.1 for HP–UX Next, verify the storagesets you have configured: HSZ20> SHOW STORAGESETS The controller responds with a display similar to that shown below: Configuration Example 1: Name Storageset Uses Used by ---------------------------------------------------------------- STRIPE1 stripeset DISK130 D100...
  • Page 81 Appendix D. Configuring STRIPEsets, MIRRORsets, and Striped MIRRORsets Date__________________ Name Storageset Uses Used By EK–SMRAB–IG. B01 D–9...
  • Page 82 Getting Started – RAID Array 310 V3.1 for HP–UX Single-device units and devices that have not been added to units are not shown in this report. To display these devices, enter the following: HSZ20> SHOW DEVICES The controller responds with a display similar to that shown below: Configuration Example 1: Name Type...
  • Page 83 Appendix D. Configuring STRIPEsets, MIRRORsets, and Striped MIRRORsets Date__________________ Name Type Port Targ Lun Used By EK–SMRAB–IG. B01 D–11...
